3-45 — LOAD SENSING PROPORTIONING VALVE (#5378) — 113 parça

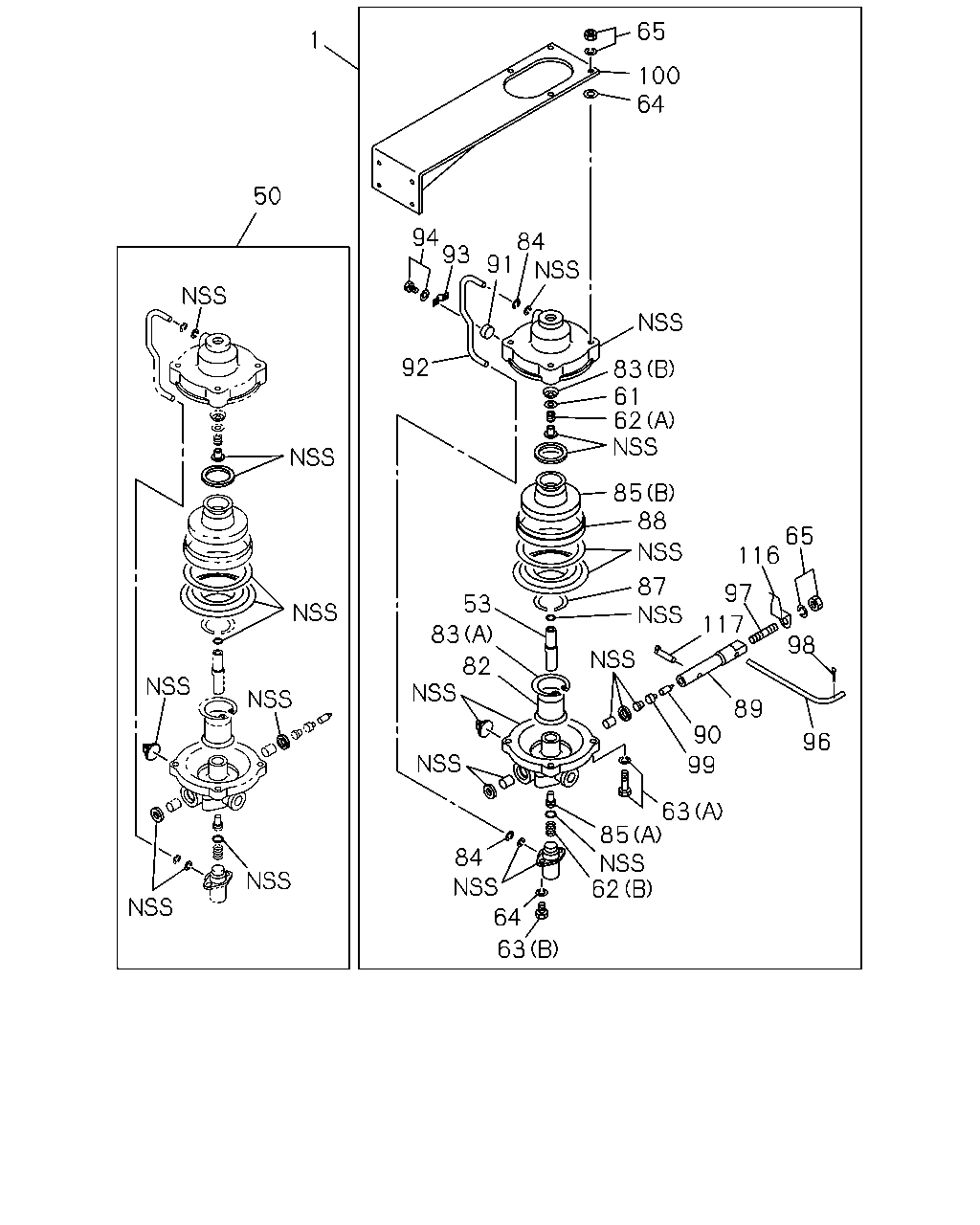

65 1 100 64 50 94 93 84 91 92 83 61 62 85 88 65 116 87 97 53 117 83 98 82 89 90 96 99 63 85 62 84 64 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
1	VALVE ASM; LOAD SENSING PROPORTIONING SAKHALIN EQUIPMENT(TLE)	1-47720-096-0	01	1	9706-9901	●
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-096-0	01	1	9902-	●
50	REPAIR KIT; LSPV SAKHALIN EQUIPMENT(TLE)	1-47769-088-0	01	1	9706-9901	●
50	REPAIR KIT; LSPV BRAKE REGULATION ECE<TDV>	1-47769-088-0	01	1	9902-	●
53	PLUNGER; LSPV SAKHALIN EQUIPMENT(TLE)	1-47769-033-0	01	1	9706-9901	●
53	PLUNGER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-033-0	01	1	9902-	●
61	RETAINER; SPRING SAKHALIN EQUIPMENT(TLE)	1-47769-026-0	01	1	9706-9901	●
61	RETAINER; SPRING BRAKE REGULATION ECE<TDV>	1-47769-026-0	01	1	9902-	●
62	SPRING; LSPV SAKHALIN EQUIPMENT(TLE) (A)	1-47769-025-0	01	1	9706-9901	●
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-025-0	01	1	9902-	●
62	SPRING; LSPV SAKHALIN EQUIPMENT(TLE) (B)	1-47769-042-0	01	1	9706-9901	●
62	SPRING; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-042-0	01	1	9902-	●
63	BOLT; LSPV SAKHALIN EQUIPMENT(TLE) (B)	1-47769-045-0	02	1	9706-9901	●
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-045-0	02	1	9902-	●
63	BOLT; LSPV SAKHALIN EQUIPMENT(TLE) (A)	1-47769-094-0	04	1	9706-9901	●
63	BOLT; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-094-0	04	1	9902-	●
64	WASHER; LSPV SAKHALIN EQUIPMENT(TLE)	1-47769-079-0	04	1	9706-9901	●
64	WASHER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-079-0	04	1	9902-	●
65	NUT; LSPV SAKHALIN EQUIPMENT(TLE)	1-48199-320-0	05	1	9706-9901	●
65	NUT; LSPV BRAKE REGULATION ECE<TDV>	1-48199-320-0	05	1	9902-	●
82	GUIDE; PISTON,LSPV SAKHALIN EQUIPMENT(TLE)	1-47769-016-0	01	1	9706-9901	●
82	GUIDE; PISTON,LSPV BRAKE REGULATION ECE<TDV>	1-47769-016-0	01	1	9902-	●
83	RING; SNAP,RET SAKHALIN EQUIPMENT(TLE) (A)	1-47769-017-0	01	1	9706-9901	●
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (A)	1-47769-017-0	01	1	9902-	●
83	RING; SNAP,RET SAKHALIN EQUIPMENT(TLE) (B)	1-47769-027-0	01	1	9706-9901	●
83	RING; SNAP,RET BRAKE REGULATION ECE<TDV> (B)	1-47769-027-0	01	1	9902-	●
84	RETAINER; GASKET SAKHALIN EQUIPMENT(TLE)	1-47769-021-0	02	1	9706-9901	●
84	RETAINER; GASKET BRAKE REGULATION ECE<TDV>	1-47769-021-0	02	1	9902-	●
85	PISTON; LSPV SAKHALIN EQUIPMENT(TLE) (B)	1-47769-023-0	01	1	9706-9901	●
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (B)	1-47769-023-0	01	1	9902-	●
85	PISTON; LSPV SAKHALIN EQUIPMENT(TLE) (A)	1-47769-043-0	01	1	9706-9901	●
85	PISTON; LSPV BRAKE REGULATION ECE<TDV> (A)	1-47769-043-0	01	1	9902-	●
87	RETAINER; DIAPH SAKHALIN EQUIPMENT(TLE)	1-47769-086-0	01	1	9706-9901	●
87	RETAINER; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-086-0	01	1	9902-	●
88	GUIDE; DIAPH SAKHALIN EQUIPMENT(TLE)	1-47769-032-0	01	1	9706-9901	●
88	GUIDE; DIAPH BRAKE REGULATION ECE<TDV>	1-47769-032-0	01	1	9902-	●
89	ROD; CONN,LSPV SAKHALIN EQUIPMENT(TLE)	1-47769-083-0	01	1	9706-9901	●
89	ROD; CONN,LSPV BRAKE REGULATION ECE<TDV>	1-47769-083-0	01	1	9902-	●
90	SCREW; CAM SAKHALIN EQUIPMENT(TLE)	1-47769-039-0	01	1	9706-9901	●
90	SCREW; CAM BRAKE REGULATION ECE<TDV>	1-47769-039-0	01	1	9902-	●
91	FILTER; LSPV SAKHALIN EQUIPMENT(TLE)	1-47769-047-0	01	1	9706-9901	●
91	FILTER; LSPV BRAKE REGULATION ECE<TDV>	1-47769-047-0	01	1	9902-	●
92	PIPE; LSPV SAKHALIN EQUIPMENT(TLE)	1-47769-048-0	01	1	9706-9901	●
92	PIPE; LSPV BRAKE REGULATION ECE<TDV>	1-47769-048-0	01	1	9902-	●
93	CLIP; PIPE SAKHALIN EQUIPMENT(TLE)	1-47769-050-0	01	1	9706-9901	●
93	CLIP; PIPE BRAKE REGULATION ECE<TDV>	1-47769-050-0	01	1	9902-	●
94	SCREW; CLIP SAKHALIN EQUIPMENT(TLE)	1-47769-144-0	02	1	9706-9901	●
94	SCREW; CLIP BRAKE REGULATION ECE<TDV>	1-47769-144-0	02	1	9902-	●
96	ARM; OPERATING SAKHALIN EQUIPMENT(TLE)	1-47769-143-0	01	1	9706-9901	●
96	ARM; OPERATING BRAKE REGULATION ECE<TDV>	1-47769-143-0	01	1	9902-	●
97	BOLT; OPERATING ARM SAKHALIN EQUIPMENT(TLE)	1-47769-081-0	01	1	9706-9901	●
97	BOLT; OPERATING ARM BRAKE REGULATION ECE<TDV>	1-47769-081-0	01	1	9902-	●
98	PIN; SPLIT SAKHALIN EQUIPMENT(TLE) OD=1.8 L=15	9-08112-015-0	01	1	9706-9901	●
98	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=15	9-08112-015-0	01	1	9902-	●
99	CAP; SCREW SAKHALIN EQUIPMENT(TLE)	1-47769-055-0	01	1	9706-9901	●
99	CAP; SCREW BRAKE REGULATION ECE<TDV>	1-47769-055-0	01	1	9902-	●
100	BRACKET; LSPV SAKHALIN EQUIPMENT(TLE)	1-47769-147-0	01	1	9706-9901	●
100	BRACKET; LSPV BRAKE REGULATION ECE<TDV>	1-47769-147-0	01	1	9902-	●
116	INDICATOR; LSPV SAKHALIN EQUIPMENT(TLE)	1-47769-078-0	01	1	9706-9901	●
116	INDICATOR; LSPV BRAKE REGULATION ECE<TDV>	1-47769-078-0	01	1	9902-	●
117	CAM; LSPV SAKHALIN EQUIPMENT(TLE)	1-47769-038-0	01	1	9706-9901	●
117	CAM; LSPV BRAKE REGULATION ECE<TDV>	1-47769-038-0	01	1	9902-	●

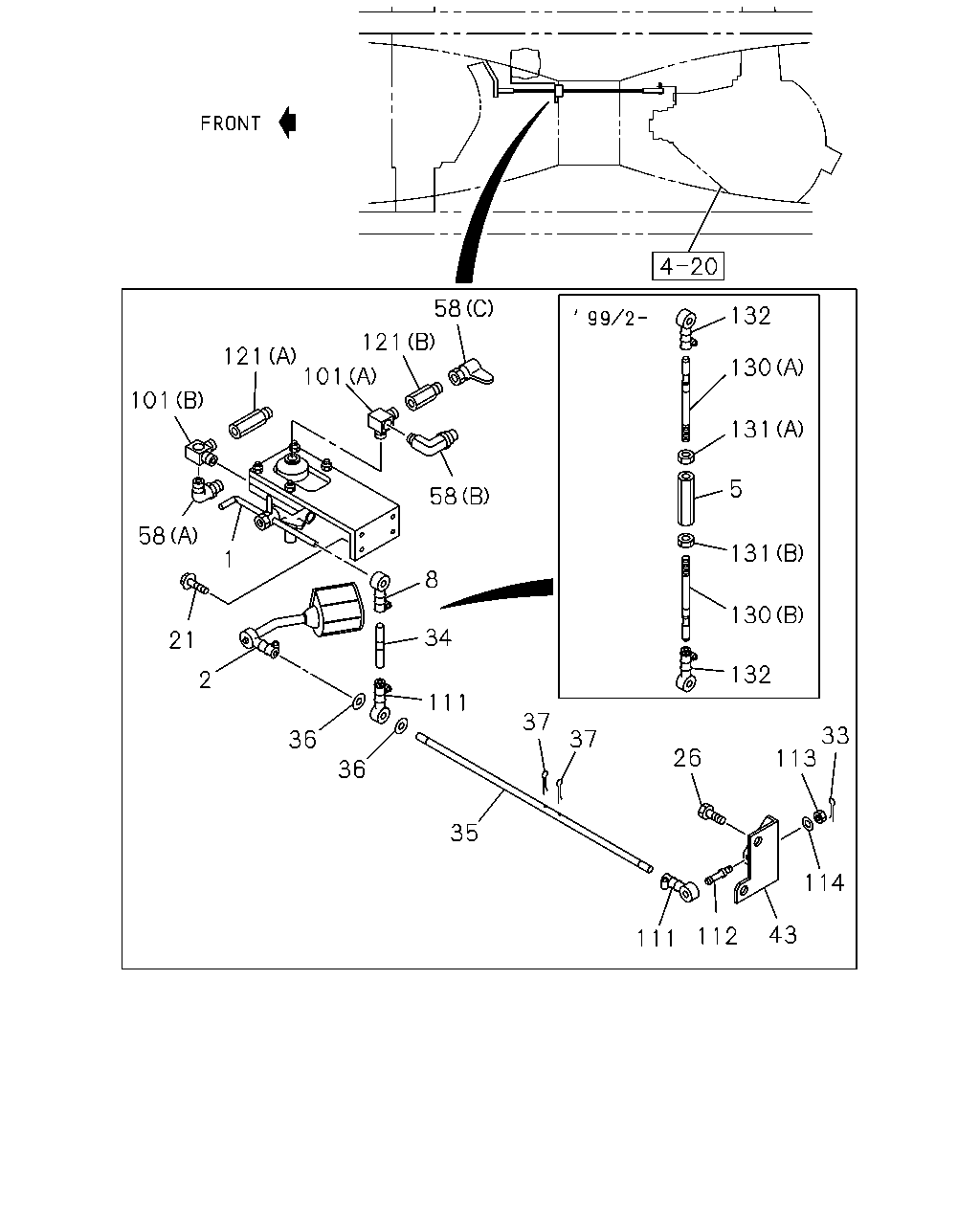

58 132 121 121 101 130 101 131 5 58 58 131 1 8 130 34 21 132 2 111 37 33 113 37 36 26 36 35 114 43 112 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE ASM; LOAD SENSING PROPORTIONING SAKHALIN EQUIPMENT(TLE)	1-47720-096-0	01	1	9706-9901	●
1	VALVE ASM; LOAD SENSING PROPORTIONING BRAKE REGULATION ECE<TDV>	1-47720-096-0	01	1	9902-	●
2	DAMPER SAKHALIN EQUIPMENT(TLE)	1-47725-016-0	01	1	9705-9901	●
2	DAMPER BRAKE REGULATION ECE<TDV>	1-47725-016-0	01	1	9902-	●	●
5	JOINT BRAKE REGULATION ECE<TDV>	1-09768-091-0	01	1	9902-	●	●
8	ROD END SAKHALIN EQUIPMENT(TLE)	1-47723-001-0	01	1	9705-9901	●
8	ROD END BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	9902-	●	●
21	BOLT; BRKT SAKHALIN EQUIPMENT(TLE) M8X35 FLANGE	0-28680-835-0	04	1	9706-9901	●
21	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28680-835-0	04	1	9902-	●	●
26	BOLT; DAMPER SAKHALIN EQUIPMENT(TLE) M8X12 FLANGE	0-28080-812-0	02	1	9705-9901	●
26	BOLT; DAMPER BRAKE REGULATION ECE<TDV> M8X12 FLANGE	0-28080-812-0	02	1	9902-	●	●
33	PIN; SPLIT SAKHALIN EQUIPMENT(TLE) OD=1.8 L=25	9-08112-025-0	01	1	9705-9901	●
33	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	01	1	9902-	●	●
34	ROD; LEVER TO ROD,LSPV SAKHALIN EQUIPMENT(TLE)	1-47725-025-0	01	1	9705-9901	●
34	ROD; LEVER TO ROD,LSPV BRAKE REGULATION ECE<TDV>	1-47725-025-0	01	1	9902-	●	●
35	ROD; LINK,LSPV SAKHALIN EQUIPMENT(TLE)	1-09740-086-0	01	1	9705-9901	●
35	ROD; LINK,LSPV BRAKE REGULATION ECE<TDV>	1-09740-086-0	01	1	9902-	●	●
36	WASHER; PL,ROD SAKHALIN EQUIPMENT(TLE) ID=8.4	9-09160-508-0	02	1	9705-9901	●
36	WASHER; PL,ROD BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	9902-	●	●
37	PIN; SPLIT,ROD SAKHALIN EQUIPMENT(TLE) OD=1.8 L=25	9-08112-025-0	02	1	9705-9901	●
37	PIN; SPLIT,ROD BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	02	1	9902-	●	●
43	BRACKET; DAMPER TO AXLE SAKHALIN EQUIPMENT(TLE)	1-42129-185-0	01	1	9705-9901	●
43	BRACKET; DAMPER TO AXLE BRAKE REGULATION ECE<TDV>	1-42129-185-0	01	1	9902-	●	●
58	CONNECTOR; LSPV SAKHALIN EQUIPMENT(TLE) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	9706-9712	●
58	CONNECTOR; LSPV SAKHALIN EQUIPMENT(TLE) (B) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9801-9901	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-	●
58	CONNECTOR; LSPV SAKHALIN EQUIPMENT(TLE) (C)	1-47459-014-0	01	1	9706-9901	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (C)	1-47459-014-0	01	1	9902-	●
58	CONNECTOR; LSPV SAKHALIN EQUIPMENT(TLE) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9801-9901	●
58	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-	●
101	CONNECTOR; LSPV SAKHALIN EQUIPMENT(TLE) (B)	1-09656-557-1	01	1	9706-9901	●
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (B)	1-09656-557-1	01	1	9902-	●
101	CONNECTOR; LSPV SAKHALIN EQUIPMENT(TLE) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9706-9901	●
101	CONNECTOR; LSPV BRAKE REGULATION ECE<TDV> (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9902-	●
111	RUBBER; JOINT,LSPV SAKHALIN EQUIPMENT(TLE)	1-47723-001-0	01	1	9705-9901	●
111	RUBBER; JOINT,LSPV BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	9902-	●	●
112	PIN; JOINT RUBBER SAKHALIN EQUIPMENT(TLE)	1-09744-123-0	01	1	9705-9901	●
112	PIN; JOINT RUBBER BRAKE REGULATION ECE<TDV>	1-09744-123-0	01	1	9902-	●	●
113	NUT; JOINT RUBBER SAKHALIN EQUIPMENT(TLE) M8 FLANGE	0-91150-108-0	01	1	9705-9901	●
113	NUT; JOINT RUBBER BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	9902-	●	●
114	WASHER; PL,JOINT RUBBER BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	9902-	●	●
121	ADAPTER SAKHALIN EQUIPMENT(TLE) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9706-9901	●
121	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0007	●
121	ADAPTER BRAKE REGULATION ECE<TDV> (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-	●
121	ADAPTER SAKHALIN EQUIPMENT(TLE) (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9706-9901	●
121	ADAPTER BRAKE REGULATION ECE<TDV> (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9902-	●
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (B)	1-09765-282-0	01	1	9902-	●	●
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (A)	1-09765-283-0	01	1	9902-	●	●
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (A) LH THREAD	1-09409-002-0	01	1	9902-	●	●
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (B)	1-48119-089-0	01	1	9902-	●	●
132	RUBBER ASM; CONN BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	9902-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
