3-40 — FRONT BRAKE POWER CHAMBER (#5376) — 41 parça

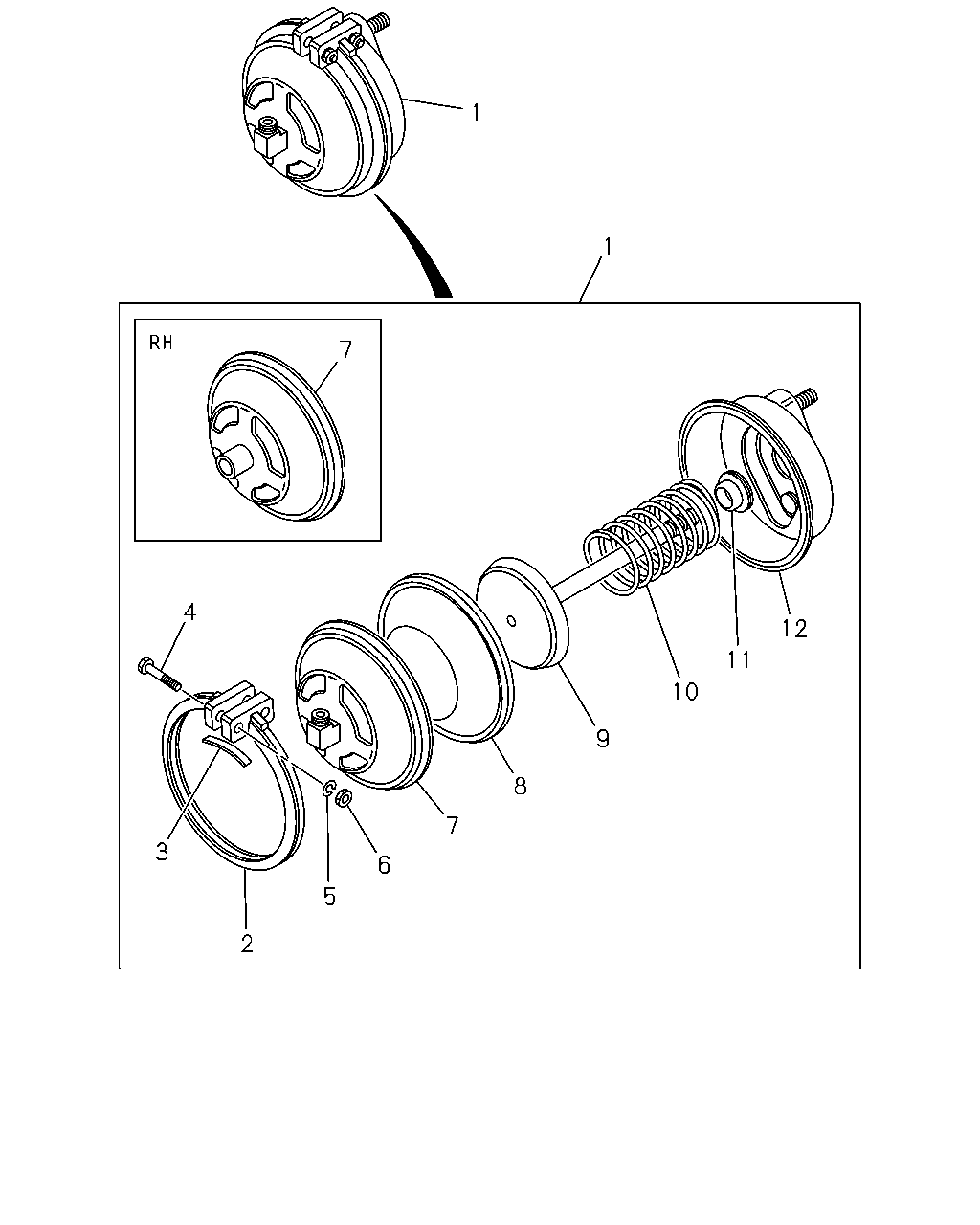

çizim 39451
1 1 7 4 12 11 10 9 8 7 3 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-338-0 02 1 9603-9705 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) 		1-48250-338-0 02 1 9706-9912 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48250-338-0 02 1 0001- ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) 		1-48250-338-0 01 1 9706-9901 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, WHEEL8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48250-338-0 01 1 9902-9912 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48250-338-0 01 1 0001- ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) 		1-48250-524-0 01 1 9706-9901 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, WHEEL8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48250-524-0 01 1 9902-9912 ● ●
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48250-524-0 01 1 0001- ● ●
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-001-0 02 1 9603- ● ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		9-48259-016-0 04 1 9603-9705 ● ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) 		9-48259-016-0 04 1 9706-9912 ● ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		9-48259-016-0 04 1 0001- ● ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) 		9-48259-016-0 03 1 9706-9901 ● ●
3 RETAINER; DIAPH
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, WHEEL8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		9-48259-016-0 03 1 9902-9912 ● ●
3 RETAINER; DIAPH
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		9-48259-016-0 03 1 0001- ● ●
4 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48259-002-0 04 1 9603- ● ●
5 WASHER; LK,CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.2 		9-09150-510-0 04 1 9603- ● ●
6 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 		9-09110-010-0 04 1 9603- ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-039-0 02 1 9603-9705 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) 		1-48251-039-0 02 1 9706-9912 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48251-039-0 02 1 0001- ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) 		1-48251-007-0 01 1 9706-9901 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, WHEEL8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-007-0 01 1 9902-9912 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48251-007-0 01 1 0001- ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) 		1-48251-039-0 01 1 9706-9901 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, WHEEL8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-039-0 01 1 9902-9912 ● ●
7 COVER ASM; UPR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48251-039-0 01 1 0001- ● ●
8 DIAPHRAGM; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-006-0 02 1 9603- ● ●
9 PISTON; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48253-001-0 02 1 9603- ● ●
10 SPRING; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48255-001-0 02 1 9603- ● ●
11 SEAL; PISTON,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48252-025-0 02 1 9603- ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-019-0 02 1 9603-9705 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE) 		1-48251-019-0 02 1 9706-9912 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV> 		1-48251-019-0 02 1 0001- ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) 		1-48251-019-0 01 1 9706-9901 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, WHEEL8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-019-0 01 1 9902-9912 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48251-019-0 01 1 0001- ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) 		1-48251-018-0 01 1 9706-9901 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>, WHEEL8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> 		1-48251-018-0 01 1 9902-9912 ● ●
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BRAKE REGULATION ECE<TDV> 		1-48251-018-0 01 1 0001- ● ●
