0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#53755) — 46 parça

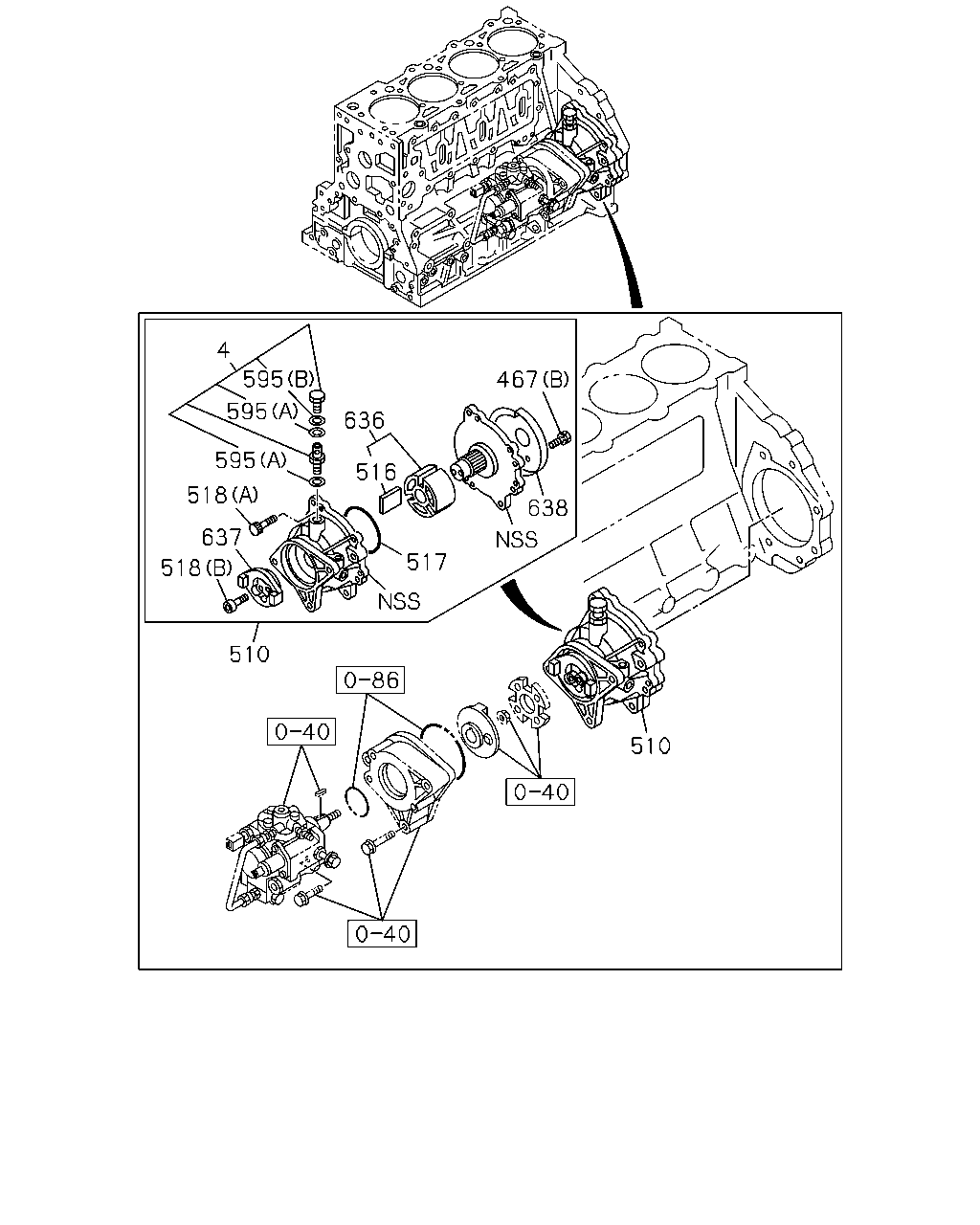

4 595 467 595 636 595 516 518 638 637 517 518 510 510

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0804-
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	0804-
467	00.686 BOLT; PLATE 05.815 (A) M6X10	0-20800-610-0	06	1	0804-0805
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	0806-
510	04.895 PUMP ASM; VACUUM 03.306	8-97388-589-6	01	1	0804-
516	04.895 VANE; VAC PUMP	8-98051-279-0	03	1	0804-
517	04.895 GASKET; VAC PUMP	8-98051-280-0	01	1	0804-
518	04.895 BOLT; VAC PUMP 01.531 (A) M6X25 W/LK&PL WASHER	0-50640-625-0	03	1	0804-
518	04.895 BOLT; VAC PUMP (B) M8X20	8-98051-277-0	02	1	0804-
595	00.213 GASKET; VLV (B) ID=12	8-98018-518-0	01	1	0804-
595	00.213 GASKET; VLV (A) ID=18	8-98018-519-0	02	1	0804-
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98051-281-0	01	1	0804-
637	00.206 COUPLING; VAC PUMP	8-98051-278-0	01	1	0804-
638	00.206 PLATE KIT; VAC PUMP	8-98051-276-0	01	1	0804-

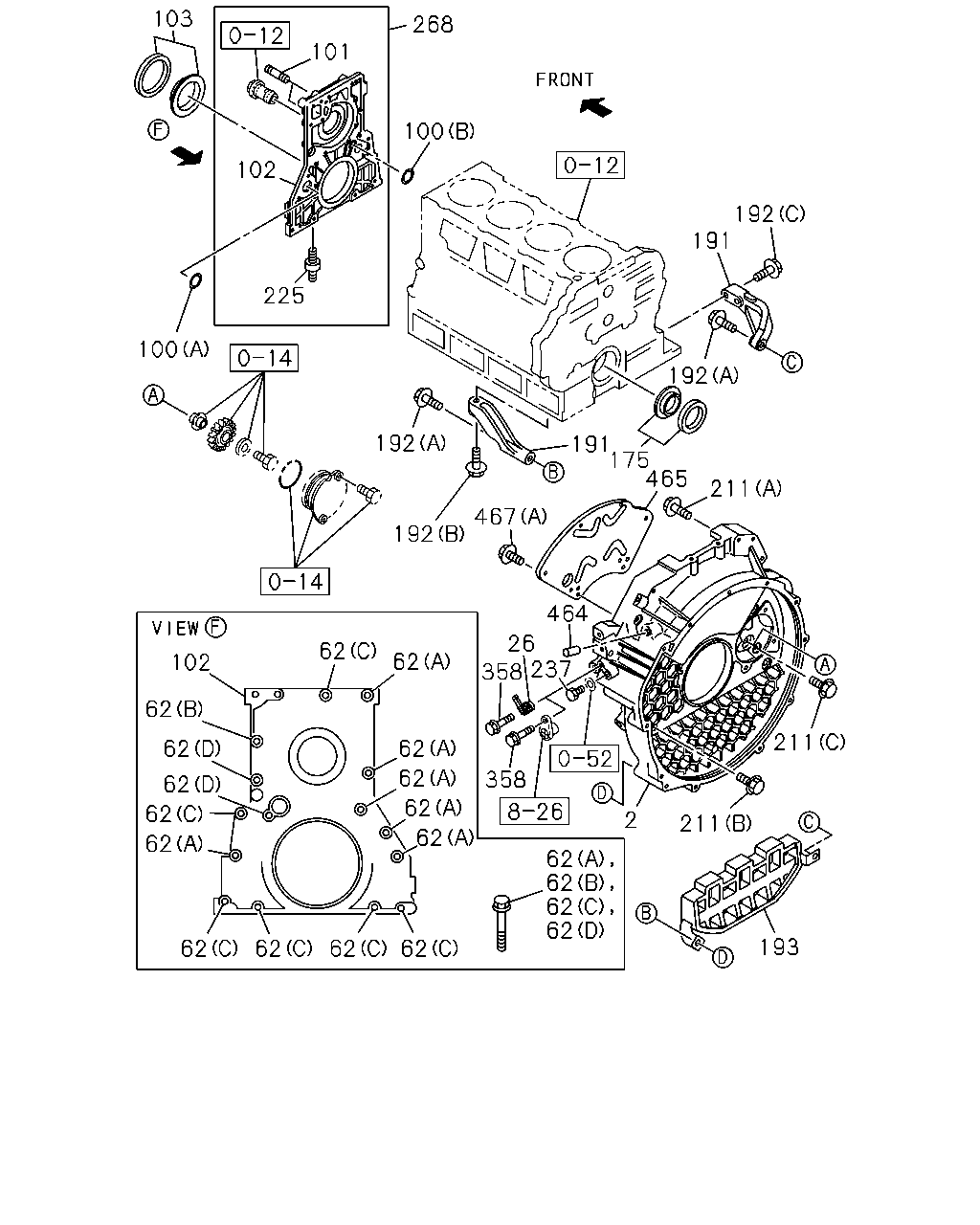

62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 103 102 225 100 192 192 26 237 358 358 2 211 193 211 211 465 175 191 467 192 192 191 464 100 101 268 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	00.683 HOUSING; FLYWHEEL	8-97364-901-5	01	1	0804-
26	03.306 ADAPTER	8-97354-819-0	01	1	0804-
62	00.206 BOLT; COVER 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	06	1	0804-
62	00.206 BOLT; COVER 03.403 (B) M8X30 FLANGE	0-28650-830-0	01	1	0804-
62	00.206 BOLT; COVER 01.060 (C) M8X35 FLANGE	0-28650-835-0	06	1	0804-
62	00.206 BOLT; COVER 01.097 (D) M8X65 FLANGE	1-09044-072-1	02	1	0804-
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0804-
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0804-
101	01.073 STUD; WATER PUMP 01.428 UPPER M8X18 L=30	0-41010-818-0	01	1	0804-
101	01.073 STUD; WATER PUMP 00.206 LOWER M8X18 L=29	8-97028-541-0	01	1	0804-
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	0804-
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0804-
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0804-
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0804-
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0804-
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X40 FLANGE	0-28151-040-0	02	1	0804-
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0804-
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0804-
193	01.428 SPACER; STAY TO OIL,PAN	8-97259-536-0	01	1	0804-1010
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	0804-
211	00.669 BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	02	1	0804-
211	00.669 BOLT; HSG (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0804-1102
211	00.669 BOLT; HSG (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0804-
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0804-
268	00.206 COVER; FRT	8-98039-931-2	01	1	0804-
358	00.206 BOLT; ADAPTER 09.242 M6X16 FLANGE IDN	0-28050-616-0	01	1	0804-
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0804-
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0804-
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	0804-
467	00.686 BOLT; PLATE 05.815 (A) M6X10	0-20800-610-0	06	1	0804-0805
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	0806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
