Isuzu WW
▶
TRUCKS
▶
NPS
▶
51403 - NPS INDONESIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶

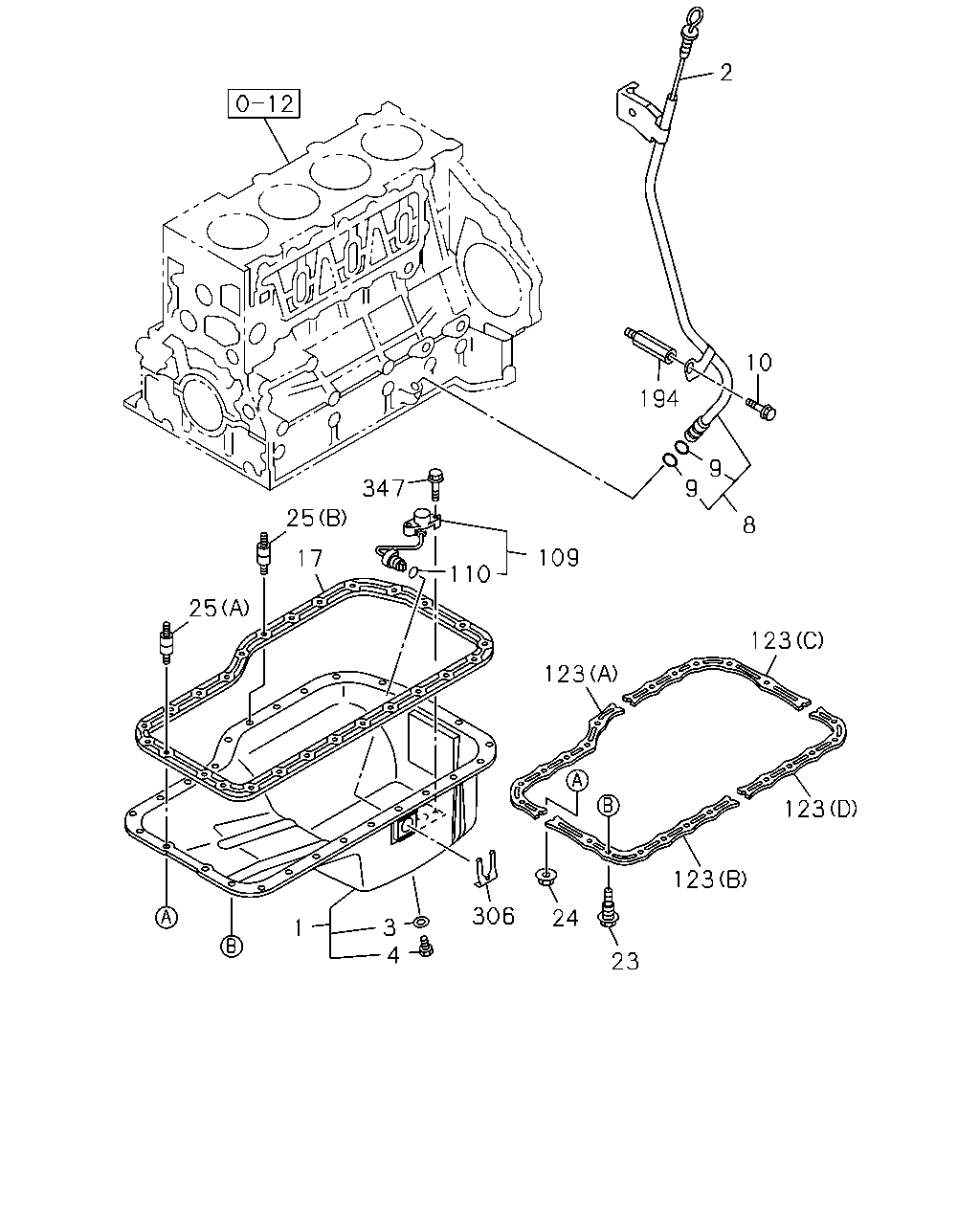

0-13 — OIL PAN AND LEVEL GAUGE
(#53752) — 21 parça
9
9
8
123
123
123
23
24
306
3
4
1
25
17
25
347
110
109
123
194
10
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.426 PAN ASM; OIL
8-98039-422-0
01
1
0804-
2
01.516 GAUGE; OIL LEVEL
8-98091-931-0
01
1
0804-
3
01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
0804-
4
01.453 PLUG; DRAIN,OIL
03.001 M14X14 IDN
8-94152-613-0
01
1
0804-
8
01.516 TUBE; GUIDE,OIL LEVEL GAUGE
8-98039-161-0
01
1
0804-
9
01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11
1-09623-469-0
02
1
0804-
10
01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE IDN
0-28650-820-0
01
1
0804-
17
01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97364-386-0
01
1
0804-
23
01.428 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97190-390-0
13
1
0804-
24
01.453 NUT; OIL PAN
01.062 M8 FLANGE IDN
0-91180-108-0
13
1
0804-
25
01.453 STUD; OIL PAN
(B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
8-97190-391-0
01
1
0804-
25
01.453 STUD; OIL PAN
01.428 (A) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
09
1
0804-
109
01.516 SWITCH; OIL LEVEL
8-97328-993-1
01
1
0804-
110
01.456 GASKET; SW,OIL LEVEL
8-98048-191-0
01
1
0804-
123
01.516 RUBBER; SEAL OIL
(A)
8-97186-988-0
01
1
0804-
123
01.516 RUBBER; SEAL OIL
(B)
8-97186-994-0
01
1
0804-
123
01.516 RUBBER; SEAL OIL
(C)
8-97186-998-0
01
1
0804-
123
01.516 RUBBER; SEAL OIL
(D)
8-97187-000-0
01
1
0804-
194
01.429 SPACER; GUIDE TUBE
8-97101-215-0
01
1
0804-
306
01.516 CLIP; CONNECTOR
8-97229-219-0
01
1
0804-
347
01.516 BOLT; OIL LEVEL SW
00.685 M6X25 FLANGE IDN
0-28650-625-0
02
1
0804-
