8-65 — CONTROL LEVER; HEATER AND AIR CON (#53742) — 22 parça

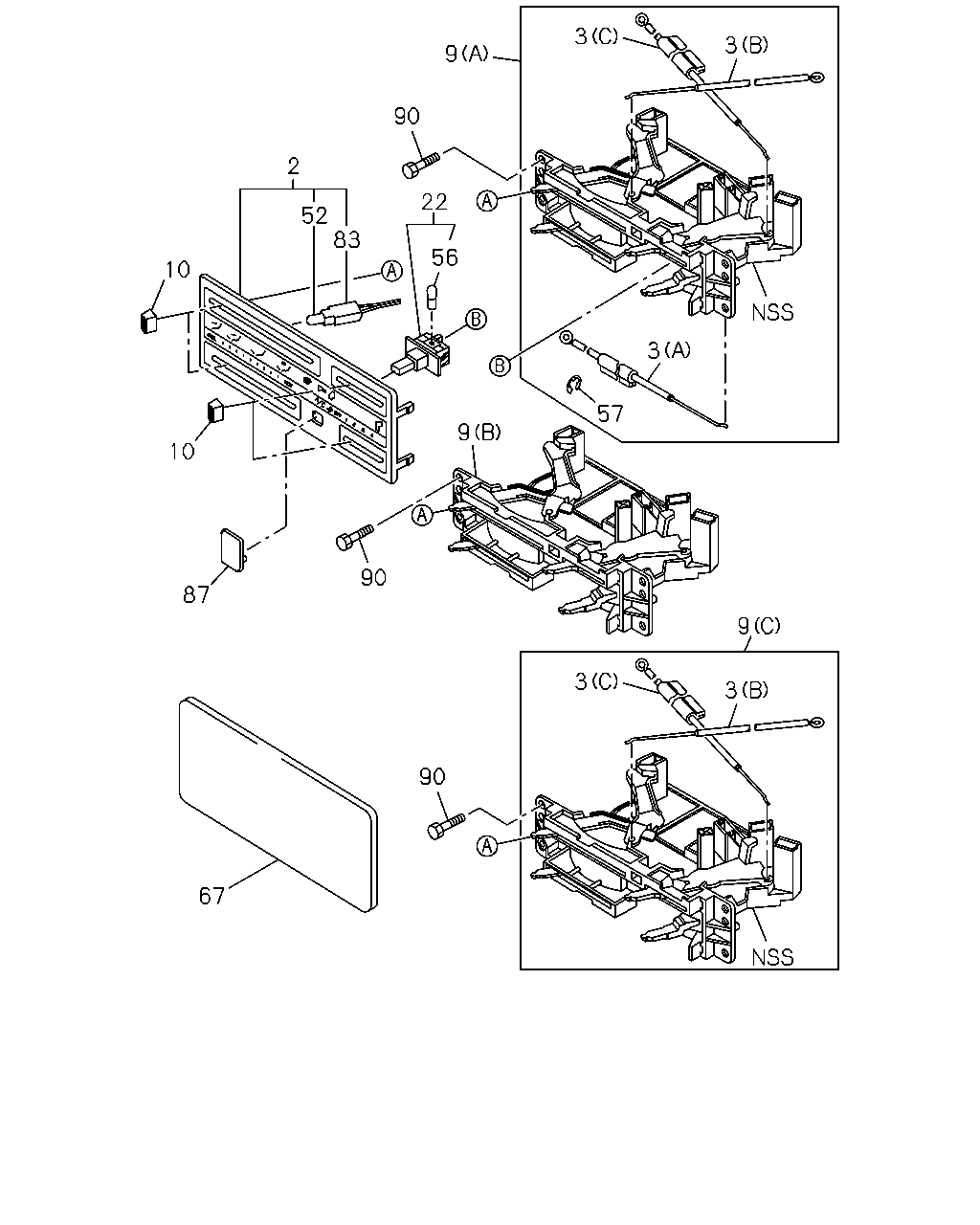

çizim 18577
3 3 9 90 2 22 52 83 56 10 3 57 9 10 90 87 9 3 3 90 67
BalonParca AdiParca NoAdetTipApplied Date
2 08.852 PANEL ASM; CONT,ILLUMINATION 8-97048-331-2 01 1 0311-
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97085-617-2 01 1 0311-
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97085-618-1 01 1 0311-0501
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39) (B) MODE 		8-97085-618-1 01 1 0502-
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97085-619-2 01 1 0311-0501
3 09.787 CABLE; HTR CONT LVR
EXC. FORGED AIR VENTILATION(C39) (C) FRESH 		8-97085-619-2 01 1 0502-
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) 		8-97381-351-0 01 1 0502-
9 08.852 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97048-613-4 01 1 0311-
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97073-346-0 01 1 0311-0501
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97073-346-0 01 1 0502-
10 08.852 KNOB; CONT LEVER
FORGED AIR VENTILATION(C39) 		8-97114-430-0 02 1 0502-
10 08.852 KNOB; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 0311-
10 08.852 KNOB; CONT LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0311-0501
10 08.852 KNOB; CONT LEVER
EXC. FORGED AIR VENTILATION(C39),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0502-
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-97048-329-1 01 1 0311-0501
52 08.991 BULB; PANEL ILLUMINATION
28V 65MA 		8-97182-225-0 01 1 0311-
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 28V 33MA 		8-97182-224-0 01 1 0311-0501
57 09.787 RING; SNAP,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-535-0 01 1 0311-
67 08.849 CAP; BEZEL,CONT LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 0311-
83 08.849 HARNESS; CONT PANEL 8-97308-566-0 01 1 0311-
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0311-
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0311-
