Isuzu WW
▶
TRUCKS
▶
NPS
▶
51402 - NPS INDONESIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

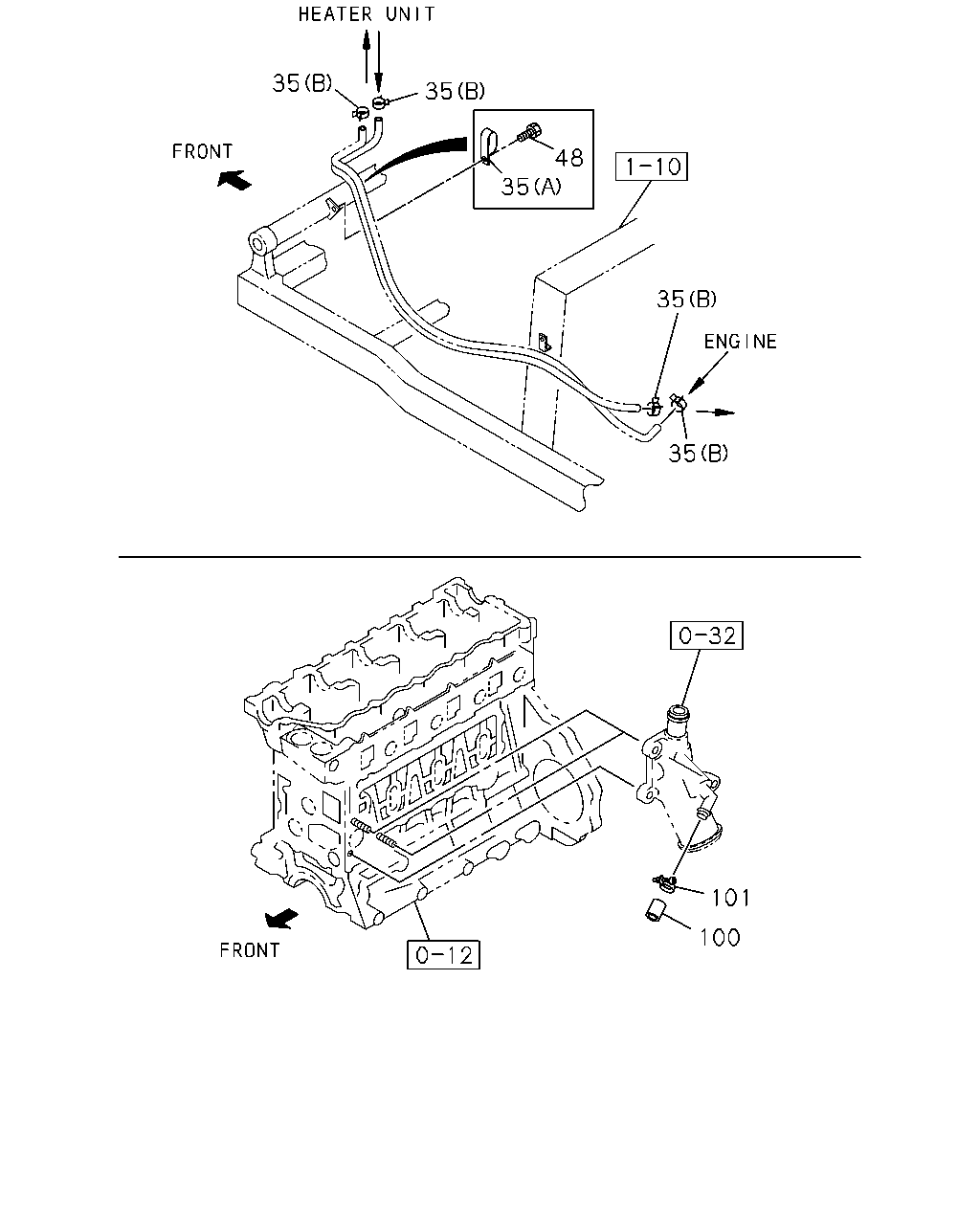

8-45 — HEATER PIPING
(#53738) — 8 parça
35
35
48
35
35
35
101
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
08.852 CLIP; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18
9-83651-948-1
01
1
0311-0610
35
08.852 CLIP; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60) 08.846 (A) B=18
8-97359-144-0
01
1
0611-
35
08.852 CLIP; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22
8-94382-401-0
04
1
0311-0610
35
08.852 CLIP; WATER HOSE
AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22
8-97359-141-0
04
1
0611-
48
09.262 BOLT; CLIP FIX
AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE
0-28080-612-0
01
1
0311-0512
48
09.262 BOLT; CLIP FIX
AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE
0-28050-612-0
01
1
0601-
100
08.846 CAP; RUBBER,WATER PIPE
01.166
8-94107-793-0
01
1
0311-
101
08.846 CLIP; CAP,WATER PIPE
01.166 ID=25
8-94233-115-0
01
1
0311-
