8-28 — CHASSIS ELECTRICAL (#53736) — 40 parça

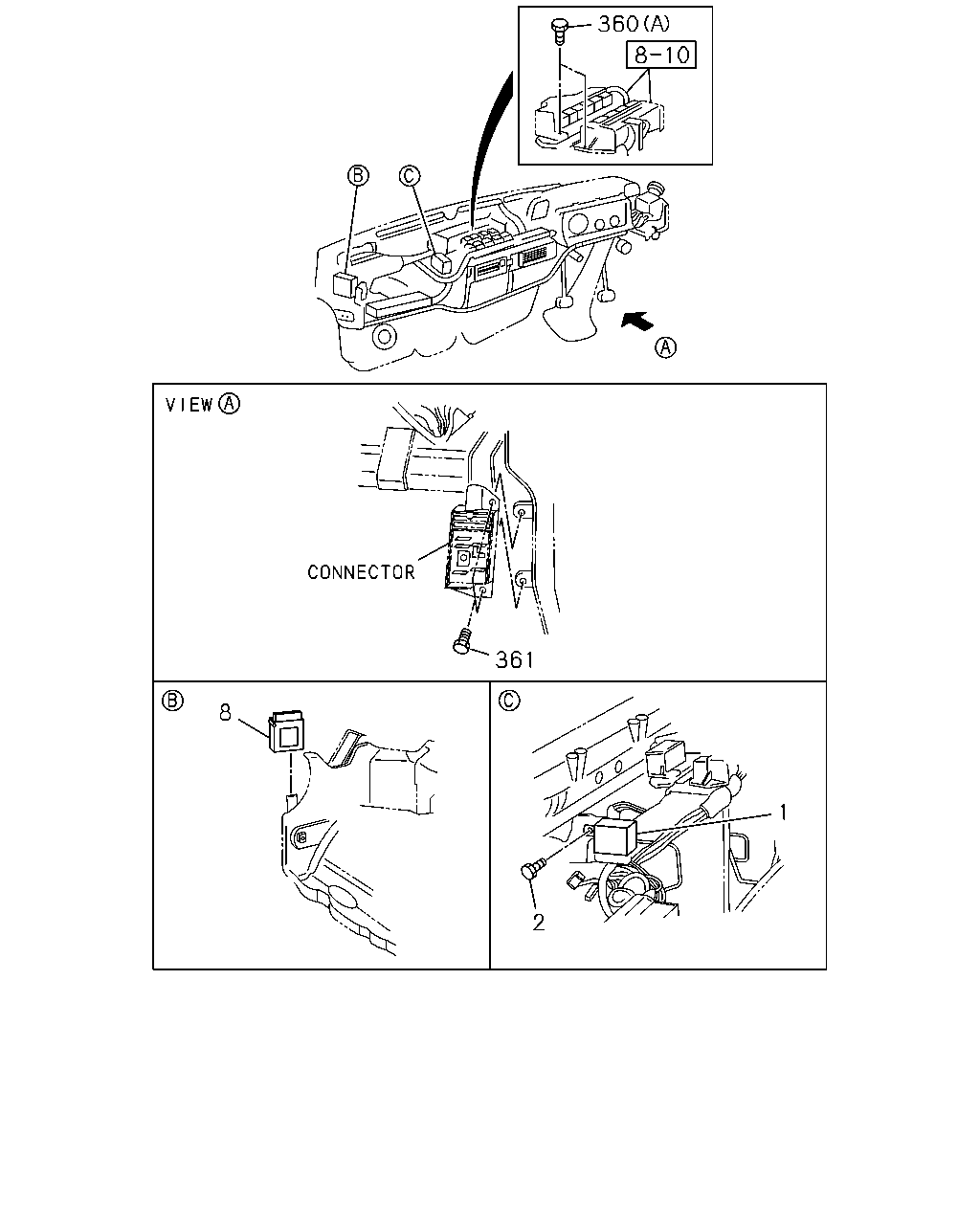

çizim 18746
361 8 1 2 360
BalonParca AdiParca NoAdetTipApplied Date
1 02.575 UNIT; FLASHER 8-97360-084-1 01 1 0311-
2 02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 01 1 0311-
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97363-983-0 01 1 0311-
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0311-
360 02.483 BOLT; RELAY BOX
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0311-0512
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0611
360 02.483 BOLT; RELAY BOX
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0612-
360 02.483 BOLT; RELAY BOX
02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 0311-0512
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601-0611
360 02.483 BOLT; RELAY BOX
06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0612-
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0311-
361 02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0311-
çizim 18919
100 360 100 360 45 46 44
BalonParca AdiParca NoAdetTipApplied Date
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97211-741-2 01 1 0311-
45 02.810 HORN; LOW NOTE
SINGLE HEAVY DUTY HORN<6HG> 		8-97109-364-1 01 1 0311-
45 02.810 HORN; LOW NOTE
EXC. SINGLE HEAVY DUTY HORN<6HG> 		8-97211-740-2 01 1 0311-
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0311-1004
46 02.812 BOLT; HORN TO BODY
DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1005-
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0311-1004
46 02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN<U05> 02.343 M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005-
100 09.277 NUT; RELAY BOX COVER
07.633 M8 FLANGE 		0-91150-108-0 02 1 0311-0602
100 09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603-
360 02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0311-
360 02.483 BOLT; RELAY BOX
01.062 (B) M8X16 FLANGE 		0-28080-816-0 01 1 0311-0512
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0601-0611
360 02.483 BOLT; RELAY BOX
02.343 (B) M8X16 FLANGE 		0-28050-816-0 01 1 0612-
360 02.483 BOLT; RELAY BOX
02.559 (C) M8X25 FLANGE 		0-28680-825-0 04 1 0311-0512
360 02.483 BOLT; RELAY BOX
4HG1 ENG(RJH) 06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0601-0611
360 02.483 BOLT; RELAY BOX
06.216 (C) M8X25 FLANGE 		0-28650-825-0 04 1 0612-

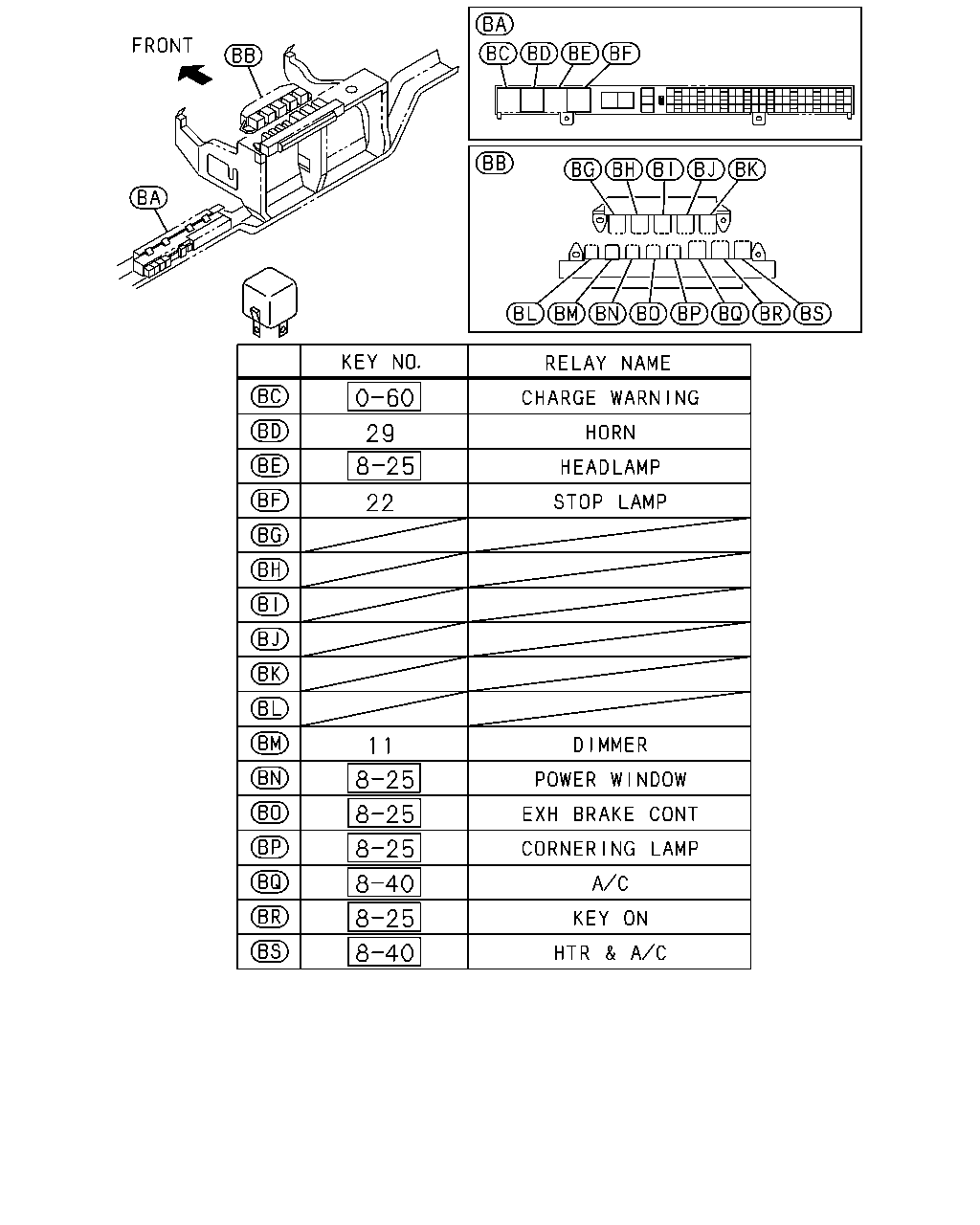

çizim 19512
29 22 11
BalonParca AdiParca NoAdetTipApplied Date
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0311-0501
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0311-0501
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0311-0501
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
çizim 98961
22 11 29
BalonParca AdiParca NoAdetTipApplied Date
11 02.485 RELAY; DIMMER
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0311-0501
11 02.485 RELAY; DIMMER
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0311-0501
22 02.679 RELAY; STOP LAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
29 02.815 RELAY; HORN
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0311-0501
29 02.815 RELAY; HORN
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502-
