◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51402 - NPS INDONESIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#53733) — 68 parça

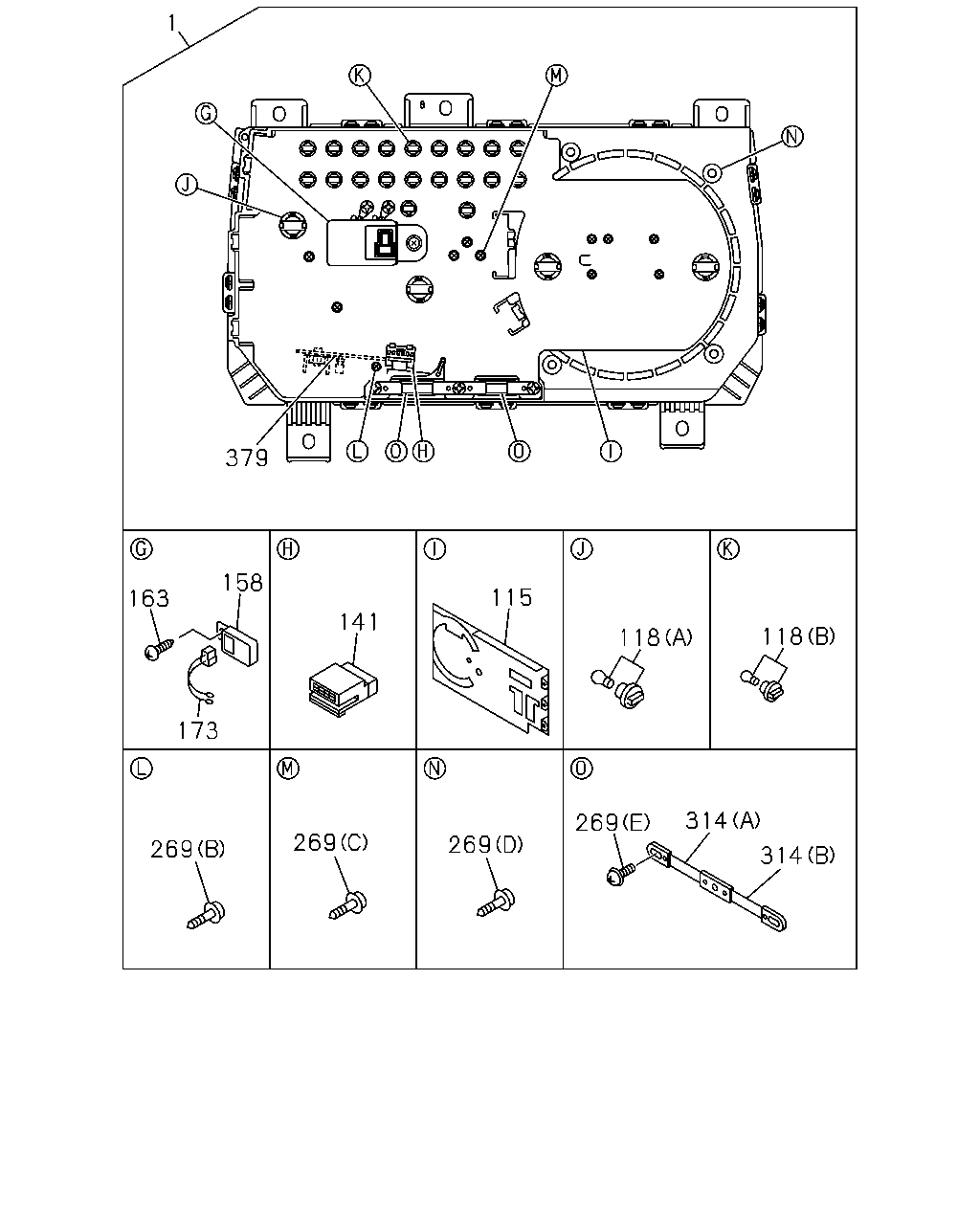

çizim 20284
1 379 158 115 163 141 118 118 173 314 269 269 269 269 314
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) 		8-98000-849-1 01 1 0612-
1 09.735 METER COMPL; CLUSTER
TURBOCHARGER(K51) 		8-97217-080-0 01 1 0311-0501
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) 		8-97385-412-1 01 1 0502-
1 09.735 METER COMPL; CLUSTER
EXC. TURBOCHARGER(K51) 		8-97170-601-2 01 1 0311-0501
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1-T ENG(RDP) 		8-97210-311-0 01 1 0612-
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
TURBOCHARGER(K51) 		8-97210-311-0 01 1 0311-0501
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
EXC. TURBOCHARGER(K51) 		8-97185-507-0 01 1 0311-0501
115 09.744 CIRCUIT; PRINTED,CLUSTER METER
4HG1 ENG(RJH) 		8-97185-507-0 01 1 0502-
118 08.991 BULB; CLUSTER METER
4HG1-T ENG(RDP) (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 11 1 0612-
118 08.991 BULB; CLUSTER METER
TURBOCHARGER(K51) (A) 12V SOCKET COLOR BLACK 		8-97185-535-0 04 1 0311-0501
118 08.991 BULB; CLUSTER METER
TURBOCHARGER(K51) (B) 12V SOCKET COLOR BLUE 		8-97185-537-0 02 1 0311-0501
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 10 1 0311-0501
118 08.991 BULB; CLUSTER METER
4HG1 ENG(RJH) (B) 24V SOCKET COLOR DARK BROWN 		8-97185-539-0 10 1 0502-
118 08.991 BULB; CLUSTER METER
EXC. TURBOCHARGER(K51) (A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0311-0501
118 08.991 BULB; CLUSTER METER
(A) 24V SOCKET COLOR DARK BROWN 		8-97185-538-0 04 1 0502-
118 08.991 BULB; CLUSTER METER
EXC. TURBOCHARGER(K51) (B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0311-0501
118 08.991 BULB; CLUSTER METER
(B) 24V SOCKET COLOR REDDISH BROWN 		8-97185-540-0 02 1 0502-
141 09.744 CONNECTOR; CLUSTER METER 8-97185-513-0 01 1 0311-
158 09.765 BUZZER; VAC WARNING
24V 		8-97185-519-0 01 1 0311-
163 08.977 SCREW; BUZZER 8-97185-527-0 01 1 0311-
173 09.744 WIRE; LEAD 8-97185-643-0 01 1 0311-
269 09.743 SCREW; METER CLUSTER
TURBOCHARGER(K51) (E) 		8-97185-528-0 02 1 0311-0501
269 09.743 SCREW; METER CLUSTER
(E) 		8-97185-528-0 05 1 0502-
269 09.743 SCREW; METER CLUSTER
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0311-
269 09.743 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0311-
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-524-0 08 1 0311-
269 09.743 SCREW; METER CLUSTER
(D) 		8-97185-525-0 06 1 0311-
269 09.743 SCREW; METER CLUSTER
EXC. TURBOCHARGER(K51) (E) 		8-97185-528-0 05 1 0311-0501
314 09.765 RESISTOR; COMB METER,CLUSTER MET
(A) 		8-97185-515-0 01 1 0311-
314 09.765 RESISTOR; COMB METER,CLUSTER MET
(B) 		8-97185-516-0 01 1 0311-
379 09.744 CIRCUIT; DROP 8-97185-512-0 01 1 0311-

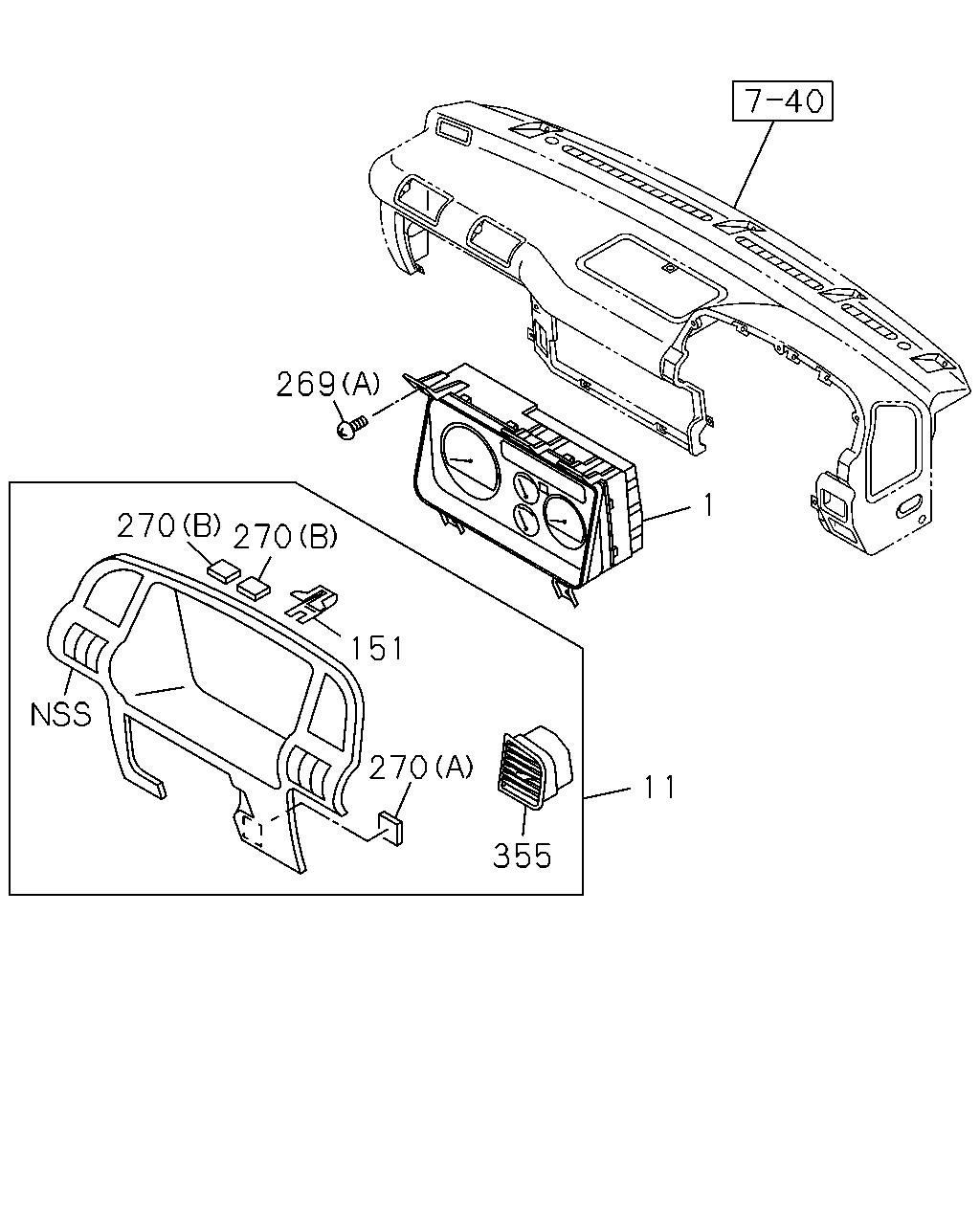

çizim 98772
269 1 270 270 151 270 11 355
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) 		8-98000-849-1 01 1 0612-
1 09.735 METER COMPL; CLUSTER
TURBOCHARGER(K51) 		8-97217-080-0 01 1 0311-0501
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) 		8-97385-412-1 01 1 0502-
1 09.735 METER COMPL; CLUSTER
EXC. TURBOCHARGER(K51) 		8-97170-601-2 01 1 0311-0501
11 09.743 CLUSTER ASM; METER
BLACK 		8-97195-965-2 01 1 0311-
151 09.747 CLIP; METER CLUSTER 8-97217-066-0 07 1 0311-
269 09.743 SCREW; METER CLUSTER
TURBOCHARGER(K51) (E) 		8-97185-528-0 02 1 0311-0501
269 09.743 SCREW; METER CLUSTER
(E) 		8-97185-528-0 05 1 0502-
269 09.743 SCREW; METER CLUSTER
08.225 (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0311-
269 09.743 SCREW; METER CLUSTER
(B) 		8-97185-523-0 01 1 0311-
269 09.743 SCREW; METER CLUSTER
(C) 		8-97185-524-0 08 1 0311-
269 09.743 SCREW; METER CLUSTER
(D) 		8-97185-525-0 06 1 0311-
269 09.743 SCREW; METER CLUSTER
EXC. TURBOCHARGER(K51) (E) 		8-97185-528-0 05 1 0311-0501
270 09.743 CUSHION; METER CLUSTER
16.085 (A) 15X30 T=5 		8-94270-366-2 01 1 0311-
270 09.743 CUSHION; METER CLUSTER
(B) 6X30 T=2 		8-94270-378-1 02 1 0311-
355 09.748 GRILLE; VENT
BLACK 		8-97195-966-1 01 1 0311-
355 09.748 GRILLE; VENT
BLACK 		8-97195-967-1 01 1 0311-

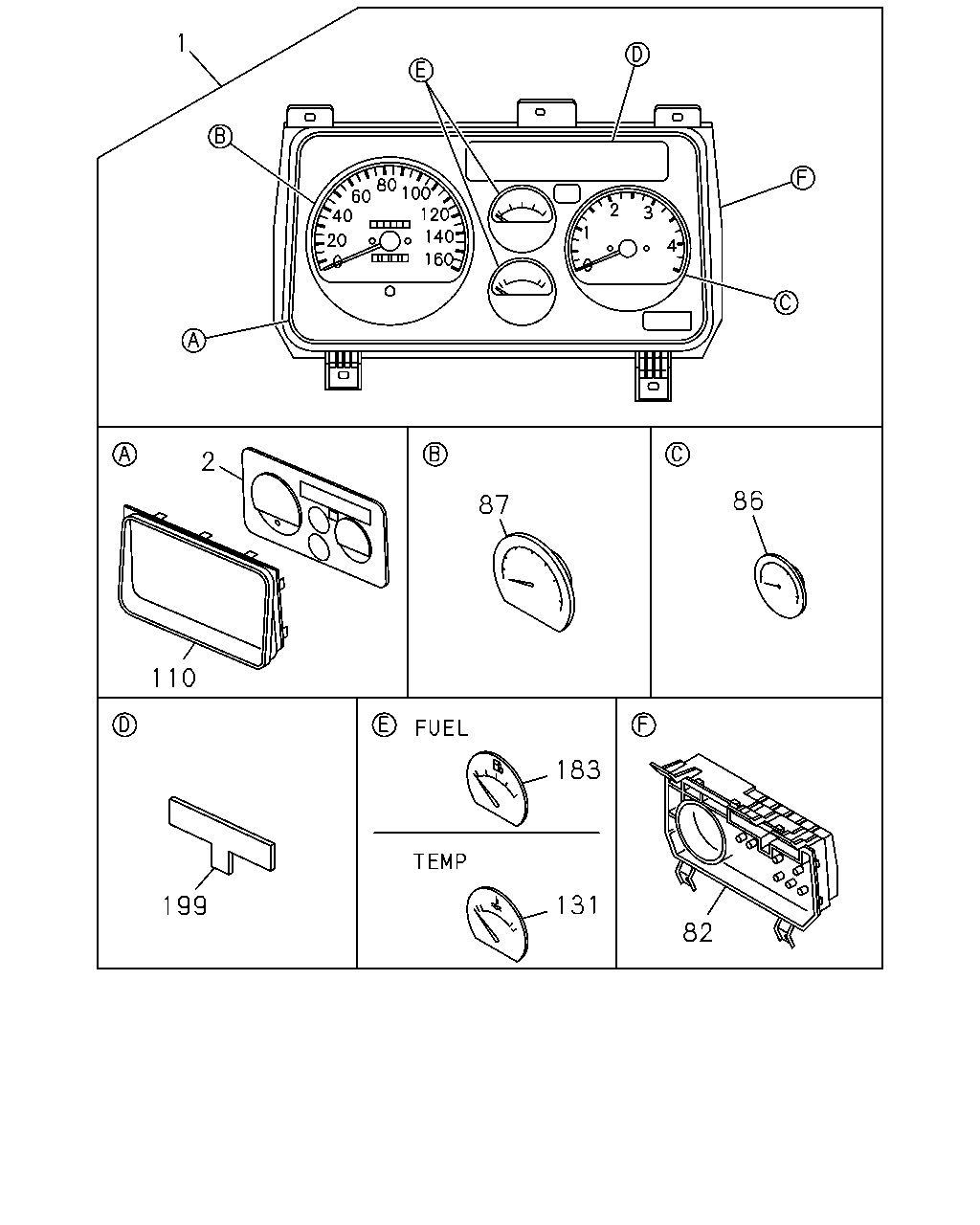

çizim 99438
1 2 86 87 110 183 131 199 82
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER
4HG1-T ENG(RDP) 		8-98000-849-1 01 1 0612-
1 09.735 METER COMPL; CLUSTER
TURBOCHARGER(K51) 		8-97217-080-0 01 1 0311-0501
1 09.735 METER COMPL; CLUSTER
4HG1 ENG(RJH) 		8-97385-412-1 01 1 0502-
1 09.735 METER COMPL; CLUSTER
EXC. TURBOCHARGER(K51) 		8-97170-601-2 01 1 0311-0501
2 09.735 PANEL; CLUSTER 8-97185-443-0 01 1 0311-
82 09.743 CASE ASM; CLUSTER METER 8-97185-448-0 01 1 0311-
86 09.750 TACHOMETER; CLUSTER METER
4HG1-T ENG(RDP) 		8-98002-115-0 01 1 0612-
86 09.750 TACHOMETER; CLUSTER METER
TURBOCHARGER(K51) 		8-97218-588-0 01 1 0311-0501
86 09.750 TACHOMETER; CLUSTER METER
4HG1 ENG(RJH) 		8-98002-112-0 01 1 0502-
86 09.750 TACHOMETER; CLUSTER METER
EXC. TURBOCHARGER(K51) 		8-97185-470-0 01 1 0311-0501
87 09.761 SPEEDOMETER 8-97185-457-0 01 1 0311-0501
87 09.761 SPEEDOMETER 8-98002-108-0 01 1 0502-
110 09.748 GLASS; CLUSTER METER 8-97185-452-0 01 1 0311-
131 01.148 GAUGE; TEMP,CLUSTER METER 8-97185-475-0 01 1 0311-0501
131 01.148 GAUGE; TEMP,CLUSTER METER 8-98002-121-0 01 1 0502-
183 03.107 GAUGE; FUEL 8-97185-473-0 01 1 0311-0501
183 03.107 GAUGE; FUEL 8-98002-118-0 01 1 0502-
199 09.772 LENS; WARNING LAMP
TURBOCHARGER(K51) 		8-97210-305-0 01 1 0311-0501
199 09.772 LENS; WARNING LAMP 8-98002-124-0 01 1 0502-
199 09.772 LENS; WARNING LAMP
EXC. TURBOCHARGER(K51) 		8-97185-483-0 01 1 0311-0501
