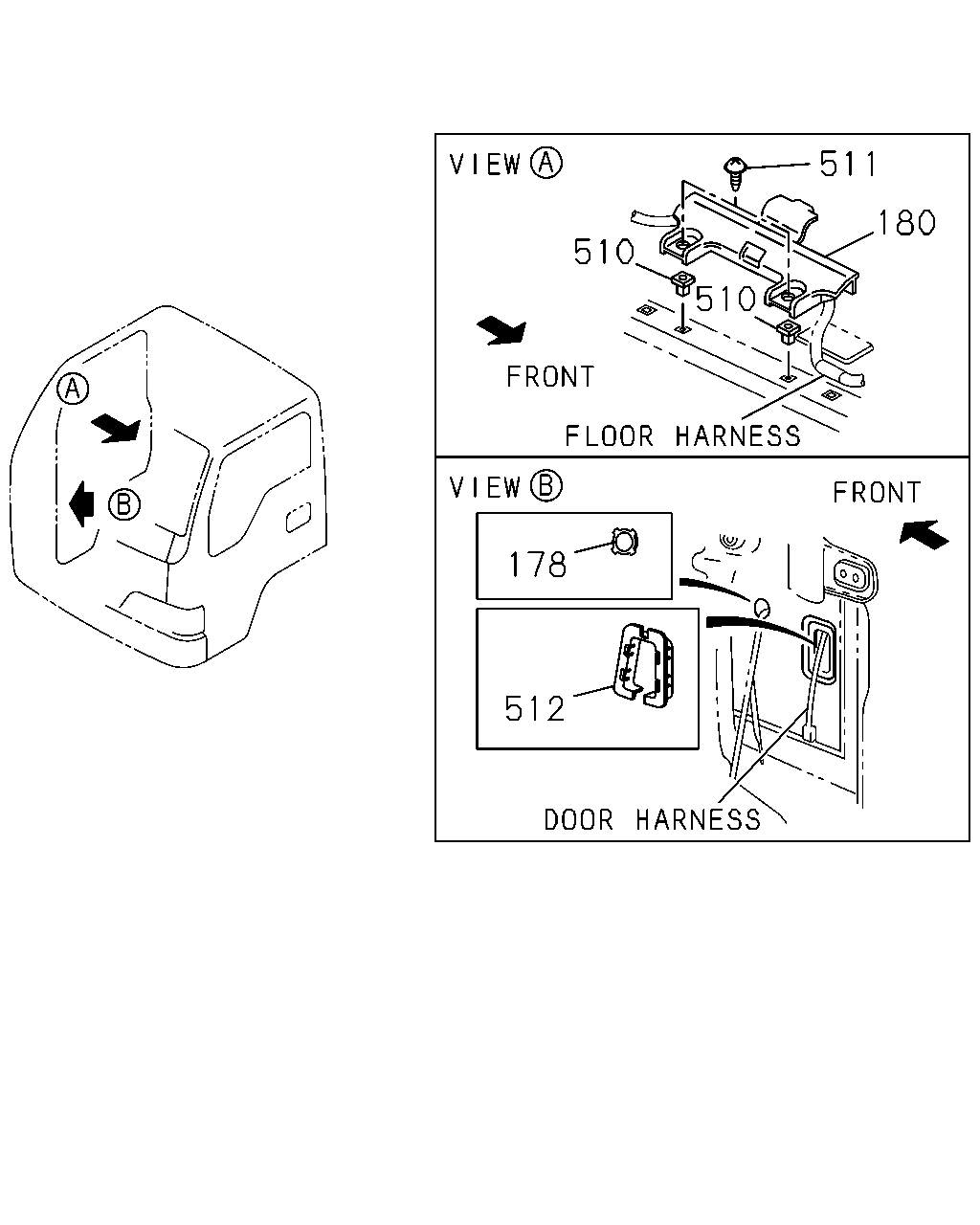

8-15 — FIXING PARTS; WIRING HARNESS (#53732) — 178 parça

16 16 48 483 16 488 16 205 142 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	0311-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	06	1	1010-1010
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS (B) L=135	1-09987-143-1	02	1	0311-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	02	1	0311-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	12	1	0311-0501
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0502-
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	0311-0501
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	02	1	0311-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	01	1	0311-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	03	1	0311-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (I) L=140	5-09707-031-1	01	1	0311-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	0311-1009
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	0311-1009
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	06	1	1011-
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) (C) ID=33 L=63	1-09700-807-0	05	1	0808-
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	02	1	0311-0504
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	02	1	0505-
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	05	1	0311-0807
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) (C) ID=33 L=63	1-09700-807-0	04	1	0808-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	05	1	0311-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	01	1	0311-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	06	1	0502-
48	02.559 CLIP; FRAME HARNESS 04.785 (I) ID=9.6	8-94147-870-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	02	1	0311-0501
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	05	1	0502-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	03	1	0311-0501
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0311-
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0311-
483	02.559 CLIP; ENG HARNESS 03.162 L=140	5-09707-031-1	01	1	0311-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0311-

377 386 239 386 38 377 386 38 139 239 19 55 219 294 219 294 469 515 294 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	02.559 BOLT; PROTECTOR 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0311-0501
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0808-
38	02.559 BOLT; CLIP,HARNESS 02.334 (A) M6X25 FLANGE	0-28680-625-0	02	1	0311-0512
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0601-
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0311-0512
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-
55	02.559 WASHER; PL,CLIP 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	0311-0501
55	02.559 WASHER; PL,CLIP 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	0502-0605
55	02.559 WASHER; PL,CLIP 00.413 ID=6.4 OD=18	0-91610-706-0	01	1	0606-
139	02.559 BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0311-0501
139	02.559 BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0502-0512
139	02.559 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
139	02.559 BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0311-0501
219	02.559 NUT 4HG1-T ENG(RDP) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0808-
219	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0311-0602
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0603-
219	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	05	1	0311-0602
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	05	1	0603-
219	02.559 NUT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0311-0602
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0311-0501
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0502-1004
239	02.559 BOLT; GRAND 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0311-0602
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-
294	02.559 NUT 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	0311-0602
294	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0603-
294	02.559 NUT 04.785 (C) M10 FLANGE	0-91150-110-0	01	1	0311-0602
294	02.559 NUT 04.785 (C) M10 FLANGE	0-91150-110-0	01	1	0311-0602
294	02.559 NUT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0603-
294	02.559 NUT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0603-
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0311-0501
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0311-0501
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
469	02.559 NUT; PROTECTOR 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0501
515	02.559 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0502-0602
515	02.559 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
515	02.559 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0311-0602
515	02.559 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
519	02.559 NUT; EARTH CABLE 04.785 M10 FLANGE	0-91150-110-0	01	1	0311-0602
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-

16 16 48 48 48 16 48 208 464

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	06	1	1010-1010
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS (B) L=135	1-09987-143-1	02	1	0311-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	02	1	0311-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	12	1	0311-0501
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0502-
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	0311-0501
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	02	1	0311-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	01	1	0311-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	03	1	0311-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (I) L=140	5-09707-031-1	01	1	0311-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	0311-1009
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	0311-1009
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	06	1	1011-
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) (C) ID=33 L=63	1-09700-807-0	05	1	0808-
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	02	1	0311-0504
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	02	1	0505-
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	05	1	0311-0807
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) (C) ID=33 L=63	1-09700-807-0	04	1	0808-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	05	1	0311-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	01	1	0311-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	06	1	0502-
48	02.559 CLIP; FRAME HARNESS 04.785 (I) ID=9.6	8-94147-870-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	02	1	0311-0501
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	05	1	0502-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	03	1	0311-0501
208	02.559 CLIP; HARNESS,MAG VLV T=6.0	5-09709-012-0	02	1	0502-0505
208	02.559 CLIP; HARNESS,MAG VLV T=6.0	5-09709-012-0	01	1	0506-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) T=6.0	5-09709-024-0	02	1	0502-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (A) ID=6.5	8-94257-639-0	01	1	0311-

16 264 16 48 48 48 48 264 464 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	06	1	1010-1010
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS (B) L=135	1-09987-143-1	02	1	0311-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	02	1	0311-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	12	1	0311-0501
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	0502-
16	02.559 CLIP; HARNESS (E) L=250	5-09707-030-1	01	1	0311-0501
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	02	1	0311-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	01	1	0311-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	03	1	0311-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (I) L=140	5-09707-031-1	01	1	0311-
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	0311-1009
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	0311-1009
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> (A) L=155	8-97173-307-0	06	1	1011-
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) (C) ID=33 L=63	1-09700-807-0	05	1	0808-
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	02	1	0311-0504
48	02.559 CLIP; FRAME HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	02	1	0505-
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	05	1	0311-0807
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP) (C) ID=33 L=63	1-09700-807-0	04	1	0808-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	05	1	0311-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	01	1	0502-
48	02.559 CLIP; FRAME HARNESS (F) ID=20	5-09700-321-0	01	1	0311-0501
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	06	1	0502-
48	02.559 CLIP; FRAME HARNESS 04.785 (I) ID=9.6	8-94147-870-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	01	1	0311-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	02	1	0311-0501
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	05	1	0502-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	03	1	0311-0501
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	0311-0404
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0405-0501
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0405-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) T=6.0	5-09709-024-0	02	1	0502-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (A) ID=6.5	8-94257-639-0	01	1	0311-

511 180 510 510 178 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0311-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0311-
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0311-
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0311-0501
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0502-0604
511	02.559 SCREW; HARNESS COVER 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702
511	02.559 SCREW; HARNESS COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	0311-

53 53 53 53 412 412 504 514 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (B)	8-97321-820-1	01	1	0311-0501
53	02.483 BRACKET; HARNESS (D)	8-97377-701-0	01	1	0502-
53	02.483 BRACKET; HARNESS 02.480 (C)	8-97360-203-0	01	1	0311-0501
53	02.483 BRACKET; HARNESS (A)	8-98003-048-0	01	1	0502-
312	02.559 BRACKET; CLIP HARNESS	8-97355-918-0	01	1	0311-
412	02.559 BRACKET; HARNESS,TRANS (A)	8-97324-451-1	01	1	0311-0501
412	02.559 BRACKET; HARNESS,TRANS (B)	8-97379-633-0	01	1	0502-
504	02.559 PROTECTOR; HARNESS 02.343 L=120	8-97117-880-0	01	1	0311-0501
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0502-
514	02.559 FINISHER; HARNESS 4HG1-T ENG(RDP) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0612-
514	02.559 FINISHER; HARNESS 4HG1 ENG(RJH) TURBOCHARGER(K51) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0311-0501
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	03	1	0311-
514	02.559 FINISHER; HARNESS 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
