Sayfa 3-26 - Isuzu EPC

3-26 — TRAILER CONTROL (#5373) — 219 parça

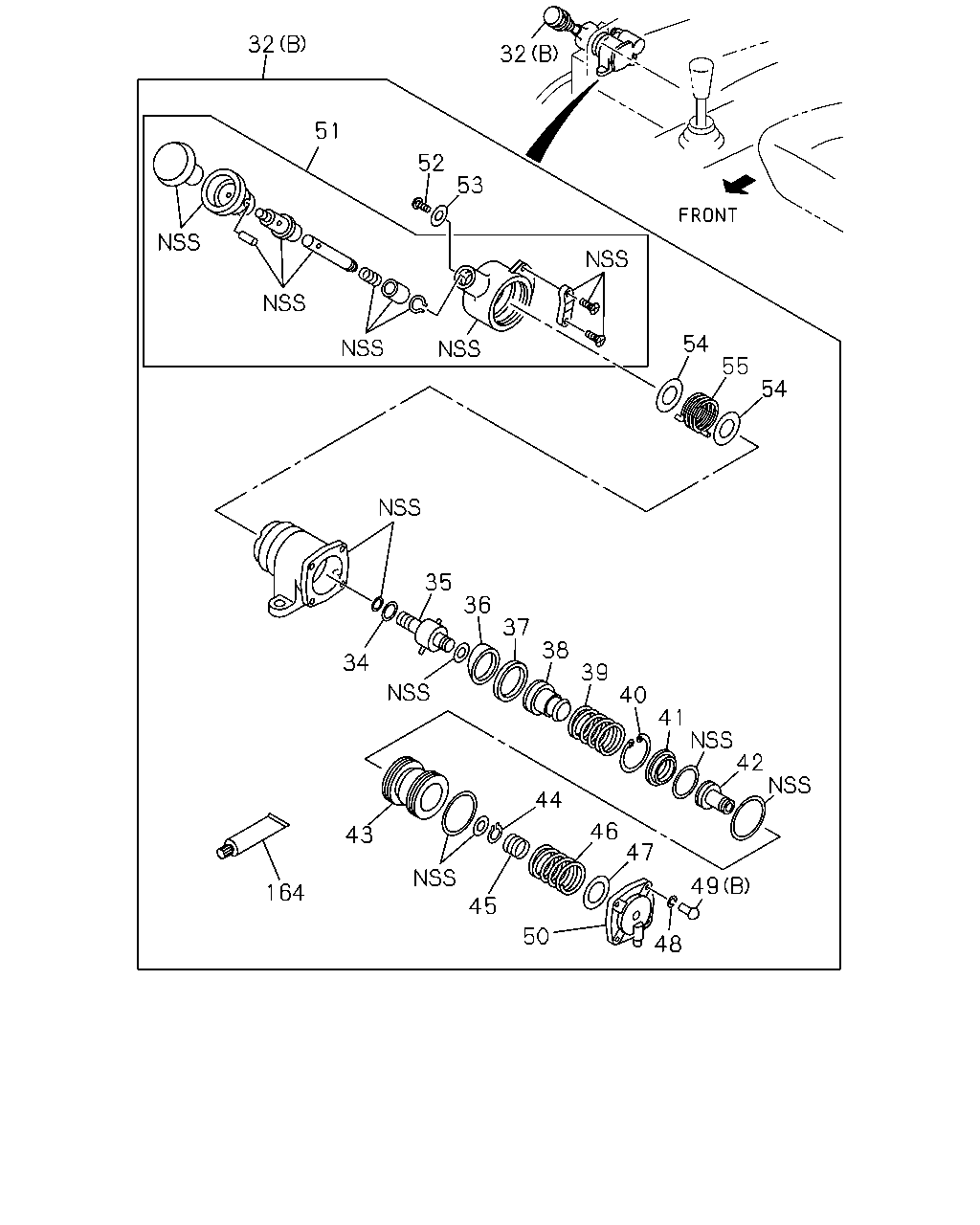

32 206 138 151 151 138 137 162 138 112 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) (B)	1-48100-786-0	01	1	9706-9901	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) (B)	1-48100-786-0	01	1	9905-	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48460-198-0	01	1	9603-9705	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9706-9901	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9905-	●	●
112	BRACKET; CONT VLV BRAKE REGULATION ECE<TDV> (C)	1-79996-378-0	01	1	9706-9901	●
112	BRACKET; CONT VLV (C)	1-79996-378-0	01	1	9902-9904	●	●
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-79996-378-0	01	1	9905-	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (A)	1-47475-260-2	01	1	9603-9705	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) EXC. BRAKE REGULATION ECE<TDV>,PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47475-260-2	01	1	9706-9901	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (A)	1-47475-260-2	01	1	9706-9901		●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (B)	1-79996-113-1	01	1	9603-9705	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (B)	1-79996-113-1	01	1	9706-9901	●	●
112	BRACKET; CONT VLV BRAKE REGULATION ECE<TDV> (B)	1-79996-113-1	01	1	9706-9901	●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	9902-9904	●	●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	9902-9904	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (B)	1-79996-113-2	01	1	9905-	●	●
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79996-113-2	01	1	9905-	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47475-260-2	01	1	9905-	●	●
137	CONNECTOR; SUPPLY BRAKE REGULATION ECE<TDV> M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9706-9901	●
137	CONNECTOR; SUPPLY M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9902-9904	●	●
137	CONNECTOR; SUPPLY PARKING BRAKE VALVE LEVER TYPE<W48> M16 & PT1/4 STRAIGHT	9-09231-810-1	01	1	9905-	●	●
137	CONNECTOR; SUPPLY SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M16 & PT1/4 ELBOW	1-09650-434-0	01	1	0006-	●	●
138	CONNECTOR; DELIVERY (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9905-			●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9905-	●	●
138	CONNECTOR; DELIVERY (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9603-9705	●	●	●
138	CONNECTOR; DELIVERY (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9706-9901		●	●
138	CONNECTOR; DELIVERY EXC. BRAKE REGULATION ECE<TDV> (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9706-9901	●
138	CONNECTOR; DELIVERY (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9902-9904	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9905-9910	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-	●	●
138	CONNECTOR; DELIVERY BRAKE REGULATION ECE<TDV> (E)	1-09650-240-1	01	1	9706-9901	●
138	CONNECTOR; DELIVERY (E)	1-09650-240-1	01	1	9902-9904	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (E)	1-09650-240-1	01	1	9905-	●	●
138	CONNECTOR; DELIVERY (B) M14	1-09656-391-2	01	1	9902-9904	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) M14	1-09656-391-2	01	1	9905-	●	●
138	CONNECTOR; DELIVERY (A) PT1/4 2WAY	1-09660-693-0	01	1	9902-9904	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) PT1/4 2WAY	1-09660-693-0	01	1	9905-	●	●
151	BOLT; VLV BRKT (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9603-9901	●	●	●
151	BOLT; VLV BRKT (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9902-9904	●	●
151	BOLT; VLV BRKT (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9905-	●	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9603-9705	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9706-9901	●	●
151	BOLT; VLV BRKT BRAKE REGULATION ECE<TDV> (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9706-9901	●
151	BOLT; VLV BRKT (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9902-9904	●	●
151	BOLT; VLV BRKT BRAKE REGULATION ECE<TDV> (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9902-9904	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-	●	●
151	BOLT; VLV BRKT BRAKE REGULATION ECE<TDV> (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-	●	●
162	SWITCH; PARKING BRK VLV SPRING BRAKE(SU9)	1-72447-390-0	01	1	9603-9705	●	●
162	SWITCH; PARKING BRK VLV SPRING BRAKE(SU9)	1-72447-390-0	01	1	9706-9901	●	●
162	SWITCH; PARKING BRK VLV BRAKE REGULATION ECE<TDV>	1-72447-390-0	01	1	9706-9901	●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	9902-9904	●	●
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	9902-9904	●	●
162	SWITCH; PARKING BRK VLV SPRING BRAKE(SU9)	1-72447-390-0	01	1	9905-	●	●
162	SWITCH; PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48>	1-72447-390-0	01	1	9905-	●	●
206	BOLT; HAND BRK VALVE SPRING BRAKE(SU9) M10X20 W/LK WASHER	0-50041-020-0	02	1	9603-9705	●	●
206	BOLT; HAND BRK VALVE SPRING BRAKE(SU9) M10X20 W/LK WASHER	0-50041-020-0	02	1	9706-9901	●	●
206	BOLT; HAND BRK VALVE BRAKE REGULATION ECE<TDV> M10X20 W/LK WASHER	0-50041-020-0	02	1	9706-9901	●
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9902-9904	●	●
206	BOLT; HAND BRK VALVE M10X20 W/LK WASHER	0-50041-020-0	02	1	9902-9904	●	●
206	BOLT; HAND BRK VALVE SPRING BRAKE(SU9) M10X20 W/LK WASHER	0-50041-020-0	02	1	9905-	●	●
206	BOLT; HAND BRK VALVE PARKING BRAKE VALVE LEVER TYPE<W48> M10X20 W/LK WASHER	0-50041-020-0	02	1	9905-	●	●

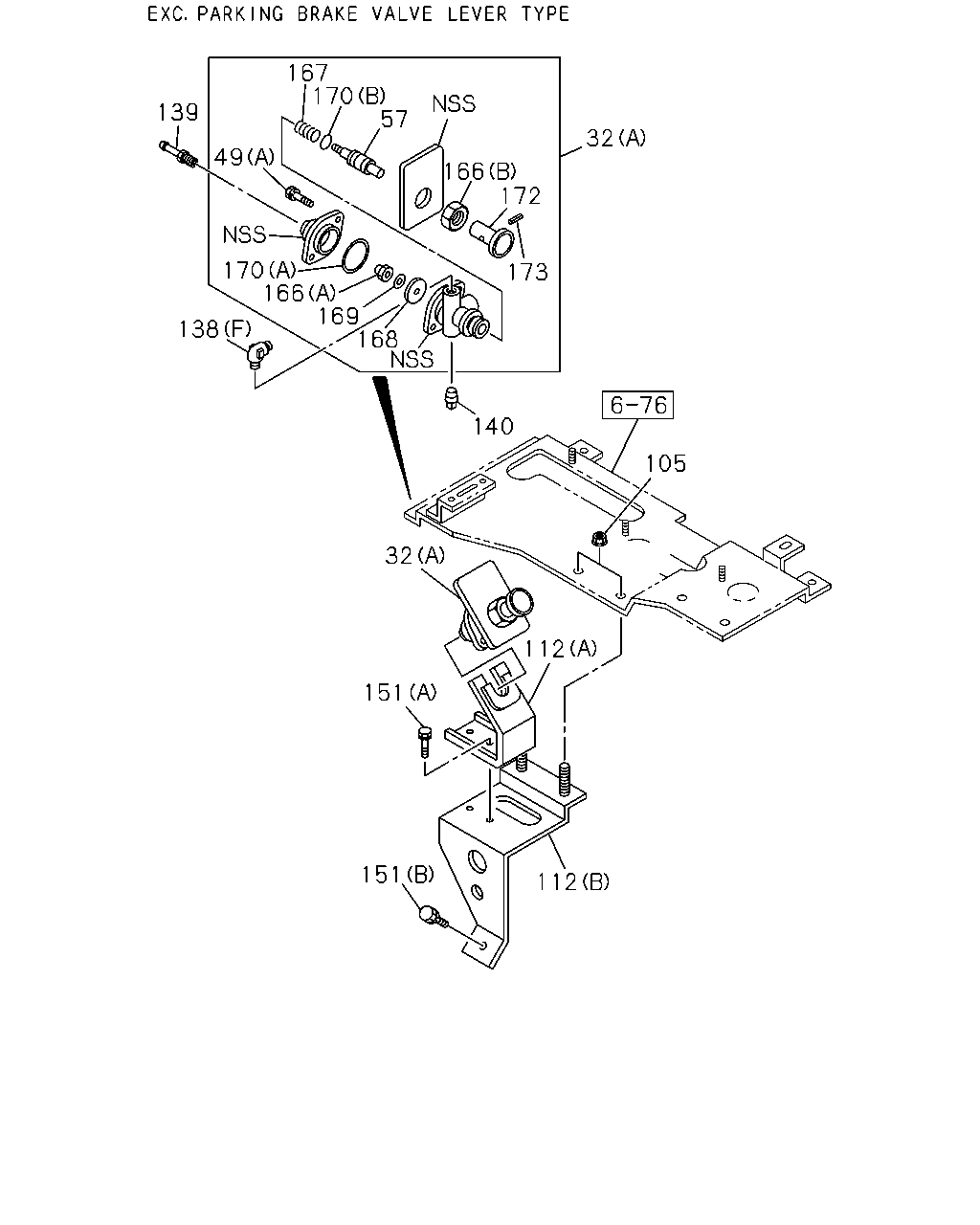

167 170 57 139 32 49 166 172 170 166 169 168 173 138 140 105 32 112 151 151 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) (B)	1-48100-786-0	01	1	9706-9901	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) (B)	1-48100-786-0	01	1	9905-	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48460-198-0	01	1	9603-9705	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9706-9901	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9905-	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-52139-005-0	02	1	9905-	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) (B)	1-48469-092-0	04	1	9706-9901	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) (B)	1-48469-092-0	04	1	9905-	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-52139-005-0	01	1	9603-9705	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-52139-005-0	01	1	9706-9901	●	●
57	PLUNGER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48469-097-0	01	1	9603-9705	●	●
57	PLUNGER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-097-0	01	1	9706-9901	●	●
57	PLUNGER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-097-0	01	1	9905-	●	●
105	NUT; BRKT SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	02	1	9603-9705	●	●
105	NUT; BRKT SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	02	1	9706-9901	●	●
105	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	9706-9901	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9902-9904	●	●
105	NUT; BRKT SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
105	NUT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
105	NUT; BRKT SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	03	1	9603-9705	●	●
105	NUT; BRKT SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	03	1	9706-9901	●	●
105	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	03	1	9706-9901	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9902-9904	●	●
105	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	9902-9904	●	●
105	NUT; BRKT SPRING BRAKE(SU9) M8 FLANGE	0-91150-108-0	03	1	9905-	●	●
105	NUT; BRKT PARKING BRAKE VALVE LEVER TYPE<W48> M8 FLANGE	0-91150-108-0	03	1	9905-	●	●
112	BRACKET; CONT VLV BRAKE REGULATION ECE<TDV> (C)	1-79996-378-0	01	1	9706-9901	●
112	BRACKET; CONT VLV (C)	1-79996-378-0	01	1	9902-9904	●	●
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-79996-378-0	01	1	9905-	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (A)	1-47475-260-2	01	1	9603-9705	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) EXC. BRAKE REGULATION ECE<TDV>,PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47475-260-2	01	1	9706-9901	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (A)	1-47475-260-2	01	1	9706-9901		●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (B)	1-79996-113-1	01	1	9603-9705	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (B)	1-79996-113-1	01	1	9706-9901	●	●
112	BRACKET; CONT VLV BRAKE REGULATION ECE<TDV> (B)	1-79996-113-1	01	1	9706-9901	●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	9902-9904	●	●
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	9902-9904	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) (B)	1-79996-113-2	01	1	9905-	●	●
112	BRACKET; CONT VLV PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-79996-113-2	01	1	9905-	●	●
112	BRACKET; CONT VLV SPRING BRAKE(SU9) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47475-260-2	01	1	9905-	●	●
138	CONNECTOR; DELIVERY (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9905-			●
138	CONNECTOR; DELIVERY EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9905-	●	●
138	CONNECTOR; DELIVERY (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9603-9705	●	●	●
138	CONNECTOR; DELIVERY (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9706-9901		●	●
138	CONNECTOR; DELIVERY EXC. BRAKE REGULATION ECE<TDV> (F) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	9706-9901	●
138	CONNECTOR; DELIVERY (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9902-9904	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9905-9910	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9911-	●	●
138	CONNECTOR; DELIVERY BRAKE REGULATION ECE<TDV> (E)	1-09650-240-1	01	1	9706-9901	●
138	CONNECTOR; DELIVERY (E)	1-09650-240-1	01	1	9902-9904	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (E)	1-09650-240-1	01	1	9905-	●	●
138	CONNECTOR; DELIVERY (B) M14	1-09656-391-2	01	1	9902-9904	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (B) M14	1-09656-391-2	01	1	9905-	●	●
138	CONNECTOR; DELIVERY (A) PT1/4 2WAY	1-09660-693-0	01	1	9902-9904	●	●
138	CONNECTOR; DELIVERY PARKING BRAKE VALVE LEVER TYPE<W48> (A) PT1/4 2WAY	1-09660-693-0	01	1	9905-	●	●
139	CONNECTOR; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=45	8-94338-874-0	01	1	9603-9705	●	●
139	CONNECTOR; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. BRAKE REGULATION ECE<TDV>,PARKING BRAKE VALVE LEVER TYPE<W48> L=45	8-94338-874-0	01	1	9706-9901	●	●
139	CONNECTOR; EXH BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=45	8-94338-874-0	01	1	9905-	●	●
140	PLUG PT1/4	9-99204-513-0	01	1	9603-9705	●	●	●
140	PLUG PT1/4	9-99204-513-0	01	1	9706-9901		●	●
140	PLUG EXC. BRAKE REGULATION ECE<TDV> PT1/4	9-99204-513-0	01	1	9706-9901	●
140	PLUG EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9905-	●	●	●
140	PLUG EXC. PARKING BRAKE VALVE LEVER TYPE<W48> PT1/4	9-99204-513-0	01	1	9905-	●	●	●
151	BOLT; VLV BRKT (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9603-9901	●	●	●
151	BOLT; VLV BRKT (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9902-9904	●	●
151	BOLT; VLV BRKT (A) M6X16 W/LK WASHER	0-50040-616-0	02	1	9905-	●	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9603-9705	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9706-9901	●	●
151	BOLT; VLV BRKT BRAKE REGULATION ECE<TDV> (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9706-9901	●
151	BOLT; VLV BRKT (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9902-9904	●	●
151	BOLT; VLV BRKT BRAKE REGULATION ECE<TDV> (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9902-9904	●	●
151	BOLT; VLV BRKT SPRING BRAKE(SU9) (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-	●	●
151	BOLT; VLV BRKT BRAKE REGULATION ECE<TDV> (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48129-069-0	01	1	9603-9705	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48129-069-0	01	1	9706-9901	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48469-101-0	01	1	9603-9705	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-101-0	01	1	9706-9901	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48129-069-0	01	1	9905-	●	●
166	NUT; PLUNGER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48469-101-0	01	1	9905-	●	●
167	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48469-098-0	01	1	9603-9705	●	●
167	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-098-0	01	1	9706-9901	●	●
167	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-098-0	01	1	9905-	●	●
168	VALVE; INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48469-099-0	01	1	9603-9705	●	●
168	VALVE; INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-099-0	01	1	9706-9901	●	●
168	VALVE; INL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-099-0	01	1	9905-	●	●
169	WASHER; PL,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=6.4	9-09164-506-0	01	1	9603-9705	●	●
169	WASHER; PL,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> ID=6.4	9-09164-506-0	01	1	9706-9901	●	●
169	WASHER; PL,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> ID=6.4	9-09164-506-0	01	1	9905-	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48469-100-0	01	1	9603-9705	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48469-100-0	01	1	9706-9901	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	9-19519-094-0	01	1	9603-9705	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-19519-094-0	01	1	9706-9901	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48469-100-0	01	1	9905-	●	●
170	GASKET; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-19519-094-0	01	1	9905-	●	●
172	KNOB; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48469-102-0	01	1	9603-9705	●	●
172	KNOB; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-102-0	01	1	9706-9901	●	●
172	KNOB; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-102-0	01	1	9905-	●	●
173	PIN; SPR,KNOB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-94124-044-0	01	1	9603-9705	●	●
173	PIN; SPR,KNOB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48>	8-94124-044-0	01	1	9706-9901	●	●
173	PIN; SPR,KNOB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48>	8-94124-044-0	01	1	9905-	●	●

32 32 51 52 53 54 55 54 35 36 37 38 34 39 40 41 42 44 46 47 43 49 164 45 50 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) (B)	1-48100-786-0	01	1	9706-9901	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) (B)	1-48100-786-0	01	1	9905-	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48460-198-0	01	1	9603-9705	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9706-9901	●	●
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-48460-198-0	01	1	9905-	●	●
34	SHIM; CAM HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-055-0	AR	1	9706-9901	●
34	SHIM; CAM HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-055-0	AR	1	9905-	●
35	HOLDER; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-054-0	01	1	9706-9901	●
35	HOLDER; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-054-0	01	1	9905-	●
36	RING; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-056-0	01	1	9706-9901	●
36	RING; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-056-0	01	1	9905-	●
37	GUIDE; CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-058-0	01	1	9706-9901	●
37	GUIDE; CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-058-0	01	1	9905-	●
38	SEAT; EXH VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-057-0	01	1	9706-9901	●
38	SEAT; EXH VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-057-0	01	1	9905-	●
39	SPRING; RETURN,CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-063-0	01	1	9706-9901	●
39	SPRING; RETURN,CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-063-0	01	1	9905-	●
40	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-067-0	01	1	9706-9901	●
40	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-067-0	01	1	9905-	●
41	SEAT; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-066-0	01	1	9706-9901	●
41	SEAT; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-066-0	01	1	9905-	●
42	VALVE; FEED BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-065-0	01	1	9706-9901	●
42	VALVE; FEED BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-065-0	01	1	9905-	●
43	PISTON; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-064-0	01	1	9706-9901	●
43	PISTON; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-064-0	01	1	9905-	●
44	RING; SNAP,FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-068-0	02	1	9706-9901	●
44	RING; SNAP,FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-068-0	02	1	9905-	●
45	SPRING; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-070-0	01	1	9706-9901	●
45	SPRING; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-070-0	01	1	9905-	●
46	SPRING; MAIN,PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-089-0	01	1	9706-9901	●
46	SPRING; MAIN,PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-089-0	01	1	9905-	●
47	SHIM; MAIN SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-072-0	AR	1	9706-9901	●
47	SHIM; MAIN SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-072-0	AR	1	9905-	●
48	WASHER; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-091-0	04	1	9706-9901	●
48	WASHER; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-091-0	04	1	9905-	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-52139-005-0	02	1	9905-	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) (B)	1-48469-092-0	04	1	9706-9901	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE) (B)	1-48469-092-0	04	1	9905-	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-52139-005-0	01	1	9603-9705	●	●
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAKHALIN EQUIPMENT(TLE),PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-52139-005-0	01	1	9706-9901	●	●
50	COVER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-090-0	01	1	9706-9901	●
50	COVER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-090-0	01	1	9905-	●
51	HANDLE ASM; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-122-0	01	1	9706-9901	●
51	HANDLE ASM; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-122-0	01	1	9905-	●
52	SCREW; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-062-0	01	1	9706-9901	●
52	SCREW; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-062-0	01	1	9905-	●
53	WASHER; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-061-0	01	1	9706-9901	●
53	WASHER; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-061-0	01	1	9905-	●
54	SEAT; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-123-0	02	1	9706-9901	●
54	SEAT; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-123-0	02	1	9905-	●
55	SPRING; RETURN,HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-059-0	01	1	9706-9901	●
55	SPRING; RETURN,HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-059-0	01	1	9905-	●
164	GREASE; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-084-0	01	1	9706-9901	●
164	GREASE; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-084-0	01	1	9905-	●

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	3	REPAIR KIT; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-096-0	01	1	9706-9901	●
	3	REPAIR KIT; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAKHALIN EQUIPMENT(TLE)	1-48469-096-0	01	1	9905-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
