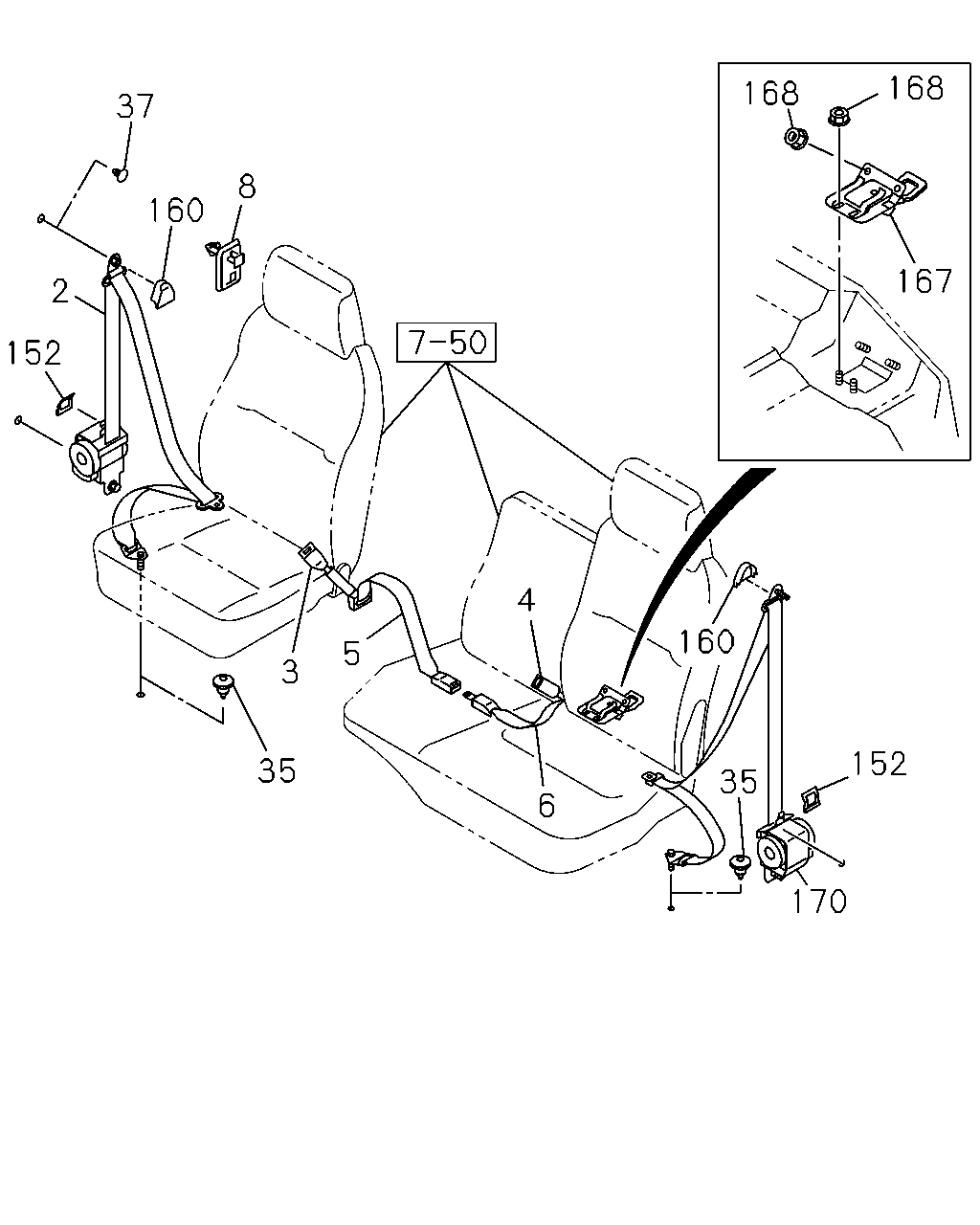

7-60 — SEAT BELT (#53728) — 37 parça

168 168 37 8 160 167 2 152 4 160 5 3 152 35 35 6 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY	8-97394-511-0	01	1	0311-0501
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY	8-97400-353-1	01	1	0502-
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY	8-97394-512-0	01	1	0311-0501
2	16.714 BELT; SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97400-623-2	01	1	0502-
3	16.714 BELT; SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY	8-97394-509-0	01	1	0311-0501
3	16.714 BELT; SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97400-349-0	01	1	0502-
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY	8-97326-220-0	01	1	0311-0501
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97396-952-0	01	1	0502-
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY	8-97394-516-0	01	1	0311-0501
4	16.714 BELT; PASSENGER SEAT,BUCKLE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97400-354-0	01	1	0502-
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY	8-97326-221-0	01	1	0311-0409
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY	8-97401-281-0	01	1	0410-0501
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97401-516-0	01	1	0502-0512
5	16.714 BELT; CENTER SEAT,BUCKLE SIDE SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97404-304-0	01	1	0601-
6	16.714 BELT; CENTER SEAT,TONGUE SIDE SEAT BELT FRT SEAT CTR 2 POINT<A38> DARK GRAY	8-97326-224-0	01	1	0311-0501
6	16.714 BELT; CENTER SEAT,TONGUE SIDE SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY	8-97400-451-1	01	1	0502-
8	16.714 HOOK; SEAT BELT SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>	8-94276-268-1	02	1	0311-
35	16.714 GROMMET; SEAT BELT ANCHOR SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>, SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> OD=22	9-61168-535-0	01	1	0311-
35	16.714 GROMMET; SEAT BELT ANCHOR EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> OD=22	9-61168-535-0	04	1	0311-
37	16.714 PLUG; SEAT BELT ANCHOR EXC. SEAT BELT DRIVER & PASSENGER 2 POINT<AS6>,SEAT BELT FRT 3 POINT W/RETRACTOR<A49> L=18.5	8-94279-726-0	02	1	0311-
152	16.714 PROTECTOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49>	8-97287-563-0	02	1	0311-
160	16.714 COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY	8-97854-897-0	02	1	0311-0501
160	16.714 COVER; THROUGH ANCHOR SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97396-954-0	02	1	0502-
167	16.714 PLATE; ANCHOR	8-97869-412-2	01	1	0311-
168	16.714 NUT; ANCHOR PLATE 00.854 M8 FLANGE	5-09440-005-0	04	1	0311-0712
168	16.714 NUT; ANCHOR PLATE 01.062 M8 FLANGE	0-91180-108-0	04	1	0801-
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> DARK GRAY	8-97394-511-0	01	1	0311-0501
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT DRIVER & PASSENGER 2 POINT<AS6> GRAY	8-97400-353-1	01	1	0502-
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY	8-97392-992-0	01	1	0311-0501
170	16.714 BELT; PASSENGER SEAT,TONGUE SIDE SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY	8-97397-380-2	01	1	0502-

177 161 161 165 166 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR (A)	8-97850-286-5	01	1	0311-
161	16.714 REINFORCEMENT; SEAT BELT ANCHOR (B)	8-97850-329-4	01	1	0311-
165	16.714 HOOK; SEAT BELT ANCHOR	8-97869-415-0	01	1	0311-
166	16.714 BOLT; SEAT BELT ANCHOR 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0311-0512
166	16.714 BOLT; SEAT BELT ANCHOR 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0601-
177	16.714 NUT 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0311-0805
177	16.714 NUT 03.417 M8 W/LK WASHER	8-97581-234-0	02	1	0806-
