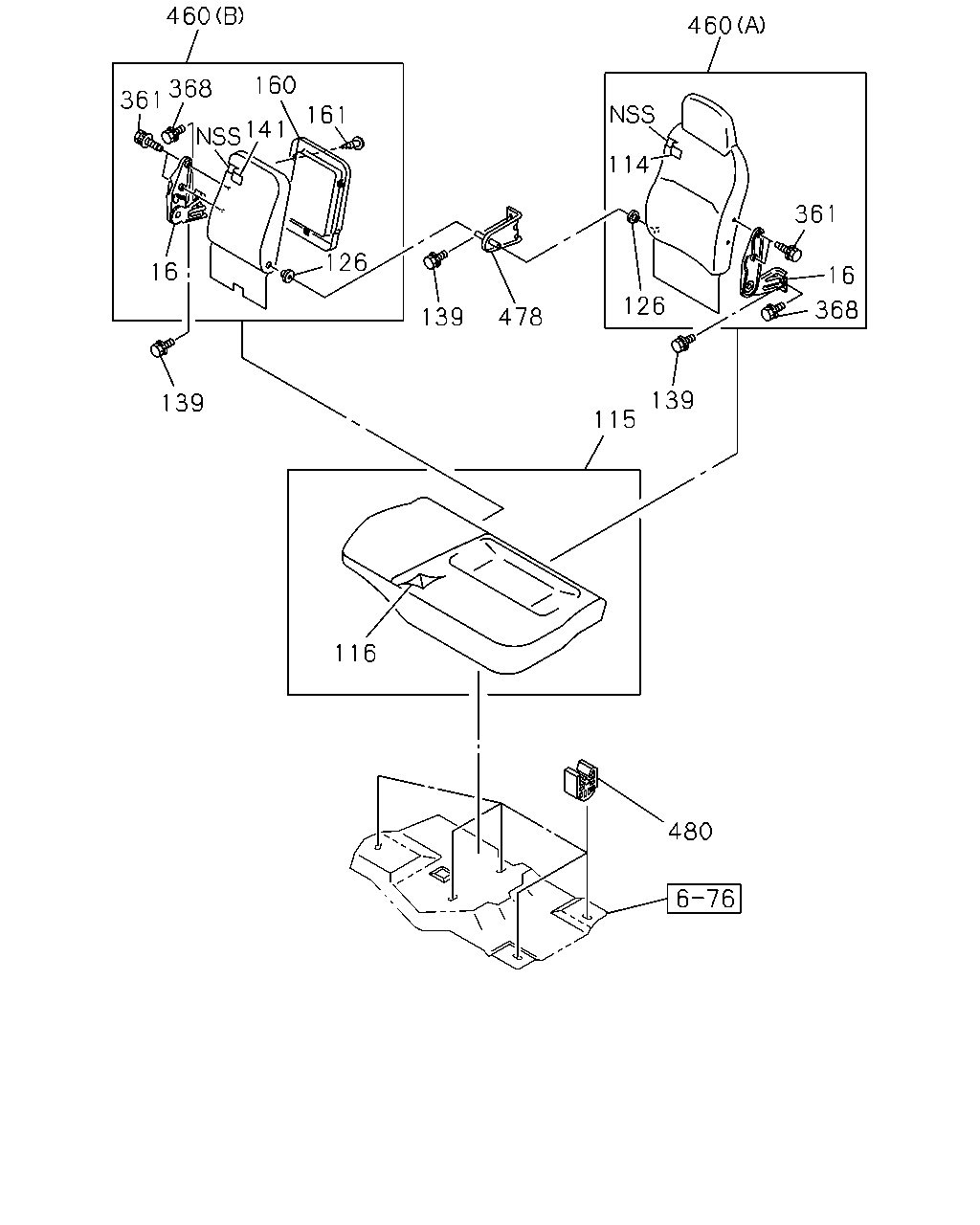

7-50 — FRONT SEAT (#53727) — 122 parça

460 460 160 368 361 161 141 114 361 126 16 16 126 368 478 139 139 139 115 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	16.682 ADJUSTER ASM; RECLINING MANUAL TILT CAB<RWZ> DRIVER SEAT	8-97854-057-3	01	1	0311-0501
16	16.682 ADJUSTER ASM; RECLINING DRIVER SEAT	8-97854-057-3	01	1	0502-
16	16.682 ADJUSTER ASM; RECLINING PASSENGER SEAT BLACK	8-97859-273-3	01	1	0311-
16	16.682 ADJUSTER ASM; RECLINING PASSENGER SEAT BLACK	8-97859-274-3	01	1	0311-
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97400-690-0	01	1	0502-0506
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97393-856-1	01	1	0311-0501
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97397-998-2	01	1	0502-0506
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97397-998-2	01	1	0507-
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97400-660-0	01	1	0502-0506
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97394-580-1	01	1	0311-0501
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97400-661-2	01	1	0502-0506
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97400-661-2	01	1	0507-
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97400-700-0	01	1	0502-0506
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97394-638-1	01	1	0311-0501
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. SEAT CLOTH<7FL> DARK GRAY	8-97400-701-1	01	1	0502-0506
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97400-701-1	01	1	0507-
126	16.686 BUSHING; HINGE,RECLINING	8-97854-900-0	01	1	0311-0501
126	16.686 BUSHING; HINGE,RECLINING	8-97854-900-0	01	1	0311-0501
126	16.686 BUSHING; HINGE,RECLINING	8-97854-900-0	02	1	0502-0506
126	16.686 BUSHING; HINGE,RECLINING	8-97854-900-0	01	1	0507-0804
126	16.686 BUSHING; HINGE,RECLINING	8-97854-900-0	01	1	0507-0804
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	0805-
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	0805-
139	16.679 BOLT; PASSENGER SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	0311-
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97400-697-0	01	1	0502-0506
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97198-569-3	01	1	0311-0501
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97398-005-2	01	1	0502-0506
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97398-005-2	01	1	0507-
160	16.650 CONSOLE; UPR,BACK CENTER DARK GRAY	8-97393-932-0	01	1	0311-0501
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97398-252-1	01	1	0502-
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	0311-
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0311-0501
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0311-0501
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	0502-0506
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0507-
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0507-
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0311-0501
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0311-0501
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0502-0506
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0507-
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0507-
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97400-651-0	01	1	0502-0506
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97400-657-0	01	1	0502-0506
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97394-567-1	01	1	0311-0404
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97393-832-2	01	1	0405-0501
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (A) DARK GRAY	8-97396-972-3	01	1	0502-0506
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97396-972-3	01	1	0507-
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97394-576-1	01	1	0311-0404
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97197-323-4	01	1	0405-0501
460	16.670 BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> (B) DARK GRAY	8-97397-446-3	01	1	0502-0506
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97397-446-3	01	1	0507-
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-97868-184-0	01	1	0311-
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	0311-

1 18 24 228 2 16 99 17 19 12 13 15 69 382 67 71 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.720 BACK ASM; SEAT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-674-1	01	1	0502-0506
1	16.720 BACK ASM; SEAT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-474-1	01	1	0502-0506
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-680-1	01	1	0502-0506
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-480-1	01	1	0502-0506
1	16.720 BACK ASM; SEAT EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY	8-97400-371-3	01	1	0502-0506
1	16.720 BACK ASM; SEAT EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-371-3	01	1	0507-
1	16.720 BACK ASM; SEAT MANUAL TILT CAB<RWZ> DARK GRAY	8-97197-356-4	01	1	0311-0501
1	16.720 BACK ASM; SEAT MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97397-955-3	01	1	0502-0506
1	16.720 BACK ASM; SEAT MANUAL TILT CAB<RWZ> DARK GRAY	8-97397-955-3	01	1	0507-
2	16.724 COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-675-0	01	1	0502-0506
2	16.724 COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-475-0	01	1	0502-0506
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-681-0	01	1	0502-0506
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-481-0	01	1	0502-0506
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY	8-97400-372-2	01	1	0502-0506
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-372-2	01	1	0507-
2	16.724 COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> DARK GRAY	8-97197-370-2	01	1	0311-0501
2	16.724 COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97397-965-2	01	1	0502-0506
2	16.724 COVER; TRIM,FRT SEAT,BACK MANUAL TILT CAB<RWZ> DARK GRAY	8-97397-965-2	01	1	0507-
12	16.670 CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-488-0	01	1	0502-0506
12	16.670 CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97397-972-0	01	1	0502-0506
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-682-0	01	1	0502-0506
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97397-978-0	01	1	0502-0506
12	16.670 CUSHION; SEAT,FRT EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY	8-97397-976-1	01	1	0502-0506
12	16.670 CUSHION; SEAT,FRT EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97397-976-1	01	1	0507-
12	16.670 CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> DARK GRAY	8-97197-375-2	01	1	0311-0501
12	16.670 CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97397-970-1	01	1	0502-0506
12	16.670 CUSHION; SEAT,FRT MANUAL TILT CAB<RWZ> DARK GRAY	8-97397-970-1	01	1	0507-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97400-489-0	01	1	0502-0506
13	16.717 COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97397-982-0	01	1	0502-0506
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97400-683-0	01	1	0502-0506
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97397-988-0	01	1	0502-0506
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY	8-97397-986-1	01	1	0502-0506
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. MANUAL TILT CAB<RWZ> DARK GRAY	8-97397-986-1	01	1	0507-
13	16.717 COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> DARK GRAY	8-97197-389-2	01	1	0311-0501
13	16.717 COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97397-980-1	01	1	0502-0506
13	16.717 COVER; TRIM,FRT SEAT,CUSHION MANUAL TILT CAB<RWZ> DARK GRAY	8-97397-980-1	01	1	0507-
15	16.716 FRAME; CUSHION,FRT SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ>	8-97854-986-1	01	1	0502-0506
15	16.716 FRAME; CUSHION,FRT SEAT EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL>	8-97854-055-1	01	1	0502-0506
15	16.716 FRAME; CUSHION,FRT SEAT SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG>	8-97854-055-1	01	1	0502-0506
15	16.716 FRAME; CUSHION,FRT SEAT EXC. MANUAL TILT CAB<RWZ>	8-97854-055-1	01	1	0507-
16	16.682 ADJUSTER ASM; RECLINING MANUAL TILT CAB<RWZ> DRIVER SEAT	8-97854-057-3	01	1	0311-0501
16	16.682 ADJUSTER ASM; RECLINING DRIVER SEAT	8-97854-057-3	01	1	0502-
16	16.682 ADJUSTER ASM; RECLINING PASSENGER SEAT BLACK	8-97859-273-3	01	1	0311-
16	16.682 ADJUSTER ASM; RECLINING PASSENGER SEAT BLACK	8-97859-274-3	01	1	0311-
17	16.682 BOLT; RECLINING MANUAL TILT CAB<RWZ> M8X20	8-97255-906-0	02	1	0311-0501
17	16.682 BOLT; RECLINING M8X20	8-97255-906-0	02	1	0502-
18	16.682 COVER; RECLINING MANUAL TILT CAB<RWZ> DARK GRAY	8-97867-020-0	01	1	0311-0501
18	16.682 COVER; RECLINING GRAY	8-97398-249-0	01	1	0502-
19	16.686 SCREW; COVER MANUAL TILT CAB<RWZ> 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0311-0501
19	16.686 SCREW; COVER 16.802 M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0502-0604
19	16.686 SCREW; COVER 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	01	1	0605-
24	16.682 KNOB; RECLINING,FRT,SEAT MANUAL TILT CAB<RWZ> DARK GRAY	8-97867-021-0	01	1	0311-0501
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97398-250-0	01	1	0502-0804
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97415-445-0	01	1	0805-
63	16.682 ADJUSTER; SEAT SLIDE MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG>	8-97869-043-0	01	1	0502-0506
63	16.682 ADJUSTER; SEAT SLIDE MANUAL TILT CAB<RWZ>	8-97854-059-3	01	1	0311-0501
63	16.682 ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ>	8-97854-059-3	01	1	0502-0506
63	16.682 ADJUSTER; SEAT SLIDE SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>	8-97854-059-3	01	1	0502-0506
63	16.682 ADJUSTER; SEAT SLIDE EXC. SEAT CLOTH<7FL>	8-97854-059-3	01	1	0502-0506
63	16.682 ADJUSTER; SEAT SLIDE	8-97854-059-3	01	1	0507-
67	16.682 BOLT; FRT SEAT TO BODY 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0311-
69	16.682 NUT; FRT SEAT M8	1-09984-109-0	01	1	0311-
71	16.682 BOLT; ADJ TO SEAT MANUAL TILT CAB<RWZ> M8X20	8-97255-906-0	02	1	0311-0501
71	16.682 BOLT; ADJ TO SEAT M8X20	8-97255-906-0	02	1	0502-
99	16.716 BUSHING; SEAT BACK MANUAL TILT CAB<RWZ>	8-97854-087-0	01	1	0311-0501
99	16.716 BUSHING; SEAT BACK	8-97854-087-0	01	1	0502-
228	16.714 SCREW; KNOB MANUAL TILT CAB<RWZ> 11.377 M4X6	8-97042-273-0	01	1	0311-0501
228	16.714 SCREW; KNOB 11.377 M4X6	8-97042-273-0	01	1	0502-
382	16.682 WASHER; PL,DRIVER SEAT 06.514 ID=8.4 OD=22	8-94127-883-1	01	1	0311-
