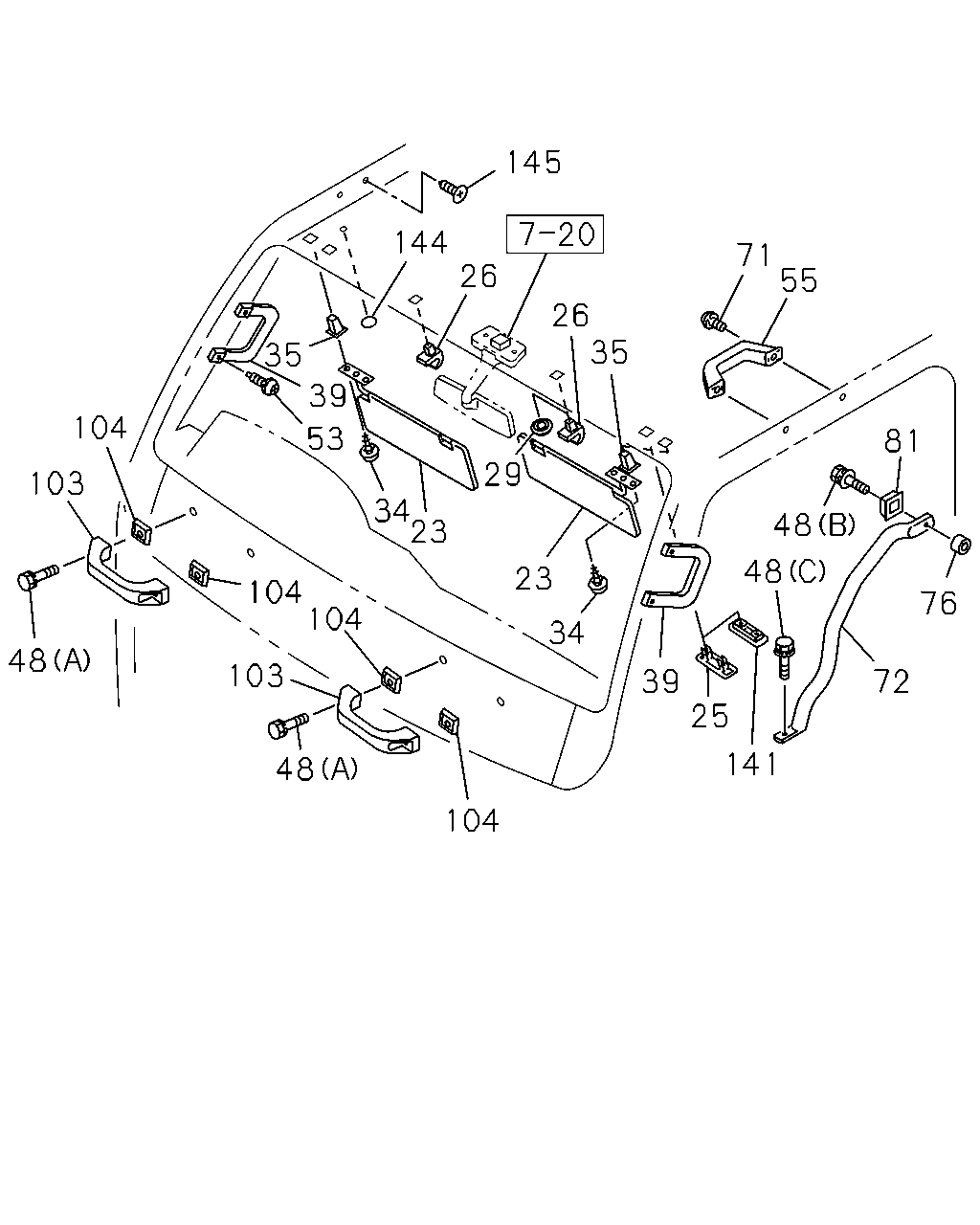

7-43 — SUN VISOR AND ASSIST GRIP (#53725) — 87 parça

145 144 26 71 55 26 35 35 39 104 53 81 29 103 34 23 48 48 23 104 104 76 34 103 48 39 25 72 141 48 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97997-504-1	01	1	0502-0509
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97404-401-0	01	1	0510-
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-97997-875-1	01	1	0502-0509
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-97404-451-0	01	1	0510-
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> PASSENGER LIGHT GRAY	8-97868-220-2	01	1	0311-0501
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97868-220-2	01	1	0502-0509
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> PASSENGER LIGHT GRAY	8-97404-443-0	01	1	0510-
23	16.070 SUN VISOR DRIVER LIGHT GRAY	8-97867-781-2	01	1	0311-0501
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-97867-781-2	01	1	0502-0509
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> DRIVER LIGHT GRAY	8-97404-441-0	01	1	0510-
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-846-3	01	1	0311-0501
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-846-3	01	1	0502-0610
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-201-3	01	1	0611-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	0502-0610
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-198-2	02	1	0611-
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0502-0610
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	01	1	0611-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-94351-982-0	02	1	0311-0501
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	02	1	0502-0610
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	02	1	0611-
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-94351-982-0	01	1	0311-0501
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	01	1	0502-0610
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	01	1	0611-
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 16.547 OD=15.0	8-94279-040-0	01	1	0311-0501
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	0502-
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	0311-0501
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	0502-0612
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	0502-0612
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	0701-0706
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	0701-0706
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	04	1	0707-
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	04	1	0707-
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	02	1	0311-0501
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0502-0612
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-0706
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 06.514 M5X18 TAPPING	0-72180-518-0	02	1	0707-
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	0311-0501
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	0502-
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	0502-
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	02	1	0311-0501
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	0502-
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97867-209-0	02	1	0311-0501
39	16.450 HANDLE; ASSIST,A-POST GRAY	8-97582-194-1	02	1	0502-0702
39	16.450 HANDLE; ASSIST,A-POST GRAY	8-97409-477-0	02	1	0703-
48	16.450 BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	8-94279-214-0	01	1	0311-
48	16.450 BOLT; ASSIST GRIP (C) M6X40 LK&PL WASHER	8-94279-215-0	01	1	0311-
48	16.450 BOLT; ASSIST GRIP (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	0311-
53	16.450 SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0311-0612
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	0701-
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> 16.346 DARK GRAY	8-97098-476-2	01	1	0311-0501
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97582-294-2	01	1	0502-0610
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	0611-
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0612
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	0701-
72	16.450 GRIP; ASSIST,CAB ENTRY,BACK	8-97856-889-2	01	1	0311-
76	16.742 SPACER; ASSIST GRIP	8-97857-268-0	01	1	0311-
81	15.394 CAP; ASSIST GRIP DARK GRAY	8-97867-612-4	01	1	0311-0501
81	15.394 CAP; ASSIST GRIP GRAY	8-97582-827-4	01	1	0502-
103	16.450 GRIP; ASSIST,FRT PNL WHITE	1-71998-131-0	02	1	0311-1002
103	16.450 GRIP; ASSIST,FRT PNL	8-97630-819-0	02	1	1003-
104	16.450 SPACER; ASSIST GRIP	8-97859-124-3	04	1	0311-
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	0502-
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0311-0501
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0502-
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE	8-97856-832-1	04	1	0311-0501
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-2	04	1	0502-0610
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0611-
145	16.070 PLUG; HOLE 16.069 OD=12 L=14.8	8-94279-921-0	04	1	0311-0501
145	16.070 PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	0502-

30 31 151 152 138 30 31 1 128 128 128 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-820-1	01	1	0502-
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0502-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0502-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0502-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-4	01	1	0502-
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0502-0612
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.570 (B) M6X16	0-38050-616-0	04	1	0701-
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.263 (A) M5X16	8-94279-341-0	02	1	0502-0612
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.069 (A) M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.263 (A) M5X16	8-94279-341-0	02	1	0703-
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (A) LIGHT GRAY	8-97892-153-2	02	1	0502-
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97892-151-0	01	1	0502-
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0502-0612
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C) M6X16 W/TORQUES	8-98064-273-0	03	1	0701-
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-250-0	01	1	0502-
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	0502-
