Isuzu WW
▶
TRUCKS
▶
NPS
▶
51402 - NPS INDONESIA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

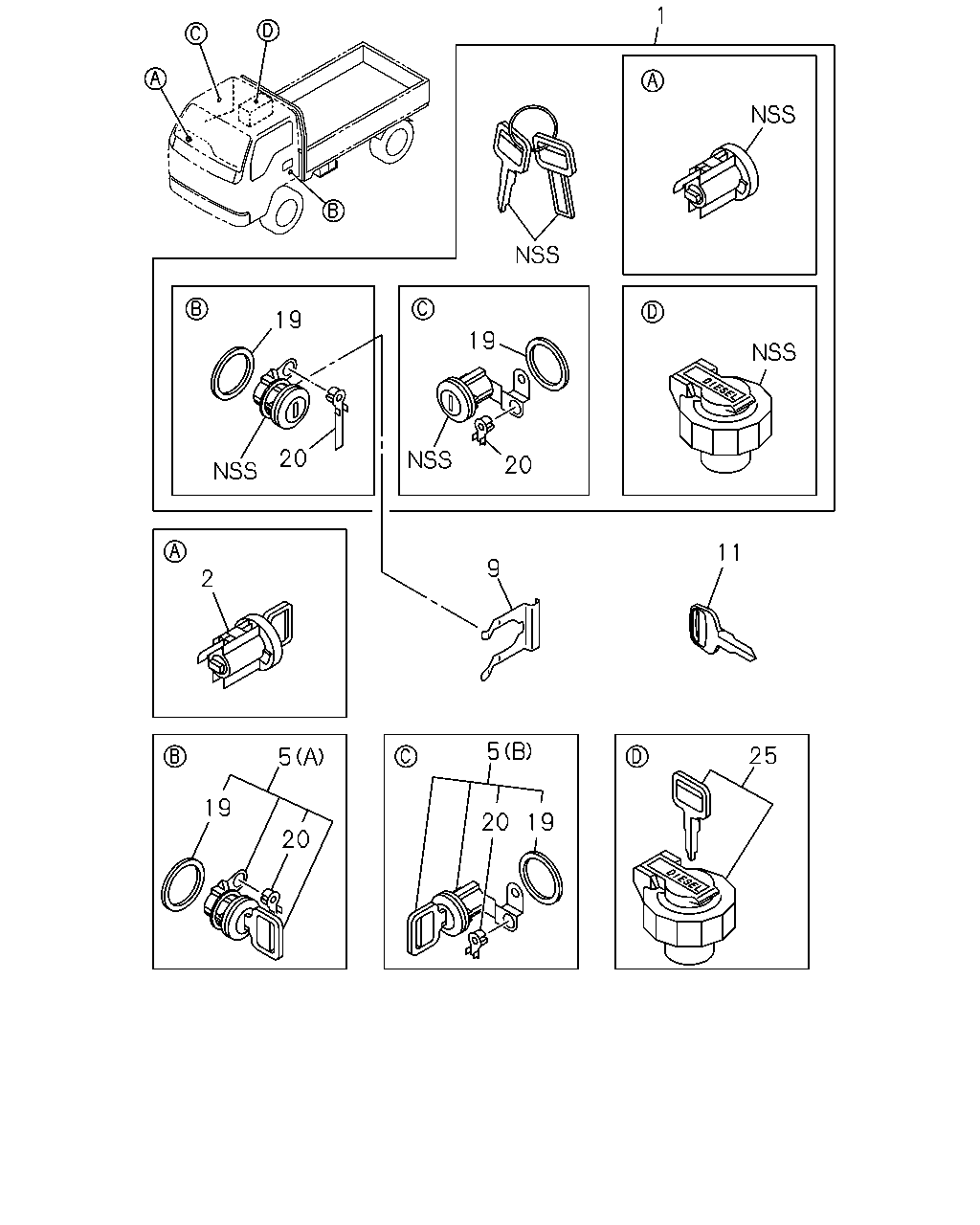

7-30 — LOCK CYLINDER SET
(#53721) — 12 parça
1
19
19
20
20
11
9
2
5
25
5
19
20
19
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.188 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05>
8-97035-294-1
01
1
0311-
1
02.188 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05>
8-97035-293-1
01
1
0311-
2
02.188 BARREL ASM; W/KEY,STRG LOCK
8-97095-682-2
01
1
0311-
5
16.328 CYLINDER ASM; DOOR LOCK
(B)
8-97095-684-2
01
1
0311-
5
16.328 CYLINDER ASM; DOOR LOCK
(A)
8-97095-685-2
01
1
0311-
9
16.328 CLIP; DOOR LOCK
8-97898-277-0
02
1
0311-0610
9
16.328 CLIP; DOOR LOCK
8-97410-786-0
02
1
0611-
11
02.187 KEY; BLANK
WO/NOTCH
8-97076-337-0
AR
1
0311-
19
16.328 GASKET; DOOR LOCK CYL
8-94128-739-0
02
1
0311-
20
16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW
8-97040-452-0
01
1
0311-
20
16.328 SNAP; DOOR LOCK CYL
10.474 BROWN
8-97040-453-0
01
1
0311-
25
03.028 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05>
8-97095-686-2
01
1
0311-
