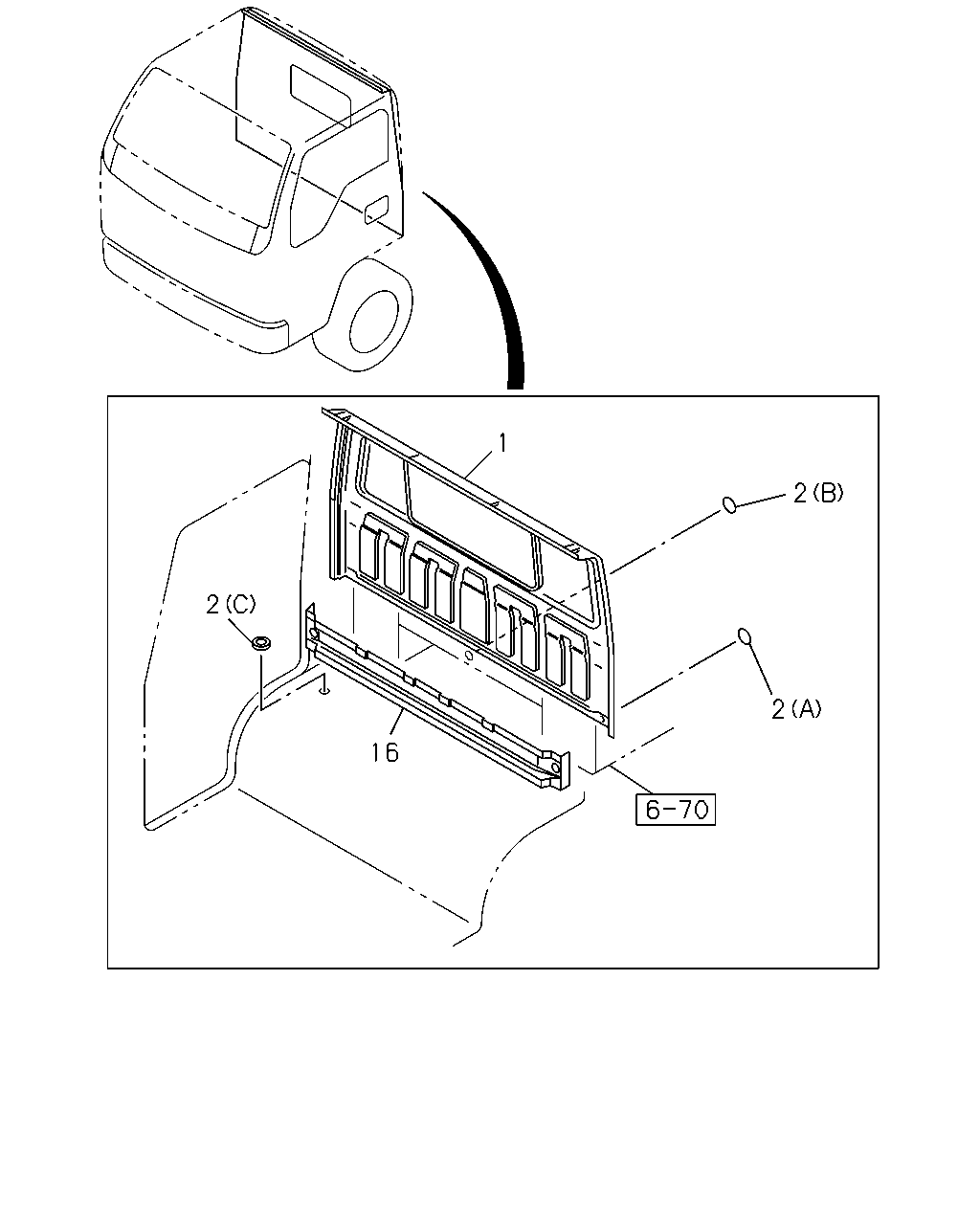

6-80 — BACK PANEL (#53714) — 7 parça

1 2 2 2 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.587 PANEL; BACK OUTER	8-97859-127-0	01	1	0311-
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.165 (B) OD=25 BLACK	1-76798-019-0	04	1	0311-
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 00.785 (C) OD=16.2	8-94492-493-0	02	1	0311-0512
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.547 (C) OD=15.0	8-94279-040-0	02	1	0601-
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	0311-0710
2	16.587 GROMMET; LOCATION HOLE,BACK PANE 16.545 (A) OD=32 BLACK	8-98031-126-0	02	1	0711-
16	16.575 REINFORCEMENT; BACK OUTER PNL	8-97851-501-6	01	1	0311-
