Isuzu WW
▶
TRUCKS
▶
NPS
▶
51402 - NPS INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

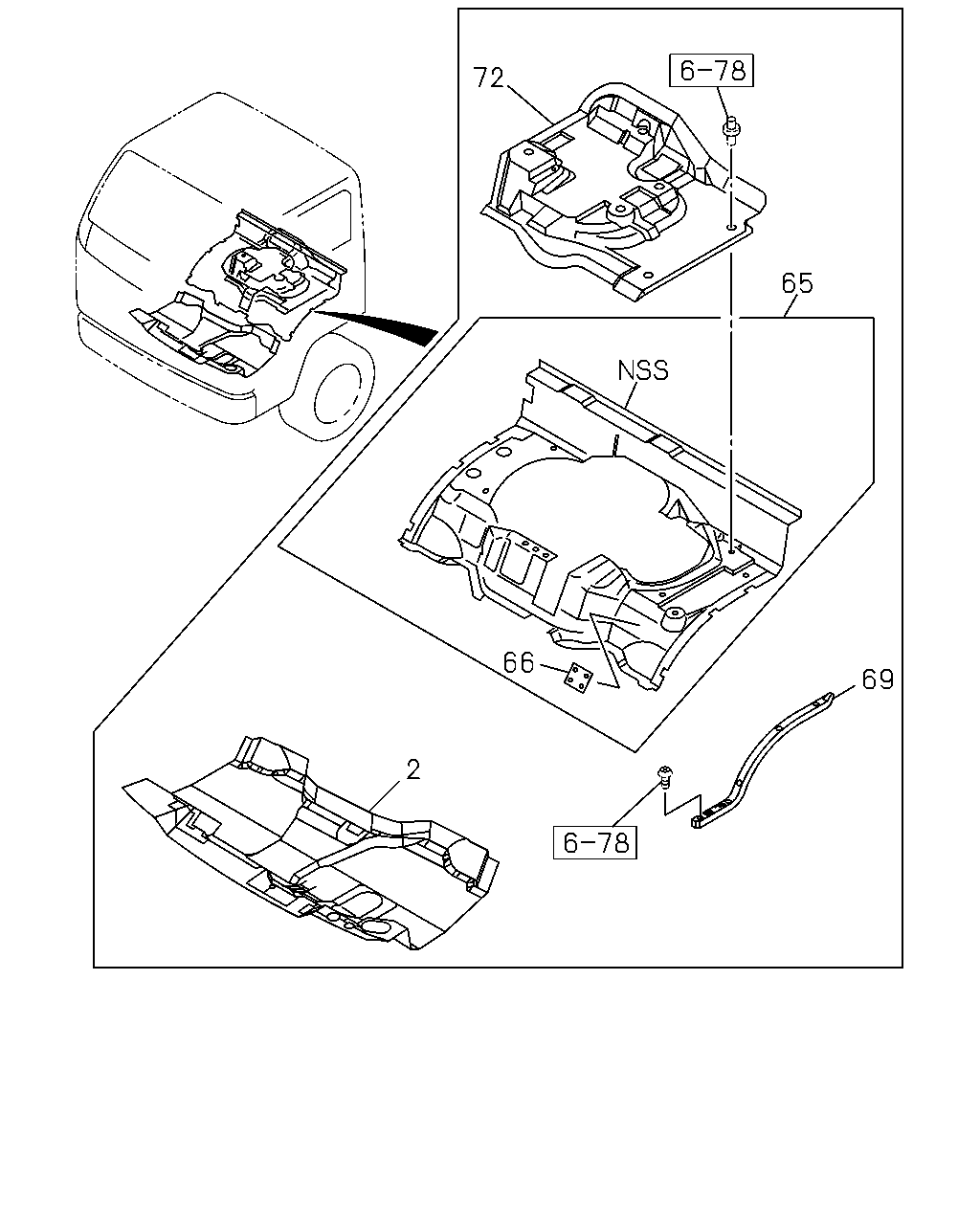

6-75 — MAT AND CARPET
(#53711) — 15 parça
72
65
66
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY
8-97581-121-1
01
1
0311-0501
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY
8-97588-992-3
01
1
0502-
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY
8-97581-120-1
01
1
0311-0501
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY
8-97588-991-3
01
1
0502-
65
16.802 MAT ASM; SILENCER,CAB FLOOR
DARK GRAY
8-97996-709-0
01
1
0311-0501
65
16.802 MAT ASM; SILENCER,CAB FLOOR
GRAY
8-97589-106-1
01
1
0502-
66
16.549 HOOK; COVER
DARK GRAY
8-97997-582-0
02
1
0311-0501
66
16.549 HOOK; COVER
GRAY
8-97583-948-0
02
1
0502-
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY
8-97857-551-0
01
1
0311-0501
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-228-1
01
1
0502-0702
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-478-0
01
1
0703-
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY
8-97994-681-0
01
1
0311-0501
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-804-1
01
1
0502-
72
16.800 MAT; SILENCER,ENG COVER
DARK GRAY
8-97996-731-0
01
1
0311-0501
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97589-118-1
01
1
0502-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
