Isuzu WW
▶
TRUCKS
▶
NLS
▶
51258 - NLS RHD
▶
9 - Tools
▶
9-01 - TOOLS
▶

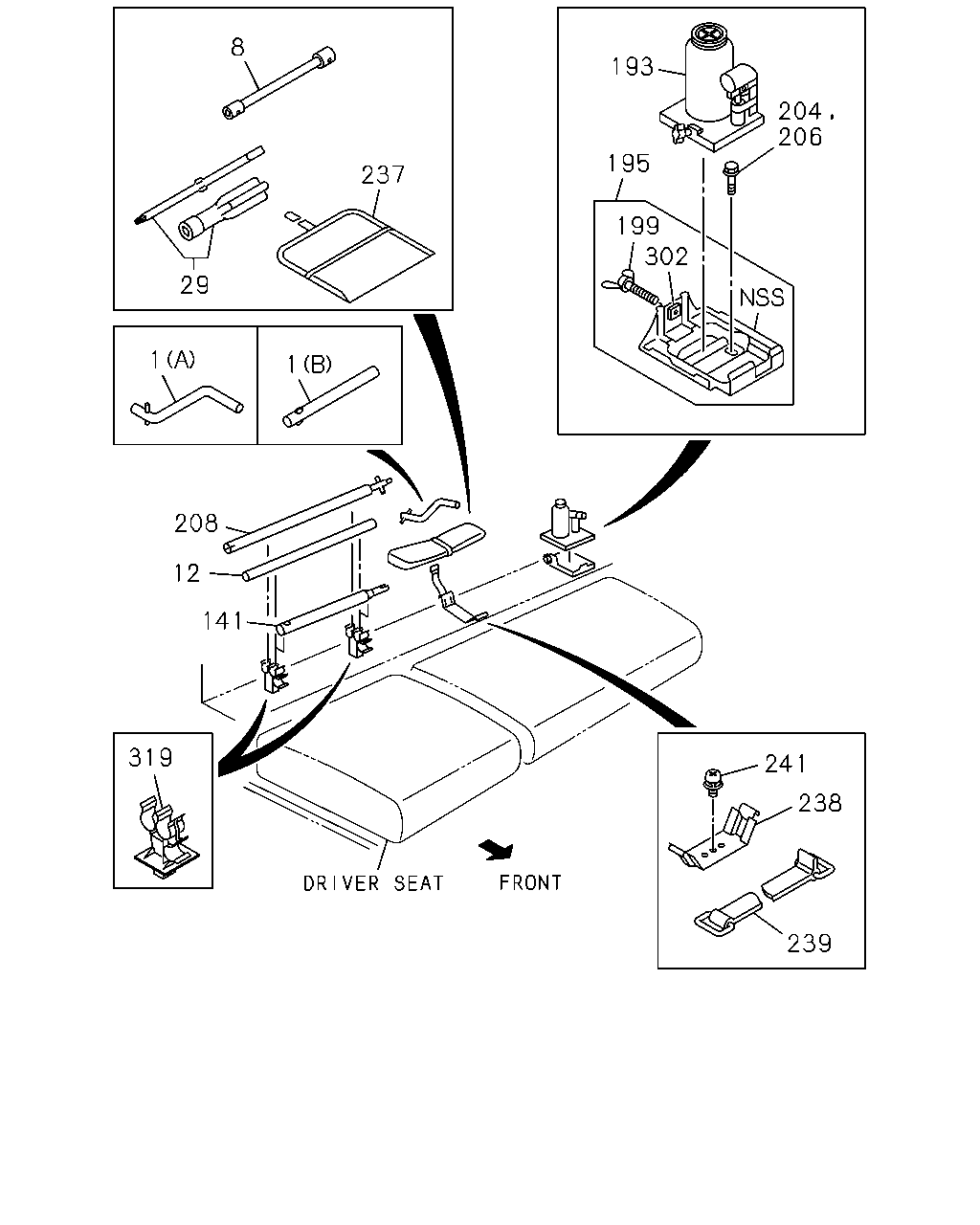

9-01 — TOOLS
(#53710) — 37 parça
Tümü
A - NMS5WE
B - NMS5SE
◀

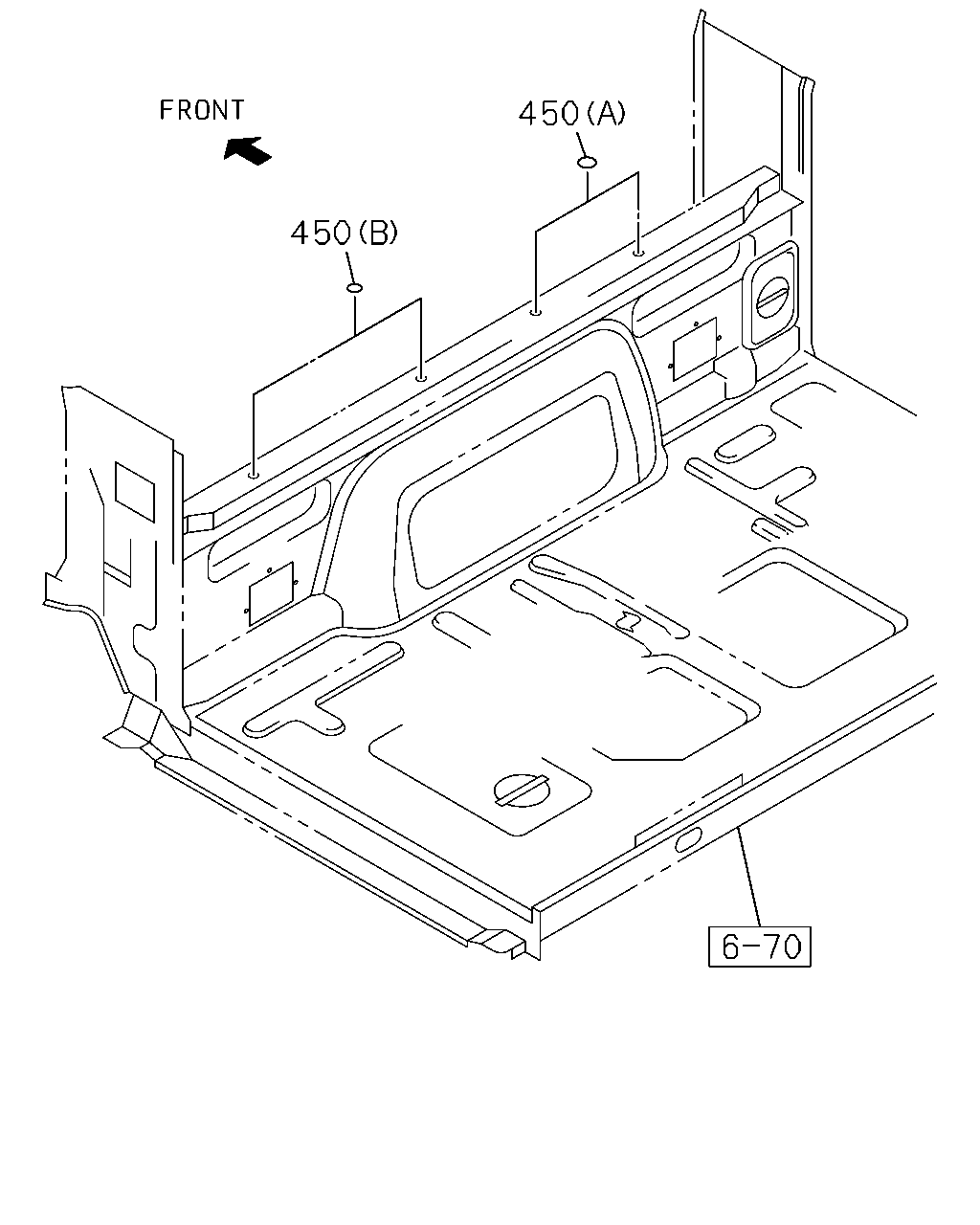

[901A] SEAL (2 parça)
[901A] TOOLS (35 parça)
▶
450
450
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
450
16.064 SEAL; HOLE
02.580 (A) OD=36 T=0.05 BLACK
5-76777-035-0
02
1
1012-
●
450
16.064 SEAL; HOLE
16.165 (B) OD=20 T=0.05 BLACK
5-76777-036-0
02
1
1012-
●
204
193
195
206
199
302
241
238
239
319
141
12
208
1
1
29
8
237
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280
1-85515-007-0
01
1
1012-1108
●
1
07.629 HANDLE; SPARE TIRE CARRIER
(B) L=280
8-98181-251-0
01
1
1109-
●
1
07.629 HANDLE; SPARE TIRE CARRIER
(A)
8-97218-985-0
01
1
0908-
●
8
08.821 WRENCH; WHEEL
B=41X19 L=330
8-94386-490-1
01
1
0908-1011
●
8
08.821 WRENCH; WHEEL
B=41X19 L=330
8-94386-490-1
01
1
1012-
●
●
12
08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590
8-97332-988-0
01
1
0908-1001
●
12
08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480
1-85116-011-0
01
1
1002-1407
●
12
08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480
8-98257-407-0
01
1
1408-
●
29
08.821 DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
01
1
0908-1011
●
29
08.821 DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
01
1
1012-
●
●
141
08.821 HANDLE; WRENCH
08.820 L=580
1-85515-005-1
01
1
1012-1108
●
141
08.821 HANDLE; WRENCH
08.820 L=580
8-98181-249-0
01
1
1109-
●
193
08.820 JACK ASM
4TON
8-98090-823-0
01
1
0908-0910
●
193
08.820 JACK ASM
4TON
8-94438-020-3
01
1
0911-1011
●
193
08.820 JACK ASM
4TON
8-94438-020-3
01
1
1012-
●
●
195
08.820 BRACKET; JACK
8-98165-970-0
01
1
1012-
●
195
08.820 BRACKET; JACK
8-97589-376-2
01
1
0908-0910
●
195
08.820 BRACKET; JACK
8-98034-916-0
01
1
0911-
●
199
08.820 BOLT; JACK
M8X50 WING
8-94279-136-0
01
1
1012-
●
199
08.820 BOLT; JACK
M8X30 WING
8-98005-536-0
01
1
0908-0910
●
199
08.820 BOLT; JACK
M8X50 WING
8-98005-537-0
01
1
0911-
●
204
08.820 BOLT; BRKT,JACK
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0908-
●
206
08.820 SCREW; OIL JACK BRKT
16.570 BOLT M6X16
0-38050-616-0
01
1
1012-
●
208
08.820 HANDLE; JACK
L=642
8-97217-800-0
01
1
0908-1108
●
208
08.820 HANDLE; JACK
L=642
8-98181-477-0
01
1
1109-
●
237
08.821 BAG; TOOL
8-97130-903-0
01
1
0908-1011
●
237
08.821 BAG; TOOL
8-97130-903-1
01
1
1012-
●
●
238
08.820 SUPPORT; TOOL BAG
8-97994-977-0
01
1
0908-
●
239
08.820 BAND; TOOL BAG
L=100
5-73997-026-1
01
1
0908-1011
●
239
08.820 BAND; TOOL BAG
L=100
5-73997-026-1
01
1
1012-
●
●
241
08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16
0-38050-616-0
01
1
0908-
●
302
08.820 NUT; JACK BRKT
8-98021-556-0
01
1
0908-1011
●
302
08.820 NUT; JACK BRKT
8-98021-556-0
01
1
1012-
●
●
319
08.821 CLIP; TOOL BAR
8-97853-077-2
02
1
0908-1011
●
319
08.821 CLIP; TOOL BAR
8-97853-077-2
02
1
1012-
●
●
