8-80 — WINDSHIELD WIPER AND WASHER (#53708) — 70 parça

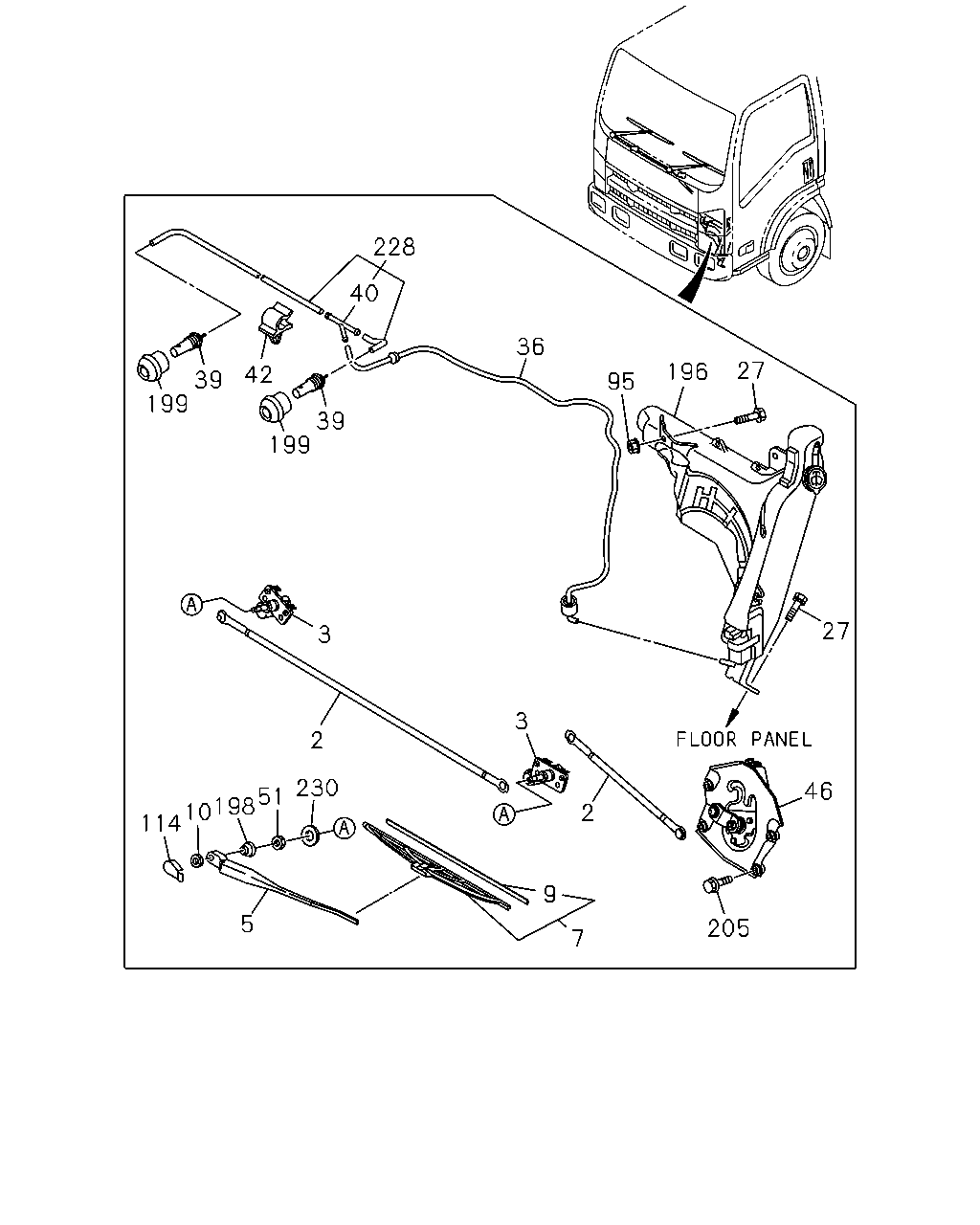

çizim 160150
7 9 205 5 230 51 198 10 114 3 2 3 2 46 27 27 196 95 36 228 40 39 199 42 39 199
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.063 LINK; FRT WIPER
L=400 W/CAP STAMP M 		8-98053-767-0 01 1 0908-1011 ●
2 16.063 LINK; FRT WIPER
L=400 W/CAP STAMP M 		8-98053-767-0 01 1 1012- ● ●
2 16.063 LINK; FRT WIPER
L=590 W/CAP 		8-98053-770-0 01 1 0908-1011 ●
2 16.063 LINK; FRT WIPER
L=590 W/CAP 		8-98053-770-0 01 1 1012- ● ●
3 16.063 PIVOT ASM; FRT WIPER 8-98053-763-0 01 1 0908-1011 ●
3 16.063 PIVOT ASM; FRT WIPER 8-98053-763-0 01 1 1012- ● ●
3 16.063 PIVOT ASM; FRT WIPER 8-98053-764-0 01 1 0908-1011 ●
3 16.063 PIVOT ASM; FRT WIPER 8-98053-764-0 01 1 1012- ● ●
5 16.063 ARM; WIPER
DRIVER SIDE 		8-98053-784-0 01 1 0908-1011 ●
5 16.063 ARM; WIPER
DRIVER SIDE 		8-98053-784-0 01 1 1012- ● ●
5 16.063 ARM; WIPER
PASSENGER SIDE 		8-98053-785-0 01 1 0908-1011 ●
5 16.063 ARM; WIPER
PASSENGER SIDE 		8-98053-785-0 01 1 1012- ● ●
7 16.062 BLADE; WIPER 8-98053-790-0 02 1 0908-1011 ●
7 16.062 BLADE; WIPER 8-98053-790-0 02 1 1012- ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-98053-793-0 02 1 0908-1011 ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-98053-793-0 02 1 1012- ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 		0-91110-508-0 02 1 0908-1011 ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 		0-91110-508-0 02 1 1012- ● ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0908-1011 ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 1012- ● ●
36 16.065 HOSE; WASHER
L=1070 		8-98029-171-2 01 1 0908-1011 ●
36 16.065 HOSE; WASHER
L=1070 		8-98029-171-2 01 1 1012- ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98029-139-1 02 1 0908-1011 ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98029-139-1 02 1 1012- ● ●
40 16.065 JOINT; WASHER HOSE
3WAY 		5-83363-033-0 01 1 0908-1011 ●
40 16.065 JOINT; WASHER HOSE
3WAY 		5-83363-033-0 01 1 1012- ● ●
42 16.065 CLIP; WASHER HOSE 8-94144-956-0 01 1 0908-1011 ●
42 16.065 CLIP; WASHER HOSE 8-94144-956-0 01 1 1012- ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-123-3 01 1 0908-1011 ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-123-3 01 1 1012- ● ●
51 16.063 NUT; WIPER MOTOR LINK
M24 		8-98029-167-0 02 1 0908-1011 ●
51 16.063 NUT; WIPER MOTOR LINK
M24 		8-98029-167-0 02 1 1012- ● ●
95 16.065 NUT; WASHER TANK
01.062 M8 FLANGE 		0-91180-108-0 01 1 0908-1011 ●
95 16.065 NUT; WASHER TANK
01.062 M8 FLANGE 		0-91180-108-0 01 1 1012- ● ●
114 16.063 COVER; FRT WIPER ARM
BLACK 		8-94282-851-0 02 1 0908-1011 ●
114 16.063 COVER; FRT WIPER ARM
BLACK 		8-94282-851-0 02 1 1012- ● ●
196 16.065 TANK; WASHER 8-98029-135-3 01 1 0908-1011 ●
196 16.065 TANK; WASHER 8-98029-135-3 01 1 1012- ● ●
198 16.063 COVER; PIVOT,WIPER 8-98029-164-0 02 1 0908-1011 ●
198 16.063 COVER; PIVOT,WIPER 8-98029-164-0 02 1 1012- ● ●
199 16.063 COVER; NOZZLE,WIPER 8-98079-030-0 02 1 0908-1011 ●
199 16.063 COVER; NOZZLE,WIPER 8-98079-030-0 02 1 1012- ● ●
205 16.064 BOLT; WIPER MOTOR
16.090 M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0908-1011 ●
205 16.064 BOLT; WIPER MOTOR
16.090 M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1012- ● ●
228 16.065 HOSE ASM; WASHER 8-98029-169-1 01 1 0908-1011 ●
228 16.065 HOSE ASM; WASHER 8-98029-169-1 01 1 1012- ● ●
230 16.064 COLLAR; WIPER LINK 8-98029-097-0 02 1 0908-1011 ●
230 16.064 COLLAR; WIPER LINK 8-98029-097-0 02 1 1012- ● ●

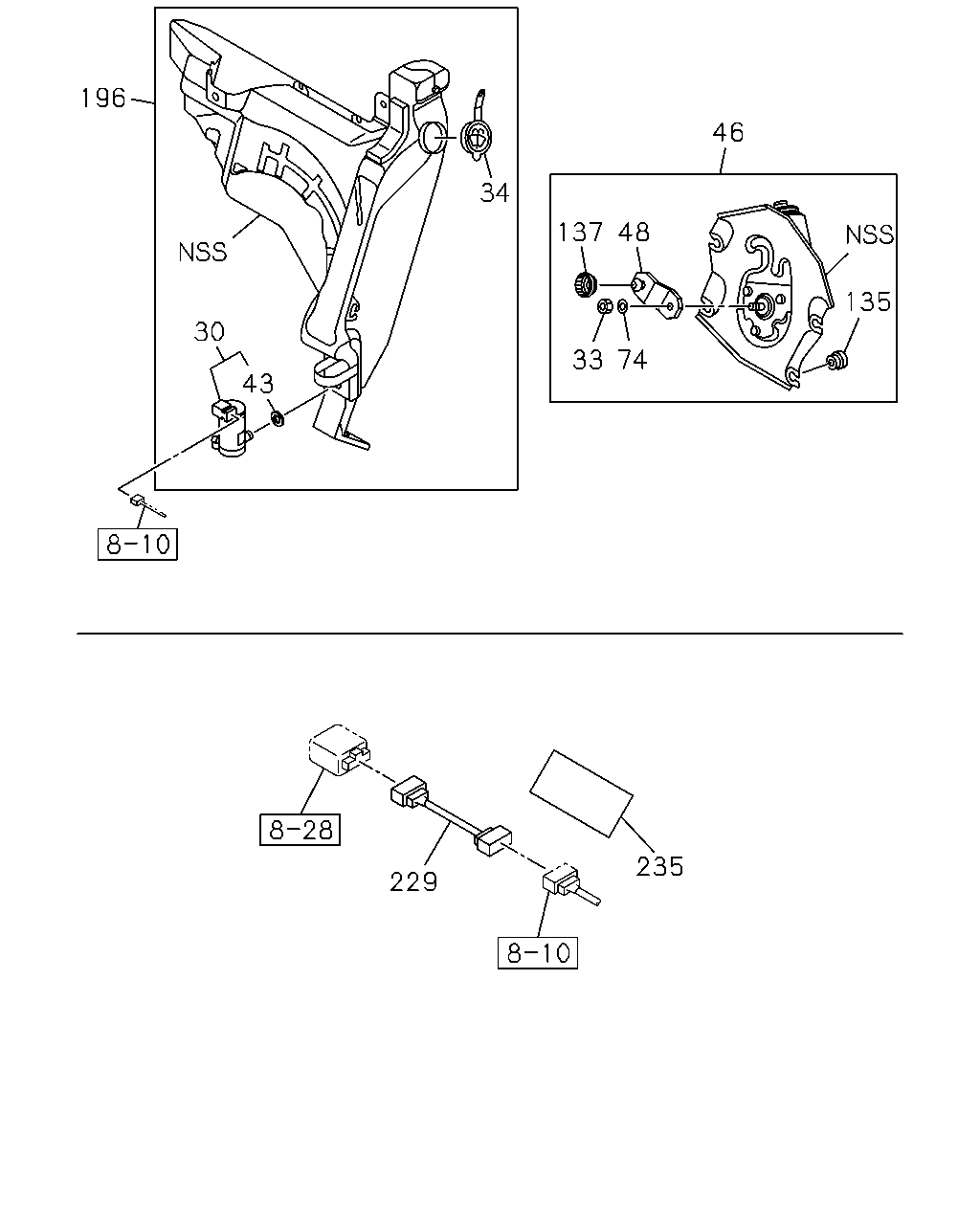

çizim 160164
196 34 43 30 33 135 46 48 137 74 235 229
BalonParca AdiParca NoAdetTipApplied Date A B
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 0908-1011 ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97855-139-0 01 1 1012- ● ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 0908-1011 ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 1012- ● ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 0908-1011 ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 1012- ● ●
43 16.065 RUBBER; GASKET,TANK
10.154 		8-94352-050-0 01 1 0908-1011 ●
43 16.065 RUBBER; GASKET,TANK
10.154 		8-94352-050-0 01 1 1012- ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-123-3 01 1 0908-1011 ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-98029-123-3 01 1 1012- ● ●
48 16.063 ARM; WIPER MOTOR 8-98052-215-0 01 1 0908-1011 ●
48 16.063 ARM; WIPER MOTOR 8-98052-215-0 01 1 1012- ● ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 0908-1011 ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 1012- ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-98052-214-0 04 1 0908-1011 ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-98052-214-0 04 1 1012- ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR 8-98052-218-0 01 1 0908-1011 ●
137 16.063 SEAL; JOINT,WIPER MOTOR 8-98052-218-0 01 1 1012- ● ●
196 16.065 TANK; WASHER 8-98029-135-3 01 1 0908-1011 ●
196 16.065 TANK; WASHER 8-98029-135-3 01 1 1012- ● ●
229 02.480 HARNESS; WASHER TANK 8-98236-608-0 01 1 1302-1308 ● ●
235 16.062 INSULATOR; HARNESS 8-98236-321-0 01 1 1302-1308 ● ●
