8-75 — CONDENSER (#53707) — 105 parça

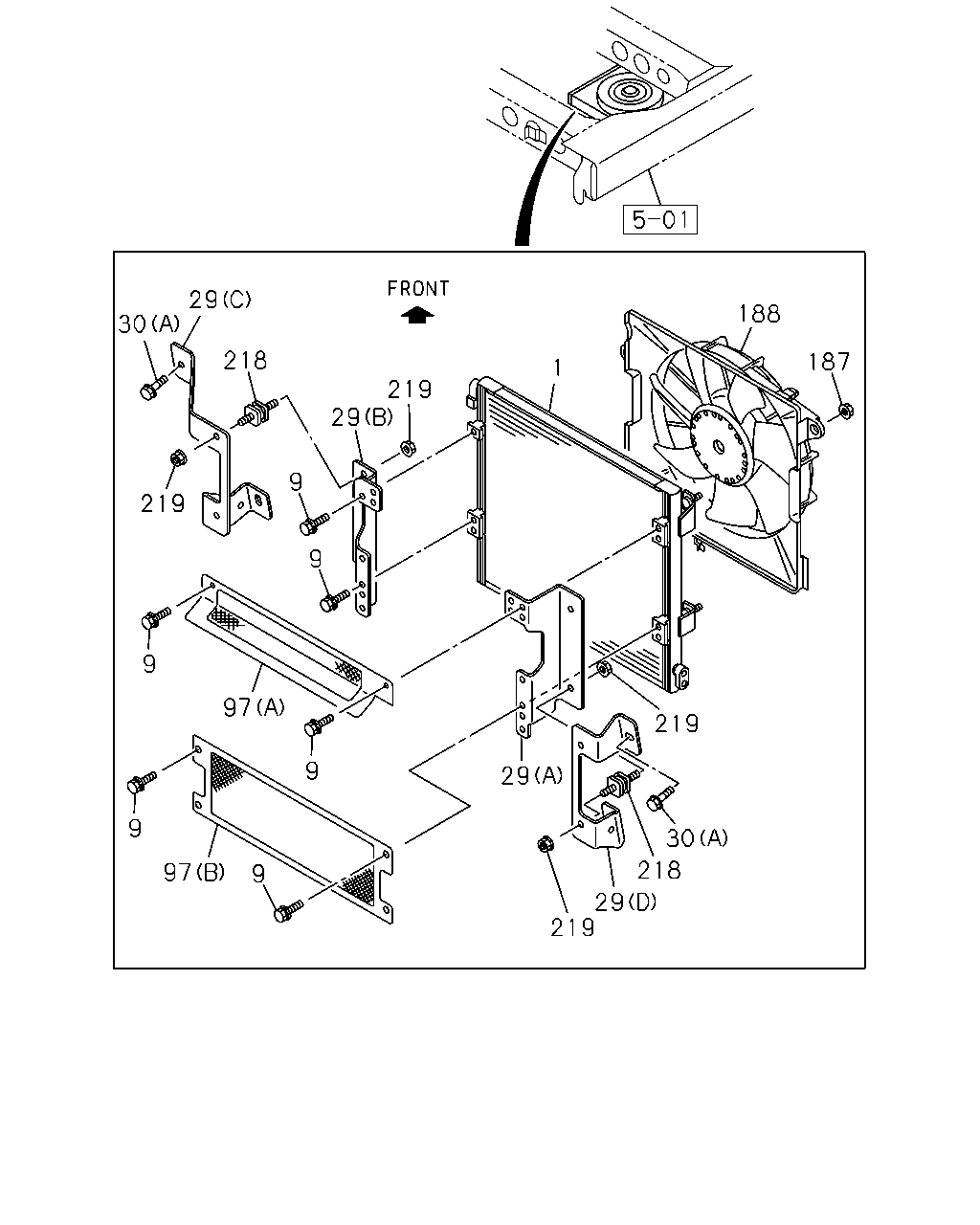

30 218 29 219 29 219 1 188 187 219 29 9 9 218 29 30 219 9 97 9 9 97 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98133-042-0	01	1	1009-1011	●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98133-042-1	01	1	1012-	●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98133-042-1	01	1	1012-		●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98041-884-0	01	1	0908-1008	●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4)	8-98041-884-0	01	1	1009-	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) M6X14	8-98041-899-0	08	1	1009-1011	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) M6X14	8-98041-899-0	08	1	1012-	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	8-98041-899-0	08	1	1012-		●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	1-83539-382-0	12	1	0908-1008	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) M6X14	1-83539-382-0	12	1	1009-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98133-044-0	01	1	1009-1011	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98133-044-0	01	1	1012-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (E)	8-98133-044-0	01	1	1012-		●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98164-999-0	01	1	1009-1011	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98164-999-0	01	1	1012-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (F)	8-98164-999-0	01	1	1012-		●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (C)	8-98041-896-1	01	1	0908-1008	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (C)	8-98041-896-1	01	1	1009-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (D)	8-98041-897-1	01	1	0908-1008	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (D)	8-98041-897-1	01	1	1009-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-122-1	01	1	0908-1008	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A)	8-98042-122-1	01	1	1009-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98042-123-1	01	1	0908-1008	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B)	8-98042-123-1	01	1	1009-	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1010-1011	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-		●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1009-1009	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	1010-1011	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	1012-	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	1012-		●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 01.060 (A) M8X35 FLANGE	0-28650-835-0	04	1	0908-1008	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 01.060 (A) M8X35 FLANGE	0-28650-835-0	04	1	1009-	●
97	09.190 NET; CONDENSER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98041-900-0	01	1	0908-1008	●
97	09.190 NET; CONDENSER UNIT AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A)	8-98041-900-0	01	1	1009-	●
97	09.190 NET; CONDENSER UNIT AIR CONDITIONER MANUAL CONT(C60) (B)	8-98042-018-1	01	1	0908-1008	●
97	09.190 NET; CONDENSER UNIT AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B)	8-98042-018-1	01	1	1009-	●
187	09.190 NUT; SHROUD AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	0908-1008	●
187	09.190 NUT; SHROUD AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) M6	1-83539-354-0	04	1	1009-	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98133-043-0	01	1	1009-1011	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98133-043-0	01	1	1012-	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98133-043-0	01	1	1012-		●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98041-889-0	01	1	0908-1008	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4)	8-98041-889-0	01	1	1009-	●
218	09.215 CUSHION; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98041-898-0	04	1	0908-1008	●
218	09.215 CUSHION; CONDENSER AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4)	8-98041-898-0	04	1	1009-	●
219	09.190 NUT; CUSHION AIR CONDITIONER MANUAL CONT(C60) M8	1-83539-319-0	08	1	0908-1008	●
219	09.190 NUT; CUSHION AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) M8	1-83539-319-0	08	1	1009-	●

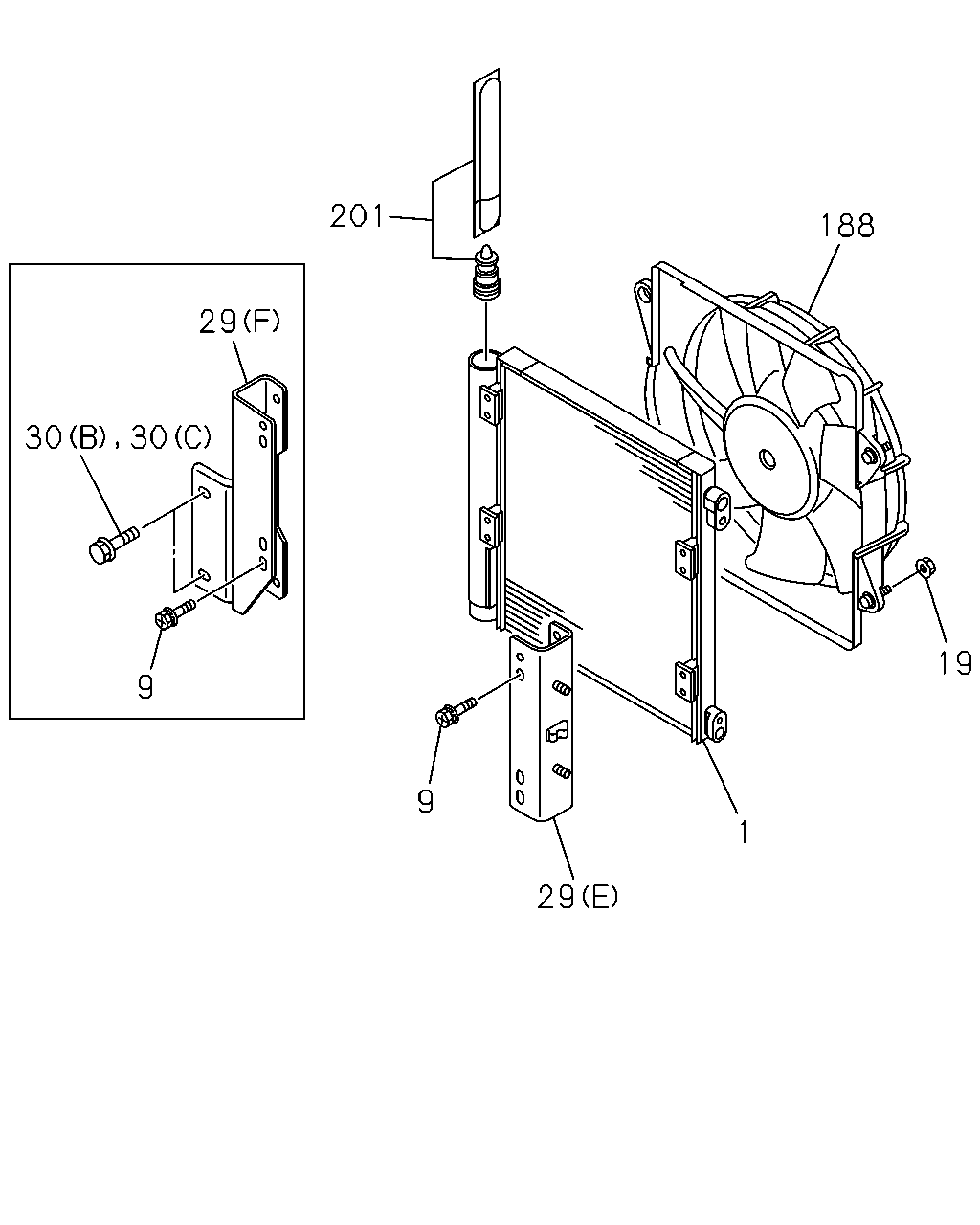

1 19 188 201 29 29 9 9 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98133-042-0	01	1	1009-1011	●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98133-042-1	01	1	1012-	●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98133-042-1	01	1	1012-		●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98041-884-0	01	1	0908-1008	●
1	09.190 CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4)	8-98041-884-0	01	1	1009-	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) M6X14	8-98041-899-0	08	1	1009-1011	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) M6X14	8-98041-899-0	08	1	1012-	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	8-98041-899-0	08	1	1012-		●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	1-83539-382-0	12	1	0908-1008	●
9	09.190 BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) M6X14	1-83539-382-0	12	1	1009-	●
19	09.190 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) M6	1-83539-354-0	04	1	1009-1011	●
19	09.190 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) M6	1-83539-354-0	04	1	1012-	●
19	09.190 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	1012-		●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98133-044-0	01	1	1009-1011	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98133-044-0	01	1	1012-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (E)	8-98133-044-0	01	1	1012-		●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98164-999-0	01	1	1009-1011	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (F)	8-98164-999-0	01	1	1012-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (F)	8-98164-999-0	01	1	1012-		●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (C)	8-98041-896-1	01	1	0908-1008	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (C)	8-98041-896-1	01	1	1009-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (D)	8-98041-897-1	01	1	0908-1008	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (D)	8-98041-897-1	01	1	1009-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-122-1	01	1	0908-1008	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A)	8-98042-122-1	01	1	1009-	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98042-123-1	01	1	0908-1008	●
29	09.190 BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B)	8-98042-123-1	01	1	1009-	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1010-1011	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-		●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	04	1	1009-1009	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	1010-1011	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	1012-	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 00.029 (B) M10X30 FLANGE	0-28651-030-0	03	1	1012-		●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) 01.060 (A) M8X35 FLANGE	0-28650-835-0	04	1	0908-1008	●
30	09.190 BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 01.060 (A) M8X35 FLANGE	0-28650-835-0	04	1	1009-	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98133-043-0	01	1	1009-1011	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98133-043-0	01	1	1012-	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98133-043-0	01	1	1012-		●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98041-889-0	01	1	0908-1008	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4)	8-98041-889-0	01	1	1009-	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	1-83535-097-0	01	1	1009-1011	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	1-83535-097-0	01	1	1012-1409	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	1-83535-097-0	01	1	1012-1409		●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98282-482-0	01	1	1410-	●
201	09.195 DRYER ASM; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98282-482-0	01	1	1410-		●

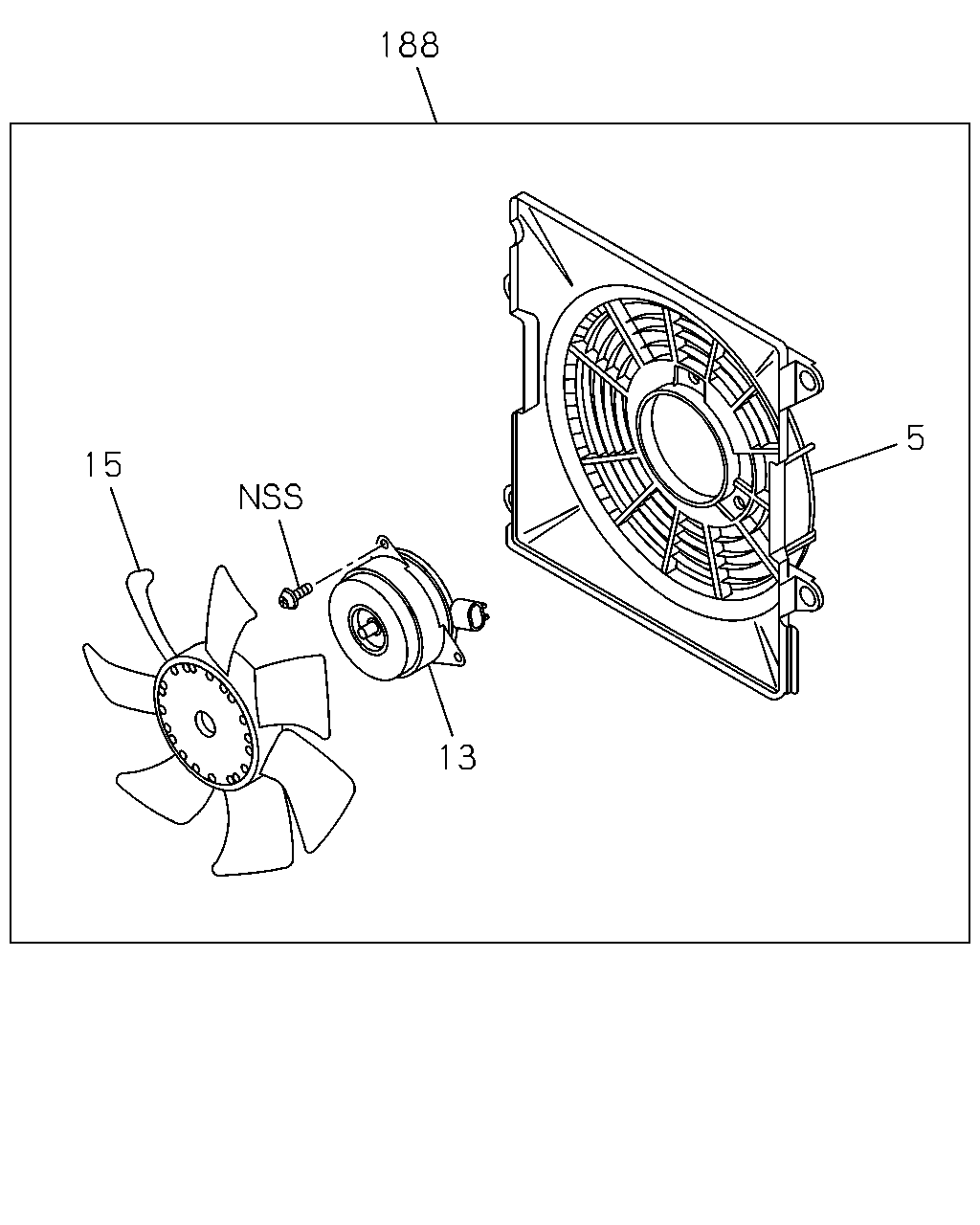

5 188 15 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	09.216 SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60)	8-98152-865-0	01	1	0908-1008	●
5	09.216 SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4)	8-98152-865-0	01	1	1009-	●
13	09.215 MOTOR; FAN AIR CONDITIONER MANUAL CONT(C60)	8-98157-044-0	01	1	0908-1008	●
13	09.215 MOTOR; FAN AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4)	8-98157-044-0	01	1	1009-	●
15	09.216 FAN; MOTOR AIR CONDITIONER MANUAL CONT(C60)	8-98152-860-0	01	1	0908-1008	●
15	09.216 FAN; MOTOR AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4)	8-98152-860-0	01	1	1009-	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98133-043-0	01	1	1009-1011	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98133-043-0	01	1	1012-	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98133-043-0	01	1	1012-		●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98041-889-0	01	1	0908-1008	●
188	09.215 BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4)	8-98041-889-0	01	1	1009-	●
