Isuzu WW
▶
TRUCKS
▶
NLS
▶
51258 - NLS RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

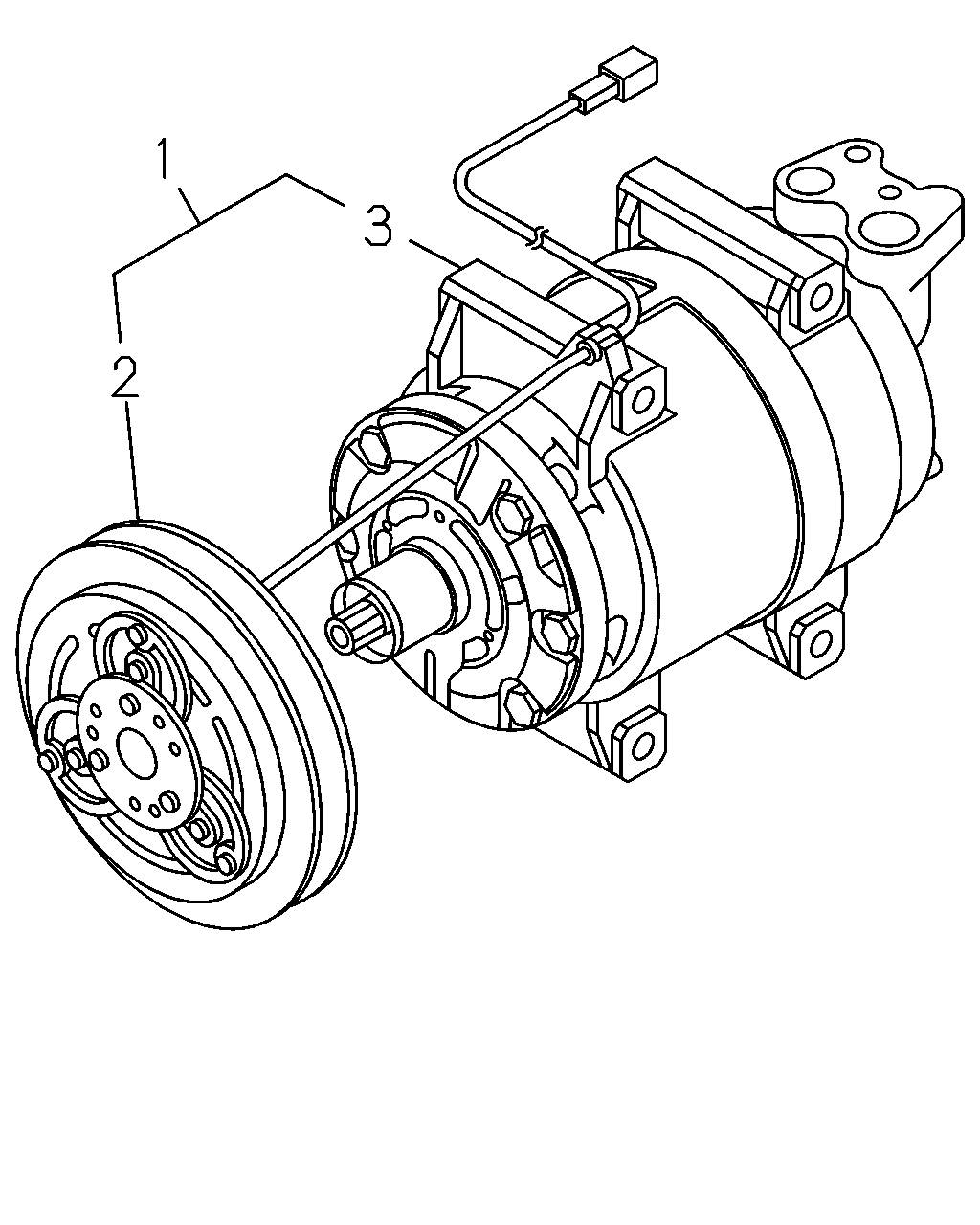

8-71 - COMPRESSOR; AIR CONDITIONING
▶
8-71 — COMPRESSOR; AIR CONDITIONING
(#53705) — 8 parça
Tümü
A - NMS5SE
B - NMS5WE
1
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98000-988-2
01
1
0908-1011
●
1
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98000-988-2
01
1
1012-1211
●
●
1
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98214-324-0
01
1
1212-1410
●
●
1
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) VALEO
8-98286-199-0
01
1
1411-
●
●
2
09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98208-772-0
01
1
0908-1011
●
2
09.188 CLUTCH; MAGNET,A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98208-772-1
01
1
1012-
●
●
3
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98042-531-1
01
1
0908-1011
●
3
09.170 COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-98042-531-1
01
1
1012-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
