Sayfa 8-60 - Isuzu EPC

8-60 — HEATER UNIT; FRONT (#53703) — 162 parça

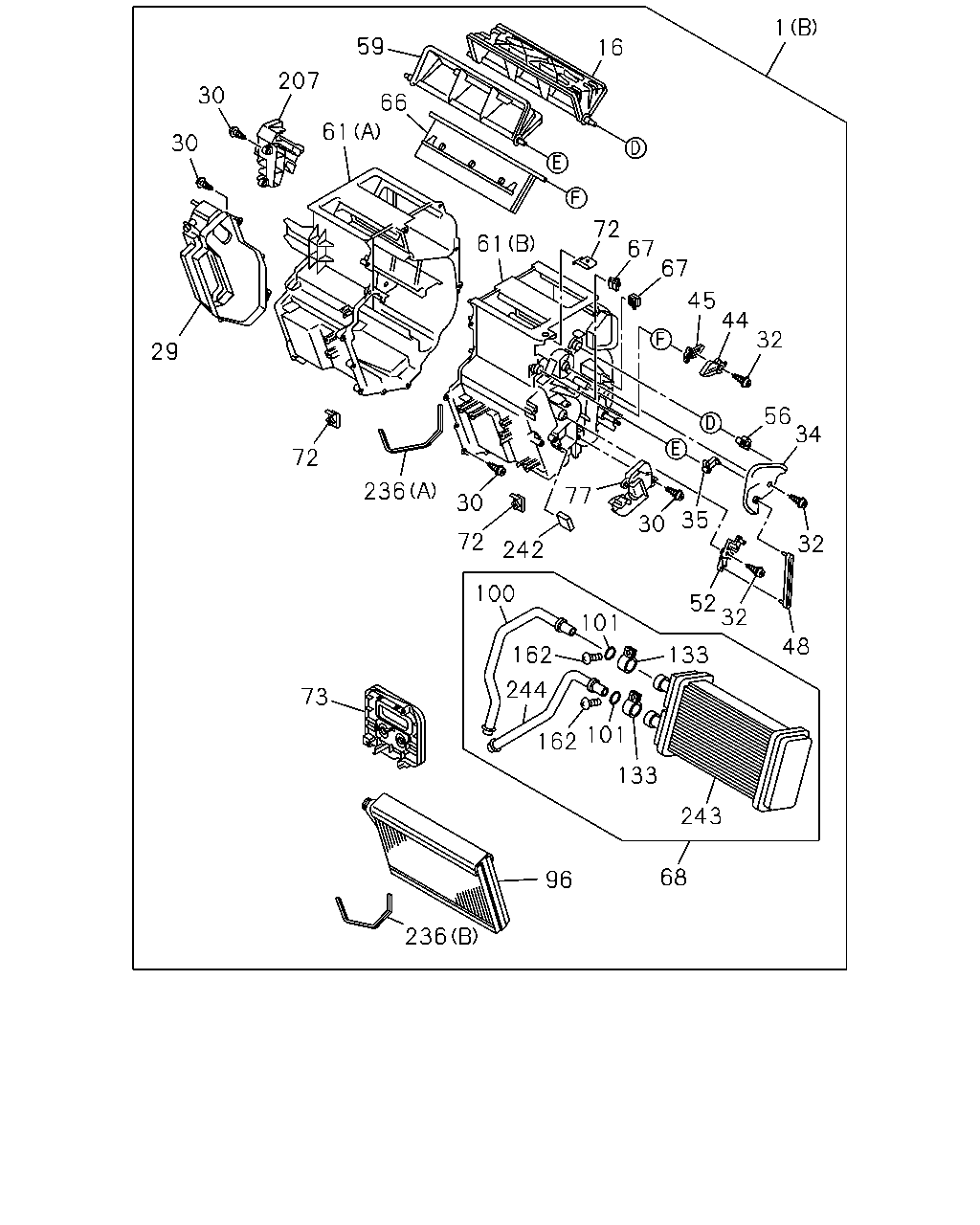

59 207 30 30 61 66 16 1 61 72 67 67 45 44 32 56 34 32 35 30 77 52 32 48 133 101 100 162 244 162 133 101 243 68 96 236 73 72 242 30 236 72 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (B)	8-98062-756-1	01	1	0908-1011	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (B)	8-98062-756-1	01	1	1012-	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	0908-1011	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1012-	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	0908-1011	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1012-	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	0908-1011	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1012-	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	0908-1011	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1012-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	0908-1011	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1012-	●	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	0908-1011	●
32	08.852 SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1012-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	0908-1011	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1012-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	0908-1011	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	1012-	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	0908-1011	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1012-	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	0908-1011	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1012-	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0908-1011	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1012-	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	0908-1011	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1012-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	0908-1011	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	1012-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	0908-1011	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1012-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	0908-1011	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1012-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	0908-1011	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1012-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	0908-1011	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1012-	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	0908-1011	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1012-	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	0908-1011	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1012-	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	0908-1011	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1012-	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0908-1011	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1012-	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	0908-1011	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1012-	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	0908-1011	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	1012-	●	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	0908-1011	●
96	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1012-	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	0908-1011	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1012-	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	0908-1011	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1012-	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	0908-1011	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1012-	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	0908-1011	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1012-	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	0908-1011	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1012-	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	0908-1011	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1012-	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	0908-1011	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1012-	●	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	0908-1011	●
242	08.855 GASKET; CASE HEATER & DEFROSTER(C41) 08.845	8-98048-816-0	01	1	1012-	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	0908-1011	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1012-	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	0908-1011	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1012-	●	●

1 16 59 66 61 207 30 30 135 29 72 30 72 77 93 30 219 35 2 34 56 2 44 45 67 67 72 61 236 73 155 234 212 240 240 238 239 237 236 235 235 68 243 133 101 162 133 101 162 244 100 52 2 48 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (B)	8-98062-756-1	01	1	0908-1011	●
1	08.845 HEATER UNIT HEATER & DEFROSTER(C41) (B)	8-98062-756-1	01	1	1012-	●	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	0908-1011	●
1	08.845 HEATER UNIT AIR CONDITIONER MANUAL CONT(C60) (A)	8-98021-972-4	01	1	1012-	●	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	0908-1011	●
2	08.854 SCREW; LEVER AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16	8-98047-416-0	03	1	1012-	●	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	0908-1011	●
16	09.786 SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-387-0	01	1	1012-	●	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	0908-1011	●
29	08.857 COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98074-119-0	01	1	1012-	●	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	0908-1011	●
30	08.845 SCREW; HTR UNIT HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING	8-97957-708-0	25	1	1012-	●	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	0908-1011	●
30	08.845 SCREW; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 TAPPING	8-97957-708-0	27	1	1012-	●	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	0908-1011	●
34	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-389-0	01	1	1012-	●	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	0908-1011	●
35	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-392-0	01	1	1012-	●	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	0908-1011	●
44	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-394-0	01	1	1012-	●	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	0908-1011	●
45	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-395-0	01	1	1012-	●	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	0908-1011	●
48	09.786 LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-391-0	01	1	1012-	●	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	0908-1011	●
52	08.852 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-390-0	01	1	1012-	●	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	0908-1011	●
56	09.786 LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-393-0	01	1	1012-	●	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	0908-1011	●
59	08.845 SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-386-0	01	1	1012-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	0908-1011	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-375-0	01	1	1012-	●	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	0908-1011	●
61	08.854 CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-376-0	01	1	1012-	●	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	0908-1011	●
66	09.786 SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-385-0	01	1	1012-	●	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	0908-1011	●
67	08.854 CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-417-0	02	1	1012-	●	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	0908-1011	●
68	08.854 CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-380-0	01	1	1012-	●	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	0908-1011	●
72	08.845 NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6	8-98047-428-0	03	1	1012-	●	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	0908-1011	●
73	08.845 PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98072-542-0	01	1	1012-	●	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	0908-1011	●
73	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98074-118-0	01	1	1012-	●	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	0908-1011	●
77	08.857 COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-414-0	01	1	1012-	●	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	0908-1011	●
93	08.845 PLATE; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-427-0	01	1	1012-	●	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	0908-1011	●
100	08.854 PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-528-0	01	1	1012-	●	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	0908-1011	●
101	08.845 GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-531-0	02	1	1012-	●	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	0908-1011	●
133	08.845 CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-530-0	02	1	1012-	●	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-384-0	01	1	0908-1011	●
135	08.854 COVER; HTR AIR CONDITIONER MANUAL CONT(C60)	8-98047-384-0	01	1	1012-	●	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-431-0	01	1	0908-1011	●
155	09.260 GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-431-0	01	1	1012-	●	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	0908-1011	●
162	08.845 SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98072-529-0	02	1	1012-	●	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	0908-1011	●
207	08.845 CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98047-379-0	01	1	1012-	●	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	0908-1011	●
212	09.262 BOLT; HTR UNIT AIR CONDITIONER MANUAL CONT(C60) M5X61	8-98047-415-0	02	1	1012-	●	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	0908-1011	●
219	08.854 AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98047-429-0	01	1	1012-	●	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-116-1	01	1	0908-1011	●
234	08.854 EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-116-1	01	1	1012-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	0908-1011	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7	8-97095-907-0	01	1	1012-	●	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0908-1011	●
235	08.845 GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	0908-1011	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98047-420-0	01	1	1012-	●	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	0908-1011	●
236	08.855 GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98047-421-0	01	1	1012-	●	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	0908-1011	●
237	08.855 INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60)	8-98047-382-0	01	1	1012-	●	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	0908-1011	●
238	08.845 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-98047-383-0	01	1	1012-	●	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-115-0	01	1	0908-1011	●
239	08.846 TUBE ASM; HEATER AIR CONDITIONER MANUAL CONT(C60)	8-98074-115-0	01	1	1012-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	0908-1011	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4	8-97095-906-0	01	1	1012-	●	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	0908-1011	●
240	08.845 GASKET; HEATER AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5	8-97095-908-0	01	1	1012-	●	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	0908-1011	●
243	08.854 CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656	8-98048-508-0	01	1	1012-	●	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	0908-1011	●
244	08.854 PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98048-510-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
