Sayfa 8-52 - Isuzu EPC

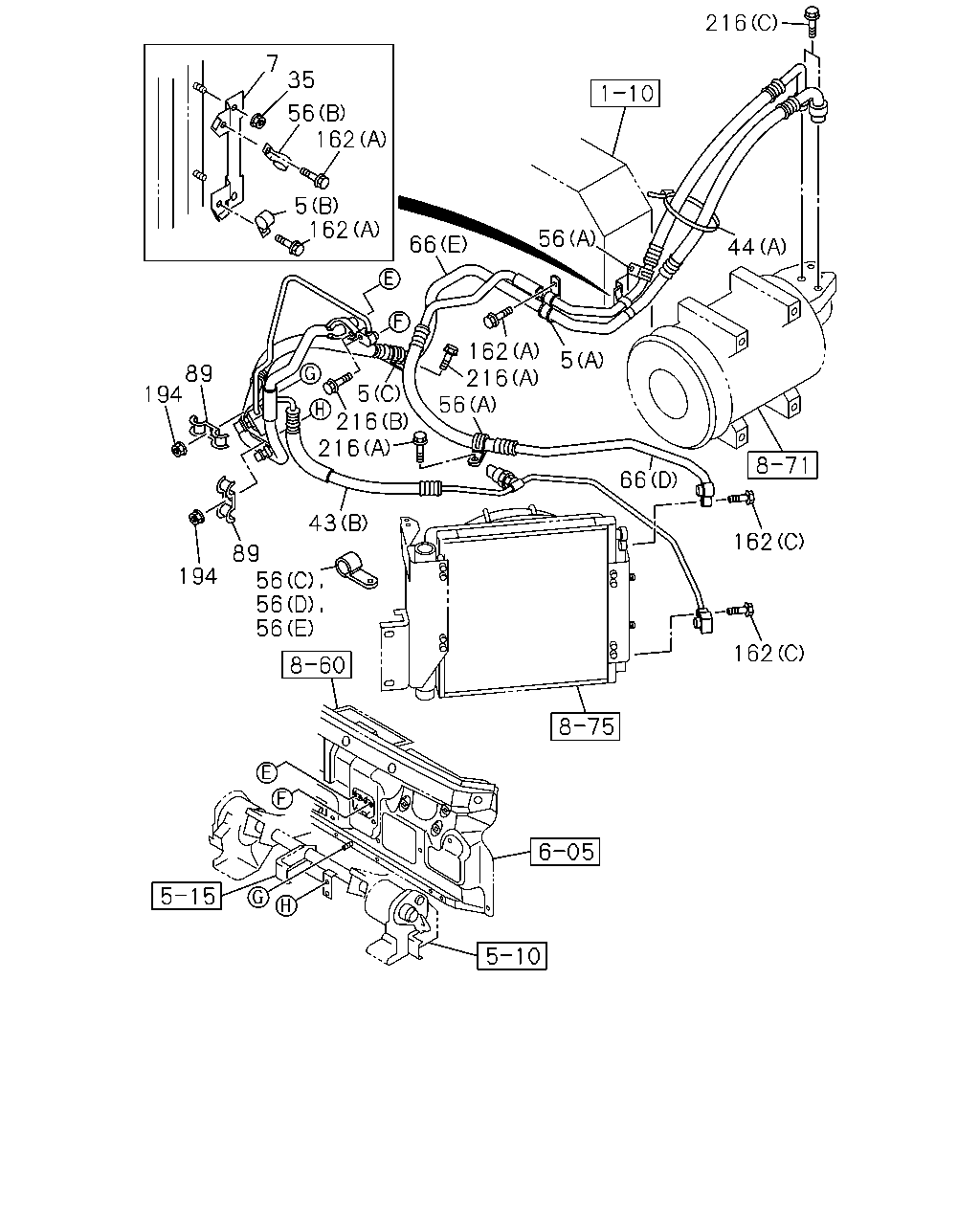

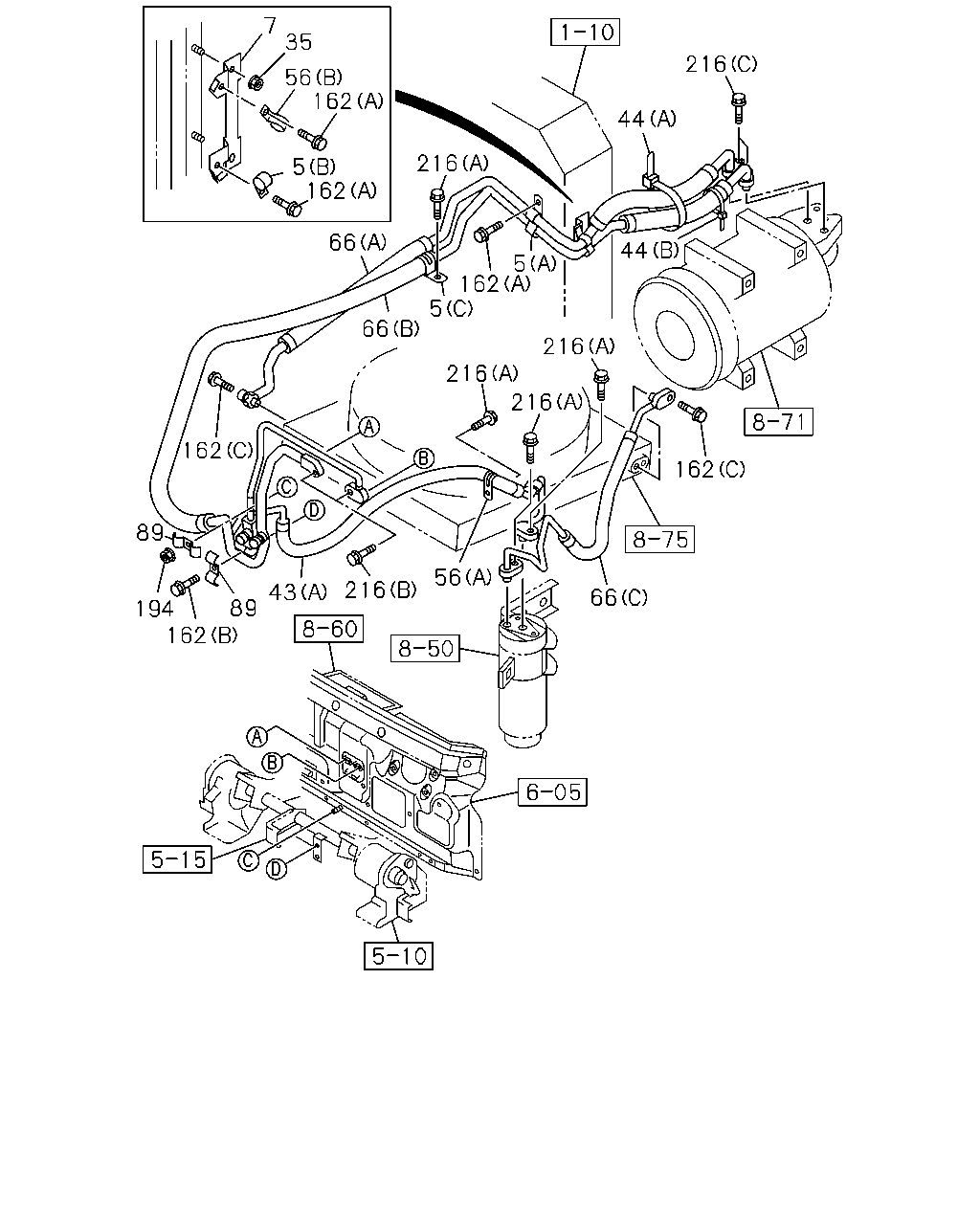

8-52 — PIPING; AIR CONDITIONING (#53702) — 288 parça

202 50 50 148 147 43 66 67 67 67 67 148 147 66 67 67 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98154-918-0	01	1	1009-1009	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98177-563-0	01	1	1010-1011	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98177-563-0	01	1	1012-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (B)	8-98177-563-0	01	1	1012-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98088-340-0	01	1	0908-1008	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98088-340-0	01	1	1009-	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	0908-1011	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E) LOW PRESSURE	8-98111-462-1	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98177-558-0	01	1	1010-1010	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98179-499-0	01	1	1010-1011	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98179-499-0	01	1	1012-1308	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (E)	8-98179-499-0	01	1	1012-1308		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98245-981-0	01	1	1309-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (E)	8-98245-981-0	01	1	1309-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D) HIGH PRESSURE	8-98111-464-2	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98177-559-1	01	1	1010-1011	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98177-559-1	01	1	1012-1308	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D)	8-98177-559-1	01	1	1012-1308		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98245-982-0	01	1	1309-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D)	8-98245-982-0	01	1	1309-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98001-204-1	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (C) HIGH PRESSURE	8-98001-204-1	01	1	1009-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-335-4	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A) HIGH PRESSURE	8-98001-335-4	01	1	1009-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98001-337-2	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98001-337-2	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98159-599-1	01	1	1010-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (D) ID=7.4	8-97095-906-0	02	1	0908-1008	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 09.225 (D) ID=7.4	8-97095-906-0	02	1	1009-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	0908-1008	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) ID=11.7	8-97095-907-0	02	1	1009-1011	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) ID=11.7	8-97095-907-0	02	1	1012-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1012-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0908-1008	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1009-1011	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	0908-1008	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=17.6	8-98036-895-0	01	1	1009-1011	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=17.6	8-98036-895-0	01	1	1012-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1012-		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	0908-1008	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) CAP MARK L	1-83539-331-0	01	1	1009-1011	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) CAP MARK L	1-83539-331-0	01	1	1012-	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1012-		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	0908-1011	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1012-	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	0908-1008	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-97095-909-0	01	1	1009-1011	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-97095-909-0	01	1	1012-	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1012-		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	0908-1011	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1012-	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	0908-1011	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1012-	●	●

162 194 89 89 43 216 56 216 66 162 66 216 162 5 5 216 216 162 66 44 44 216 162 5 162 56 35 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	0908-1011	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	1012-1308	●	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	0908-1011	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	1012-	●	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	0908-1011	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	1012-	●	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	0908-1011	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1012-	●	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98154-918-0	01	1	1009-1009	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98177-563-0	01	1	1010-1011	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98177-563-0	01	1	1012-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (B)	8-98177-563-0	01	1	1012-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98088-340-0	01	1	0908-1008	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98088-340-0	01	1	1009-	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0908-1011	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0908-1011	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	1012-	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1312-	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (C) ID=9 L=16	0-95234-822-0	01	1	1009-1009	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 02.559 (D) ID=13 L=16	0-95235-222-0	01	1	1009-1009	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 02.559 (D) ID=22 L=40	5-09700-369-0	01	1	1010-1011	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 02.559 (D) ID=22 L=40	5-09700-369-0	01	1	1012-	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 02.559 (D) ID=22 L=40	5-09700-369-0	01	1	1012-		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 02.559 (E) ID=25 L=38	5-09700-300-1	01	1	1009-1009	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98032-641-0	01	1	0908-1009	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) (A)	8-98032-641-0	01	1	1010-	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	0908-1011	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1012-1308	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E) LOW PRESSURE	8-98111-462-1	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98177-558-0	01	1	1010-1010	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98179-499-0	01	1	1010-1011	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98179-499-0	01	1	1012-1308	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (E)	8-98179-499-0	01	1	1012-1308		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98245-981-0	01	1	1309-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (E)	8-98245-981-0	01	1	1309-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D) HIGH PRESSURE	8-98111-464-2	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98177-559-1	01	1	1010-1011	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98177-559-1	01	1	1012-1308	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D)	8-98177-559-1	01	1	1012-1308		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98245-982-0	01	1	1309-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D)	8-98245-982-0	01	1	1309-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98001-204-1	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (C) HIGH PRESSURE	8-98001-204-1	01	1	1009-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-335-4	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A) HIGH PRESSURE	8-98001-335-4	01	1	1009-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98001-337-2	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98001-337-2	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98159-599-1	01	1	1010-	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98151-264-0	02	1	1010-1011	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98151-264-0	02	1	1012-	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1012-		●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98029-613-0	02	1	0908-1009	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98029-613-0	02	1	1010-1011	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98029-613-0	02	1	1012-	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98029-613-0	02	1	1012-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1009-	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0908-1008	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1009-1009	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1010-1011	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	0908-1008	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.162 (A) M6X12 FLANGE	0-28050-612-0	05	1	1009-1009	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1010-1011	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0908-1011	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1012-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	0908-1011	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	1012-	●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1009-1011	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-		●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	0908-1011	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1012-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0908-1011	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0908-1008	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0908-1008	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	1009-	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	1009-	●

50 148 147 43 202 50 67 49 67 66 66 67 67 49 148 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98154-918-0	01	1	1009-1009	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98177-563-0	01	1	1010-1011	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98177-563-0	01	1	1012-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (B)	8-98177-563-0	01	1	1012-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98088-340-0	01	1	0908-1008	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98088-340-0	01	1	1009-	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98257-461-0	01	1	1309-	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98257-461-0	01	1	1309-		●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (A)	8-98257-462-0	01	1	1309-	●
49	09.242 CLAMP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98257-462-0	01	1	1309-		●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	0908-1011	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1012-	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E) LOW PRESSURE	8-98111-462-1	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98177-558-0	01	1	1010-1010	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98179-499-0	01	1	1010-1011	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98179-499-0	01	1	1012-1308	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (E)	8-98179-499-0	01	1	1012-1308		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98245-981-0	01	1	1309-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (E)	8-98245-981-0	01	1	1309-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D) HIGH PRESSURE	8-98111-464-2	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98177-559-1	01	1	1010-1011	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98177-559-1	01	1	1012-1308	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D)	8-98177-559-1	01	1	1012-1308		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98245-982-0	01	1	1309-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D)	8-98245-982-0	01	1	1309-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98001-204-1	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (C) HIGH PRESSURE	8-98001-204-1	01	1	1009-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-335-4	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A) HIGH PRESSURE	8-98001-335-4	01	1	1009-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98001-337-2	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98001-337-2	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98159-599-1	01	1	1010-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (D) ID=7.4	8-97095-906-0	02	1	0908-1008	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 09.225 (D) ID=7.4	8-97095-906-0	02	1	1009-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	0908-1008	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) ID=11.7	8-97095-907-0	02	1	1009-1011	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) ID=11.7	8-97095-907-0	02	1	1012-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1012-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	0908-1008	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1009-1011	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5	8-97095-908-0	01	1	1012-		●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	0908-1008	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=17.6	8-98036-895-0	01	1	1009-1011	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (C) ID=17.6	8-98036-895-0	01	1	1012-	●
67	09.260 GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1012-		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	0908-1008	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) CAP MARK L	1-83539-331-0	01	1	1009-1011	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A) CAP MARK L	1-83539-331-0	01	1	1012-	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1012-		●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	0908-1011	●
147	09.242 CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1012-	●	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	0908-1008	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-97095-909-0	01	1	1009-1011	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) (A)	8-97095-909-0	01	1	1012-	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1012-		●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	0908-1011	●
148	09.262 VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1012-	●	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	0908-1011	●
202	09.275 SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1012-	●	●

162 162 56 56 56 43 194 216 216 5 89 194 89 56 216 162 66 162 5 162 56 35 7 56 5 44 216 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	0908-1011	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 04.686 (B) ID=16 L=20	0-95235-532-0	01	1	1012-1308	●	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	0908-1011	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (C)	8-98038-798-0	01	1	1012-	●	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	0908-1011	●
5	09.242 CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98052-857-0	01	1	1012-	●	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	0908-1011	●
7	09.242 BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1012-	●	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98154-918-0	01	1	1009-1009	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98177-563-0	01	1	1010-1011	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (B)	8-98177-563-0	01	1	1012-	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (B)	8-98177-563-0	01	1	1012-		●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98088-340-0	01	1	0908-1008	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) (A) HIGH PRESSURE	8-98088-340-0	01	1	1009-	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	0908-1011	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250	5-09707-030-1	01	1	1012-	●	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0908-1011	●
44	09.242 CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	1012-	●	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1312-	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (C) ID=9 L=16	0-95234-822-0	01	1	1009-1009	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 02.559 (D) ID=13 L=16	0-95235-222-0	01	1	1009-1009	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 02.559 (D) ID=22 L=40	5-09700-369-0	01	1	1010-1011	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 02.559 (D) ID=22 L=40	5-09700-369-0	01	1	1012-	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) 02.559 (D) ID=22 L=40	5-09700-369-0	01	1	1012-		●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 02.559 (E) ID=25 L=38	5-09700-300-1	01	1	1009-1009	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A)	8-98032-641-0	01	1	0908-1009	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) (A)	8-98032-641-0	01	1	1010-	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	0908-1011	●
56	09.242 CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1012-1308	●	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E) LOW PRESSURE	8-98111-462-1	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98177-558-0	01	1	1010-1010	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98179-499-0	01	1	1010-1011	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98179-499-0	01	1	1012-1308	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (E)	8-98179-499-0	01	1	1012-1308		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (E)	8-98245-981-0	01	1	1309-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (E)	8-98245-981-0	01	1	1309-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D) HIGH PRESSURE	8-98111-464-2	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98177-559-1	01	1	1010-1011	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98177-559-1	01	1	1012-1308	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D)	8-98177-559-1	01	1	1012-1308		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) (D)	8-98245-982-0	01	1	1309-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (D)	8-98245-982-0	01	1	1309-		●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98001-204-1	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (C) HIGH PRESSURE	8-98001-204-1	01	1	1009-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-335-4	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (A) HIGH PRESSURE	8-98001-335-4	01	1	1009-	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98001-337-2	01	1	0908-1008	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98001-337-2	01	1	1009-1009	●
66	09.225 HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) (B) LOW PRESSURE	8-98159-599-1	01	1	1010-	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98151-264-0	02	1	1010-1011	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5)	8-98151-264-0	02	1	1012-	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1012-		●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98029-613-0	02	1	0908-1009	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98029-613-0	02	1	1010-1011	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5)	8-98029-613-0	02	1	1012-	●
89	09.242 BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98029-613-0	02	1	1012-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EURO5 SPECIFICATION(NT5) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	1009-	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	0908-1008	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1009-1009	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1010-1011	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4),EURO5 SPECIFICATION(NT5) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	03	1	1012-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X12 FLANGE	0-28050-612-0	04	1	0908-1008	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 03.162 (A) M6X12 FLANGE	0-28050-612-0	05	1	1009-1009	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1010-1011	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-		●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0908-1011	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	1012-	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	0908-1011	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 00.685 (C) M6X25 FLANGE	0-28650-625-0	02	1	1012-	●	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0908-1011	●
194	09.242 NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1009-1011	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) EURO5 SPECIFICATION(NT5) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-		●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	0908-1011	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 03.680 (B) M6X30 FLANGE	0-28650-630-0	02	1	1012-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0908-1011	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	1012-	●	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0908-1008	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0908-1008	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	1009-	●
216	09.173 BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) EURO4 SPECIFICATION(NT4) 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	1009-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
