0-31 — THERMOSTAT AND HOUSING (#53695) — 17 parça

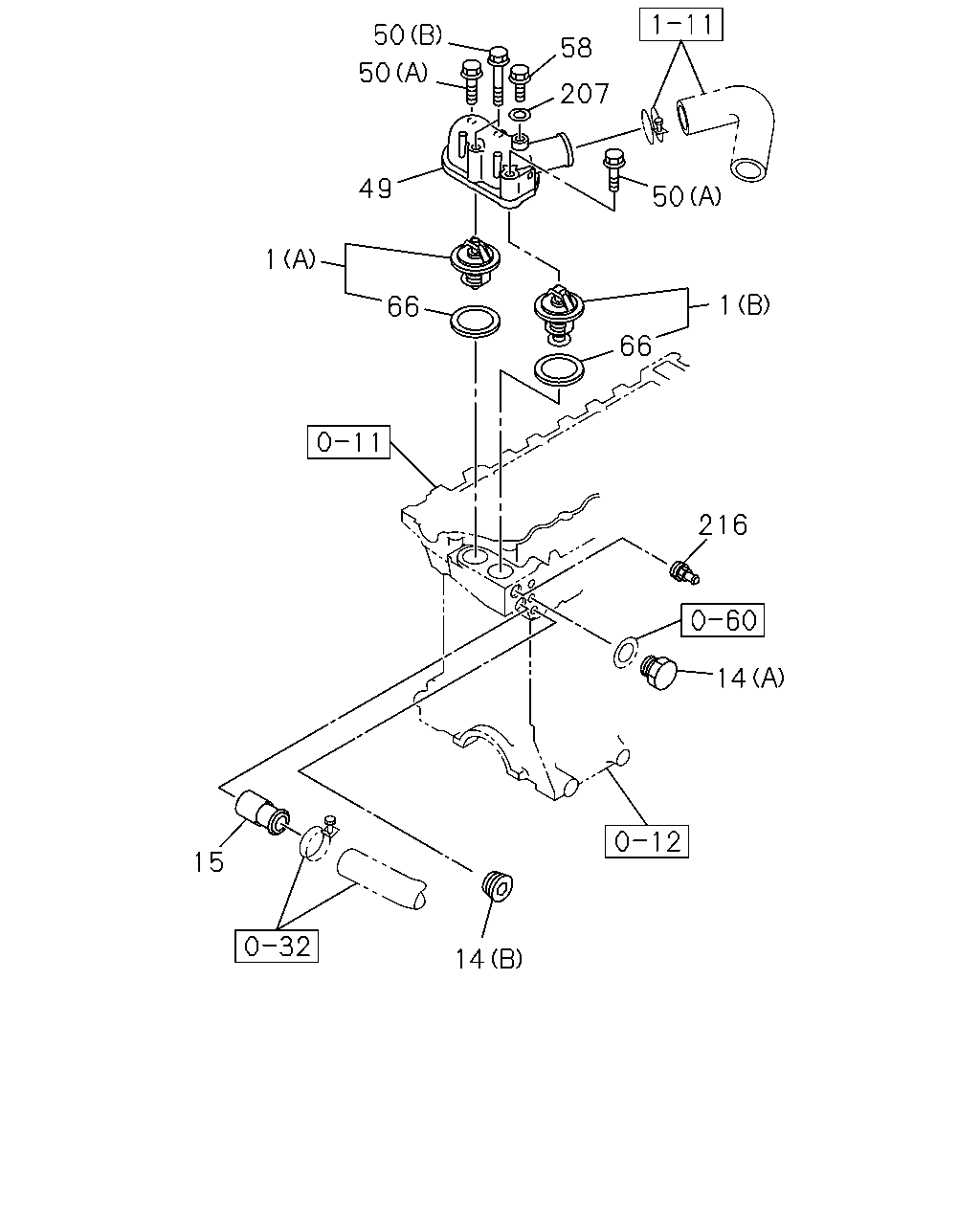

çizim 175165
58 50 50 49 1 66 207 50 66 1 216 14 15 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.246 THERMOSTAT
(B) 82 CELSIUS 		8-97300-789-3 01 1 1012- ●
1 01.246 THERMOSTAT
(A) 85 CELSIUS 		8-97300-792-1 01 1 1012-1405 ●
1 01.246 THERMOSTAT
(A) 85 CELSIUS 		8-97300-787-2 01 1 1012-1405 ●
1 01.246 THERMOSTAT
(A) 85 CELSIUS 		8-97300-787-3 01 1 1406- ● ●
1 01.246 THERMOSTAT
(B) 82 CELSIUS 		8-97300-790-3 01 1 1012- ●
14 01.252 PLUG; SW
01.073 (B) PT3/8 		5-09605-005-0 01 1 1012- ●
14 01.252 PLUG; SW
04.520 (A) M16X8 PLUG 		9-09661-005-0 01 1 1012- ●
15 01.251 PIPE; BYPASS
01.153 		8-94342-574-0 01 1 1012- ● ●
49 01.153 PIPE; WATER OUTLET 8-97372-769-1 01 1 1012- ●
49 01.153 PIPE; WATER OUTLET 8-97329-914-0 01 1 1012- ●
50 01.252 BOLT; OUTLET PIPE
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
50 01.252 BOLT; OUTLET PIPE
01.097 (B) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ●
58 00.073 PLUG; WATER OUTLET PIPE
M8X16 		8-97021-211-1 01 1 1012- ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-97300-793-0 02 1 1012-1501 ● ●
66 01.252 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=49.5 OD=56.5 		8-98280-281-0 02 1 1502- ● ●
207 08.845 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 ID=8.2 OD=13.2 		1-09630-082-0 01 1 1012- ● ●
216 01.153 PIPE ASM; WATER,TURBOCHARGER RET 8-97358-699-0 01 1 1012- ●
