0-25 — INLET MANIFOLD (#53691) — 126 parça

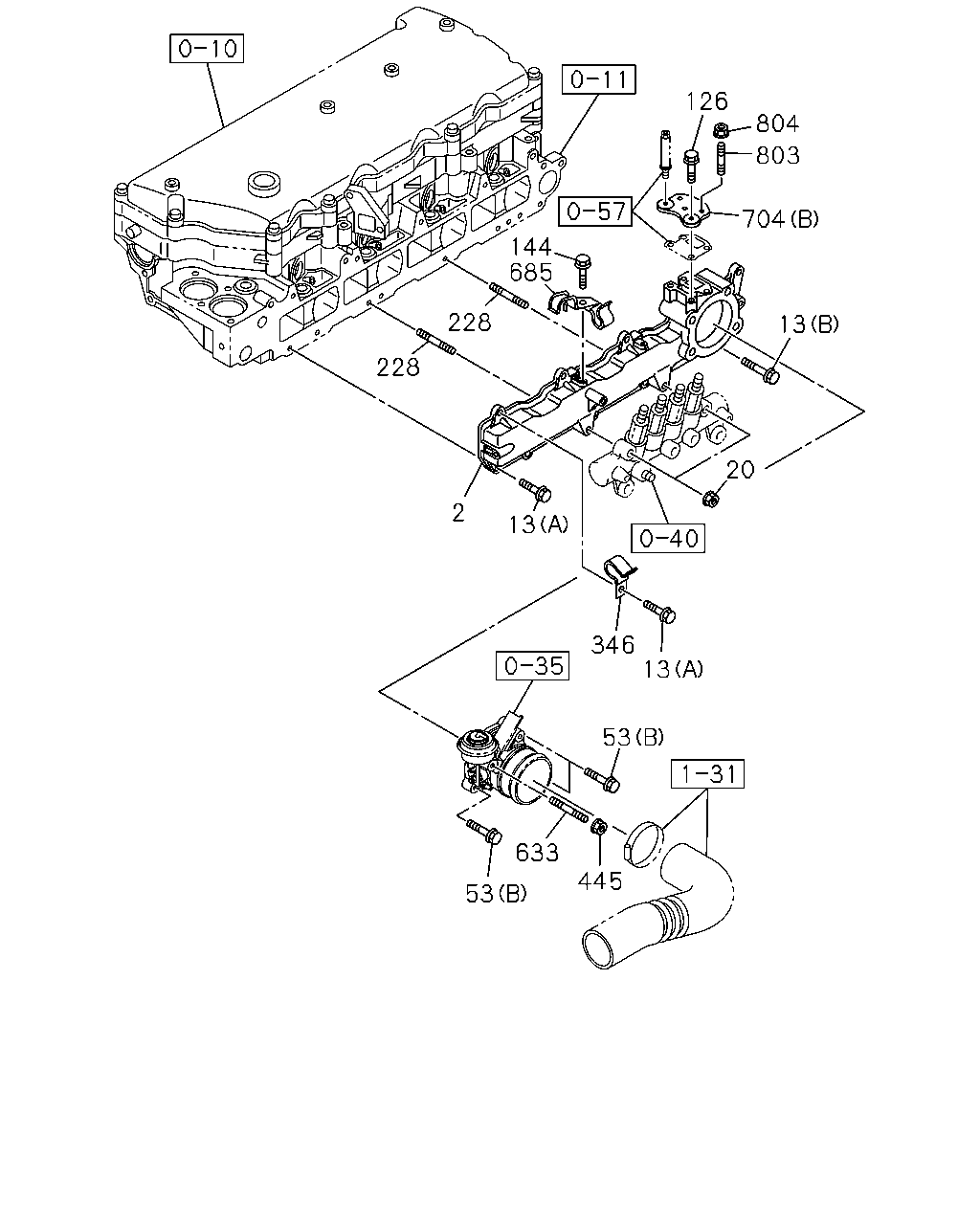

804 126 704 13 144 228 228 685 13 2 20 346 53 13 633 445 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.407 COVER; INL	8-97387-039-0	01	1	1410-	●
2	03.407 COVER; INL ANTI EROSION SPEC<7XK>	8-97146-866-2	01	1	1012-1106		●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) EXC. ANTI EROSION SPEC<7XK>	8-97146-866-2	01	1	1012-1106		●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),ANTI EROSION SPEC<7XK>	8-97146-866-2	01	1	1012-1106		●
2	03.407 COVER; INL FUEL FILTER DUAL(S6B)	8-97146-866-2	01	1	1107-1310		●
2	03.407 COVER; INL	8-98245-383-0	01	1	1311-		●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2),ANTI EROSION SPEC<7XK>	8-97222-239-0	01	1	1012-1106		●
2	03.407 COVER; INL	8-97387-038-0	01	1	1012-1409	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	1012-	●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1012-	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405		●
53	03.602 BOLT; INL PIPE 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
126	03.275 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	1012-	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	1012-	●
704	03.270 COVER 03.407 (A)	8-98062-651-1	01	1	1012-1408	●
704	03.270 COVER (B)	8-98260-138-0	01	1	1409-	●
804	03.275 NUT; COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●

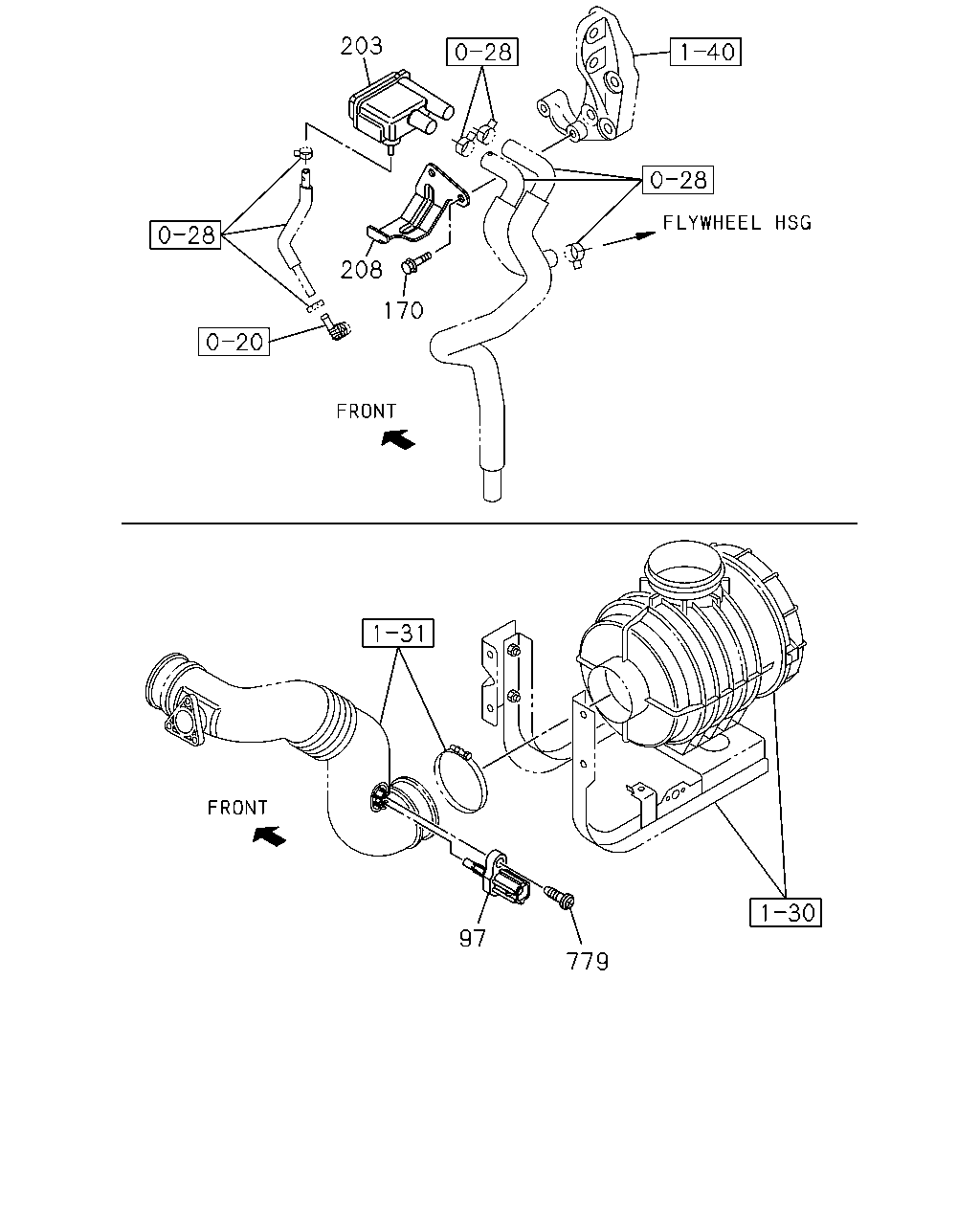

203 208 170 97 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
97	03.682 SENSOR; INTAKE,AIR TEMPERATURE EURO2 SPECIFICATION(NT2)	8-98065-377-0	01	1	1012-	●
170	03.162 BOLT; BRKT 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1012-	●
203	01.780 TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	1012-	●
208	01.750 BRACKET; CATCH TANK,OIL	8-98074-130-0	01	1	1012-	●
779	03.682 BOLT; SENSOR EURO2 SPECIFICATION(NT2) 03.164 M5X14 W/LK WASHER	0-36220-514-0	01	1	1012-	●

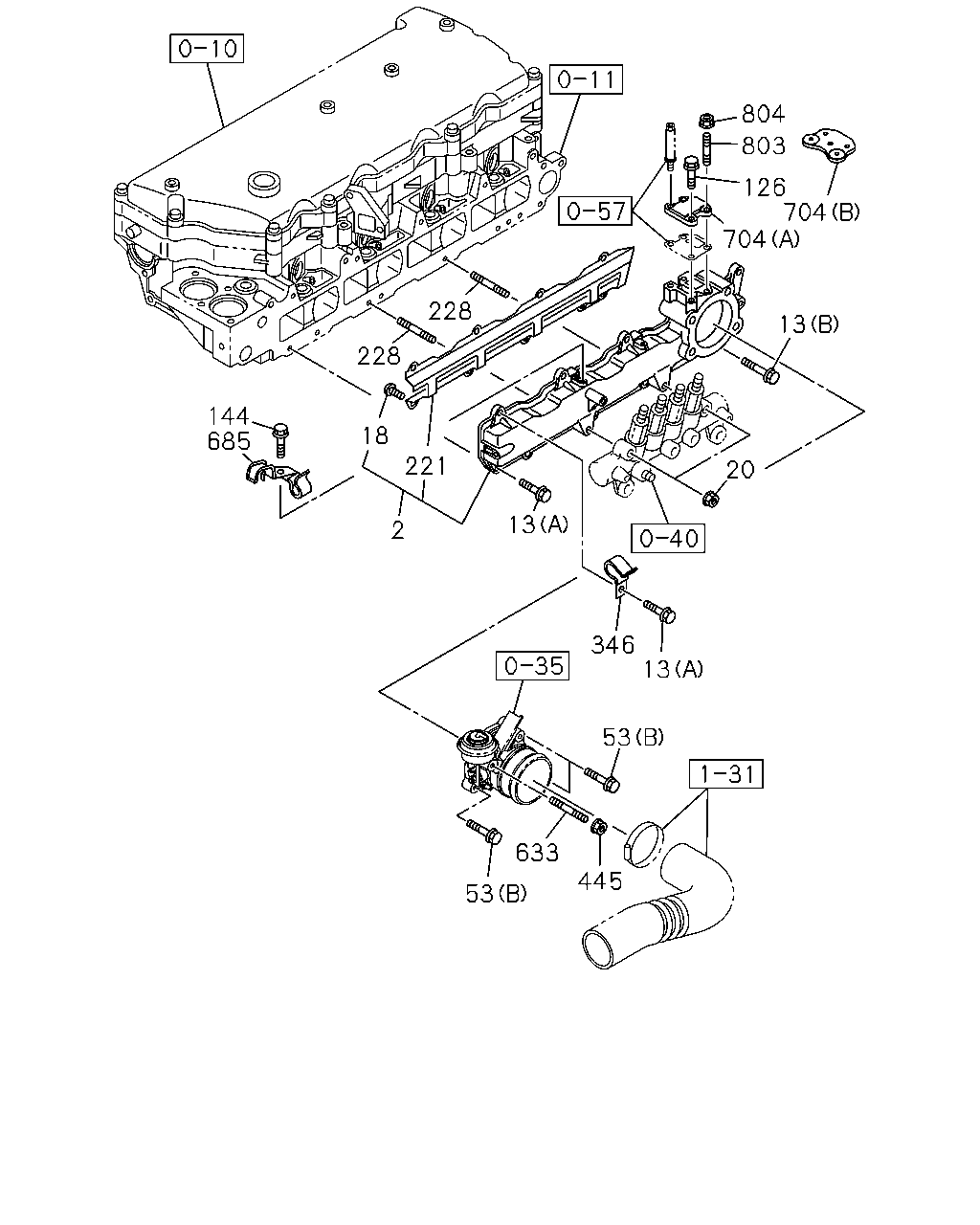

804 803 126 704 704 13 20 228 228 144 685 18 221 2 13 346 13 53 445 633 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.407 COVER; INL	8-97387-039-0	01	1	1410-	●
2	03.407 COVER; INL ANTI EROSION SPEC<7XK>	8-97146-866-2	01	1	1012-1106		●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) EXC. ANTI EROSION SPEC<7XK>	8-97146-866-2	01	1	1012-1106		●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),ANTI EROSION SPEC<7XK>	8-97146-866-2	01	1	1012-1106		●
2	03.407 COVER; INL FUEL FILTER DUAL(S6B)	8-97146-866-2	01	1	1107-1310		●
2	03.407 COVER; INL	8-98245-383-0	01	1	1311-		●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2),ANTI EROSION SPEC<7XK>	8-97222-239-0	01	1	1012-1106		●
2	03.407 COVER; INL	8-97387-038-0	01	1	1012-1409	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	1012-	●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1012-	●
18	03.403 SCREW; PLATE,INL CVR 02.525 M6X10	9-03490-610-0	09	1	1012-1409	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405		●
53	03.602 BOLT; INL PIPE 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
126	03.275 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
144	03.275 BOLT; BRKT FIX 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1012-	●
221	03.403 PLATE; INL COVER	8-97379-202-0	01	1	1012-1409	●
228	03.407 STUD; INL COVER 03.275 M8X117 L=128	8-97111-477-0	02	1	1012-	●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
445	03.275 NUT; THROTTLE BODY TO MANIF 01.062 M8 FLANGE	0-91180-108-0	01	1	1012-	●
633	03.275 STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-	●
685	03.265 BRACKET; HARNESS	8-97331-921-1	01	1	1012-	●
704	03.270 COVER 03.407 (A)	8-98062-651-1	01	1	1012-1408	●
704	03.270 COVER (B)	8-98260-138-0	01	1	1409-	●
803	03.275 STUD; COVER 02.510 M8X20 L=32	0-41010-820-0	02	1	1012-	●
804	03.275 NUT; COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●

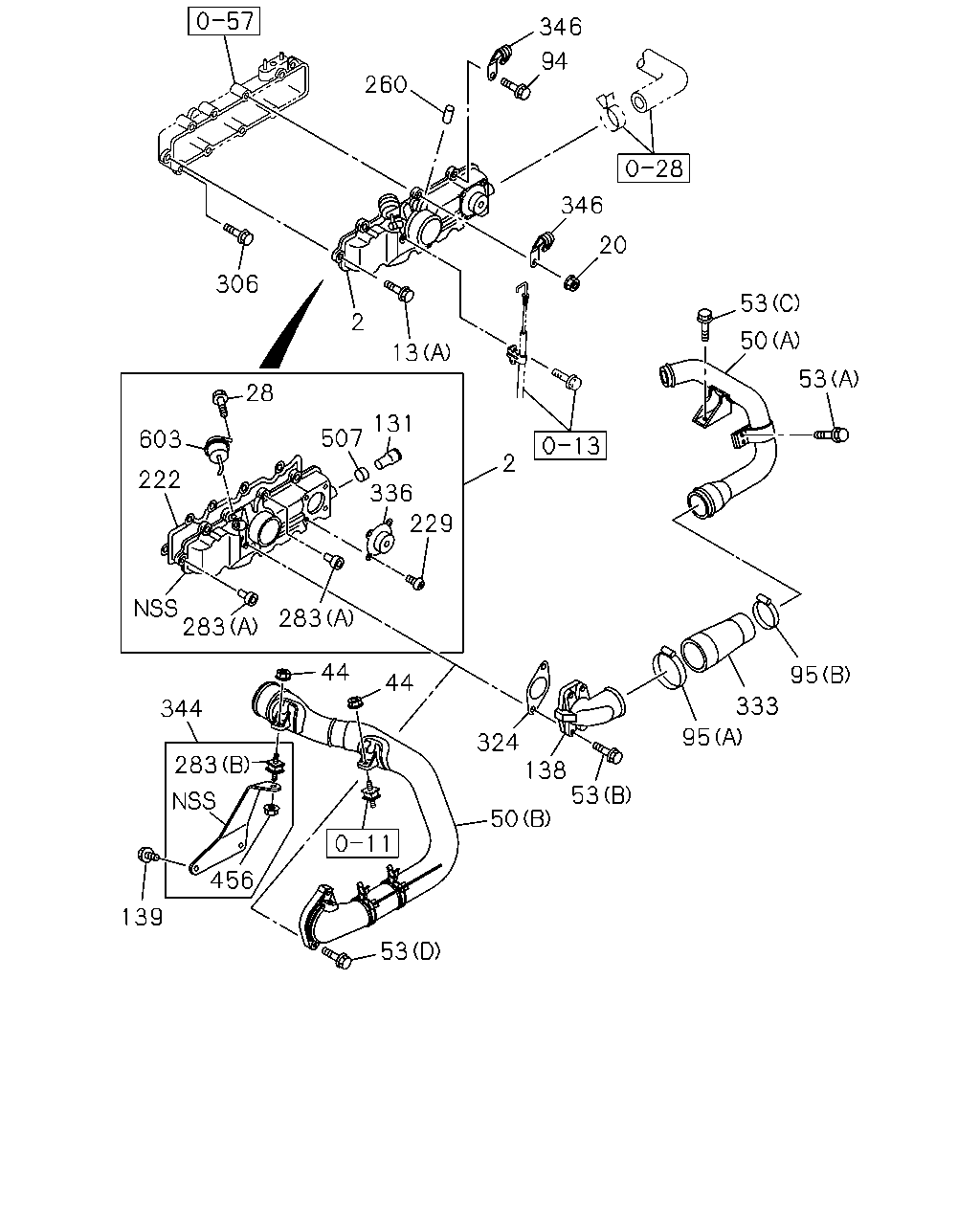

346 94 260 346 20 53 53 50 2 13 2 306 28 131 507 336 283 229 283 222 603 44 44 344 283 139 456 53 50 324 138 53 95 95 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	03.407 COVER; INL	8-97387-039-0	01	1	1410-	●
2	03.407 COVER; INL ANTI EROSION SPEC<7XK>	8-97146-866-2	01	1	1012-1106		●
2	03.407 COVER; INL HIGH ALTITUDE COMPENSATOR(EE2) EXC. ANTI EROSION SPEC<7XK>	8-97146-866-2	01	1	1012-1106		●
2	03.407 COVER; INL GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),ANTI EROSION SPEC<7XK>	8-97146-866-2	01	1	1012-1106		●
2	03.407 COVER; INL FUEL FILTER DUAL(S6B)	8-97146-866-2	01	1	1107-1310		●
2	03.407 COVER; INL	8-98245-383-0	01	1	1311-		●
2	03.407 COVER; INL FAST GLOW SYSTEM<KM6> EXC. HIGH ALTITUDE COMPENSATOR(EE2),ANTI EROSION SPEC<7XK>	8-97222-239-0	01	1	1012-1106		●
2	03.407 COVER; INL	8-97387-038-0	01	1	1012-1409	●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	08	1	1012-		●
13	03.275 BOLT; INL MANIF 00.206 (A) M8X30 FLANGE	0-28050-830-0	09	1	1012-	●
13	03.275 BOLT; INL MANIF 01.252 (B) M8X80 FLANGE	0-28050-880-0	01	1	1012-	●
20	03.275 NUT; INL MANIF 01.062 M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
28	03.278 BOLT; CHAMBER ANTI EROSION SPEC<7XK> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-1106		●
28	03.278 BOLT; CHAMBER HIGH ALTITUDE COMPENSATOR(EE2) EXC. ANTI EROSION SPEC<7XK> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-1106		●
28	03.278 BOLT; CHAMBER GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),ANTI EROSION SPEC<7XK> 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1012-1106		●
28	03.278 BOLT; CHAMBER FUEL FILTER DUAL(S6B) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1107-1405		●
28	03.278 BOLT; CHAMBER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1406-		●
44	03.407 NUT; PIPE BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1406-		●
50	03.265 PIPE; INL (A)	8-97178-735-5	01	1	1012-1405		●
50	03.265 PIPE; INL (B)	8-98219-782-0	01	1	1406-		●
53	03.602 BOLT; INL PIPE 01.531 (A) M8X20 FLANGE	0-28650-820-0	02	1	1012-1405		●
53	03.602 BOLT; INL PIPE 00.206 (D) M8X30 FLANGE	0-28050-830-0	02	1	1406-		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-1405		●
53	03.602 BOLT; INL PIPE 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1012-1405		●
53	03.602 BOLT; INL PIPE 03.403 (B) M8X30 FLANGE	0-28650-830-0	03	1	1012-	●
94	02.559 BOLT 00.206 M8X30 FLANGE	0-28050-830-0	02	1	1012-		●
95	03.278 CLIP; RUBBER HOSE 03.407 (A) ID=77-95	1-09707-114-0	01	1	1012-1405		●
95	03.278 CLIP; RUBBER HOSE 03.407 (B) ID=68-85	8-94320-428-0	01	1	1012-1405		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1012-1106		●
131	03.278 PIPE; PCV,INL FUEL FILTER DUAL(S6B)	8-97102-601-0	01	1	1107-1405		●
131	03.278 PIPE; PCV,INL	8-97102-601-0	01	1	1406-		●
138	03.265 PIPE; INL	8-97180-566-2	01	1	1012-1405		●
139	03.162 BOLT; BRKT FIX 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1406-		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	1012-1106		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FUEL FILTER DUAL(S6B)	8-97084-938-2	01	1	1107-1405		●
222	03.270 GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97084-938-2	01	1	1406-		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1012-1106		●
229	03.278 SCREW; VENTILATION VLV FUEL FILTER DUAL(S6B) 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1107-1405		●
229	03.278 SCREW; VENTILATION VLV 00.662 M4X8 W/LK WASHER	0-36220-408-0	04	1	1406-		●
260	03.278 CAP; RUBBER 01.780 ID=4	8-94217-809-0	01	1	1012-		●
283	03.265 RUBBER 03.463 (B)	8-98219-799-0	01	1	1406-		●
283	03.265 RUBBER (A) OD=23	8-97105-689-6	10	1	1012-1106		●
283	03.265 RUBBER FUEL FILTER DUAL(S6B) (A) OD=23	8-97105-689-6	10	1	1107-1405		●
283	03.265 RUBBER (A) OD=23	8-97105-689-6	10	1	1406-		●
306	03.265 BOLT; VLV 09.173 M8X45 FLANGE	0-28050-845-0	05	1	1012-		●
324	03.407 GASKET; INL PIPE TO INL CVR ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97180-546-1	01	1	1012-1405		●
333	03.278 HOSE; RUBBER,INL PIPE	8-98157-877-0	01	1	1012-1405		●
336	03.415 VALVE; VENTILATION	8-97119-887-0	01	1	1012-1106		●
336	03.415 VALVE; VENTILATION FUEL FILTER DUAL(S6B)	8-97119-887-0	01	1	1107-1310		●
336	03.415 VALVE; VENTILATION	8-98245-399-0	01	1	1311-		●
344	03.407 BRACKET; INL PIPE	8-98219-794-0	01	1	1406-		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	1012-		●
346	02.559 CLIP; ENG HARNESS 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
456	03.275 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	1406-		●
507	03.415 ORIFICE	8-97088-649-0	01	1	1012-1106		●
507	03.415 ORIFICE FUEL FILTER DUAL(S6B)	8-97088-649-0	01	1	1107-1405		●
507	03.415 ORIFICE	8-97088-649-0	01	1	1406-		●
603	03.278 CHAMBER; THROTTLE ANTI EROSION SPEC<7XK>	8-97204-780-0	01	1	1012-1106		●
603	03.278 CHAMBER; THROTTLE HIGH ALTITUDE COMPENSATOR(EE2) EXC. ANTI EROSION SPEC<7XK>	8-97204-780-0	01	1	1012-1106		●
603	03.278 CHAMBER; THROTTLE GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),ANTI EROSION SPEC<7XK>	8-97204-780-0	01	1	1012-1106		●
603	03.278 CHAMBER; THROTTLE FUEL FILTER DUAL(S6B)	8-97204-780-0	01	1	1107-1405		●
603	03.278 CHAMBER; THROTTLE	8-97204-780-0	01	1	1406-		●
