3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#5369) — 7 parça

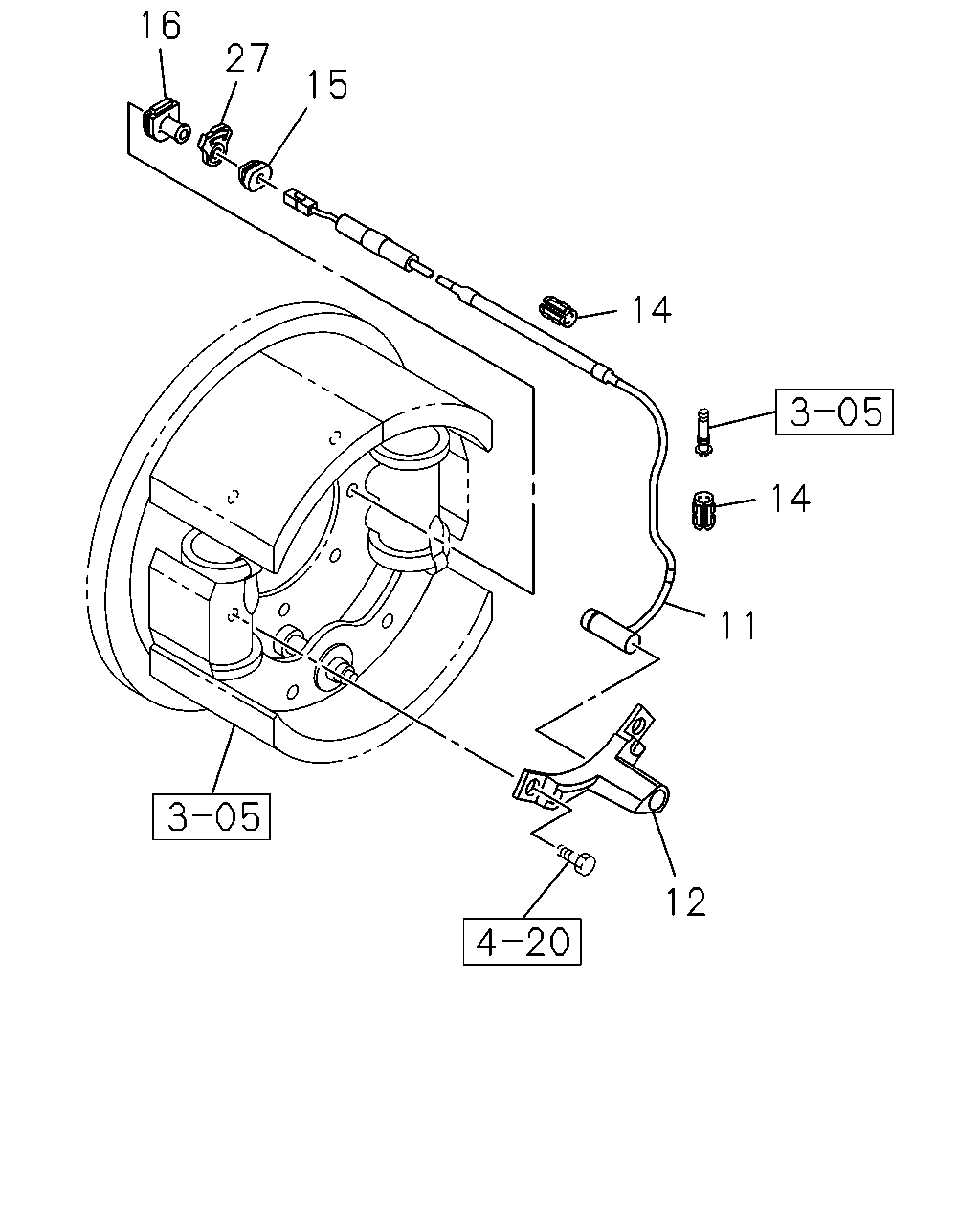

çizim 39495
16 27 15 14 14 11 12
BalonParca AdiParca NoAdetTipApplied Date A B
11 SENSOR; ABS
FINAL GEAR 41/6 17.5"(W4W) REAR AXLE RT260<C2B> 		1-83127-456-0 02 1 9902-9902 ● ●
12 BRACKET; SENSOR
FINAL GEAR 41/6 17.5"(W4W) REAR AXLE RT260<C2B> 		1-83129-223-3 01 1 9902-9902 ● ●
12 BRACKET; SENSOR
FINAL GEAR 41/6 17.5"(W4W) REAR AXLE RT260<C2B> 		1-83129-222-2 01 1 9902-9902 ● ●
14 SLEEVE; SENSOR
FINAL GEAR 41/6 17.5"(W4W) REAR AXLE RT260<C2B> 		1-83129-299-0 02 1 9902-9902 ● ●
15 COVER; SENSOR
FINAL GEAR 41/6 17.5"(W4W) REAR AXLE RT260<C2B> 		1-83129-239-0 02 1 9902-9902 ● ●
16 GROMMET; SENSOR
FINAL GEAR 41/6 17.5"(W4W) REAR AXLE RT260<C2B> ID=8 		1-82699-740-0 02 1 9902-9902 ● ●
27 CLIP
FINAL GEAR 41/6 17.5"(W4W) REAR AXLE RT260<C2B> 		1-09707-180-0 02 1 9902-9902 ● ●
