◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51292 - NPR/NQR BUS CHA(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#53689) — 71 parça

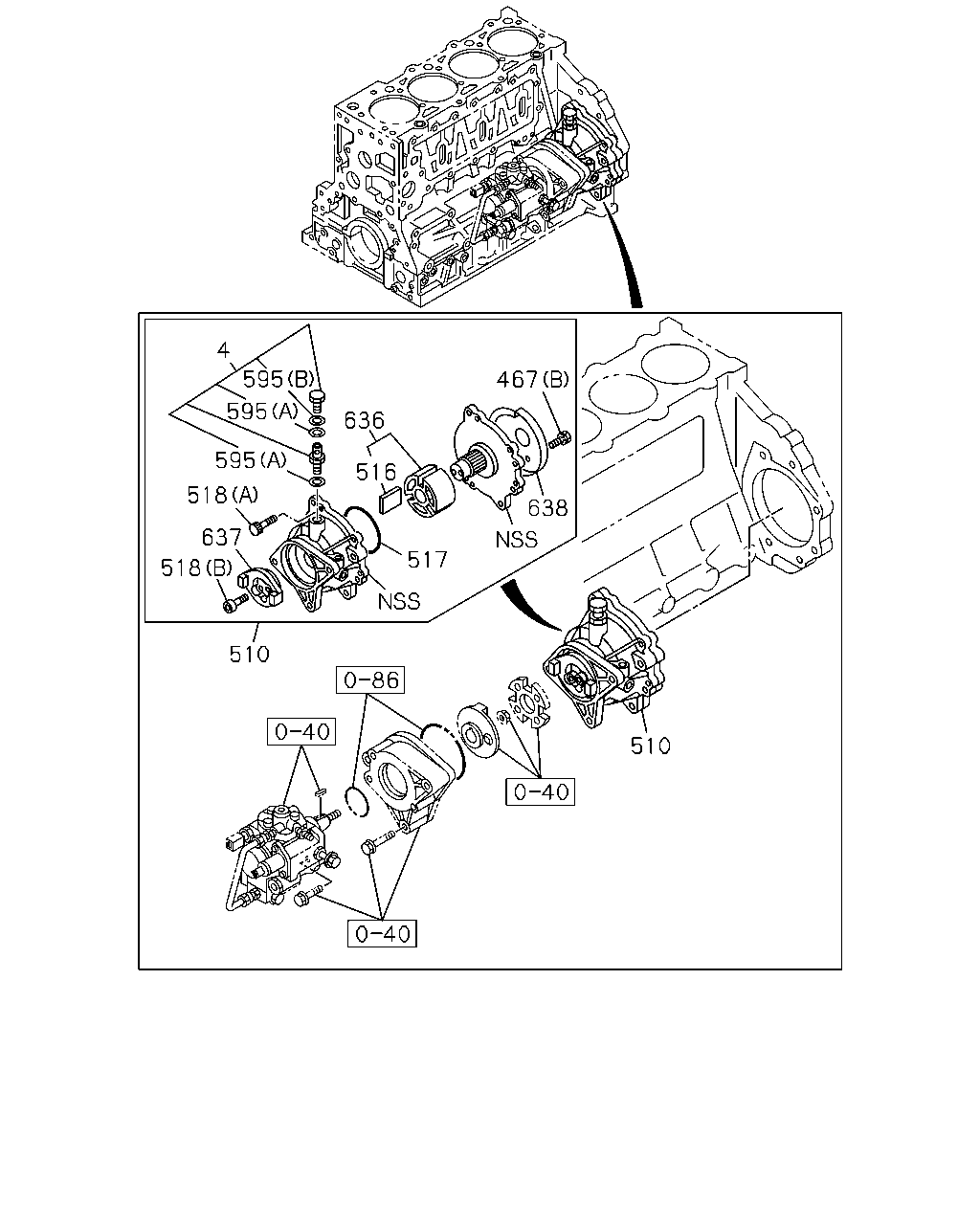

çizim 175135
4 595 467 595 636 595 516 518 638 637 517 518 510 510
BalonParca AdiParca NoAdetTipApplied Date A B
4 00.213 VALVE ASM; CHECK 8-98049-521-0 01 1 1012- ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1012- ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1012- ●
510 04.895 PUMP ASM; VACUUM
03.306 		8-97388-589-6 01 1 1012- ●
516 04.895 VANE; VAC PUMP 8-98051-279-0 03 1 1012- ●
517 04.895 GASKET; VAC PUMP 8-98051-280-0 01 1 1012- ●
518 04.895 BOLT; VAC PUMP
01.531 (A) M6X25 W/LK&PL WASHER 		0-50640-625-0 03 1 1012- ●
518 04.895 BOLT; VAC PUMP
(B) M8X20 		8-98051-277-0 02 1 1012- ●
595 00.213 GASKET; VLV
(B) ID=12 		8-98018-518-0 01 1 1012- ●
595 00.213 GASKET; VLV
(A) ID=18 		8-98018-519-0 02 1 1012- ●
636 00.206 ROTOR & VANE ASM; VAC PUMP 8-98051-281-0 01 1 1012- ●
637 00.206 COUPLING; VAC PUMP 8-98051-278-0 01 1 1012- ●
638 00.206 PLATE KIT; VAC PUMP 8-98051-276-0 01 1 1012- ●

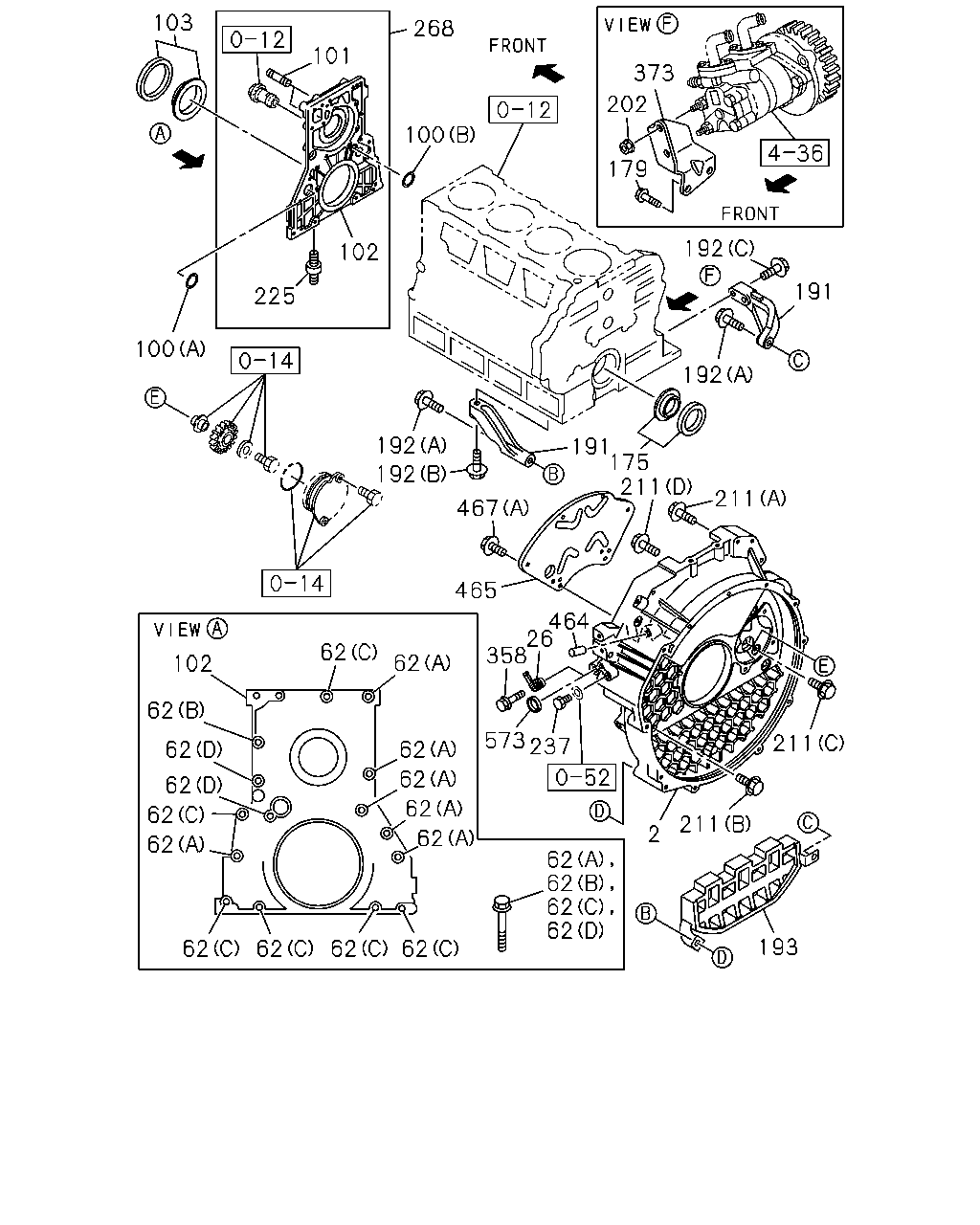

çizim 175150
103 101 268 100 102 225 100 192 192 373 202 179 192 191 192 191 211 211 175 467 465 464 26 358 237 573 2 211 211 193 102 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
2 00.683 HOUSING; FLYWHEEL 8-97364-899-6 01 1 1012- ●
2 00.683 HOUSING; FLYWHEEL 8-97364-901-5 01 1 1012- ●
26 03.306 ADAPTER 8-97354-819-0 01 1 1012- ●
62 00.206 BOLT; COVER
06.216 (A) M8X25 FLANGE 		0-28650-825-0 06 1 1012- ● ●
62 00.206 BOLT; COVER
03.403 (B) M8X30 FLANGE 		0-28650-830-0 01 1 1012- ● ●
62 00.206 BOLT; COVER
01.060 (C) M8X35 FLANGE 		0-28650-835-0 06 1 1012- ● ●
62 00.206 BOLT; COVER
01.097 (D) M8X65 FLANGE 		1-09044-072-1 02 1 1012- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1 		8-97028-748-1 01 1 1012- ● ●
100 00.207 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8 		9-09561-318-0 01 1 1012- ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201- ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201- ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1012-1112 ● ●
101 01.073 STUD; WATER PUMP
01.428 UPPER M8X18 L=30 		0-41010-818-0 01 1 1201-1501 ●
101 01.073 STUD; WATER PUMP
01.428 M8X18 L=30 		0-41010-818-0 02 1 1502- ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1012-1112 ● ●
101 01.073 STUD; WATER PUMP
00.206 LOWER M8X18 L=29 		8-97028-541-0 01 1 1201-1501 ●
101 01.073 STUD; WATER PUMP
00.206 M8X18 L=29 		8-97028-541-0 02 1 1502- ●
102 00.137 RETAINER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-932-2 01 1 1201- ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98081-351-1 01 1 1012- ●
102 00.137 RETAINER; FRT 8-98039-932-1 01 1 1012-1112 ●
102 00.137 RETAINER; FRT
ANTI EROSION SPEC<7XK> 		8-98039-932-1 01 1 1012-1112 ●
102 00.137 RETAINER; FRT 8-98039-932-2 01 1 1201-1501 ●
102 00.137 RETAINER; FRT 8-98039-932-2 02 1 1502- ●
103 00.213 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 1012- ● ●
175 00.137 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 1012- ● ●
179 00.206 BOLT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 03.417 M10X20 FLANGE 		0-28151-020-0 02 1 1304- ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 1012- ●
191 00.669 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 1012- ●
192 00.206 BOLT; STAY TO HSG
09.171 (C) M10X40 FLANGE 		0-28151-040-0 02 1 1012- ●
192 00.206 BOLT; STAY TO HSG
02.510 (B) M12X100 FLANGE 		0-28151-200-0 01 1 1012- ●
192 00.206 BOLT; STAY TO HSG
00.685 (A) M12X50 FLANGE 		0-28151-250-0 02 1 1012- ●
193 01.428 SPACER; STAY TO OIL,PAN 8-97259-536-0 01 1 1012- ●
202 00.206 NUT; BRKT
HYDRO BRAKE BOOSTER(7QQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1304- ●
211 00.669 BOLT; HSG
(D) M8X65 W/PL WASHER 		8-94388-781-0 02 1 1012- ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 09 1 1012-1102 ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 09 1 1103- ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 01 1 1012- ●
211 00.669 BOLT; HSG
00.029 (A) M10X40 FLANGE 		0-28751-040-0 01 1 1012- ● ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 1012-1102 ●
211 00.669 BOLT; HSG
(B) M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ●
211 00.669 BOLT; HSG
(C) M12X30 FLANGE 		8-97135-419-0 02 1 1012- ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1012-1012 ● ●
225 01.428 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 03 1 1101- ●
237 00.686 PLUG; FLYWHEEL HSG
06.225 M10X12 FLANGE 		0-28051-012-0 01 1 1012- ●
268 00.206 COVER; FRT 8-97148-937-3 01 1 1101-1501 ●
268 00.206 COVER; FRT 8-97148-937-3 02 1 1502- ●
268 00.206 COVER; FRT
ANTI EROSION SPEC<7XK> 		8-98079-080-1 01 1 1012- ●
268 00.206 COVER; FRT 8-98039-931-1 01 1 1012-1012 ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-1 01 1 1012-1012 ●
268 00.206 COVER; FRT
EXC. ANTI EROSION SPEC<7XK> 		8-98039-931-2 01 1 1101- ●
358 00.206 BOLT; ADAPTER
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1012- ●
373 00.206 BRACKET; PUMP
HYDRO BRAKE BOOSTER(7QQ) 		8-97149-333-0 01 1 1304- ●
464 00.686 PIPE; PCV,FLYWHEEL HSG
00.669 		8-94373-246-3 01 1 1012- ● ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-824-1 01 1 1012- ●
465 00.686 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 1012- ●
467 00.686 BOLT; PLATE
06.321 (A) M6X10 		8-98030-649-0 06 1 1012- ● ●
467 00.686 BOLT; PLATE
04.895 (B) 		8-98049-523-0 02 1 1012- ●
573 00.206 CUP; SEALING
00.034 OD=19 		8-94150-231-0 01 1 1012- ●
