◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51292 - NPR/NQR BUS CHA(LHD) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#53685) — 63 parça

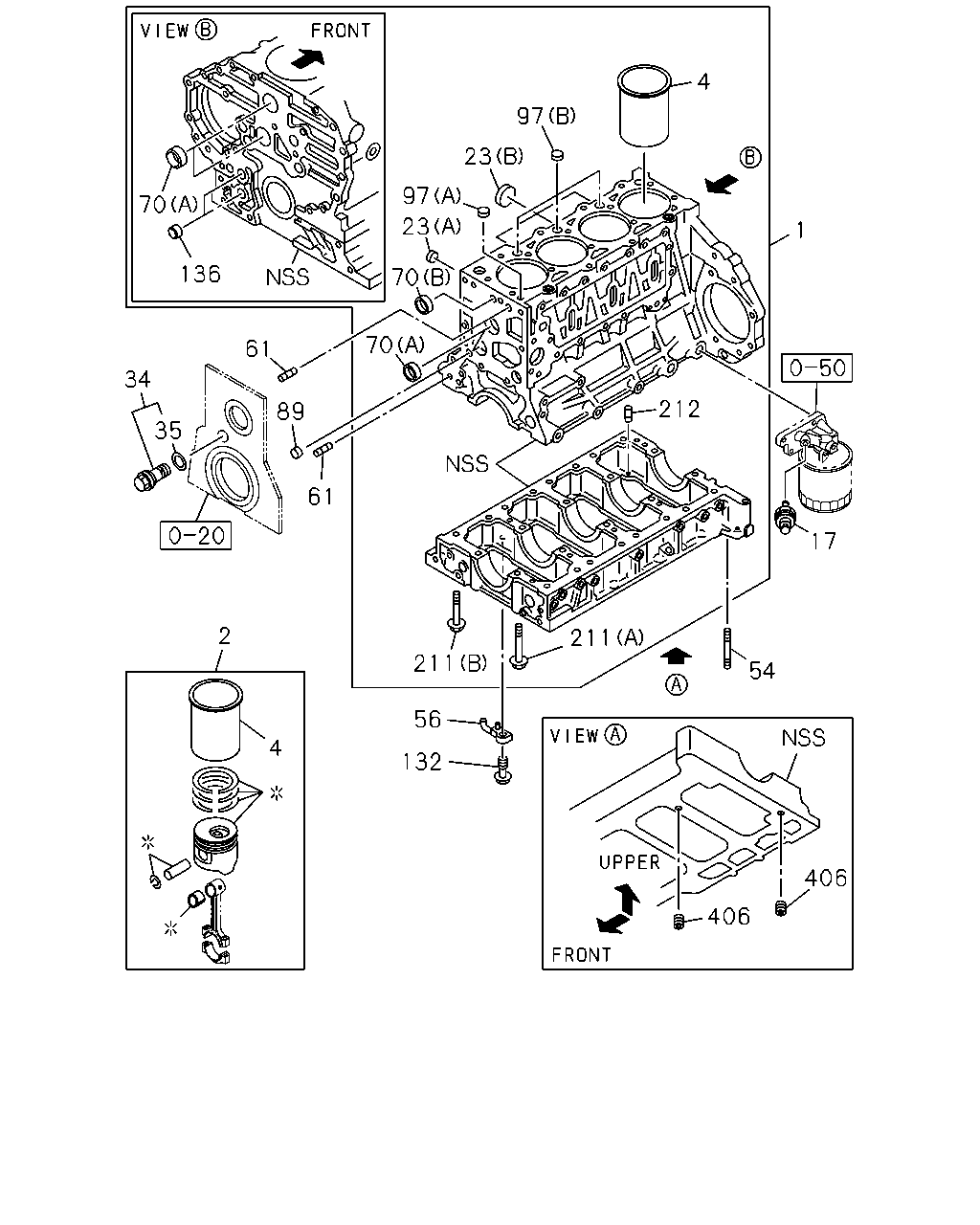

çizim 175147
211 54 17 212 1 4 97 23 97 23 70 70 211 56 132 406 406 4 2 61 61 89 35 34 136 70
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-98005-433-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-533-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-98046-721-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-529-0 01 1 1210-1405 ●
1 00.033 BLOCK ASM; CYL 8-98204-528-0 01 1 1406- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87814-836-5 04 1 1012-1112 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		5-87816-321-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87814-837-5 04 1 1012-1112 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		5-87816-322-0 04 1 1201- ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 04 1 1012-1405 ●
2 00.030 LINER SET; ENG CYL
GRADE=1X 		1-87814-726-0 04 1 1406- ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 04 1 1012-1405 ●
2 00.030 LINER SET; ENG CYL
GRADE=3X 		1-87814-727-0 04 1 1406- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-048-1 04 1 1012- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-049-1 04 1 1012- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 04 1 1012-1405 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 04 1 1406- ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 04 1 1012-1405 ●
4 00.030 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 04 1 1406- ●
17 01.800 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
00.293 (A) OD=25 		1-09600-016-0 01 1 1012- ● ●
23 00.034 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 1012- ● ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 1201- ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 1012-1112 ● ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 01 1 1201-1501 ●
34 01.609 VALVE; OIL RELIEF
00.213 		8-97328-859-0 02 1 1502- ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 1201- ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 01 1 1012-1112 ● ●
35 01.609 GASKET; RELIEF VLV
ID=23.3 		8-94173-412-0 02 1 1201- ●
54 01.428 STUD; OIL PAN TO BLOCK
M8X20 L=38 		8-97021-431-0 03 1 1101- ●
56 01.519 JET; OIL,PISTON COOLING 8-94370-579-1 04 1 1012- ●
56 01.519 JET; OIL,PISTON COOLING 8-98173-342-0 04 1 1012- ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1012- ● ●
70 00.034 CUP; SEALING,FRT & RR
00.293 (B) OD=25 		1-09600-016-0 01 1 1012- ●
70 00.034 CUP; SEALING,FRT & RR
(A) OD=40 		8-97096-824-0 04 1 1012- ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 1012- ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 1012- ● ●
97 00.034 CUP; SEALING
00.253 (C) OD=12 		8-97036-335-1 01 1 1012- ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 1012- ● ●
132 01.519 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 1012- ● ●
136 01.639 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 1012- ● ●
211 01.428 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 1012- ● ●
211 01.428 BOLT; CRANKCASE
00.293 (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 1012- ● ●
212 01.428 PIN; CRANKCASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 1012- ● ●
406 01.531 PLUG; CRANK CASE
01.073 PT3/8 		5-09605-005-0 02 1 1012- ● ●

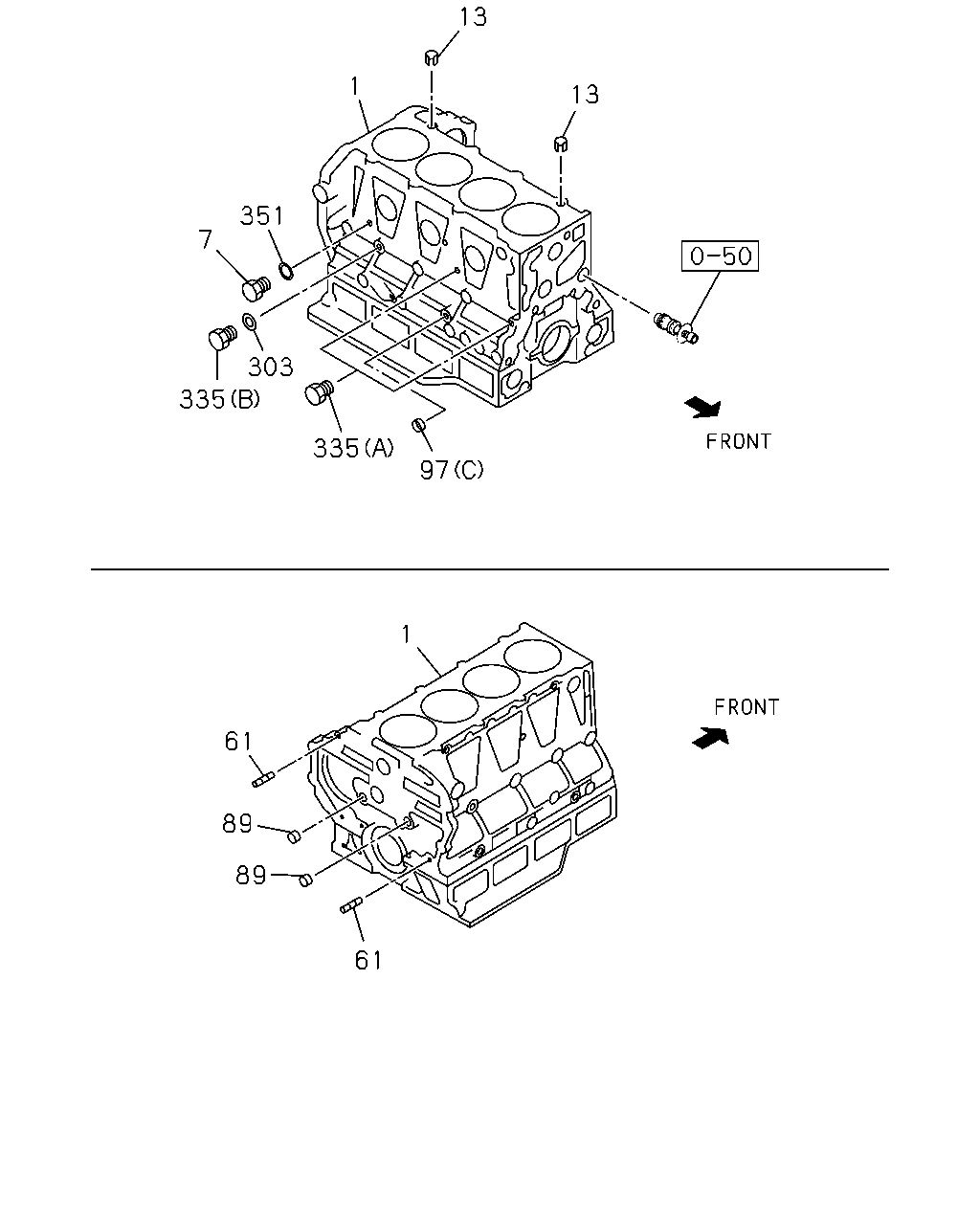

çizim 175149
61 89 89 61 1 97 335 335 303 351 7 1 13 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.033 BLOCK ASM; CYL 8-98005-433-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-533-0 01 1 1210- ●
1 00.033 BLOCK ASM; CYL 8-98046-721-3 01 1 1012-1209 ●
1 00.033 BLOCK ASM; CYL 8-98204-529-0 01 1 1210-1405 ●
1 00.033 BLOCK ASM; CYL 8-98204-528-0 01 1 1406- ●
7 00.034 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 1012- ● ●
13 00.293 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 1012- ● ●
61 00.206 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 1012- ● ●
89 00.034 CUP; SEALING,OIL GALLERY
00.253 OD=20 		9-11129-128-0 03 1 1012- ● ●
97 00.034 CUP; SEALING
00.253 (A) OD=16 		5-11129-006-0 01 1 1012- ● ●
97 00.034 CUP; SEALING
00.253 (C) OD=12 		8-97036-335-1 01 1 1012- ●
97 00.034 CUP; SEALING
00.253 (B) OD=22 		8-97209-609-0 03 1 1012- ● ●
303 01.531 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 03.163 ID=14.2 OD=19.2 		1-09630-085-0 01 1 1012-1312 ●
303 01.531 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●
335 01.531 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 01 1 1012- ●
335 01.531 PLUG; C/BL,SIDE
(A) M14X16.5 		8-97329-617-0 02 1 1012- ●
335 01.531 PLUG; C/BL,SIDE
04.866 (B) M14X18 		8-98038-403-0 01 1 1012- ●
351 01.531 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 1012- ● ●
