9-01 — TOOLS (#53680) — 54 parça

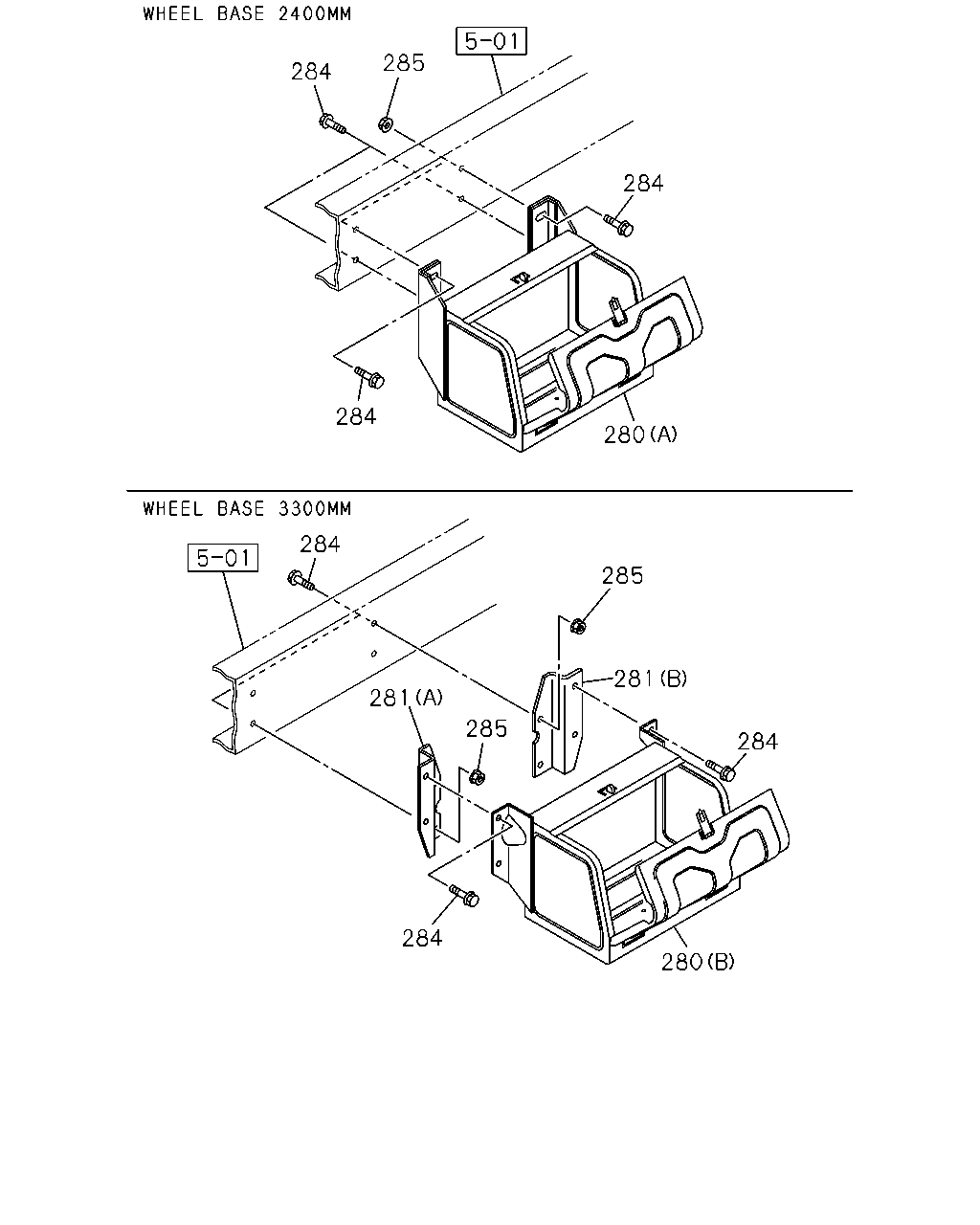

çizim 174835
285 284 284 284 280 284 285 281 281 285 284 284 280
BalonParca AdiParca NoAdetTipApplied Date A B
280 BOX; TOOL
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> (A) 		8-98054-885-0 01 1 1012- ●
280 BOX; TOOL
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-97384-079-0 01 1 1012- ●
281 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B) 		8-98045-642-1 01 1 1012- ●
281 BRACKET; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A) 		8-98130-709-0 01 1 1012- ●
284 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> M10X30 FLANGE 		0-28651-030-0 04 1 1012- ●
284 BOLT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> M10X30 FLANGE 		0-28651-030-0 04 1 1012- ●
285 NUT; TOOL BOX
WHEEL BASE 2400MM(24W) TOOL & STORAGE BOX<VK2> M10 FLANGE 		0-91180-110-0 02 1 1012- ●
285 NUT; TOOL BOX
WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> M10 FLANGE 		0-91180-110-0 04 1 1012- ●

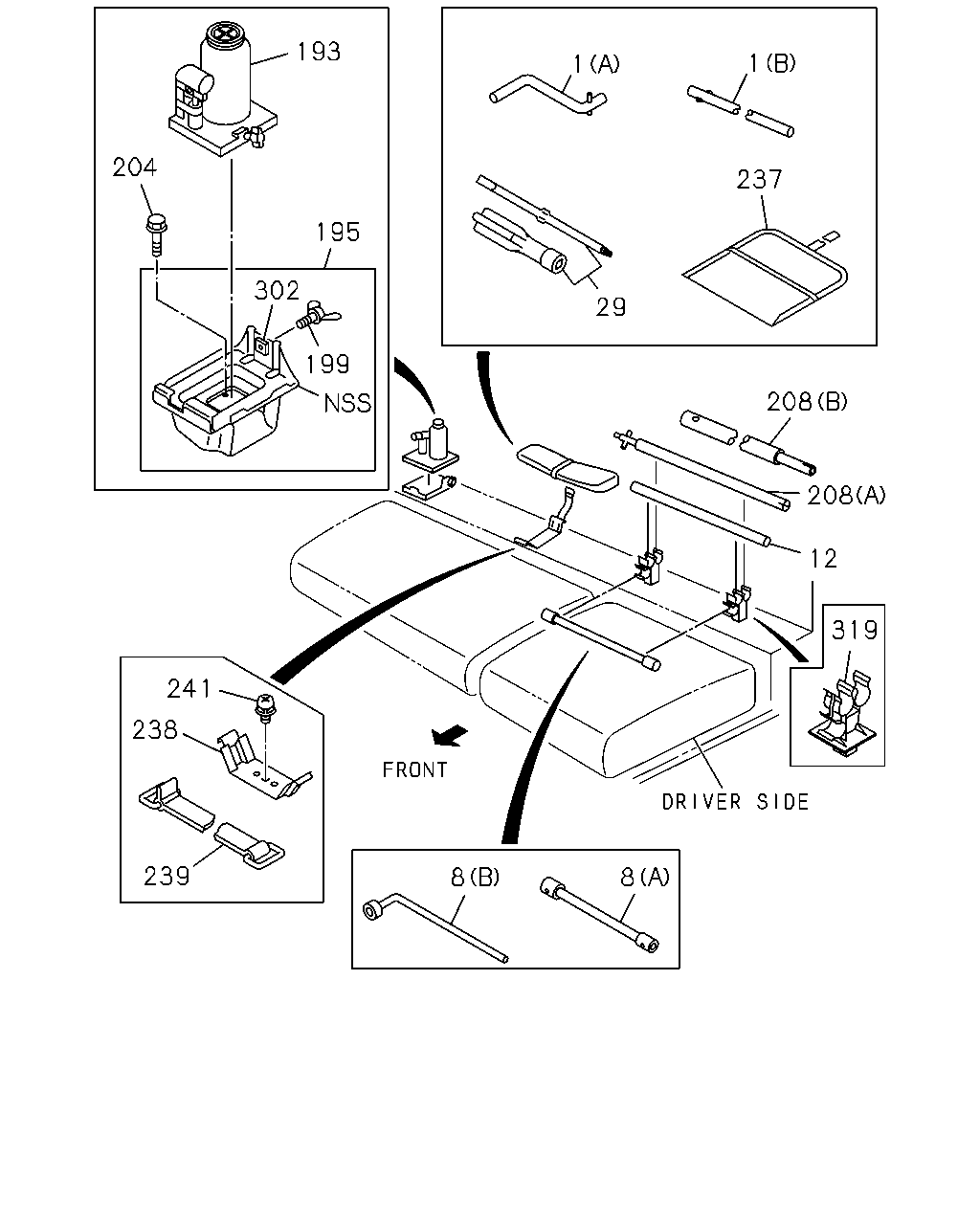

çizim 174845
193 1 1 204 237 195 302 29 199 208 208 12 319 241 238 239 8 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1012-1406 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) (A) 		8-97218-985-0 01 1 1012-1406 ●
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1407-1407 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) 		8-97218-985-0 01 1 1407-1407 ●
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 1408- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 2400MM(24W) (A) 		8-97218-985-0 01 1 1408- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (B) L=280 		1-85515-007-0 01 1 1012-1108 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (B) L=280 		8-98181-251-0 01 1 1109-1406 ●
1 HANDLE; SPARE TIRE CARRIER
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=280 		8-98181-251-0 01 1 1407-1407 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280 		8-98181-251-0 01 1 1407-1407 ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3300MM(33W) (B) L=280 		8-98181-251-0 01 1 1408- ●
8 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 1012- ●
8 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 1012- ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) OD=25 L=480 		1-85116-011-0 01 1 1012-1406 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> OD=25 L=480 		1-85116-011-0 01 1 1407-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> OD=25 L=480 		8-98257-407-0 01 1 1408-1408 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 2400MM(24W) OD=25 L=480 		8-98257-407-0 01 1 1408- ●
29 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1012- ● ●
193 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98090-823-0 01 1 1012-1311 ●
193 JACK ASM
FRT INDEPENDENT SUSPENSION(FF0) 4TON 		8-98239-828-0 01 1 1312- ●
193 JACK ASM
EXC. FRT INDEPENDENT SUSPENSION(FF0) 5TON 		8-98114-047-0 01 1 1012- ●
193 JACK ASM
4TON 		8-98012-285-0 01 1 1012- ●
195 BRACKET; JACK 8-97589-376-2 01 1 1012- ●
195 BRACKET; JACK 8-98033-737-2 01 1 1012- ●
199 BOLT; JACK
M8X30 WING 		8-98005-536-0 01 1 1012- ●
199 BOLT; JACK
M8X50 WING 		8-98005-537-0 01 1 1012- ●
204 BOLT; BRKT,JACK
M8X25 FLANGE 		0-28650-825-0 01 1 1012- ● ●
208 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 1012-1108 ●
208 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-97217-800-0 01 1 1012-1108 ●
208 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1109-1406 ●
208 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-98181-477-0 01 1 1109-1406 ●
208 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1407-1407 ●
208 HANDLE; JACK
WHEEL BASE 2400MM(24W) SPARE WHEEL CARRIER<P10> (A) L=642 		8-98181-477-0 01 1 1407-1407 ●
208 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1408- ●
208 HANDLE; JACK
WHEEL BASE 2400MM(24W) (A) L=642 		8-98181-477-0 01 1 1408- ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		1-85515-005-1 01 1 1012-1108 ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		8-98181-249-0 01 1 1109-1406 ●
208 HANDLE; JACK
SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580 		8-98181-249-0 01 1 1407-1407 ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580 		8-98181-249-0 01 1 1407-1407 ●
208 HANDLE; JACK
WHEEL BASE 3300MM(33W) (B) L=580 		8-98181-249-0 01 1 1408- ●
237 BAG; TOOL 8-97130-903-1 01 1 1012- ● ●
238 SUPPORT; TOOL BAG 8-97994-977-0 01 1 1012- ● ●
239 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 1012- ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 		0-38050-616-0 01 1 1012- ● ●
302 NUT; JACK BRKT 8-98021-556-0 01 1 1012- ● ●
319 CLIP; TOOL BAR 8-97853-077-2 02 1 1012- ● ●
