3-11 — PARKING BRAKE CONTROL (#5368) — 291 parça

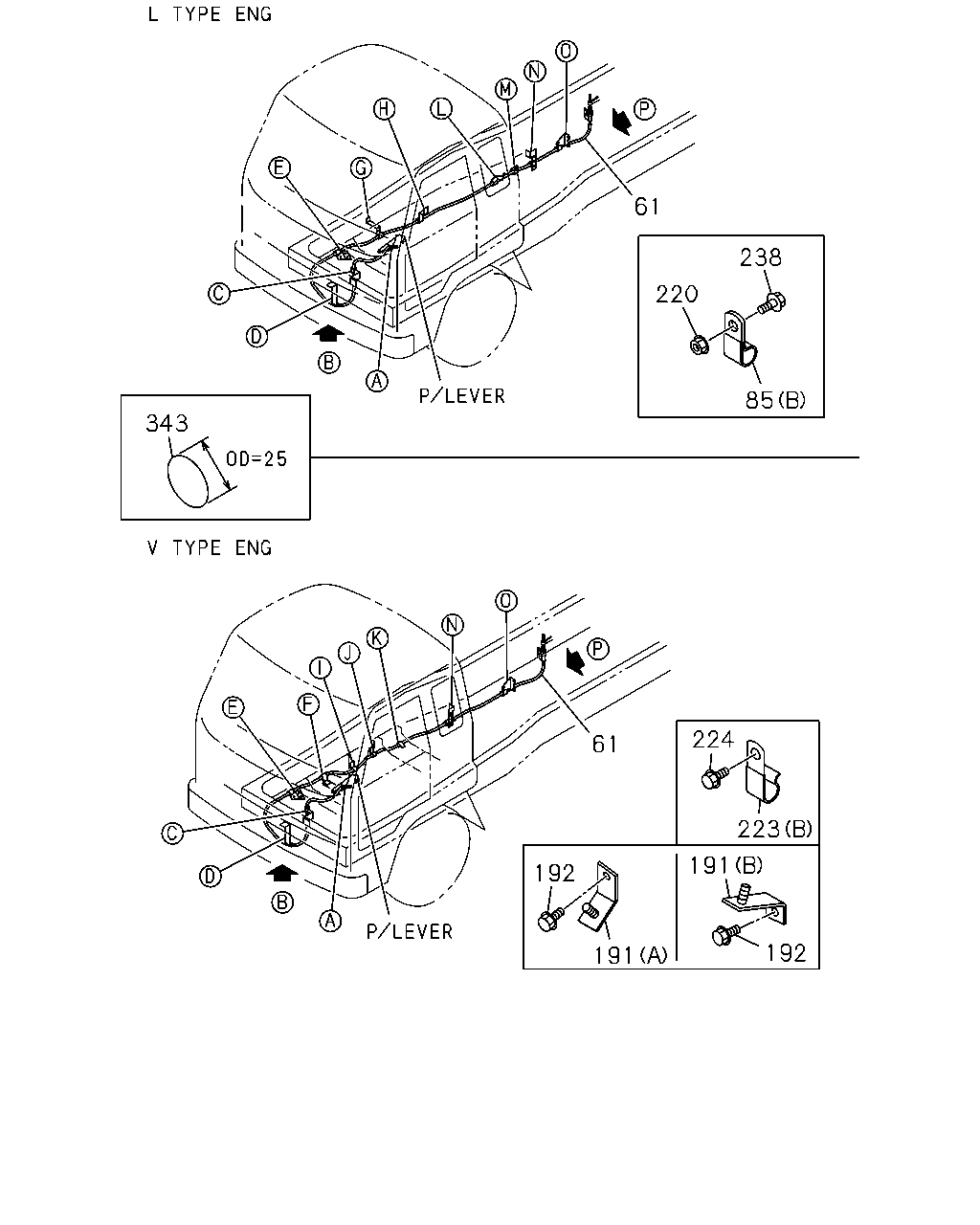

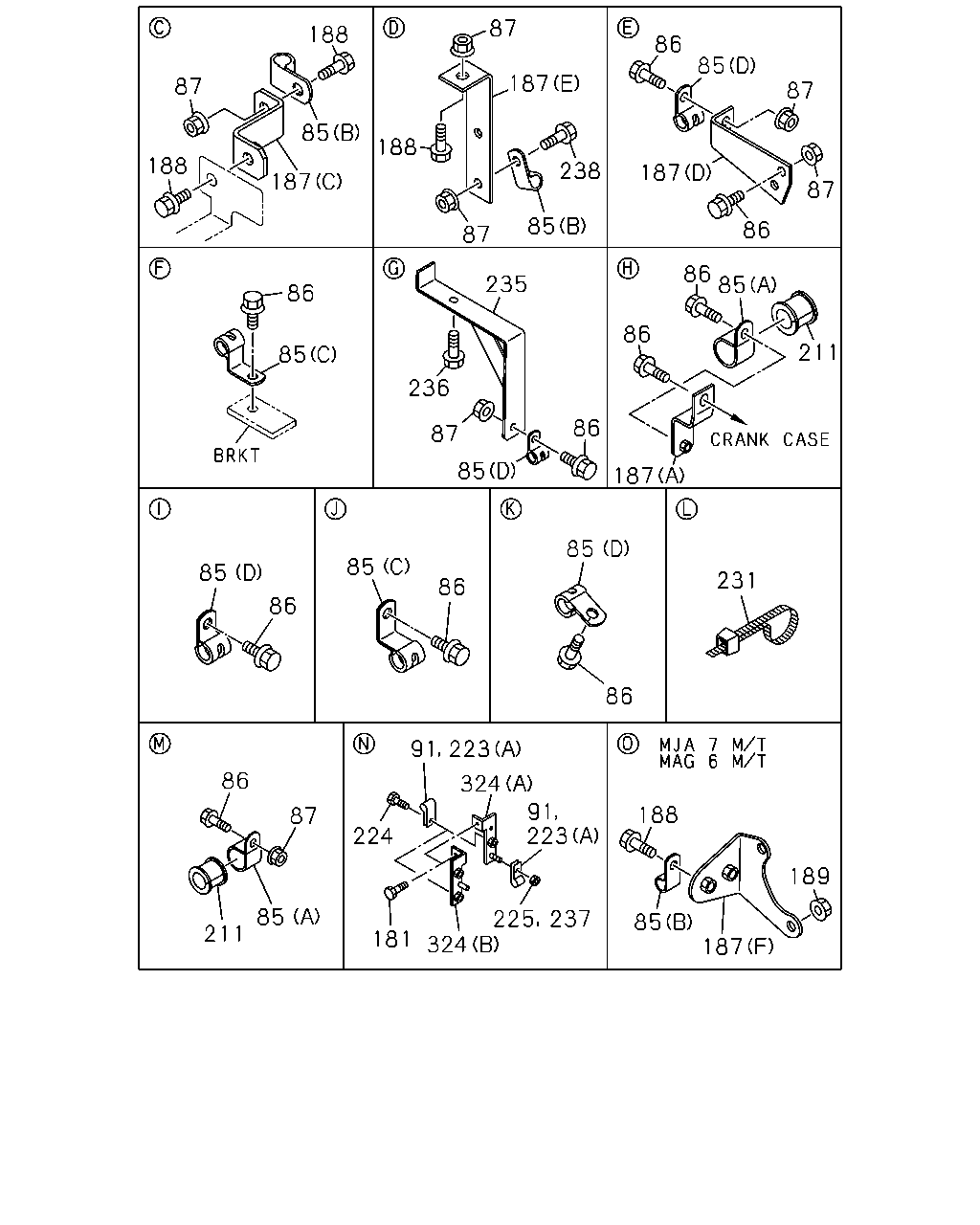

87 188 86 85 187 87 87 85 188 188 238 187 187 87 85 86 87 86 85 235 86 86 211 85 236 86 87 85 187 85 85 85 231 86 86 86 86 324 91 223 188 87 224 189 324 85 211 181 187 85 225 237 91 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
85	CLIP; BRKT (A) ID=31 L=30	1-09700-969-0	02	1	9603-9901	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14	1-09700-057-1	03	1	9603-9901	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=20	1-09701-012-0	01	1	9603-9901	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=28	1-09701-013-0	01	1	9603-9901	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14	1-09700-057-1	03	1	9905-	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=31 L=30	1-09700-969-0	02	1	9905-	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=20	1-09701-012-0	01	1	9905-	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=28	1-09701-013-0	01	1	9905-	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14.5 H=23 L=30	1-09700-859-0	02	1	9603-9603		●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14.5 H=23 L=30	1-09700-859-0	03	1	9604-9901		●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=40	1-09701-014-0	01	1	9603-9603		●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14.5 H=23 L=30	1-09700-859-0	03	1	9905-		●	●
86	BOLT M8X20 FLANGE	0-28080-820-0	05	1	9603-9606	●
86	BOLT M8X25 FLANGE	0-28680-825-0	05	1	9607-9901	●
86	BOLT M10X16 FLANGE	0-28181-016-0	01	1	9603-9606	●
86	BOLT M10X20 FLANGE	0-28781-020-0	01	1	9607-9901	●
86	BOLT M8X25 FLANGE	0-28680-825-0	04	1	9905-0001	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	04	1	0002-	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 10PE1N(61L) M8X25 FLANGE	0-28680-825-0	04	1	0002-		●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X20 FLANGE	0-28781-020-0	01	1	9905-	●	●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	07	1	9603-9606		●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	07	1	9607-9901		●	●
86	BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	07	1	9905-		●	●
87	NUT M8	9-09110-408-0	05	1	9603-9606	●
87	NUT M8 FLANGE	0-91150-108-0	05	1	9607-9901	●
87	NUT M8 FLANGE	0-91150-108-0	04	1	9905-	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
87	NUT 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) M8	9-09110-408-0	02	1	9603-9606		●
87	NUT 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) M8 FLANGE	0-91150-108-0	02	1	9607-9901		●
87	NUT 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) M8 FLANGE	0-91150-108-0	02	1	9905-0001		●
87	NUT POWER BRAKE LOCK SYSTEM(J50) M8 FLANGE	0-91150-108-0	02	1	0002-		●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	06	1	9603-9606		●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	06	1	9607-9901		●	●
87	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	06	1	9905-		●	●
91	CLIP; PARKING BRK CABLE 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> ID=14.5 L=20	1-09701-012-0	04	1	0002-		●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9905-0001	●	●	●
181	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> M8X25 FLANGE	0-28680-825-0	01	1	0002-		●	●
181	BOLT; BRKT V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> MAL5 M/T<X9F> M8X20 FLANGE	0-28680-820-0	01	1	9804-9901		●	●
187	BRACKET; HAND BRK (F)	1-46147-116-1	01	1	9603-9901	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> (F)	1-46147-116-1	01	1	9603-9901		●	●
187	BRACKET; HAND BRK (A)	1-46147-264-0	01	1	9603-9901	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-658-0	01	1	9603-9711	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> (C)	1-47476-658-0	01	1	9712-9901	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47477-580-1	01	1	9603-9901	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	1-83129-117-0	01	1	9603-9901	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-46147-264-0	01	1	9905-	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47477-580-1	01	1	9905-	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	1-83129-117-0	01	1	9905-	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> (C)	1-47476-658-0	01	1	9905-9910	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-658-0	01	1	9911-	●	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR(PJ8) (B)	1-79996-264-0	01	1	9603-9901	●	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR(PJ8) (B)	1-79996-264-0	01	1	9905-	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> (F)	1-46147-118-1	01	1	9603-9901		●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> (F)	1-46147-118-1	01	1	9905-		●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> (F)	1-46147-116-1	01	1	9905-		●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	03	1	9607-9711	●	●	●
188	BOLT; BRKT SET EXC. FIRE TRUCK<RA9> M8X25 FLANGE	0-28680-825-0	03	1	9712-9901	●	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28081-025-0	01	1	9603-9606	●	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	01	1	9607-9901	●	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	01	1	9905-9910	●	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> M8X25 FLANGE	0-28680-825-0	03	1	9905-	●	●	●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> M8X25 FLANGE	0-28680-825-0	02	1	9712-9901			●
188	BOLT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> M8X25 FLANGE	0-28680-825-0	02	1	9905-			●
189	NUT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-110-0	02	1	9603-9606	●	●	●
189	NUT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●	●
189	NUT; BRKT SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
211	SLEEVE; RUBBER ID=13 L=32	1-09337-029-0	02	1	9603-9901	●
211	SLEEVE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=13 L=32	1-09337-029-0	02	1	9905-	●	●	●
211	SLEEVE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> ID=23 OD=27 L=40	1-09337-015-0	02	1	9712-9901			●
211	SLEEVE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> ID=23 OD=27 L=40	1-09337-015-0	02	1	9905-9910			●
211	SLEEVE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=23 OD=27 L=40	1-09337-015-0	02	1	9911-0001	●	●	●
211	SLEEVE; RUBBER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> ID=23 OD=27 L=40	1-09337-015-0	02	1	0002-		●	●
223	CLIP; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14.5 L=28	1-09701-013-0	01	1	9603-9901	●	●	●
223	CLIP; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14.5 L=28	1-09701-013-0	01	1	9905-9910	●	●	●
223	CLIP; PARKING BRK CABLE 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14.5 L=28	1-09701-013-0	01	1	9911-	●	●	●
223	CLIP; PARKING BRK CABLE V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> MAL5 M/T<X9F> (B)	1-09701-222-0	01	1	9804-9901		●	●
224	BOLT; CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
224	BOLT; CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●	●	●
224	BOLT; CABLE CLIP L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MJD7 M/T<X9J> M8X25 FLANGE	0-28680-825-0	01	1	9905-9910		●	●
224	BOLT; CABLE CLIP 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> M8X25 FLANGE	0-28680-825-0	01	1	9911-	●	●	●
224	BOLT; CABLE CLIP V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> MAL5 M/T<X9F> M8X20 FLANGE	0-28680-820-0	01	1	9804-9901		●	●
225	NUT; CABLE CLIP MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	9905-9910	●	●	●
225	NUT; CABLE CLIP 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MJD7 M/T<X9J> M8 FLANGE	0-91150-108-0	01	1	9911-	●	●	●
225	NUT; CABLE CLIP 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> M8 FLANGE	0-91150-108-0	04	1	0002-		●	●
231	CLIP; BAND,BRK CABLE L=150	1-09707-145-0	01	1	9603-9901	●
231	CLIP; BAND,BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=150	1-09707-145-1	01	1	9905-	●	●	●
231	CLIP; BAND,BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=250	1-09707-126-0	02	1	9712-9901			●
231	CLIP; BAND,BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> L=250	1-09707-126-0	02	1	9905-9910			●
231	CLIP; BAND,BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	1-09707-126-0	02	1	9911-0001	●	●	●
231	CLIP; BAND,BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> L=250	1-09707-126-0	02	1	0002-		●	●
235	BRACKET; CONT CABLE TO FRAME	1-46147-169-1	01	1	9603-9901	●
235	BRACKET; CONT CABLE TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46147-169-1	01	1	9905-	●	●	●
235	BRACKET; CONT CABLE TO FRAME 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T>	1-46147-183-0	02	1	0002-		●	●
235	BRACKET; CONT CABLE TO FRAME 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T>	1-47477-180-1	01	1	0002-		●	●
236	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28080-830-0	01	1	9603-9606	●
236	BOLT; BRKT TO FRAME M8X35 FLANGE	0-28680-835-0	01	1	9607-9901	●
236	BOLT; BRKT TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE	0-28680-835-0	01	1	9905-	●	●	●
236	BOLT; BRKT TO FRAME 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> M8X30 FLANGE	0-28680-830-0	06	1	0002-		●	●
237	NUT; BRKT TO FRAME 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAL5 M/T<X9F>,MJA7 M/T<X9Q>,MAG6 M/T<X9T> M8 FLANGE	0-91150-108-0	06	1	0002-		●	●
238	BOLT; CLIP TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
238	BOLT; CLIP TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●	●	●
238	BOLT; CLIP TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●	●
324	BRACKET (B)	1-82699-831-0	01	1	9905-	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> (B)	1-82699-831-0	01	1	9905-		●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-82699-510-2	01	1	9603-9803	●	●	●
324	BRACKET L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-82699-510-2	01	1	9804-9901	●	●	●
324	BRACKET V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (B)	1-82699-510-2	01	1	9804-9901		●	●
324	BRACKET PARKING BRAKE TRANSMISSION REAR(PJ8) (A)	1-79996-140-0	01	1	9603-9901	●	●	●
324	BRACKET PARKING BRAKE TRANSMISSION REAR(PJ8) (A)	1-79996-140-1	01	1	9905-	●	●	●
324	BRACKET L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> (B)	1-82699-510-2	01	1	9905-0001		●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> (B)	1-82699-510-2	01	1	0002-		●	●

102 101 102 247 101 246 98 98 99 99 61 61 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	CABLE; PARKING BRK L=5390	1-79996-339-2	01	1	9603-9901	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) MJD7S M/T(Y2Y) CAB UP +110MM<TGG> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5540	1-79996-433-0	01	1	9905-9905	●	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=5540	1-79996-433-1	01	1	9905-9908	●	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MAP5 M/T<Y9F> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=5540	1-79996-433-1	01	1	9909-	●	●	●
61	CABLE; PARKING BRK 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) MAG6 M/T<X9T> L=5540	1-79996-343-3	01	1	9603-9901		●
61	CABLE; PARKING BRK 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) MJA7 M/T<X9Q> L=5320	1-79996-341-3	01	1	9603-9901		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5610	1-79996-454-0	01	1	9905-		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> L=5694	1-79996-455-0	01	1	9905-		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) MJD7S M/T(Y2Y) CAB UP +110MM<TGG> POWER BRAKE LOCK SYSTEM(J50) L=5624	1-79996-434-0	01	1	9905-9905		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2> L=5624	1-79996-434-0	01	1	9905-	●	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5220	1-79996-340-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MJA7 M/T<X9Q> L=5320	1-79996-341-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> MAL5 M/T<X9F> L=5170	1-79996-342-3	01	1	0002-			●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MAG6 M/T<X9T> L=5540	1-79996-343-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1S(60L) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-1	01	1	9603-9604		●	●
61	CABLE; PARKING BRK 10PE1S(60L) PARKING BRAKE TRANSMISSION REAR(PJ8) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-1	01	1	9605-9610		●	●
61	CABLE; PARKING BRK 10PE1S(60L) PARKING BRAKE TRANSMISSION REAR(PJ8) MAG6 M/T<X9T> L=5170	1-79996-342-3	01	1	9611-9901		●	●
61	CABLE; PARKING BRK 10PE1S(60L) PARKING BRAKE TRANSMISSION REAR(PJ8) MAL5 M/T<X9F> FIRE TRUCK<RA9> L=5170	1-79996-342-3	01	1	9611-9901			●
61	CABLE; PARKING BRK 10PE1S(60L) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5220	1-79996-340-3	01	1	9603-9901		●	●
98	BOLT; RR COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28081-030-0	02	1	9603-9606	●	●	●
98	BOLT; RR COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X35 FLANGE	0-28681-035-0	02	1	9607-9807	●	●	●
98	BOLT; RR COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9808-9901	●	●	●
98	BOLT; RR COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X30 FLANGE	0-28681-030-0	02	1	9905-	●	●	●
99	NUT; CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10	9-09110-510-0	02	1	9603-9606	●	●	●
99	NUT; CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	9607-9901	●	●	●
99	NUT; CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●	●
101	NUT; CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46259-007-0	01	1	9603-9901	●	●	●
101	NUT; CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-46259-007-0	01	1	9905-	●	●	●
102	NUT; LK,CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9603-9901	●	●	●
102	NUT; LK,CABLE TO LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-408-0	01	1	9905-	●	●	●
246	SENSOR; BRK LOCK 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50)	1-46360-101-2	01	1	9603-9901		●
246	SENSOR; BRK LOCK 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50)	1-46360-101-2	01	1	9905-0001		●
246	SENSOR; BRK LOCK POWER BRAKE LOCK SYSTEM(J50)	1-46360-101-2	01	1	0002-		●	●
247	WASHER; PL 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) ID=8.4	9-09160-508-0	01	1	9603-9901		●
247	WASHER; PL 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) ID=8.4	9-09160-508-0	01	1	9905-0001		●
247	WASHER; PL POWER BRAKE LOCK SYSTEM(J50) ID=8.4	9-09160-508-0	01	1	0002-		●	●

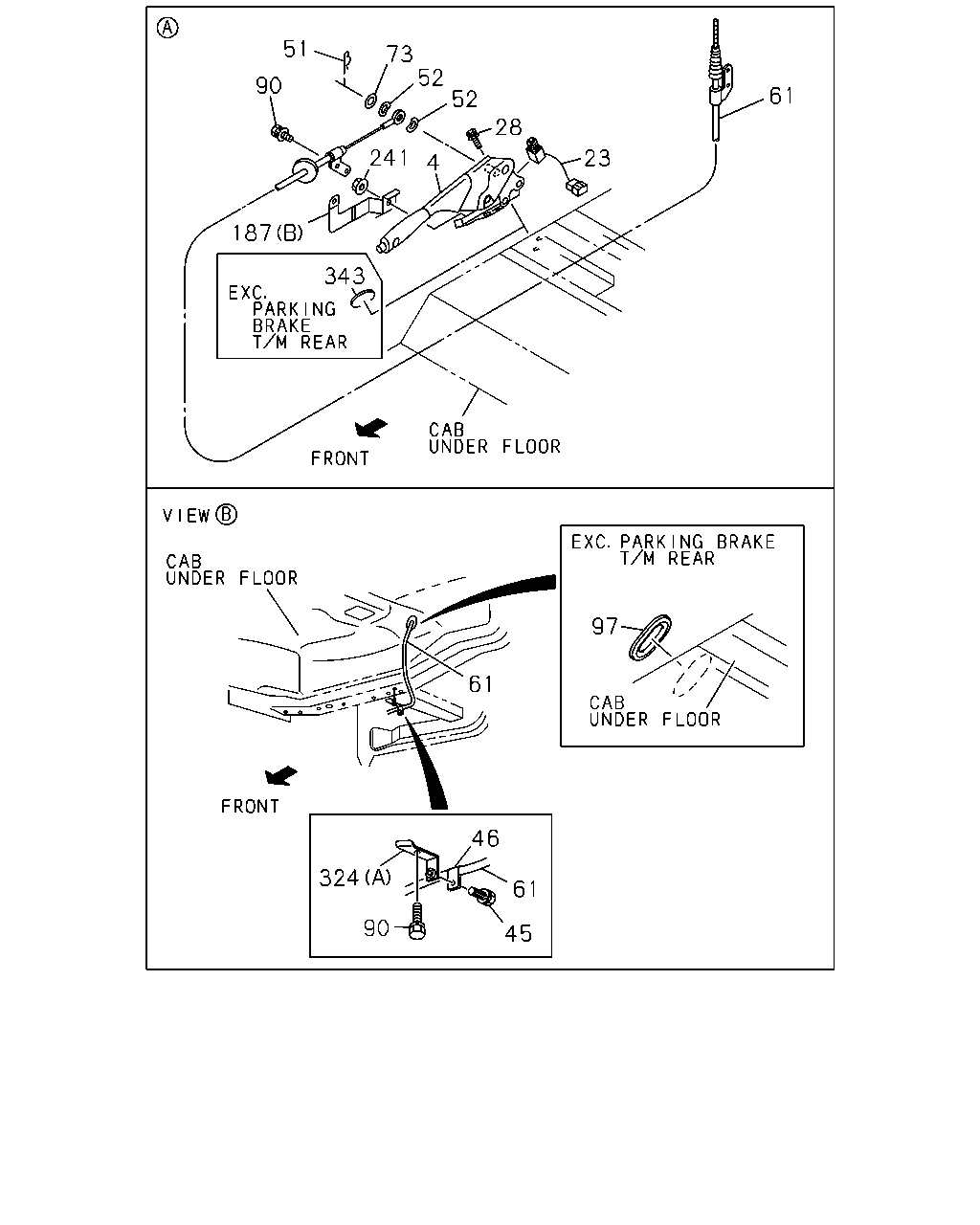

51 73 52 52 90 61 28 4 241 23 187 343 97 61 46 324 61 90 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	STEM; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-79996-137-1	01	1	9603-9809	●	●	●
4	STEM; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-79996-426-0	01	1	9810-9901	●	●	●
4	STEM; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-79996-426-0	01	1	9905-9908	●	●	●
4	STEM; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-79996-489-0	01	1	9909-9911	●	●	●
4	STEM; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-79996-507-0	01	1	9912-0010	●	●	●
4	STEM; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-79996-567-0	01	1	0011-	●	●	●
23	SWITCH; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-82440-100-0	01	1	9603-9901	●	●	●
23	SWITCH; PARKING BRK PARKING BRAKE TRANSMISSION REAR(PJ8)	1-82440-100-0	01	1	9905-	●	●	●
28	BOLT; HAND BRK LEVER PARKING BRAKE TRANSMISSION REAR(PJ8) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9901	●	●	●
28	BOLT; HAND BRK LEVER PARKING BRAKE TRANSMISSION REAR(PJ8) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-	●	●	●
45	BOLT; CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR(PJ8) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9603-9812	●	●	●
45	BOLT; CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR(PJ8) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9901-9901	●	●	●
45	BOLT; CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR(PJ8) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-	●	●	●
46	CLIP; FRT CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR(PJ8) ID=16 L=20	9-09525-535-0	01	1	9603-9611	●	●	●
46	CLIP; FRT CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR(PJ8) ID=13 L=20	9-09525-235-0	01	1	9612-9901	●	●	●
46	CLIP; FRT CABLE TO FLOOR PARKING BRAKE TRANSMISSION REAR(PJ8) ID=13 L=20	9-09525-235-0	01	1	9905-	●	●	●
51	PIN; JOINT,RELAY LEVER PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09987-243-1	01	1	9603-9901	●	●	●
51	PIN; JOINT,RELAY LEVER PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09987-243-1	01	1	9905-	●	●	●
52	WASHER; CURVED RELAY LEVER PARKING BRAKE TRANSMISSION REAR(PJ8) ID=19	8-94206-429-1	02	1	9603-9901	●	●	●
52	WASHER; CURVED RELAY LEVER PARKING BRAKE TRANSMISSION REAR(PJ8) ID=19	8-94206-429-1	02	1	9905-	●	●	●
61	CABLE; PARKING BRK L=5390	1-79996-339-2	01	1	9603-9901	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) MJD7S M/T(Y2Y) CAB UP +110MM<TGG> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5540	1-79996-433-0	01	1	9905-9905	●	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=5540	1-79996-433-1	01	1	9905-9908	●	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MAP5 M/T<Y9F> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=5540	1-79996-433-1	01	1	9909-	●	●	●
61	CABLE; PARKING BRK 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) MAG6 M/T<X9T> L=5540	1-79996-343-3	01	1	9603-9901		●
61	CABLE; PARKING BRK 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) MJA7 M/T<X9Q> L=5320	1-79996-341-3	01	1	9603-9901		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5610	1-79996-454-0	01	1	9905-		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> L=5694	1-79996-455-0	01	1	9905-		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) MJD7S M/T(Y2Y) CAB UP +110MM<TGG> POWER BRAKE LOCK SYSTEM(J50) L=5624	1-79996-434-0	01	1	9905-9905		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2> L=5624	1-79996-434-0	01	1	9905-	●	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5220	1-79996-340-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MJA7 M/T<X9Q> L=5320	1-79996-341-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> MAL5 M/T<X9F> L=5170	1-79996-342-3	01	1	0002-			●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MAG6 M/T<X9T> L=5540	1-79996-343-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1S(60L) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-1	01	1	9603-9604		●	●
61	CABLE; PARKING BRK 10PE1S(60L) PARKING BRAKE TRANSMISSION REAR(PJ8) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-1	01	1	9605-9610		●	●
61	CABLE; PARKING BRK 10PE1S(60L) PARKING BRAKE TRANSMISSION REAR(PJ8) MAG6 M/T<X9T> L=5170	1-79996-342-3	01	1	9611-9901		●	●
61	CABLE; PARKING BRK 10PE1S(60L) PARKING BRAKE TRANSMISSION REAR(PJ8) MAL5 M/T<X9F> FIRE TRUCK<RA9> L=5170	1-79996-342-3	01	1	9611-9901			●
61	CABLE; PARKING BRK 10PE1S(60L) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5220	1-79996-340-3	01	1	9603-9901		●	●
73	WASHER; PL,CABLE PARKING BRAKE TRANSMISSION REAR(PJ8) ID=17	9-09160-516-0	01	1	9603-9901	●	●	●
73	WASHER; PL,CABLE PARKING BRAKE TRANSMISSION REAR(PJ8) ID=17	9-09160-516-0	01	1	9905-	●	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR(PJ8) M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	0104-	●	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR(PJ8) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9603-9901	●	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR(PJ8) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9905-0103	●	●	●
90	BOLT; CABLE TO BRKT PARKING BRAKE TRANSMISSION REAR(PJ8) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0104-	●	●	●
97	GROMMET; PARKING BRK CABLE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09983-078-0	01	1	9603-9901		●	●
97	GROMMET; PARKING BRK CABLE	1-09983-078-0	01	1	9902-9904		●	●
97	GROMMET; PARKING BRK CABLE EXC. PARKING BRAKE TRANSMISSION REAR(PJ8)	1-09983-078-0	01	1	9905-		●	●
187	BRACKET; HAND BRK (F)	1-46147-116-1	01	1	9603-9901	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> (F)	1-46147-116-1	01	1	9603-9901		●	●
187	BRACKET; HAND BRK (A)	1-46147-264-0	01	1	9603-9901	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-658-0	01	1	9603-9711	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> (C)	1-47476-658-0	01	1	9712-9901	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47477-580-1	01	1	9603-9901	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	1-83129-117-0	01	1	9603-9901	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-46147-264-0	01	1	9905-	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-47477-580-1	01	1	9905-	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	1-83129-117-0	01	1	9905-	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. FIRE TRUCK<RA9> (C)	1-47476-658-0	01	1	9905-9910	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47476-658-0	01	1	9911-	●	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR(PJ8) (B)	1-79996-264-0	01	1	9603-9901	●	●	●
187	BRACKET; HAND BRK PARKING BRAKE TRANSMISSION REAR(PJ8) (B)	1-79996-264-0	01	1	9905-	●	●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> (F)	1-46147-118-1	01	1	9603-9901		●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> (F)	1-46147-118-1	01	1	9905-		●	●
187	BRACKET; HAND BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> (F)	1-46147-116-1	01	1	9905-		●	●
241	NUT; BRKT PARKING BRAKE TRANSMISSION REAR(PJ8) M8 FLANGE	0-91150-108-0	01	1	9603-9901	●	●	●
241	NUT; BRKT PARKING BRAKE TRANSMISSION REAR(PJ8) M8 FLANGE	0-91150-108-0	01	1	9905-	●	●	●
324	BRACKET (B)	1-82699-831-0	01	1	9905-	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> (B)	1-82699-831-0	01	1	9905-		●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-82699-510-2	01	1	9603-9803	●	●	●
324	BRACKET L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-82699-510-2	01	1	9804-9901	●	●	●
324	BRACKET V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> (B)	1-82699-510-2	01	1	9804-9901		●	●
324	BRACKET PARKING BRAKE TRANSMISSION REAR(PJ8) (A)	1-79996-140-0	01	1	9603-9901	●	●	●
324	BRACKET PARKING BRAKE TRANSMISSION REAR(PJ8) (A)	1-79996-140-1	01	1	9905-	●	●	●
324	BRACKET L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> (B)	1-82699-510-2	01	1	9905-0001		●	●
324	BRACKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> (B)	1-82699-510-2	01	1	0002-		●	●
343	SEAL EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) OD=25 BLACK	1-76798-019-0	03	1	9603-9612		●	●
343	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK	1-76798-019-0	02	1	9701-9901		●	●
343	SEAL OD=25 BLACK	1-76798-019-0	02	1	9902-9904		●	●
343	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK	1-76798-019-0	02	1	9905-		●	●

61 238 220 85 343 224 61 223 191 192 192 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	CABLE; PARKING BRK L=5390	1-79996-339-2	01	1	9603-9901	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) MJD7S M/T(Y2Y) CAB UP +110MM<TGG> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5540	1-79996-433-0	01	1	9905-9905	●	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=5540	1-79996-433-1	01	1	9905-9908	●	●	●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB UP +110MM<TGG> MJD7 M/T<X9J>,MAP5 M/T<Y9F> EXC. POWER BRAKE LOCK SYSTEM(J50),MIXER TRUCK<RA2> L=5540	1-79996-433-1	01	1	9909-	●	●	●
61	CABLE; PARKING BRK 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) MAG6 M/T<X9T> L=5540	1-79996-343-3	01	1	9603-9901		●
61	CABLE; PARKING BRK 10PE1S(60L) POWER BRAKE LOCK SYSTEM(J50) MJA7 M/T<X9Q> L=5320	1-79996-341-3	01	1	9603-9901		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5610	1-79996-454-0	01	1	9905-		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MIXER TRUCK<RA2> CAB UP +110MM<TGG> MJD7 M/T<X9J> L=5694	1-79996-455-0	01	1	9905-		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) MJD7S M/T(Y2Y) CAB UP +110MM<TGG> POWER BRAKE LOCK SYSTEM(J50) L=5624	1-79996-434-0	01	1	9905-9905		●
61	CABLE; PARKING BRK 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) CAB UP +110MM<TGG> MJD7 M/T<X9J> EXC. MIXER TRUCK<RA2> L=5624	1-79996-434-0	01	1	9905-	●	●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5220	1-79996-340-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MJA7 M/T<X9Q> L=5320	1-79996-341-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) FIRE TRUCK<RA9> MAL5 M/T<X9F> L=5170	1-79996-342-3	01	1	0002-			●
61	CABLE; PARKING BRK 10PE1N(61L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) POWER BRAKE LOCK SYSTEM(J50) MAG6 M/T<X9T> L=5540	1-79996-343-3	01	1	0002-		●	●
61	CABLE; PARKING BRK 10PE1S(60L) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-1	01	1	9603-9604		●	●
61	CABLE; PARKING BRK 10PE1S(60L) PARKING BRAKE TRANSMISSION REAR(PJ8) MAG6 M/T<X9T> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5170	1-79996-342-1	01	1	9605-9610		●	●
61	CABLE; PARKING BRK 10PE1S(60L) PARKING BRAKE TRANSMISSION REAR(PJ8) MAG6 M/T<X9T> L=5170	1-79996-342-3	01	1	9611-9901		●	●
61	CABLE; PARKING BRK 10PE1S(60L) PARKING BRAKE TRANSMISSION REAR(PJ8) MAL5 M/T<X9F> FIRE TRUCK<RA9> L=5170	1-79996-342-3	01	1	9611-9901			●
61	CABLE; PARKING BRK 10PE1S(60L) MJA7 M/T<X9Q> EXC. POWER BRAKE LOCK SYSTEM(J50) L=5220	1-79996-340-3	01	1	9603-9901		●	●
85	CLIP; BRKT (A) ID=31 L=30	1-09700-969-0	02	1	9603-9901	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14	1-09700-057-1	03	1	9603-9901	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=20	1-09701-012-0	01	1	9603-9901	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=28	1-09701-013-0	01	1	9603-9901	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=14	1-09700-057-1	03	1	9905-	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=31 L=30	1-09700-969-0	02	1	9905-	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=20	1-09701-012-0	01	1	9905-	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=28	1-09701-013-0	01	1	9905-	●	●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14.5 H=23 L=30	1-09700-859-0	02	1	9603-9603		●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14.5 H=23 L=30	1-09700-859-0	03	1	9604-9901		●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=14.5 L=40	1-09701-014-0	01	1	9603-9603		●	●
85	CLIP; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=14.5 H=23 L=30	1-09700-859-0	03	1	9905-		●	●
191	STAY; BRKT V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MAG6 M/T<X9T> (A)	1-46147-233-0	01	1	9605-9812		●	●
191	STAY; BRKT V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> (A)	1-46147-233-0	01	1	9901-9901		●	●
191	STAY; BRKT V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q> (B)	1-46147-234-0	01	1	9605-9812		●	●
191	STAY; BRKT V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> (A)	1-46147-233-0	01	1	0002-		●	●
192	BOLT; STAY FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9605-9606		●	●
192	BOLT; STAY FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901		●	●
192	BOLT; STAY FIX V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> M8X25 FLANGE	0-28680-825-0	01	1	0002-		●	●
220	NUT; CLIP,PARKING CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	9-09110-508-0	01	1	9605-9606		●	●
220	NUT; CLIP,PARKING CONT CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9607-9901		●	●
220	NUT; CLIP,PARKING CONT CABLE V TYPE ENG<91L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJA7 M/T<X9Q>,MAG6 M/T<X9T> M8 FLANGE	0-91150-108-0	01	1	0002-		●	●
223	CLIP; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14.5 L=28	1-09701-013-0	01	1	9603-9901	●	●	●
223	CLIP; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14.5 L=28	1-09701-013-0	01	1	9905-9910	●	●	●
223	CLIP; PARKING BRK CABLE 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=14.5 L=28	1-09701-013-0	01	1	9911-	●	●	●
223	CLIP; PARKING BRK CABLE V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> MAL5 M/T<X9F> (B)	1-09701-222-0	01	1	9804-9901		●	●
224	BOLT; CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
224	BOLT; CABLE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●	●	●
224	BOLT; CABLE CLIP L TYPE ENG<90L> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. MJD7 M/T<X9J> M8X25 FLANGE	0-28680-825-0	01	1	9905-9910		●	●
224	BOLT; CABLE CLIP 6WG1 TC-R(75L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) MJD7 M/T<X9J> M8X25 FLANGE	0-28680-825-0	01	1	9911-	●	●	●
224	BOLT; CABLE CLIP V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9> MAL5 M/T<X9F> M8X20 FLANGE	0-28680-820-0	01	1	9804-9901		●	●
238	BOLT; CLIP TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●	●
238	BOLT; CLIP TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9607-9901	●	●	●
238	BOLT; CLIP TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●	●
343	SEAL EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) OD=25 BLACK	1-76798-019-0	03	1	9603-9612		●	●
343	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK	1-76798-019-0	02	1	9701-9901		●	●
343	SEAL OD=25 BLACK	1-76798-019-0	02	1	9902-9904		●	●
343	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK	1-76798-019-0	02	1	9905-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
