8-80 — WINDSHIELD WIPER AND WASHER (#53678) — 37 parça

196 46 34 30 43 33 74 135 48 137 229 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	MOTOR ASM; FRT WASHER TANK	8-97855-139-0	01	1	1012-	●	●
33	NUT; MOTOR TO ARM M8	8-97855-157-0	01	1	1012-	●	●
34	CAP; WASHER TANK	8-97855-140-0	01	1	1012-	●	●
43	RUBBER; GASKET,TANK	8-94352-050-0	01	1	1012-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER	8-98029-124-3	01	1	1012-	●	●
48	ARM; WIPER MOTOR	8-98052-215-0	01	1	1012-	●	●
74	WASHER; ARM TO MOTOR ID=8	8-97855-158-0	01	1	1012-	●	●
135	RUBBER; CUSHION,WIPER MOTOR	8-98052-214-0	04	1	1012-	●	●
137	SEAL; JOINT,WIPER MOTOR	8-98052-218-0	01	1	1012-	●	●
196	TANK; WASHER	8-98029-136-2	01	1	1012-	●	●
229	HARNESS; WASHER TANK INTERMITTENT WIPER<C13>	8-98236-608-0	01	1	1302-1308	●	●
235	INSULATOR; HARNESS INTERMITTENT WIPER<C13>	8-98236-321-0	01	1	1302-1308	●	●

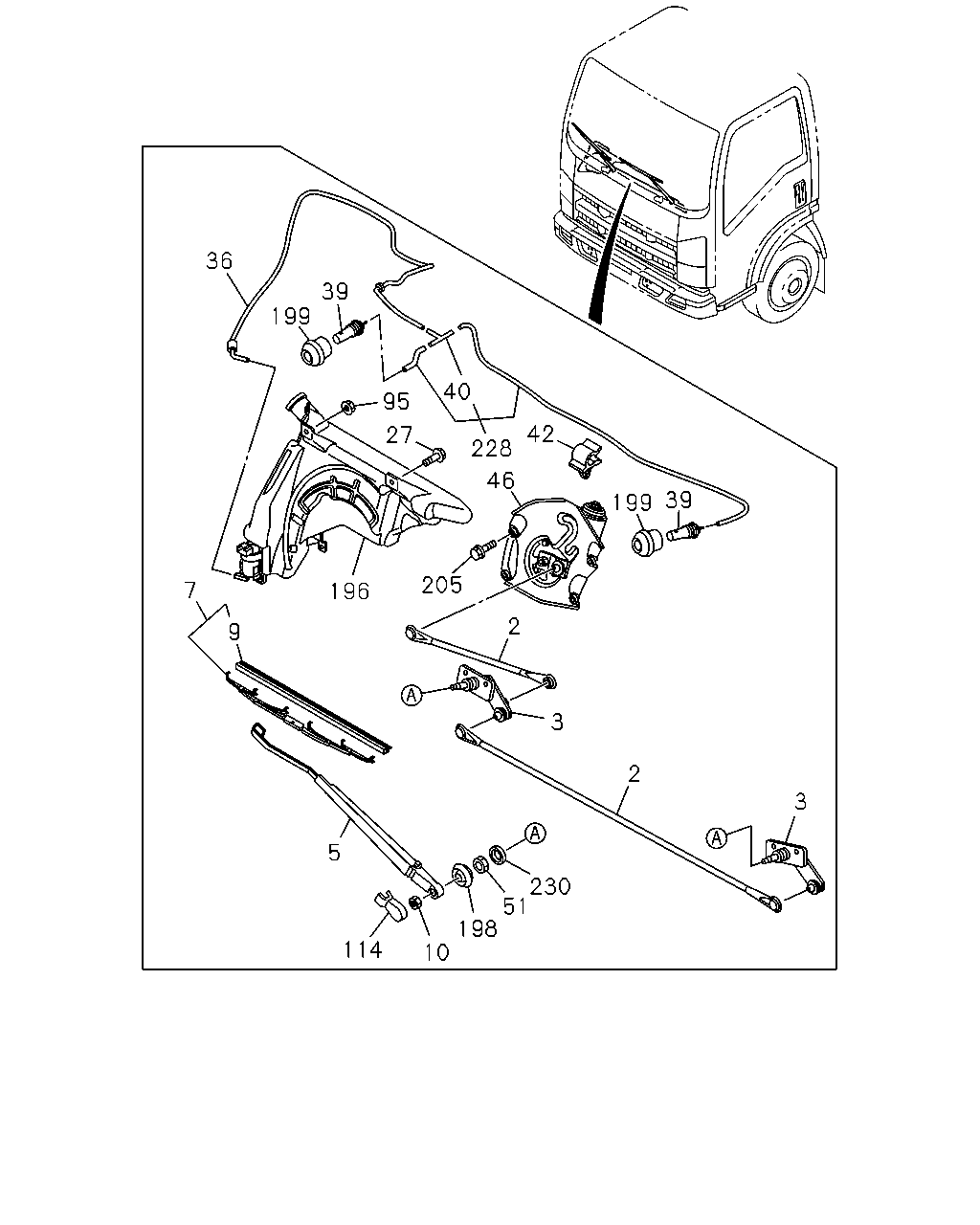

36 39 199 40 95 42 27 228 46 39 199 205 7 196 2 9 3 2 3 5 230 51 198 114 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINK; FRT WIPER L=400 W/CAP STAMP M	8-98053-768-0	01	1	1012-	●	●
2	LINK; FRT WIPER L=590 W/CAP	8-98053-772-0	01	1	1012-	●	●
3	PIVOT ASM; FRT WIPER PASSENGER SIDE	8-98053-763-0	01	1	1012-	●	●
3	PIVOT ASM; FRT WIPER DRIVER SIDE	8-98053-764-0	01	1	1012-	●	●
5	ARM; WIPER	8-98053-786-0	01	1	1012-	●	●
5	ARM; WIPER	8-98053-787-0	01	1	1012-	●	●
7	BLADE; WIPER	8-98053-791-0	02	1	1012-	●	●
9	RUBBER; FRT WIPER BLADE L=475	8-98053-793-0	02	1	1012-	●	●
10	NUT; WIPER ARM TO WIPER PIVOT M8	0-91110-508-0	02	1	1012-	●	●
27	BOLT; WASHER TANK M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	1012-	●	●
36	HOSE; WASHER L=1070	8-98029-171-2	01	1	1012-	●	●
39	NOZZLE; WINDSHIELD WASHER	8-98029-139-1	02	1	1012-	●	●
40	JOINT; WASHER HOSE 3WAY	5-83363-033-0	01	1	1012-	●	●
42	CLIP; WASHER HOSE	8-94144-956-0	01	1	1012-	●	●
46	MOTOR ASM; FRT WINDSHIELD WIPER	8-98029-124-3	01	1	1012-	●	●
51	NUT; WIPER MOTOR LINK M24	8-98029-167-0	02	1	1012-	●	●
95	NUT; WASHER TANK M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
114	COVER; FRT WIPER ARM BLACK	8-94282-851-0	02	1	1012-	●	●
196	TANK; WASHER	8-98029-136-2	01	1	1012-	●	●
198	COVER; PIVOT,WIPER	8-98029-164-0	02	1	1012-	●	●
199	COVER; NOZZLE,WIPER	8-98079-030-0	02	1	1012-	●	●
205	BOLT; WIPER MOTOR M6X25 W/LK&PL WASHER	8-98018-440-0	04	1	1012-	●	●
228	HOSE ASM; WASHER	8-98029-169-1	01	1	1012-	●	●
230	COLLAR; WIPER LINK	8-98029-097-0	02	1	1012-	●	●

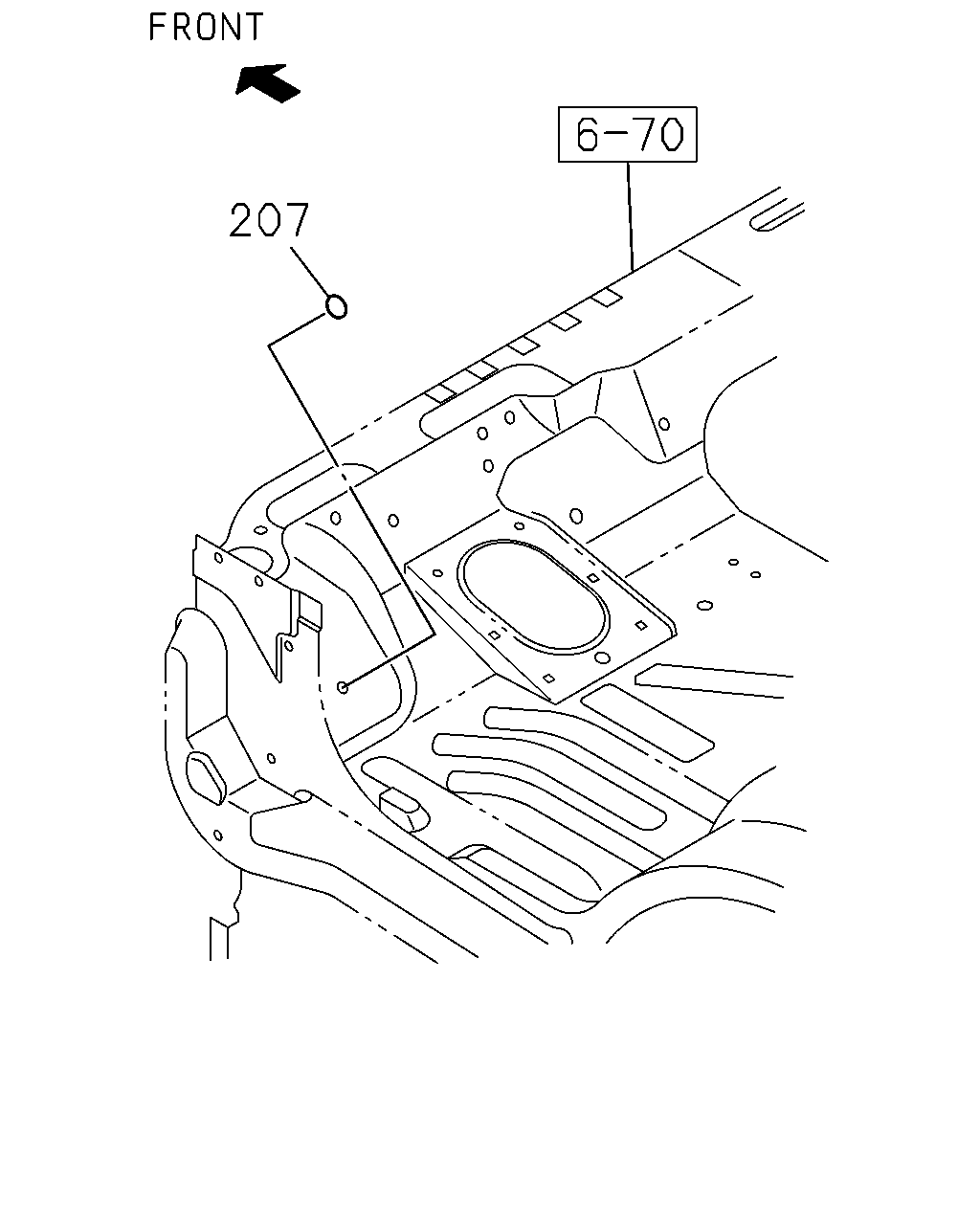

207

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	207	SEAL; HOLE OD=32 BLACK	8-98031-126-0	01	1	1012-	●	●
