8-73 — BLOWER UNIT (#53676) — 40 parça

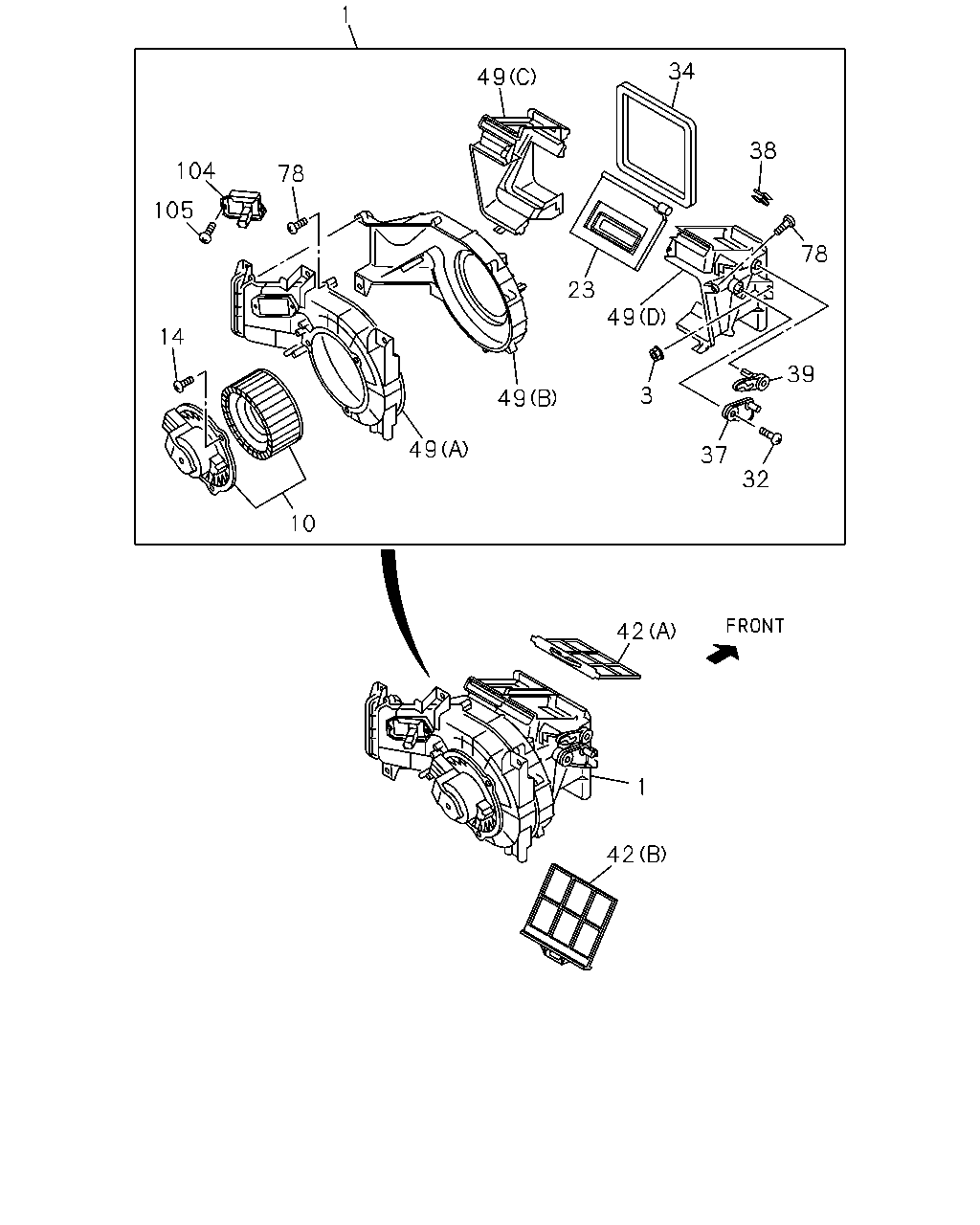

çizim 174832
1 34 49 38 104 78 105 78 23 49 14 39 3 49 49 37 32 10 42 1 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOWER ASM 8-98034-146-3 01 1 1012-1012 ● ●
1 BLOWER ASM 8-98183-594-0 01 1 1101-1112 ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-594-0 01 1 1201- ● ●
3 NUT; CASE
M6 		1-83539-354-0 02 1 1012-1112 ● ●
3 NUT; CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		1-83539-354-0 02 1 1201- ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98047-451-0 01 1 1012-1012 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98183-926-0 01 1 1101-1112 ● ●
10 MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98183-926-0 01 1 1201- ● ●
14 SCREW; COVER TO CASE
M5X16 		8-98047-448-0 03 1 1012-1112 ● ●
14 SCREW; COVER TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98047-448-0 03 1 1201- ● ●
23 SHUTTER; BLOWER UNIT 8-98047-761-0 01 1 1012-1112 ● ●
23 SHUTTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-761-0 01 1 1201- ● ●
32 SCREW; LEVER
M4X16 		8-98047-416-0 01 1 1012-1112 ● ●
32 SCREW; LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 01 1 1201- ● ●
34 LINING; BLOWER UNIT 8-98047-430-0 01 1 1012-1112 ● ●
34 LINING; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-430-0 01 1 1201- ● ●
37 LEVER; MODE LEVER 8-98047-453-0 01 1 1012-1112 ● ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-453-0 01 1 1201- ● ●
38 CLIP; BLOWER UNIT 8-98047-417-0 01 1 1012-1112 ● ●
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 01 1 1201- ● ●
39 LEVER; SHUTTER,BLOWER UNIT 8-98047-454-0 01 1 1012-1112 ● ●
39 LEVER; SHUTTER,BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-454-0 01 1 1201- ● ●
42 FILTER; BLOWER UNIT
(A) 		8-97387-096-1 01 1 1012-1112 ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97387-096-1 01 1 1201- ● ●
42 FILTER; BLOWER UNIT
(B) 		8-98025-006-1 01 1 1012-1112 ● ●
42 FILTER; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98025-006-1 01 1 1201- ● ●
49 CASE; BLOWER UNIT
(A) 		8-98047-444-0 01 1 1012-1112 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-444-0 01 1 1201- ● ●
49 CASE; BLOWER UNIT
(B) 		8-98047-445-0 01 1 1012-1112 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-445-0 01 1 1201- ● ●
49 CASE; BLOWER UNIT
(C) 		8-98047-446-0 01 1 1012-1112 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98047-446-0 01 1 1201- ● ●
49 CASE; BLOWER UNIT
(D) 		8-98047-447-0 01 1 1012-1112 ● ●
49 CASE; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-98047-447-0 01 1 1201- ● ●
78 SCREW; CASE TO CASE
M4X16 TAPPING 		8-97957-708-0 15 1 1012-1112 ● ●
78 SCREW; CASE TO CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 TAPPING 		8-97957-708-0 15 1 1201- ● ●
104 RESISTOR; BLOWER UNIT 8-98077-418-0 01 1 1012-1112 ● ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98077-418-0 01 1 1201- ● ●
105 SCREW; RESISTOR
M4X16 TAPPING 		8-97957-708-0 02 1 1012-1112 ● ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 TAPPING 		8-97957-708-0 02 1 1201- ● ●
