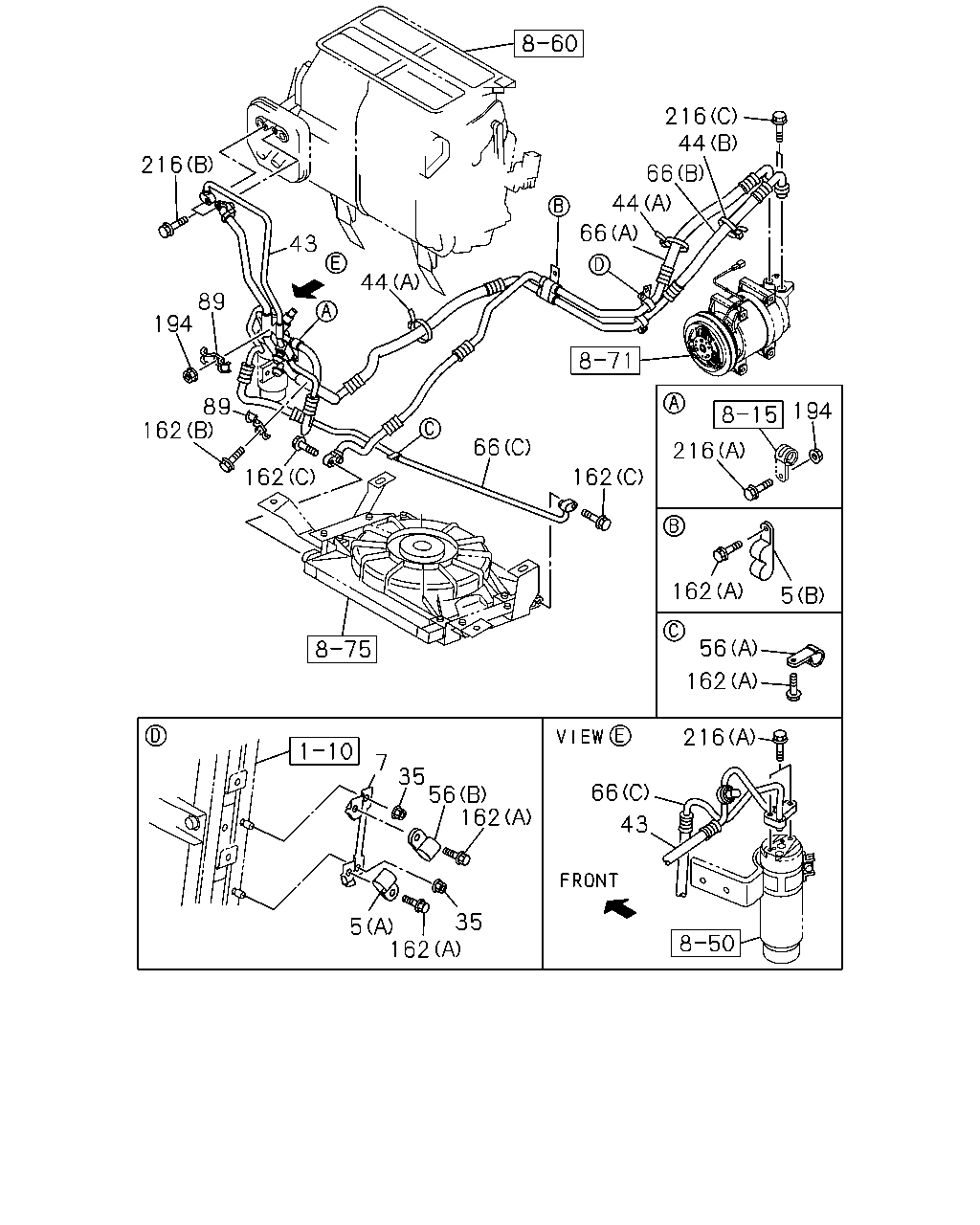

8-52 — PIPING; AIR CONDITIONING (#53672) — 42 parça

50 43 202 50 148 147 66 67 67 67 66 67 148 147 67 66 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98021-666-2	01	1	1201-	●	●
50	GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) ID=7.5	1-83539-316-0	02	1	1201-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-205-2	01	1	1201-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-613-1	01	1	1201-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE	8-98021-659-1	01	1	1201-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE	8-98111-395-0	01	1	1201-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98111-395-0	01	1	1201-		●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (D) ID=7.5	1-83539-316-0	02	1	1201-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7	8-97095-907-0	02	1	1201-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5	8-97095-908-0	01	1	1201-	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) ID=17.6	8-98036-895-0	01	1	1201-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK L	1-83539-331-0	01	1	1201-	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) CAP MARK H	8-97095-911-0	01	1	1201-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97095-909-0	01	1	1201-	●	●
148	VALVE; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98031-629-0	01	1	1201-	●	●
202	SWITCH; PRESSURE AIR CONDITIONER MANUAL CONT(C60)	1-83564-392-1	01	1	1201-	●	●

216 44 216 66 44 66 43 44 89 194 89 162 194 66 216 162 162 162 5 56 162 216 7 35 56 162 66 43 35 5 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) ID=16 L=20	0-95235-532-0	01	1	1201-	●	●
5	CLIP; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) (B)	8-98052-857-0	01	1	1201-	●	●
7	BRACKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60)	8-97388-130-1	01	1	1201-	●	●
35	NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91180-106-0	02	1	1201-	●	●
43	HOSE; FLEX,A/C,EVAP TO CMPR AIR CONDITIONER MANUAL CONT(C60) HIGH PRESSURE	8-98021-666-2	01	1	1201-	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) L=250	5-09707-030-1	01	1	1201-	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) L=250	5-09707-030-1	01	1	1201-	●	●
44	CLIP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) L=140	5-09707-031-1	01	1	1201-	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (A) ID=9 L=16	0-95234-822-0	01	1	1201-	●	●
56	CLIP; PIPE,A/C AIR CONDITIONER MANUAL CONT(C60) (B) ID=13 H=12 L=20	8-98038-485-0	01	1	1201-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (A) HIGH PRESSURE	8-98001-205-2	01	1	1201-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (B) LOW PRESSURE	8-98159-613-1	01	1	1201-	●	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE	8-98021-659-1	01	1	1201-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) HIGH PRESSURE	8-98111-395-0	01	1	1201-	●
66	HOSE; FLEX,A/C AIR CONDITIONER MANUAL CONT(C60) (C) HIGH PRESSURE	8-98111-395-0	01	1	1201-		●
89	BRACKET; A/C PIPE AIR CONDITIONER MANUAL CONT(C60)	8-98151-264-0	02	1	1201-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 FLANGE	0-28650-620-0	01	1	1201-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C) M6X25 FLANGE	0-28650-625-0	02	1	1201-	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28050-612-0	04	1	1201-1201	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28050-612-0	04	1	1201-1201	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A) M6X12 FLANGE	0-28050-612-0	04	1	1201-	●	●
194	NUT; HOSE AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91180-106-0	02	1	1201-	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28650-625-0	01	1	1201-	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE	0-28650-625-0	02	1	1201-	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (B) M6X30 FLANGE	0-28650-630-0	02	1	1201-	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) (C) M8X25 FLANGE	0-28650-825-0	02	1	1201-	●	●
