Sayfa 8-50 - Isuzu EPC

8-50 — AIR CONDITIONING SYSTEM; FRONT (#53671) — 17 parça

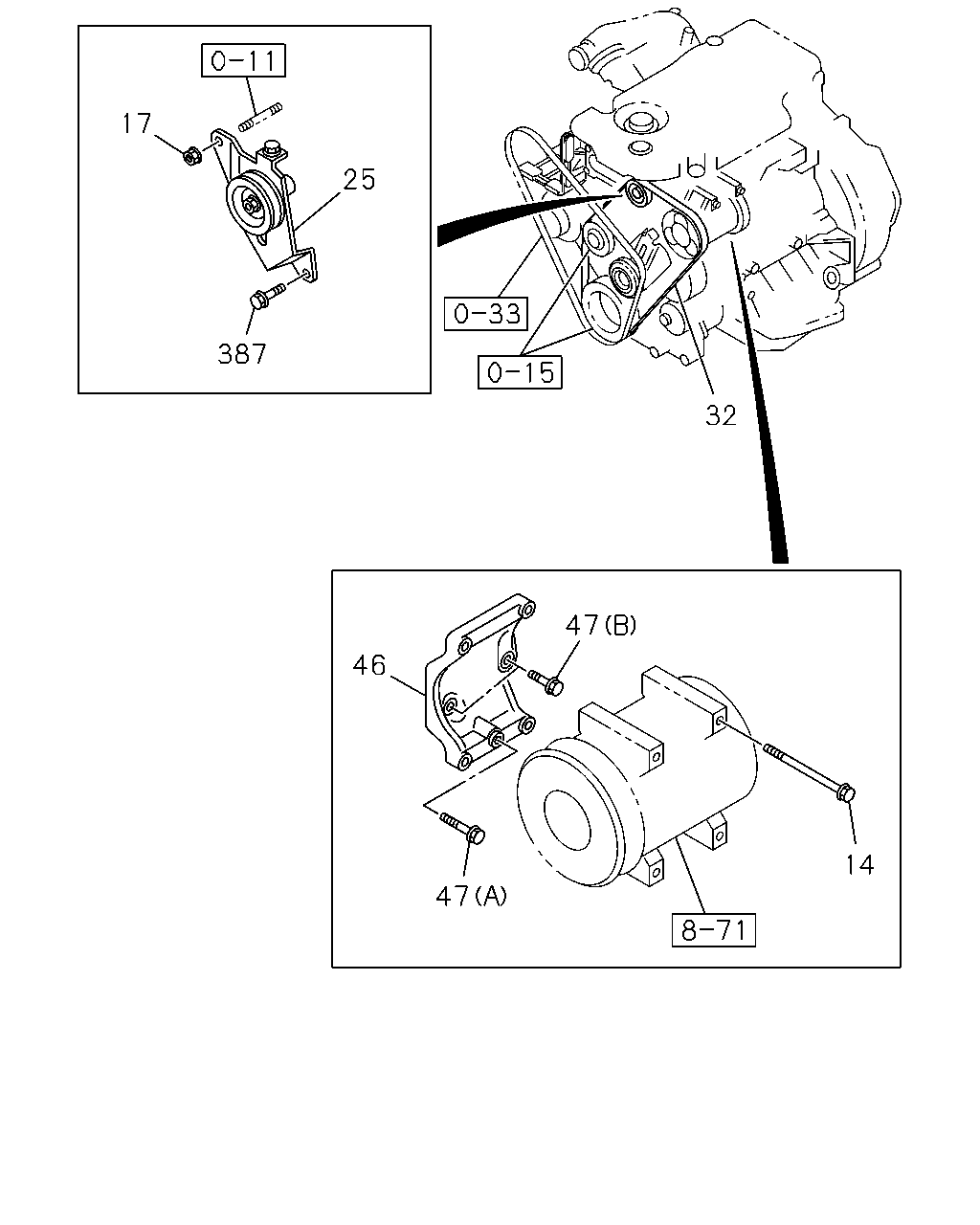

17 25 387 32 47 46 14 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	BOLT; CMPR AIR CONDITIONER MANUAL CONT(C60) M8X100 FLANGE	0-28050-800-0	04	1	1201-	●	●
17	NUT; CMPR AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-208-0	01	1	1201-	●	●
25	PULLEY ASM; IDLER,CMPR AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE	8-98114-437-0	01	1	1201-	●	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI	8-98088-385-0	01	1	1201-	●	●
32	BELT; A/C CMPR AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS	5-87610-103-0	01	1	1201-	●	●
46	BRACKET; CMPR AIR CONDITIONER MANUAL CONT(C60)	8-98037-322-0	01	1	1201-	●	●
47	BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) (A) M8X45 FLANGE	0-28050-845-0	01	1	1201-	●	●
47	BOLT; BRKT TO BODY AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE	0-28650-825-0	02	1	1201-	●	●
387	BOLT; TENSIONER FIX AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE	0-28650-820-0	01	1	1201-	●	●

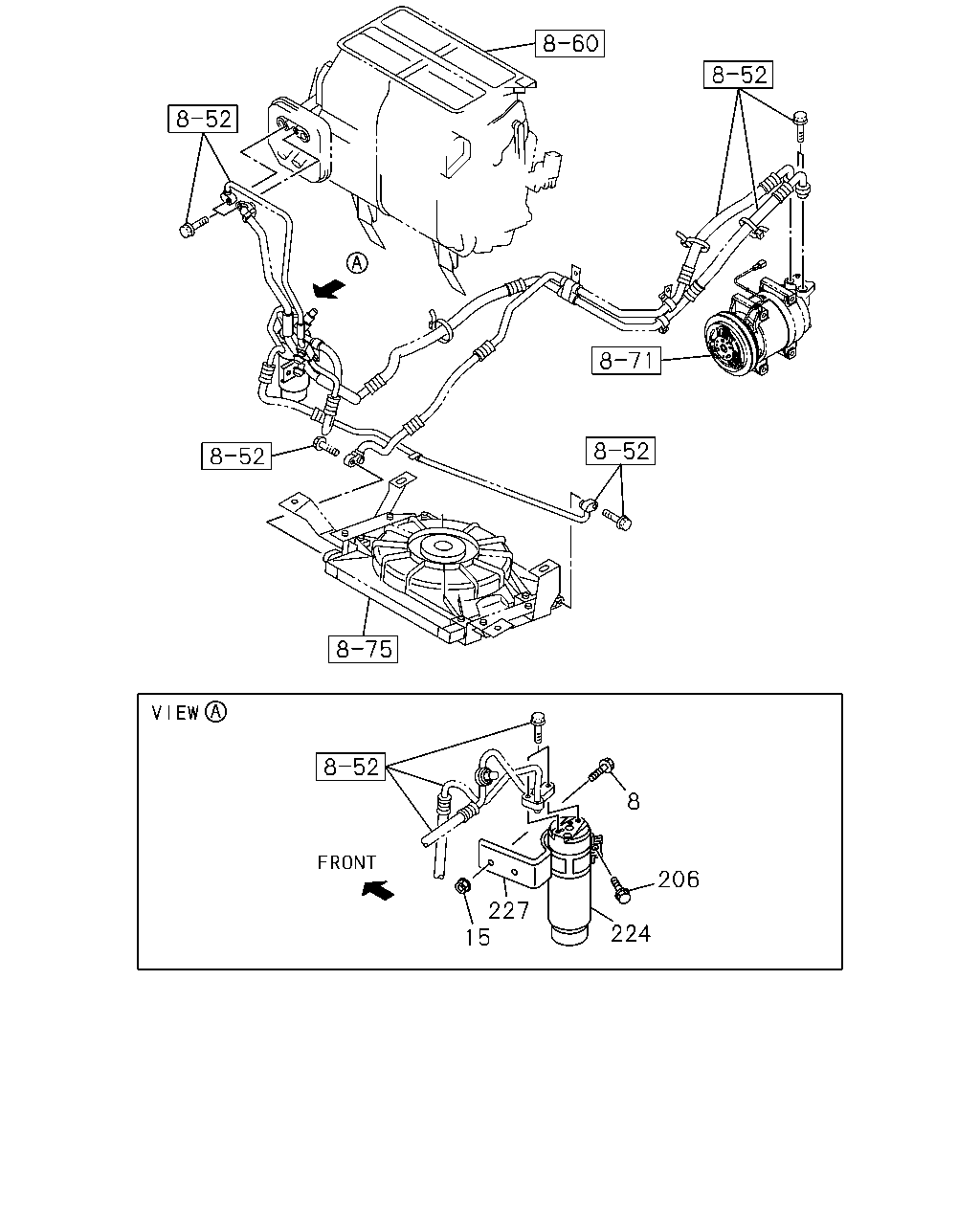

8 206 227 15 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M8X25 FLANGE	0-28650-825-0	02	1	1201-	●	●
15	NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE	0-91180-108-0	02	1	1201-	●	●
206	BOLT; CLIP BRKT AIR CONDITIONER MANUAL CONT(C60) M6X16	8-97096-525-0	01	1	1201-	●	●
224	TANK ASM; RECEIVER AIR CONDITIONER MANUAL CONT(C60)	8-97096-593-0	01	1	1201-	●	●
227	BRACKET; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60)	8-98042-566-0	01	1	1201-	●	●

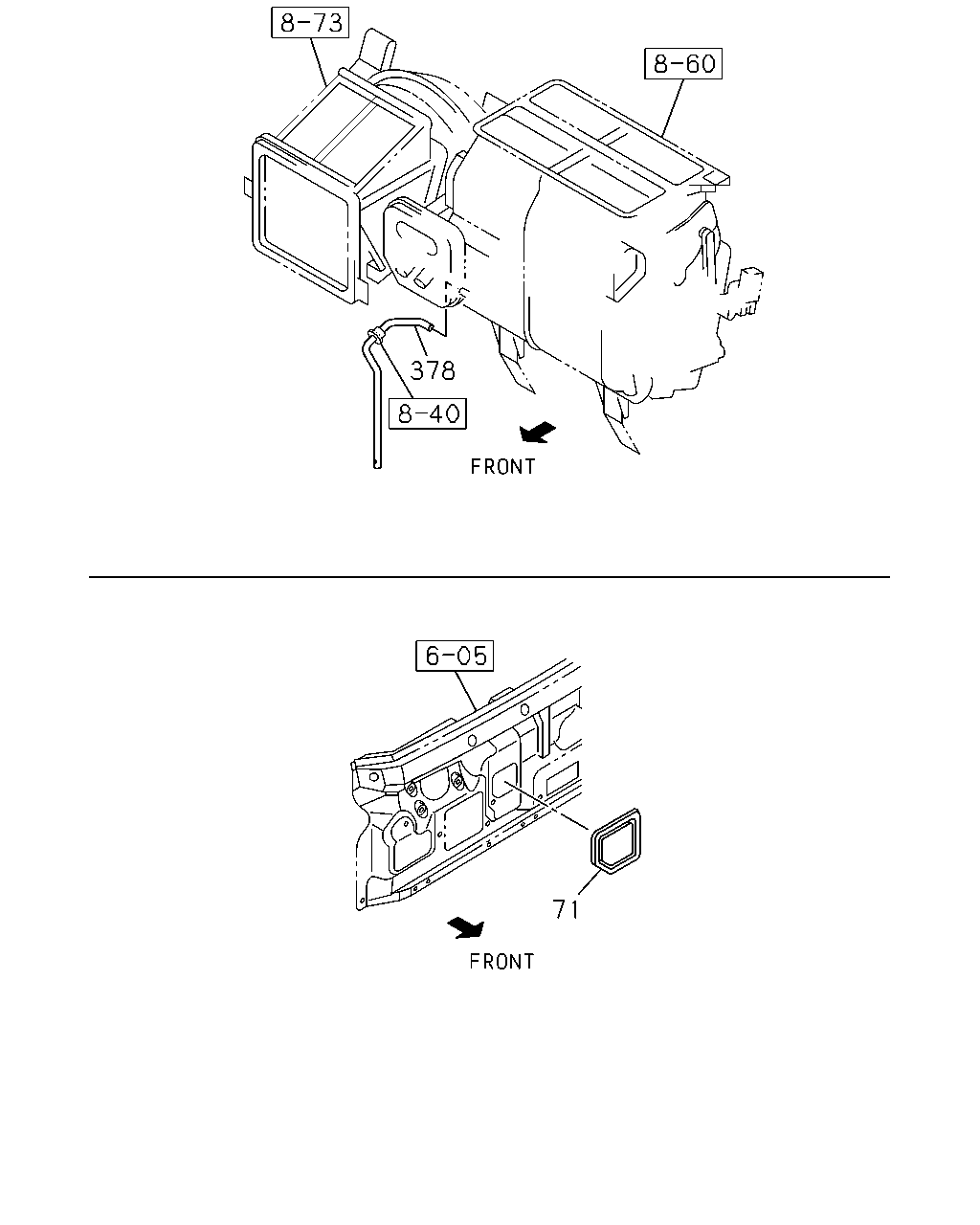

378 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
71	COVER; EVAP,A/C EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98017-235-1	01	1	1201-	●	●
378	HOSE; DRAIN,EVAPORATOR	8-98105-819-0	01	1	1012-1112	●	●
378	HOSE; DRAIN,EVAPORATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98105-819-0	01	1	1201-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
