3-10 — BRAKE PEDAL AND CONTROL (#5367) — 106 parça

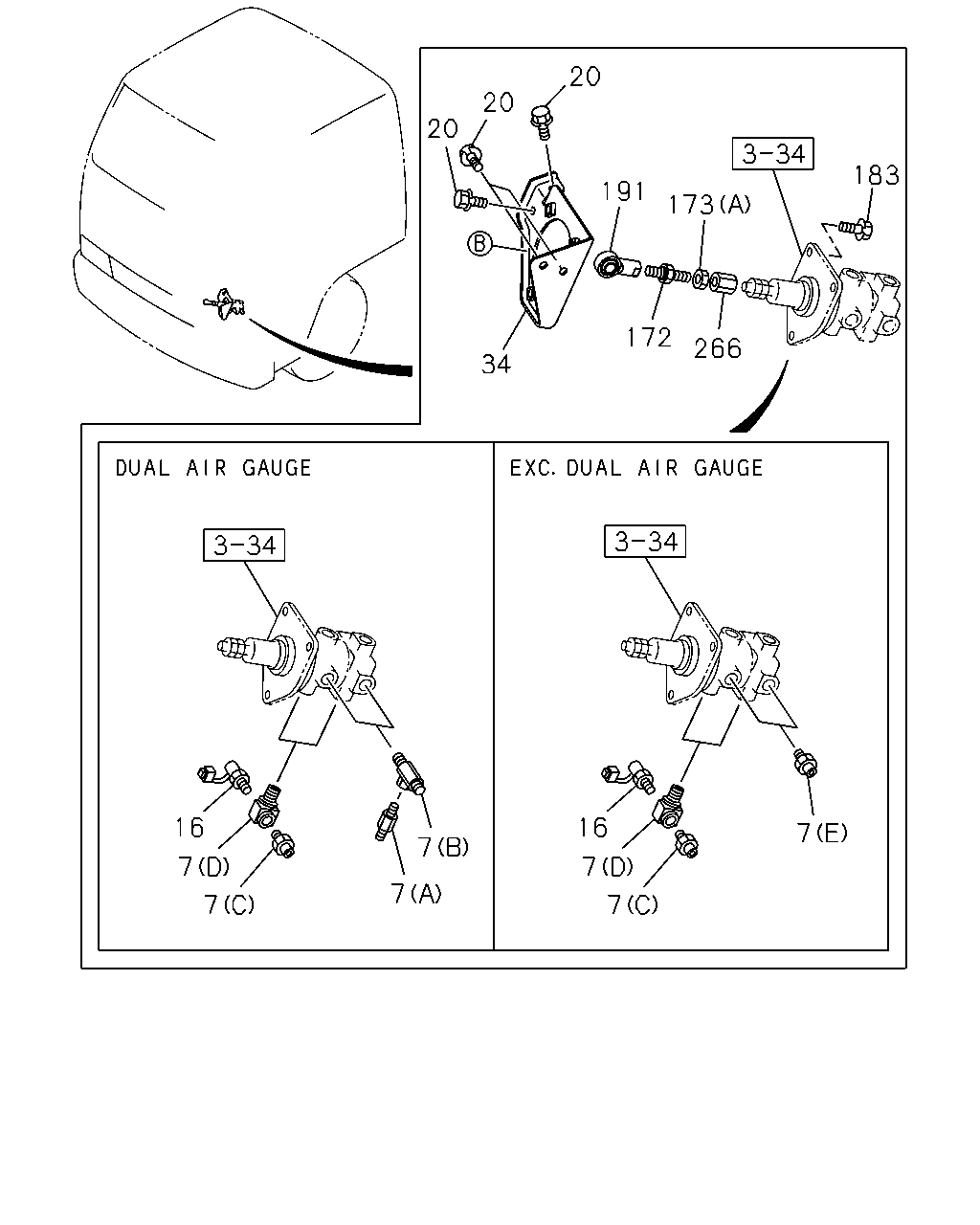

çizim 39056
20 20 20 183 191 173 172 266 34 16 16 7 7 7 7 7 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C
7 CONNECTOR; BRK VALVE
(D) 3-WAY PT3/8,PT1/4 		1-09656-708-0 02 1 9603-9901 ● ● ●
7 CONNECTOR; BRK VALVE
(D) 3-WAY PT3/8,PT1/4 		1-09656-708-0 02 1 9902-9904 ● ●
7 CONNECTOR; BRK VALVE
(D) 3-WAY PT3/8,PT1/4 		1-09656-708-0 02 1 9905- ● ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9603-9901 ● ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9603-9901 ● ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9902-9904 ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9902-9904 ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9905-9910 ● ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 9905-9910 ● ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9911- ● ● ●
7 CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 9911- ● ● ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 02 1 9603-9901 ● ● ●
7 CONNECTOR; BRK VALVE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 02 1 9902-9904 ● ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 02 1 9905-9910 ● ● ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (A) R1/8(DIN-6) 		1-09661-285-0 02 1 9911- ● ● ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (B) 3-WAY R3/8(DIN-12) 		1-09660-803-0 02 1 9603-9901 ● ● ●
7 CONNECTOR; BRK VALVE
(B) 3-WAY R3/8(DIN-12) 		1-09660-803-0 02 1 9902-9904 ● ●
7 CONNECTOR; BRK VALVE
DUAL AIR GAUGE<UG2> (B) 3-WAY R3/8(DIN-12) 		1-09660-803-0 02 1 9905-9910 ● ● ●
7 CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9603-9901 ● ● ●
7 CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9905-9905 ● ● ●
7 CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (E) DIN12 & R3/8 STRAIGHT 		1-09660-669-1 02 1 9905-9910 ● ●
7 CONNECTOR; BRK VALVE
EXC. DUAL AIR GAUGE<UG2> (E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 9911- ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-0 02 1 9603-9901 ● ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-0 02 1 9902-9904 ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-0 02 1 9905- ● ● ●
20 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9603-9901 ● ● ●
20 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9902-9904 ● ●
20 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9905- ● ● ●
34 BRACKET ASM; BRK VLV 1-79738-808-3 01 1 9603-9901 ● ● ●
34 BRACKET ASM; BRK VLV 1-79738-808-3 01 1 9902-9904 ● ●
34 BRACKET ASM; BRK VLV 1-79738-808-3 01 1 9905- ● ● ●
172 JOINT; JAW,BRK PEDAL 1-73908-167-1 01 1 9603-9901 ● ● ●
172 JOINT; JAW,BRK PEDAL 1-73908-167-1 01 1 9902-9904 ● ●
172 JOINT; JAW,BRK PEDAL 1-73908-167-1 01 1 9905- ● ● ●
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9901 ● ● ●
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91150-110-0 01 1 9902-9904 ● ●
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91150-110-0 01 1 9905- ● ● ●
173 NUT; JOINT LOCK
(A) M12 		9-99110-412-0 01 1 9603-9901 ● ● ●
173 NUT; JOINT LOCK
(A) M12 		9-99110-412-0 01 1 9902-9904 ● ●
173 NUT; JOINT LOCK
(A) M12 		9-99110-412-0 01 1 9905- ● ● ●
183 BOLT; BRK VLV
M10X25 W/LK WASHER 		1-09980-503-0 03 1 9603-9901 ● ● ●
183 BOLT; BRK VLV
M10X25 W/LK WASHER 		1-09980-503-0 03 1 9902-9904 ● ●
183 BOLT; BRK VLV
M10X25 W/LK WASHER 		1-09980-503-0 03 1 9905- ● ● ●
191 JOINT; BALL,PUSH ROD 1-47355-001-0 01 1 9603-9901 ● ● ●
191 JOINT; BALL,PUSH ROD 1-47355-001-0 01 1 9902-9904 ● ●
191 JOINT; BALL,PUSH ROD 1-47355-001-0 01 1 9905- ● ● ●
266 JOINT ROD 1-73908-166-3 01 1 9603-9901 ● ● ●
266 JOINT ROD 1-73908-166-3 01 1 9902-9904 ● ●
266 JOINT ROD 1-73908-166-3 01 1 9905- ● ● ●

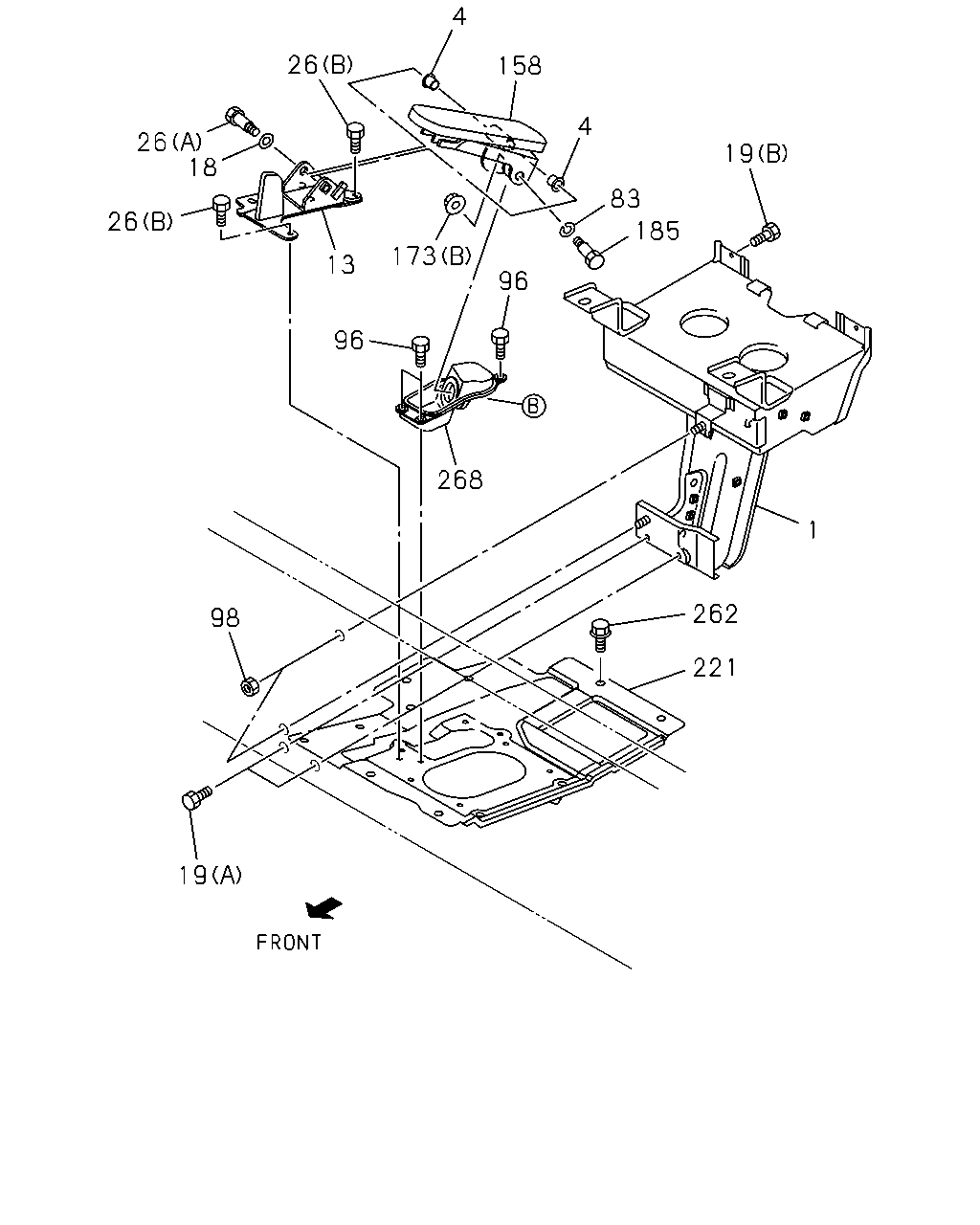

çizim 39578
4 26 158 4 26 18 19 83 26 185 173 13 96 96 268 1 262 98 221 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET ASM; PEDAL
AIR BAG(TFQ) ISUZU M/T<X9A> 		1-73907-616-0 01 1 9905- ● ● ●
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A> 		1-73908-144-6 01 1 9603-9901 ● ● ●
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A> 		1-73908-144-6 01 1 9902-9904 ● ●
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A> 		1-73908-144-6 01 1 9905-9905 ● ● ●
1 BRACKET ASM; PEDAL
ISUZU M/T<X9A> EXC. AIR BAG(TFQ) 		1-73908-144-6 01 1 9905- ● ● ●
1 BRACKET ASM; PEDAL
ZF M/T<X9E> 		1-73907-443-6 01 1 9911- ● ●
4 BUSHING; BRK PEDAL 1-73908-201-1 02 1 9603-9901 ● ● ●
4 BUSHING; BRK PEDAL 1-73908-201-1 02 1 9902-9904 ● ●
4 BUSHING; BRK PEDAL 1-73908-201-1 02 1 9905- ● ● ●
13 BRACKET; BRK PEDAL 1-73908-203-1 01 1 9603-9901 ● ● ●
13 BRACKET; BRK PEDAL 1-73908-203-1 01 1 9902-9904 ● ●
13 BRACKET; BRK PEDAL 1-73908-203-1 01 1 9905- ● ● ●
18 WASHER; PL
ID=12.5 		9-09164-512-0 01 1 9603-9901 ● ● ●
18 WASHER; PL
ID=12.5 		9-09164-512-0 01 1 9902-9904 ● ●
18 WASHER; PL
ID=12.5 		9-09164-512-0 01 1 9905- ● ● ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 9603-9901 ● ● ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 9902-9904 ● ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 9905- ● ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9603-9901 ● ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9902-9904 ● ●
19 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9905- ● ● ●
26 BOLT; PEDAL
(A) 		1-09980-614-0 01 1 9603-9901 ● ● ●
26 BOLT; PEDAL
(A) 		1-09980-614-0 01 1 9902-9904 ● ●
26 BOLT; PEDAL
(A) 		1-09980-614-0 01 1 9905- ● ● ●
26 BOLT; PEDAL
(B) M6X25 		8-94279-204-0 02 1 9603-9901 ● ● ●
26 BOLT; PEDAL
(B) M6X25 		8-94279-204-0 02 1 9902-9904 ● ●
26 BOLT; PEDAL
(B) M6X25 		8-94279-204-0 02 1 9905- ● ● ●
83 WASHER; LK,BRKT
ID=14.2 		9-09150-814-0 01 1 9603-9901 ● ● ●
83 WASHER; LK,BRKT
ID=14.2 		9-09150-814-0 01 1 9902-9904 ● ●
83 WASHER; LK,BRKT
ID=14.2 		9-09150-814-0 01 1 9905- ● ● ●
96 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9603-9901 ● ● ●
96 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9902-9904 ● ●
96 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905- ● ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9603-9901 ● ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9902-9904 ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 9905- ● ● ●
158 PEDAL ASM; BRK 1-73908-068-5 01 1 9603-9901 ● ● ●
158 PEDAL ASM; BRK 1-73908-068-5 01 1 9902-9904 ● ●
158 PEDAL ASM; BRK 1-73908-068-5 01 1 9905- ● ● ●
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91150-110-0 01 1 9603-9901 ● ● ●
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91150-110-0 01 1 9902-9904 ● ●
173 NUT; JOINT LOCK
(B) M10 FLANGE 		0-91150-110-0 01 1 9905- ● ● ●
173 NUT; JOINT LOCK
(A) M12 		9-99110-412-0 01 1 9603-9901 ● ● ●
173 NUT; JOINT LOCK
(A) M12 		9-99110-412-0 01 1 9902-9904 ● ●
173 NUT; JOINT LOCK
(A) M12 		9-99110-412-0 01 1 9905- ● ● ●
185 BOLT; BRKT 1-73996-282-1 01 1 9603-9901 ● ● ●
185 BOLT; BRKT 1-73996-282-1 01 1 9902-9904 ● ●
185 BOLT; BRKT 1-73996-282-1 01 1 9905- ● ● ●
221 PLATE ASM; SIDE 1-73996-280-4 01 1 9603-9901 ● ● ●
221 PLATE ASM; SIDE 1-73996-280-4 01 1 9902-9904 ● ●
221 PLATE ASM; SIDE 1-73996-280-4 01 1 9905- ● ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9603-9901 ● ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9902-9904 ● ●
262 BOLT; PLATE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9905- ● ● ●
268 COVER; ROD 1-73908-192-1 01 1 9603-9901 ● ● ●
268 COVER; ROD 1-73908-192-1 01 1 9902-9904 ● ●
268 COVER; ROD 1-73908-192-1 01 1 9905- ● ● ●
