8-40 — HEATER SYSTEM (#53669) — 102 parça

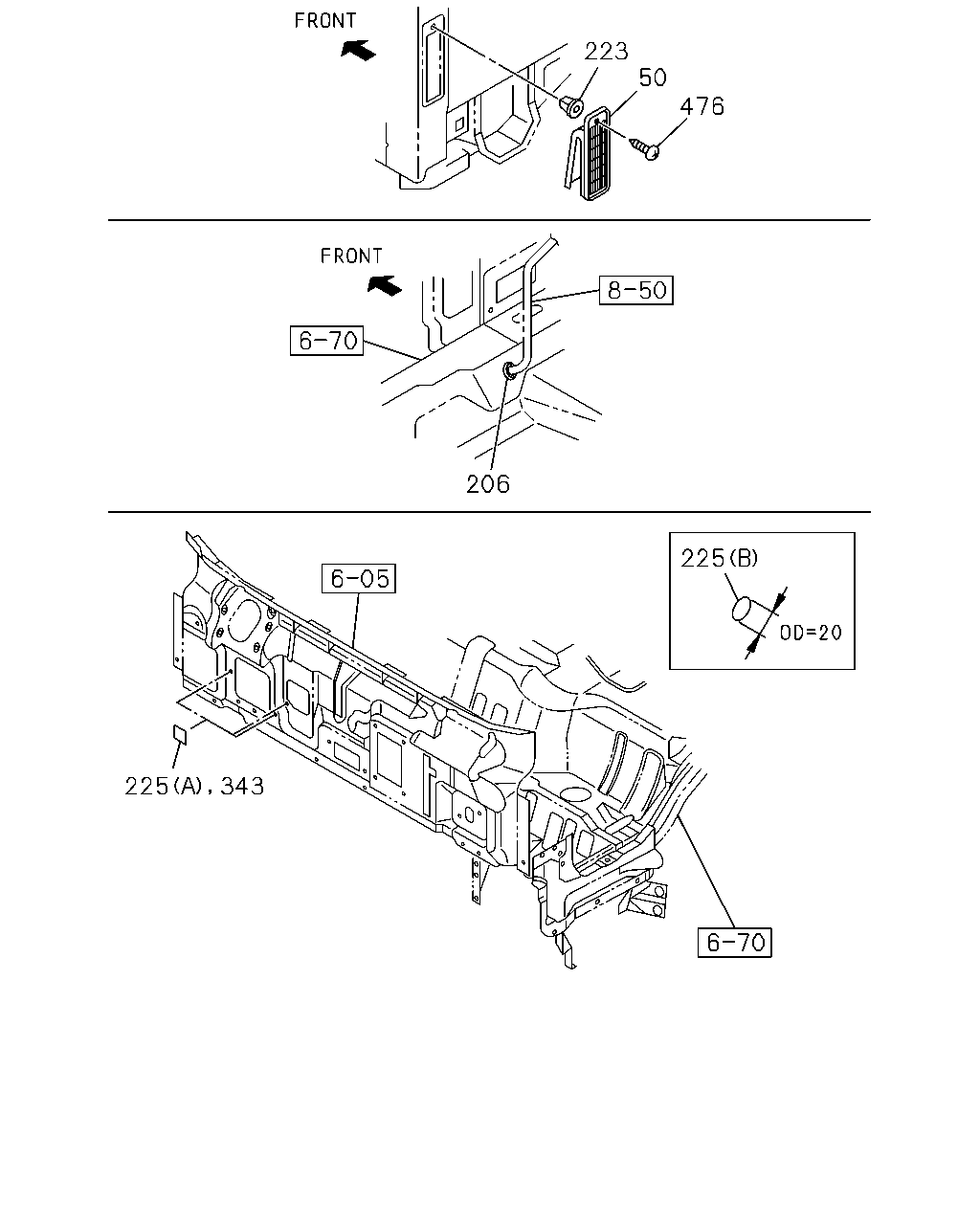

223 50 476 206 225 225 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
50	VALVE ASM; HTR	8-98080-998-1	01	1	1012-	●	●
206	GROMMET; A/C PIPE TO BLOWER UNIT	8-98019-649-0	01	1	1012-	●	●
223	GROMMET; SCREW D=7.9X7.9 L=20 M5	8-94441-539-0	01	1	1012-	●	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	02	1	1303-	●	●
225	SEAL; WATER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1201-	●	●
225	SEAL; WATER (A)	8-97856-616-0	03	1	1012-1112	●	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	03	1	1201-1302	●	●
225	SEAL; WATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-97856-616-0	01	1	1303-	●	●
343	SEAL; AIR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97856-616-0	02	1	1201-	●	●
476	SCREW; VALVE M5X16 TAPPING HEXALOBULAR	8-98062-675-0	01	1	1012-	●	●

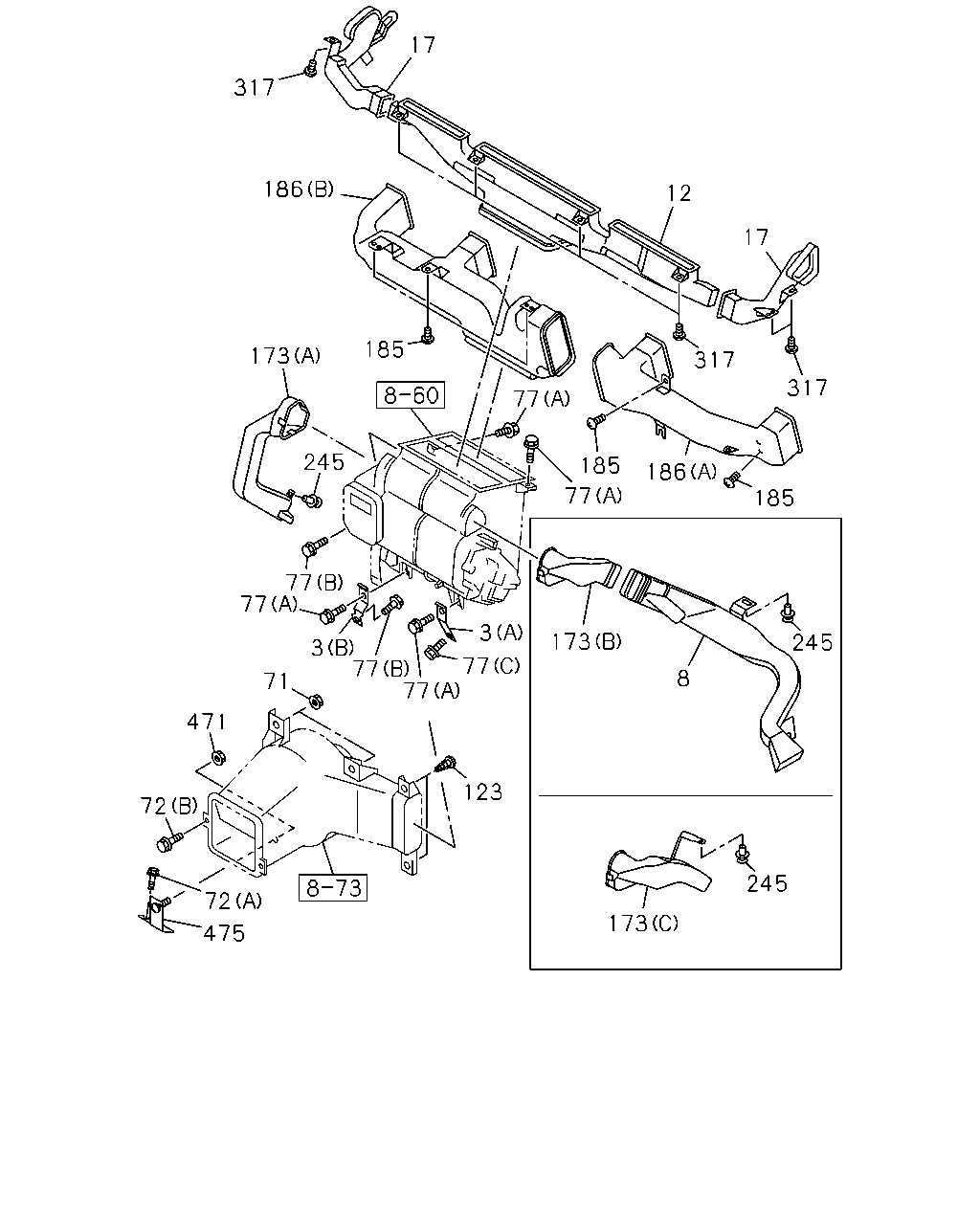

17 317 186 12 17 185 173 317 317 77 245 185 186 77 185 77 77 3 173 245 3 77 77 77 8 71 471 123 72 245 72 173 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	BRACKET; HTR UNIT (A)	8-98082-473-1	01	1	1012-1112	●	●
3	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98082-473-1	01	1	1201-	●	●
3	BRACKET; HTR UNIT (B)	8-98082-475-1	01	1	1012-1112	●	●
3	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98082-475-1	01	1	1201-	●	●
8	DUCT; HTR AIR,DRIVER FOOT	8-97585-498-4	01	1	1012-1012	●	●
12	NOZZLE; DEFROSTER	8-97585-479-0	01	1	1012-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-497-1	01	1	1012-1112	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-1	01	1	1201-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-498-4	01	1	1012-1112	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	1201-	●	●
71	NUT; BLOWER UNIT TO DASH M6 FLANGE	0-91180-106-0	02	1	1012-1112	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91180-106-0	02	1	1201-	●	●
72	BOLT; BLOWER UNIT (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1012-1112	●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1201-	●	●
72	BOLT; BLOWER UNIT (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-1112	●	●
72	BOLT; BLOWER UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1201-	●	●
77	BOLT; HTR UNIT (A) M6X16 FLANGE	0-28650-616-0	04	1	1012-1112	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28650-616-0	04	1	1201-	●	●
77	BOLT; HTR UNIT (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1012-1112	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1201-	●	●
77	BOLT; HTR UNIT (C) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	1012-1112	●	●
77	BOLT; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	1201-	●	●
123	SCREW; DUCT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1101	●	●
123	SCREW; DUCT M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1112	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1201-1212	●	●
123	SCREW; DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
173	DUCT; FOOT,HTR (B)	8-97585-494-3	01	1	1012-1012	●	●
173	DUCT; FOOT,HTR (C)	8-98163-183-0	01	1	1012-1112	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98163-183-0	01	1	1201-	●	●
173	DUCT; FOOT,HTR (A)	8-97585-505-3	01	1	1012-1012	●	●
173	DUCT; FOOT,HTR (A)	8-98163-188-0	01	1	1012-1112	●	●
173	DUCT; FOOT,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98163-188-0	01	1	1201-	●	●
185	SCREW; VENT DUCT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1012-1101	●	●
185	SCREW; VENT DUCT M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1112	●	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1201-1212	●	●
185	SCREW; VENT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-360-0	01	1	1201-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-369-0	01	1	1201-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-378-2	01	1	1201-	●	●
186	DUCT; VENTILATOR (B)	8-97585-485-1	01	1	1012-1112	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-485-1	01	1	1201-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-590-0	01	1	1411-	●	●
186	DUCT; VENTILATOR (A)	8-98042-899-6	01	1	1012-1112	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-6	01	1	1201-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-	●	●
245	CLIP; FOOT DUCT	1-09987-144-0	03	1	1012-1012	●	●
245	CLIP; FOOT DUCT	1-09987-144-0	02	1	1012-1112	●	●
245	CLIP; FOOT DUCT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	1-09987-144-0	02	1	1201-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1101	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1112	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1201-1212	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1012-1101	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
471	NUT; BLOWER M6 FLANGE	0-91180-106-0	01	1	1012-1112	●	●
471	NUT; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91180-106-0	01	1	1201-	●	●
475	BRACKET; BLOWER	8-98021-703-1	01	1	1012-1112	●	●
475	BRACKET; BLOWER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98021-703-1	01	1	1201-	●	●

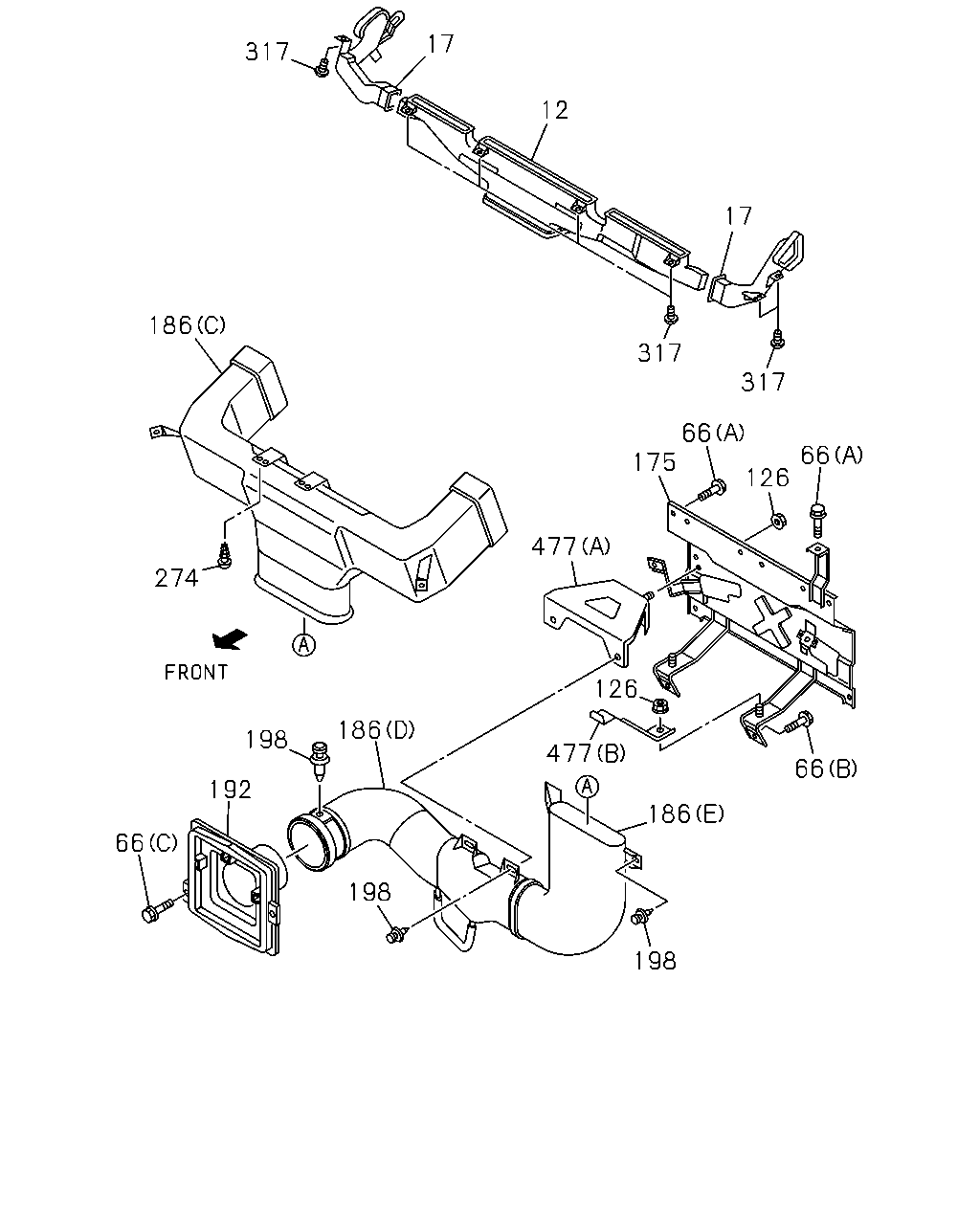

17 317 12 17 186 317 317 66 175 66 126 477 274 126 186 198 477 66 192 186 66 198 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	NOZZLE; DEFROSTER	8-97585-479-0	01	1	1012-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-497-1	01	1	1012-1112	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-497-1	01	1	1201-	●	●
17	NOZZLE; DEFROSTER,SIDE	8-98040-498-4	01	1	1012-1112	●	●
17	NOZZLE; DEFROSTER,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98040-498-4	01	1	1201-	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M6X16 FLANGE	0-28650-616-0	02	1	1201-	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) M6X20 W/LK&PL WASHER	8-98081-030-0	03	1	1201-	●	●
66	BOLT; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) M6X20 W/LK&PL WASHER	8-98081-175-0	01	1	1201-	●	●
126	NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	0-91180-106-0	01	1	1201-	●	●
126	NUT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> M6 FLANGE	0-91180-106-0	01	1	1201-	●	●
175	BRACKET; HTR DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98184-162-0	01	1	1201-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C)	8-98054-360-0	01	1	1201-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (E)	8-98054-369-0	01	1	1201-	●	●
186	DUCT; VENTILATOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D)	8-98054-378-2	01	1	1201-	●	●
186	DUCT; VENTILATOR (B)	8-97585-485-1	01	1	1012-1112	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97585-485-1	01	1	1201-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98285-590-0	01	1	1411-	●	●
186	DUCT; VENTILATOR (A)	8-98042-899-6	01	1	1012-1112	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98042-899-6	01	1	1201-1410	●	●
186	DUCT; VENTILATOR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98285-584-0	01	1	1411-	●	●
192	DUCT; RAM AIR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-385-4	01	1	1201-	●	●
198	CLIP; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	1-09987-144-0	05	1	1201-	●	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1201-1212	●	●
274	SCREW; VENT DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1012-1101	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1102-1112	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 HEXALOBULAR SOCKET	8-98177-744-0	02	1	1201-1212	●	●
317	SCREW; DEFROSTER NOZZLE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1301-	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1012-1101	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1102-1212	●	●
317	SCREW; DEFROSTER NOZZLE M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-	●	●
477	BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98091-304-0	01	1	1201-	●	●
477	BRACKET; DUCT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),KD PREPARATORY PACK VAR.4<7TV> (B)	8-98164-456-0	01	1	1201-	●	●
