◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#53668) — 17 parça

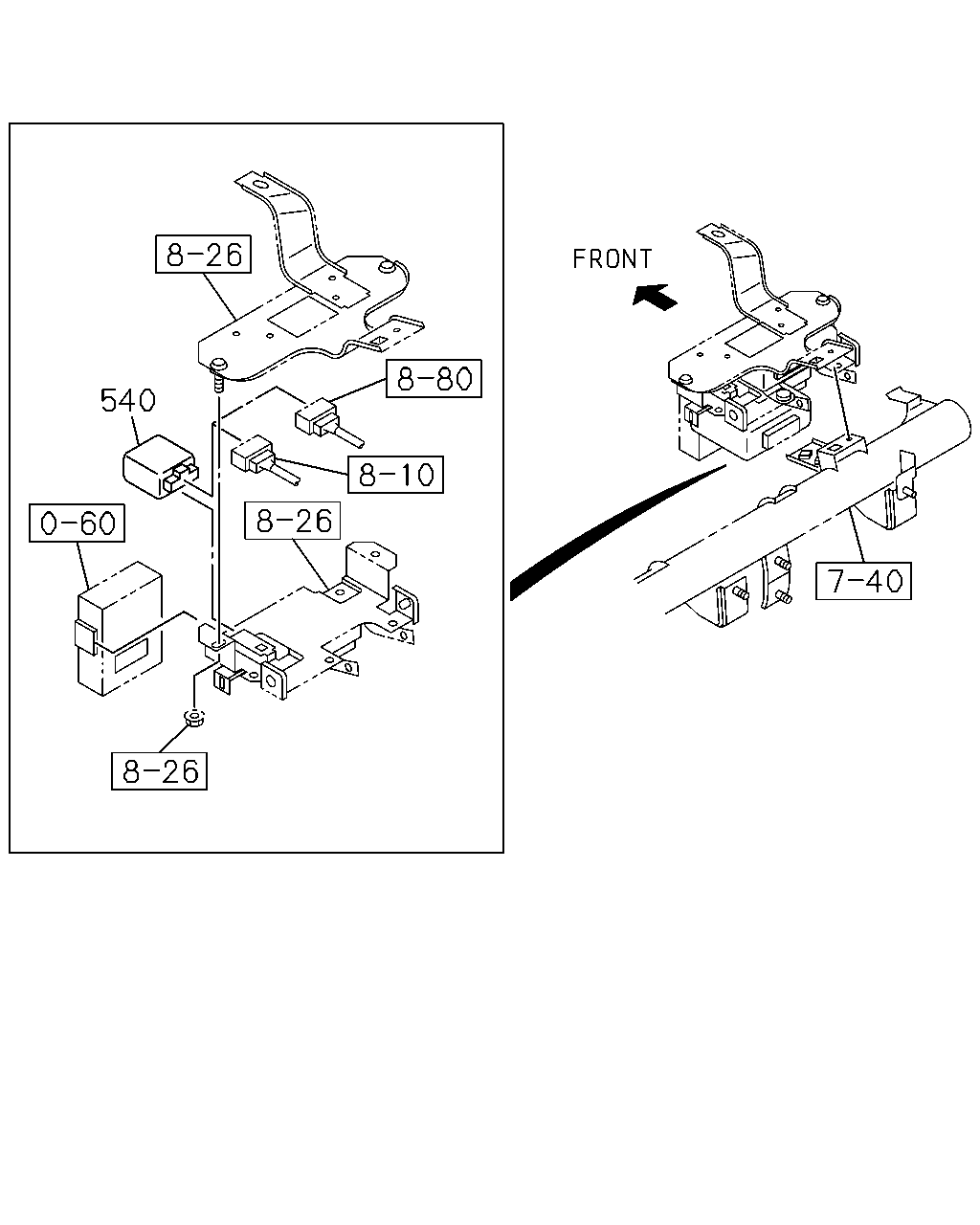

çizim 174809
540
BalonParca AdiParca NoAdetTipApplied Date A B
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98060-388-0 01 1 1012-1308 ● ●
540 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> 		8-98233-976-0 01 1 1309- ● ●

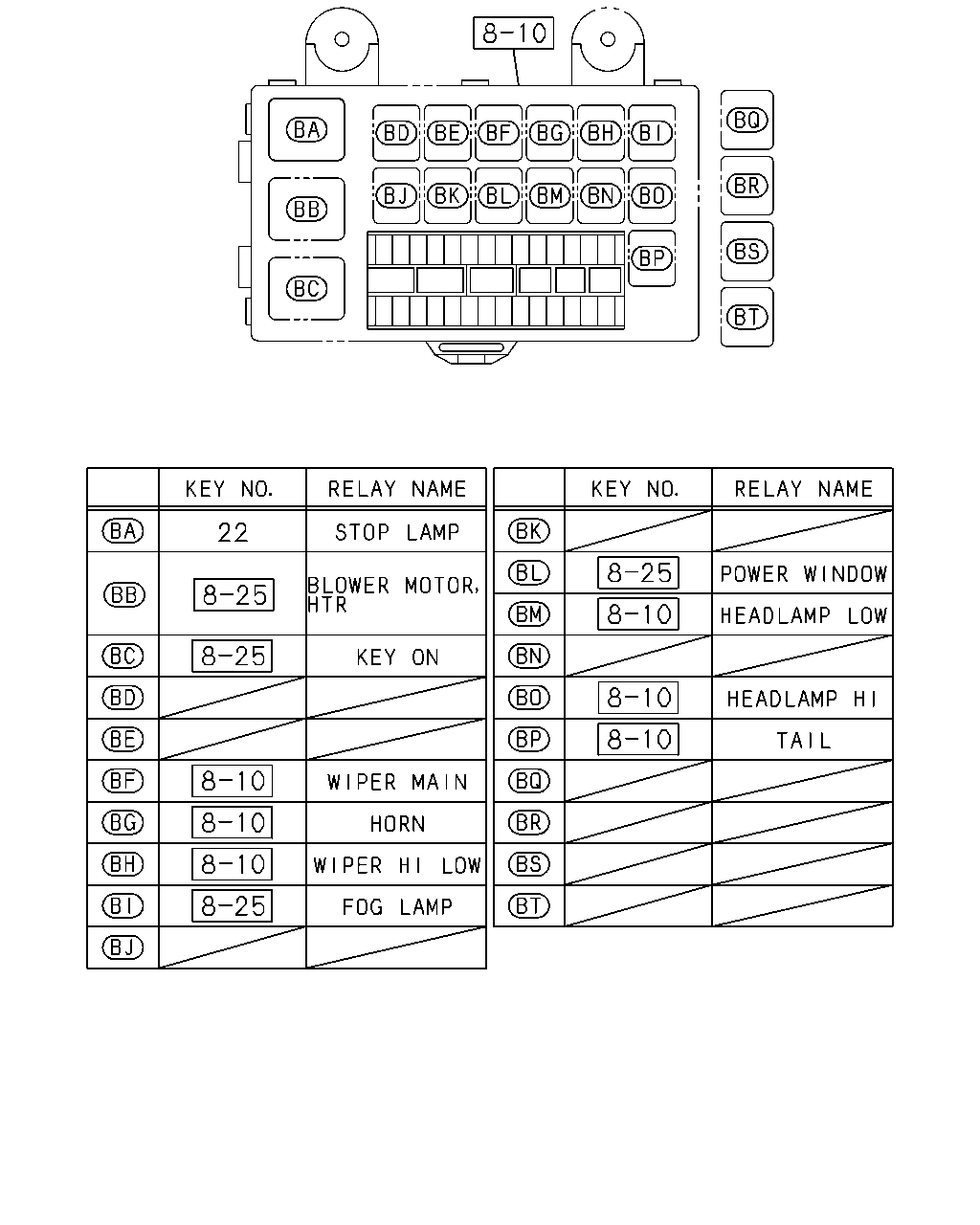

çizim 174813
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ●
çizim 174816
531 666
BalonParca AdiParca NoAdetTipApplied Date A B
531 RELAY; MAIN
24V 30A MITSUBA 		8-97238-540-0 01 1 1012-1402 ● ●
531 RELAY; MAIN
24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ● ●
666 RELAY; STARTER
24V 10A PANASONIC 		8-98167-173-0 01 1 1012- ● ●

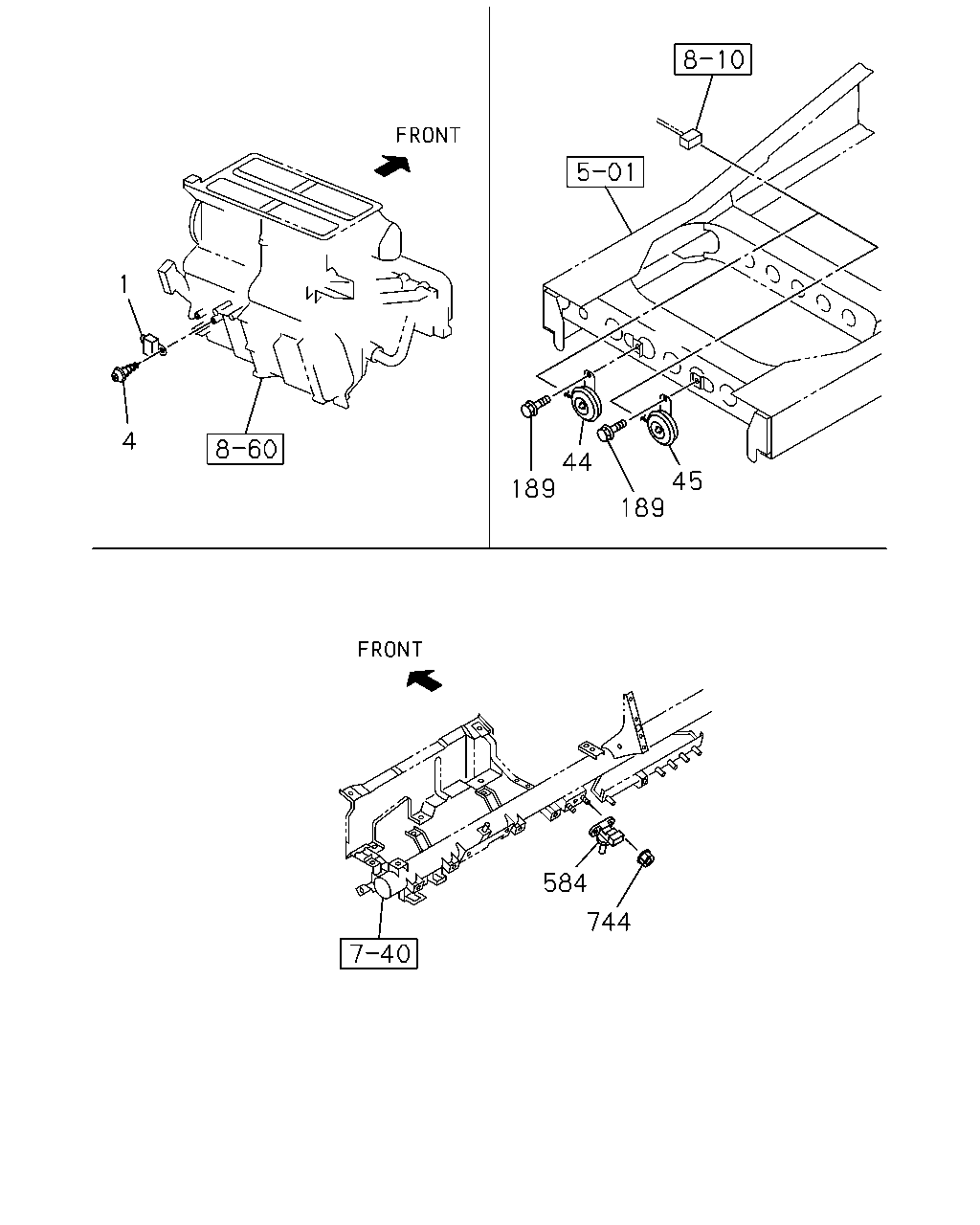

çizim 174824
1 4 44 189 45 189 584 744
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 8-98025-533-1 01 1 1012- ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1101 ● ●
4 SCREW; FLASHER UNIT
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
4 SCREW; FLASHER UNIT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
44 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) 		8-98022-022-0 01 1 1012- ● ●
45 HORN; LOW NOTE 8-98022-023-0 01 1 1012- ● ●
189 BOLT; HORN
M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012- ● ●
189 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1012- ● ●
584 SENSOR; PRESSURE 8-98020-514-0 01 1 1012- ● ●
744 NUT; SENSOR
M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●

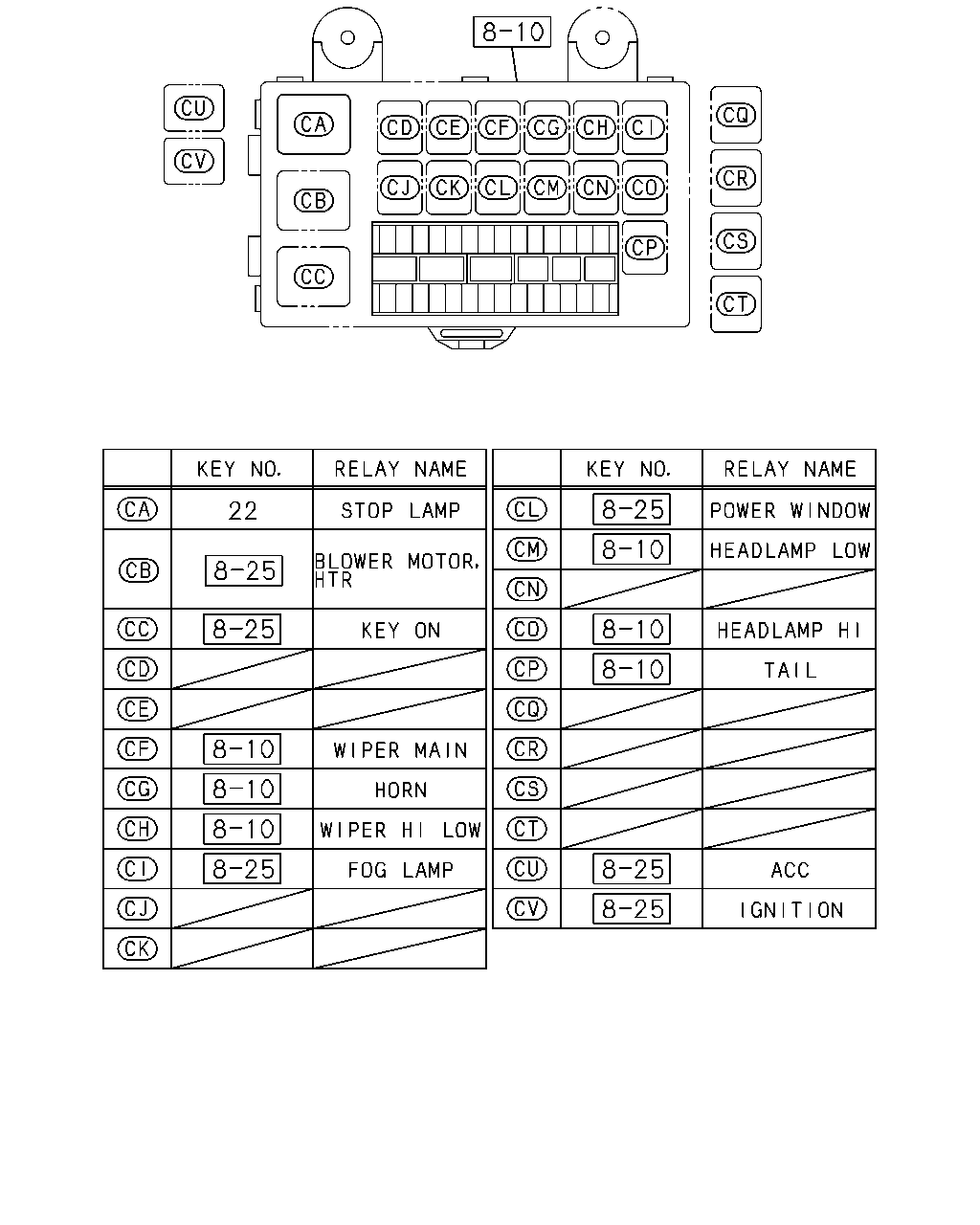

çizim 283404
22
BalonParca AdiParca NoAdetTipApplied Date A B
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
