8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#53667) — 17 parça

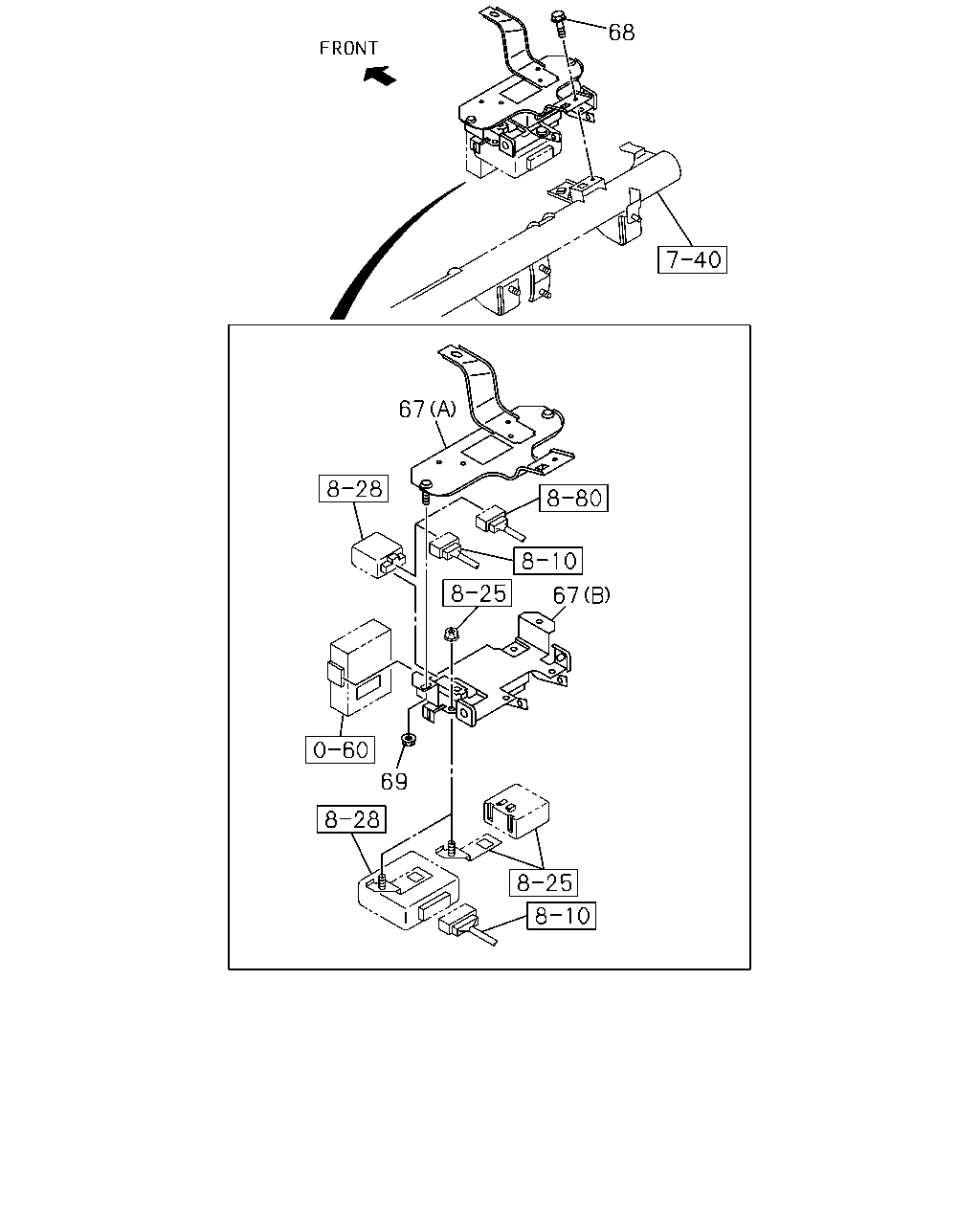

çizim 174812
68 67 67 69
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1012-1111 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98203-057-0 01 1 1112-1207 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1208-1212 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98237-555-0 01 1 1301-1404 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1405- ● ●
67 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 1012- ● ●
68 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 1012- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 1012- ● ●

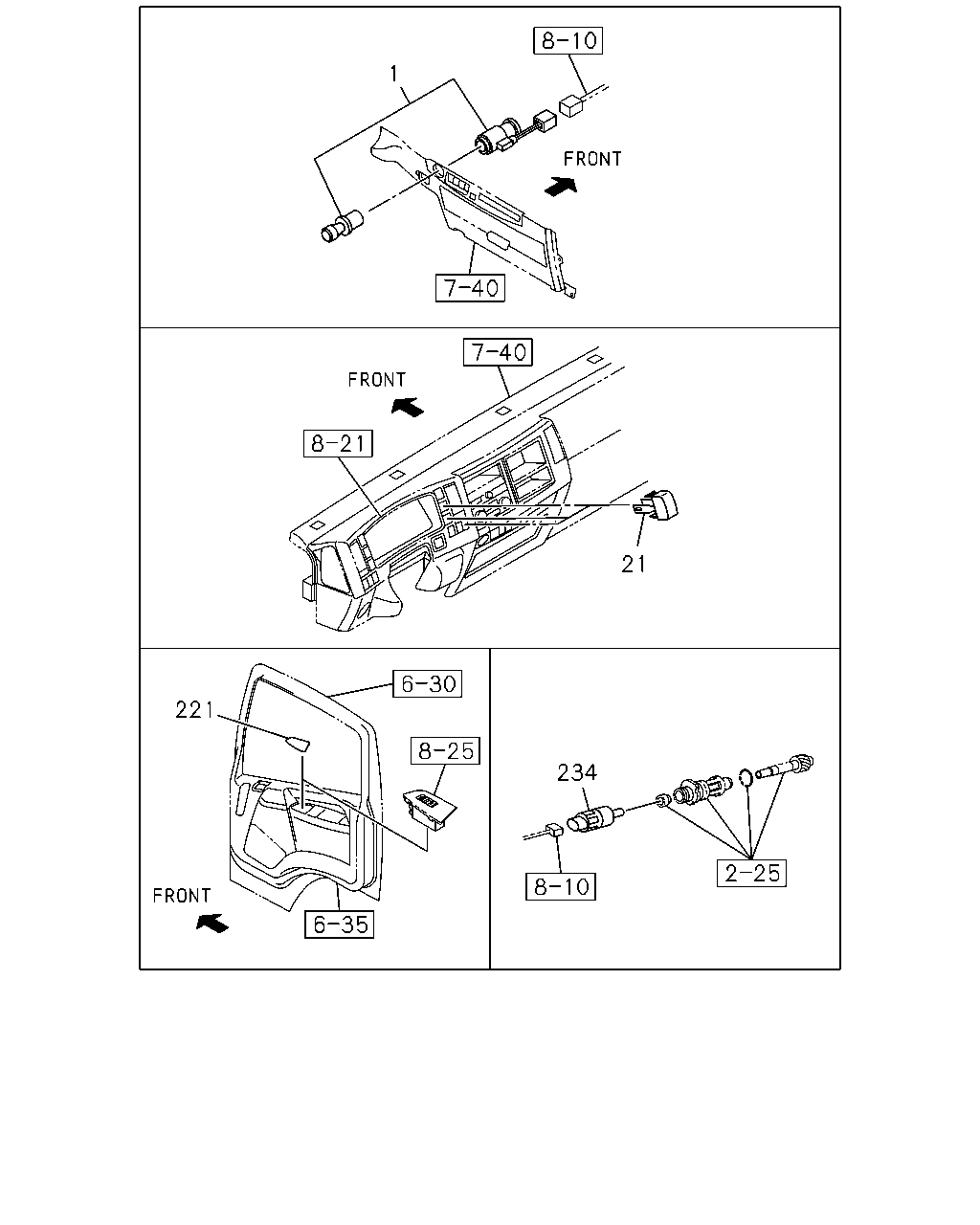

çizim 174822
1 21 221 234
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1012- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1012-1511 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1512- ● ●
21 COVER; HOLE 8-98025-954-1 02 1 1012-1511 ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1012- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1012- ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1012- ● ●
