Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#53664) — 389 parça

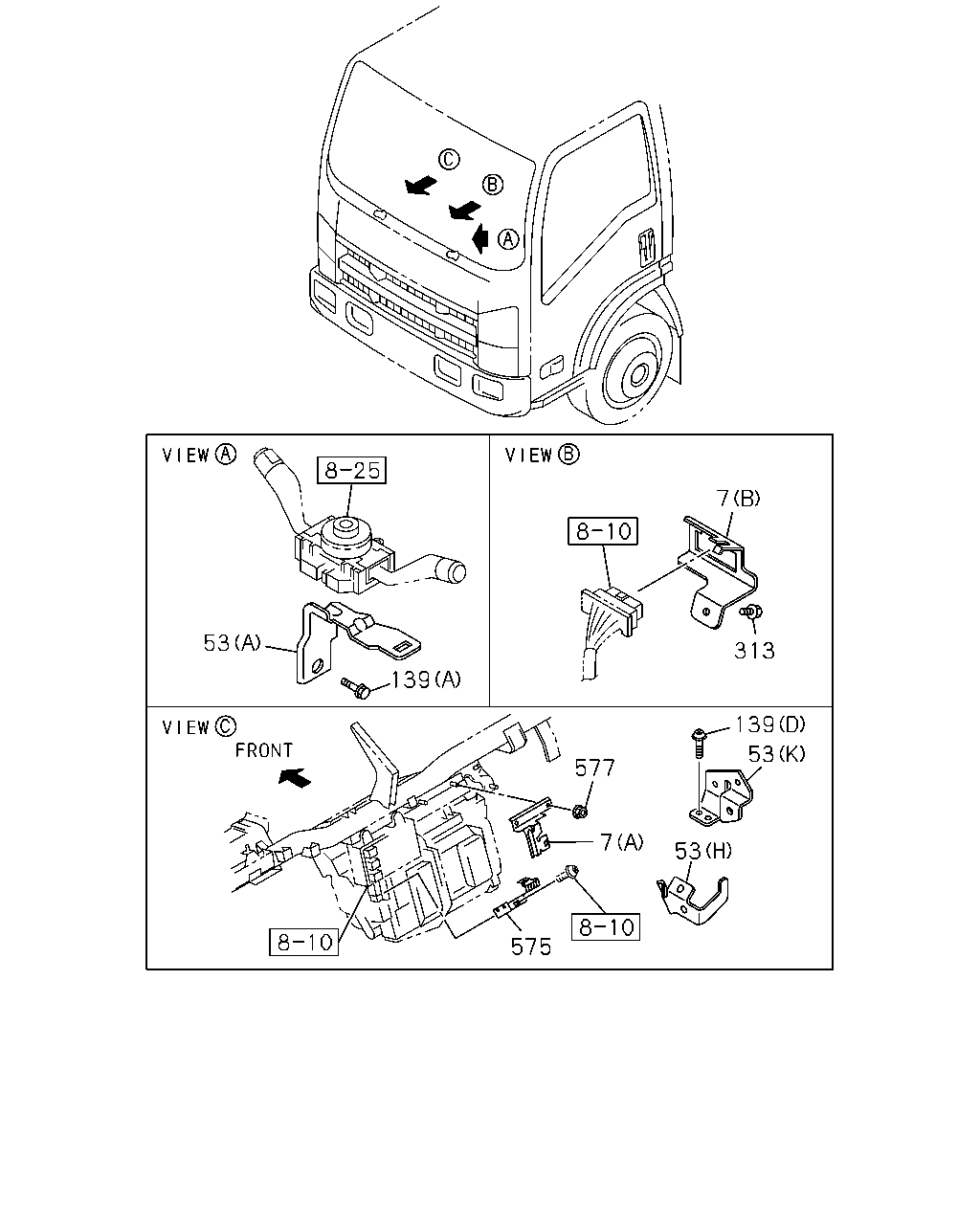

516 139 313 480 38 139 516 139 480 480 529 480 480 377 377 386 219 24 515 577 294 515 515 552 515 552 139 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	1012-1409	●	●
24	NUT; HARNESS M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●
38	BOLT; CLIP,HARNESS EXC. KD PREPARATORY PACK<6HF> M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1201-1212	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
139	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
139	BOLT; BRKT (C) M6X12 FLANGE	8-97108-669-0	01	1	1012-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1012-1406	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1407-1407	●
219	NUT EXC. FRAME-KICK UP<7EW> M8 FLANGE	0-91180-108-0	02	1	1407-1407		●
219	NUT M8 FLANGE	0-91180-108-0	02	1	1408-	●	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
313	BOLT; BRKT M6X16 FLANGE	0-28450-616-0	01	1	1012-	●	●
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-	●	●
377	BOLT; CAB EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1012-	●	●
377	BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1012-	●	●
386	BOLT; GRAND HARNESS (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-	●	●
386	BOLT; GRAND HARNESS (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●
480	BOLT; BRKT FRAME-KICK UP<7EW> (E) M8X25 FLANGE	0-28650-825-0	02	1	1407-1407		●
480	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-1301	●
480	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-1309	●
480	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-1309		●
480	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-1406	●
480	BOLT; BRKT HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-1406	●
480	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-1406		●
480	BOLT; BRKT HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1407-1407	●	●
480	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1407-1407	●
480	BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1407-1407		●
480	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1408-	●
480	BOLT; BRKT HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1408-	●
480	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1408-		●
480	BOLT; BRKT (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M10X25 FLANGE	0-28651-025-0	01	1	1012-1012	●
480	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	01	1	1012-1012		●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) M10X30 FLANGE	0-28651-030-0	01	1	1012-1301	●
480	BOLT; BRKT (D) M10X30 FLANGE	0-28651-030-0	01	1	1012-1301		●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) M10X30 FLANGE	0-28651-030-0	01	1	1302-1309	●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (D) M10X30 FLANGE	0-28651-030-0	01	1	1310-1406	●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (D) M10X30 FLANGE	0-28651-030-0	01	1	1407-1407	●
480	BOLT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) M10X30 FLANGE	0-28651-030-0	01	1	1407-1407		●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (D) M10X30 FLANGE	0-28651-030-0	01	1	1408-	●
515	NUT; BRKT FRAME-KICK UP<7EW> (D) M8 FLANGE	0-91180-108-0	01	1	1407-1407		●
515	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012		●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1012-1301	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1012-1301	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	01	1	1012-1301		●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1302-1309	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1302-1309	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1310-1406	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1310-1406	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407	●
515	NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407		●
515	NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407		●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1408-	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1408-	●
516	BOLT; HARNESS (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1012-	●	●
516	BOLT; HARNESS EXC. KD PREPARATORY PACK<6HF> (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
529	BOLT; RELAY BOX M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-	●	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
577	NUT; FUSE BOX M6 FLANGE	0-91180-106-0	04	1	1012-	●	●

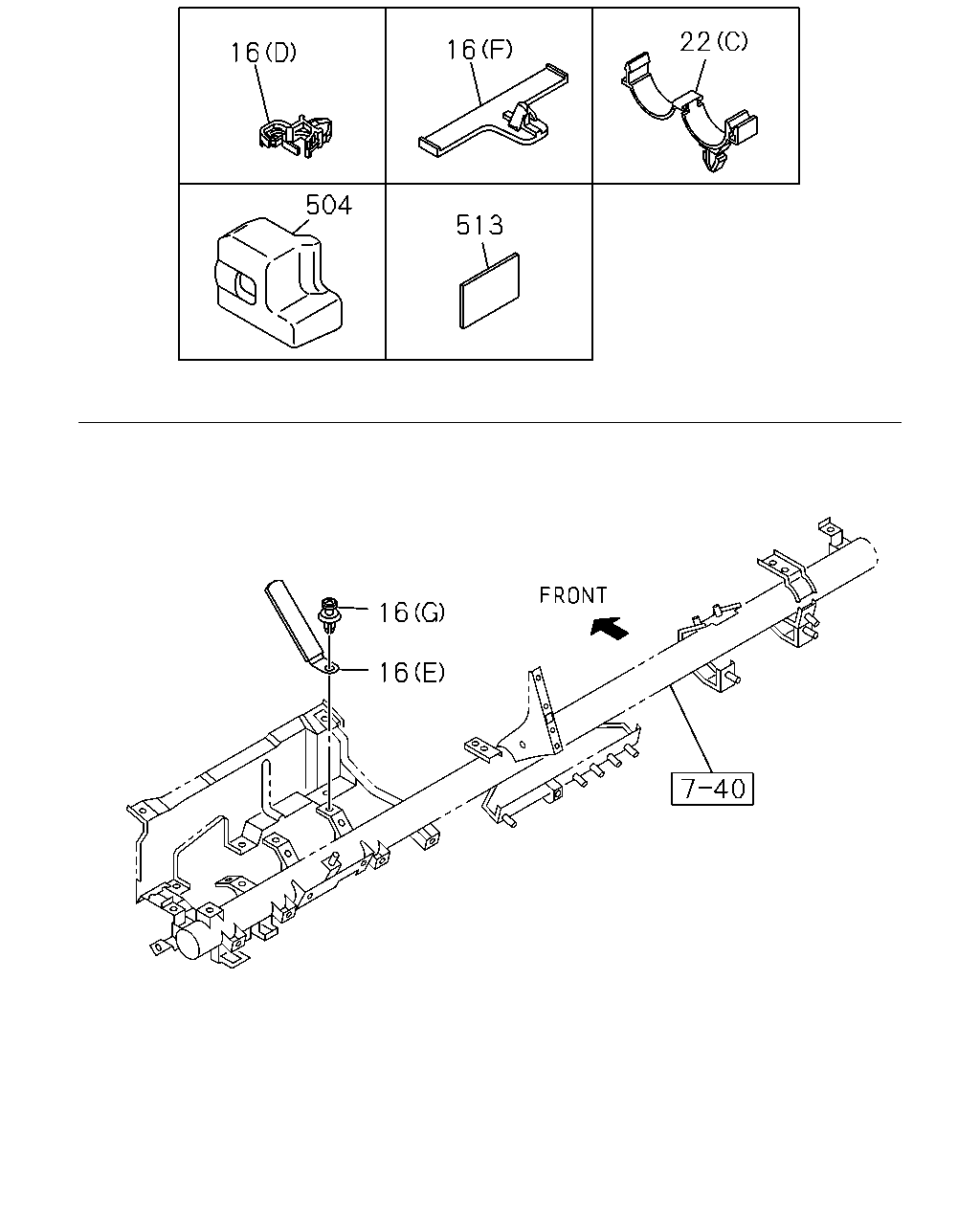

22 22 617 16 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1012-1406	●	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1407-1407	●
16	CLIP; HARNESS EXC. FRAME-KICK UP<7EW> (H) L=250	5-09707-030-1	01	1	1407-1407		●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1408-	●	●
16	CLIP; HARNESS (B) ID=6 & 10	8-94154-844-0	01	1	1012-1112	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10	8-94154-844-0	01	1	1201-	●	●
16	CLIP; HARNESS (E) L=91 ID=8.5	8-94329-956-0	01	1	1012-	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1303-	●	●
16	CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●
16	CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-	●	●
16	CLIP; HARNESS (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-	●	●
16	CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●
22	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	01	1	1012-1311	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (A) L=140	5-09707-031-1	01	1	1012-1311	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (A) L=140	5-09707-031-1	01	1	1312-	●	●
22	CLIP; ENG HARNESS (D) L=119.5	1-09707-197-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS (B) L=100	5-09707-036-1	01	1	1012-	●	●
22	CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●	●
617	STRAP; BAND L=140	5-09707-031-1	01	1	1104-1106	●	●

22 22 22 16 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1012-1406	●	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1407-1407	●
16	CLIP; HARNESS EXC. FRAME-KICK UP<7EW> (H) L=250	5-09707-030-1	01	1	1407-1407		●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1408-	●	●
16	CLIP; HARNESS (B) ID=6 & 10	8-94154-844-0	01	1	1012-1112	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10	8-94154-844-0	01	1	1201-	●	●
16	CLIP; HARNESS (E) L=91 ID=8.5	8-94329-956-0	01	1	1012-	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1303-	●	●
16	CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●
16	CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-	●	●
16	CLIP; HARNESS (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-	●	●
16	CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●
22	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	01	1	1012-1311	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (A) L=140	5-09707-031-1	01	1	1012-1311	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (A) L=140	5-09707-031-1	01	1	1312-	●	●
22	CLIP; ENG HARNESS (D) L=119.5	1-09707-197-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS (B) L=100	5-09707-036-1	01	1	1012-	●	●
22	CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●	●
48	CLIP; FRAME HARNESS ID=14 L=47	5-09700-319-0	06	1	1012-	●
48	CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) ID=14 L=47	5-09700-319-0	07	1	1012-1406		●
48	CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> ID=14 L=47	5-09700-319-0	07	1	1407-1407		●
48	CLIP; FRAME HARNESS WHEEL BASE 2400MM(24W) ID=14 L=47	5-09700-319-0	07	1	1408-		●
48	CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W) ID=14 L=47	5-09700-319-0	09	1	1012-		●

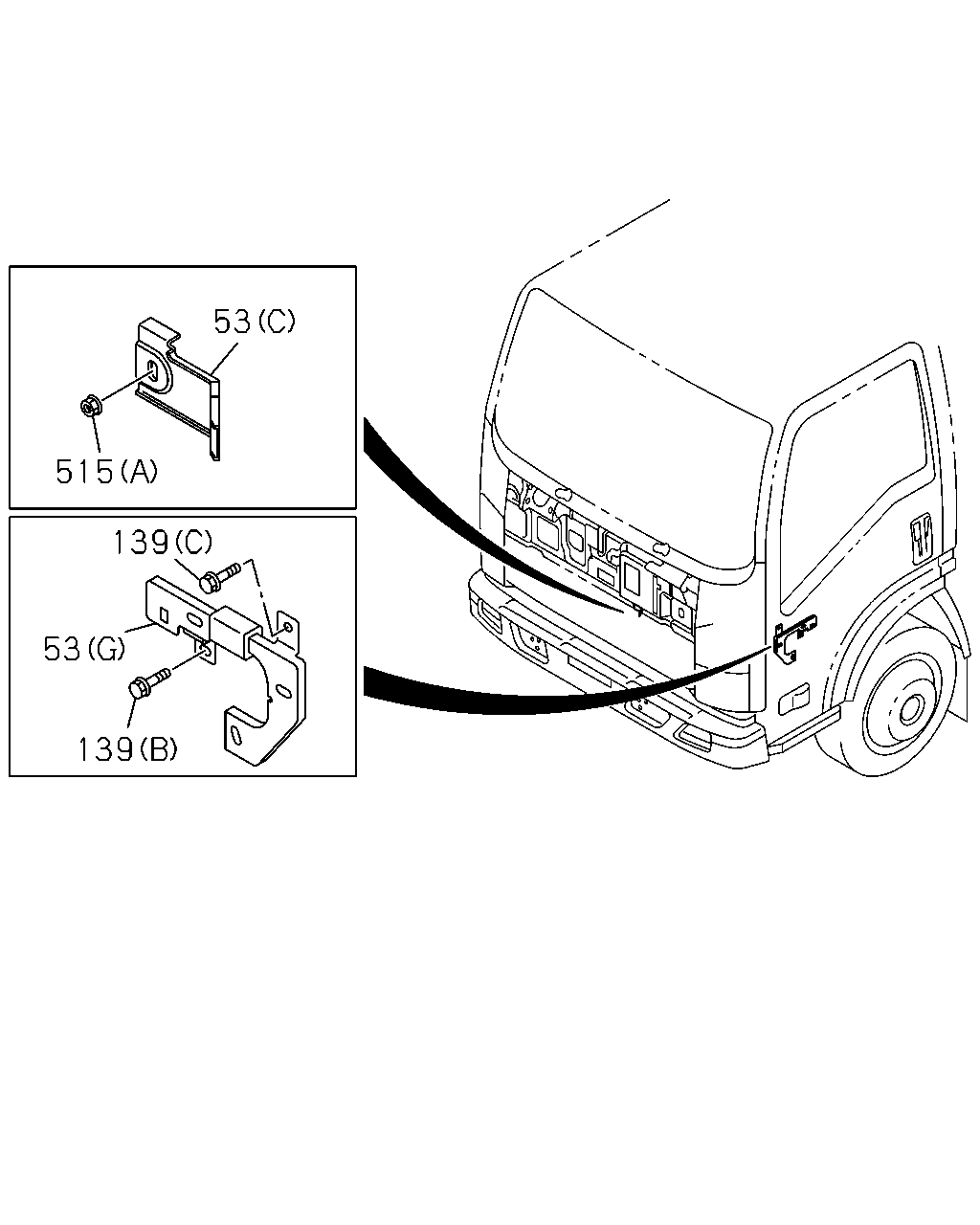

53 515 139 53 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS FRAME-KICK UP<7EW> (L)	8-98111-813-0	01	1	1407-1407		●
53	BRACKET; HARNESS FRAME-KICK UP<7EW> (M)	8-98123-409-1	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (K)	8-98084-699-0	01	1	1201-	●	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1012-1301	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1302-1309	●
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1302-1309		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-1406	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-1406	●
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1310-1406		●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1407-1407	●	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1407-1407	●
53	BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1407-1407		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1408-	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1408-	●
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1408-		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1012-1301	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1302-1309	●
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1302-1309		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-1406	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-1406	●
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1310-1406		●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1407-1407	●	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1407-1407	●
53	BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1407-1407		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1408-	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1408-	●
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1408-		●
53	BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-	●	●
53	BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●
53	BRACKET; HARNESS (H)	8-98074-502-0	01	1	1012-	●	●
53	BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-	●	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98105-778-0	01	1	1012-1301	●
53	BRACKET; HARNESS (E)	8-98105-778-0	01	1	1012-1301		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98105-778-0	01	1	1302-1309	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1310-1406	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1407-1407	●
53	BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1408-	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98107-111-1	01	1	1012-1301	●
53	BRACKET; HARNESS (I)	8-98107-111-1	01	1	1012-1301		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98107-111-1	01	1	1302-1309	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1310-1406	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1407-1407	●
53	BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1408-	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98171-457-0	01	1	1012-1301	●
53	BRACKET; HARNESS (B)	8-98171-457-0	01	1	1012-1301		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98171-457-0	01	1	1302-1309	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98171-457-0	01	1	1310-1406	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98171-457-0	01	1	1407-1407	●
53	BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B)	8-98171-457-0	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98171-457-0	01	1	1408-	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (J)	8-98175-428-0	01	1	1012-1012	●
53	BRACKET; HARNESS (J)	8-98175-428-0	01	1	1012-1012		●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1201-1212	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
139	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
139	BOLT; BRKT (C) M6X12 FLANGE	8-97108-669-0	01	1	1012-	●	●
515	NUT; BRKT FRAME-KICK UP<7EW> (D) M8 FLANGE	0-91180-108-0	01	1	1407-1407		●
515	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012		●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1012-1301	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1012-1301	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	01	1	1012-1301		●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1302-1309	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1302-1309	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1310-1406	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1310-1406	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407	●
515	NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407		●
515	NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407		●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1408-	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1408-	●

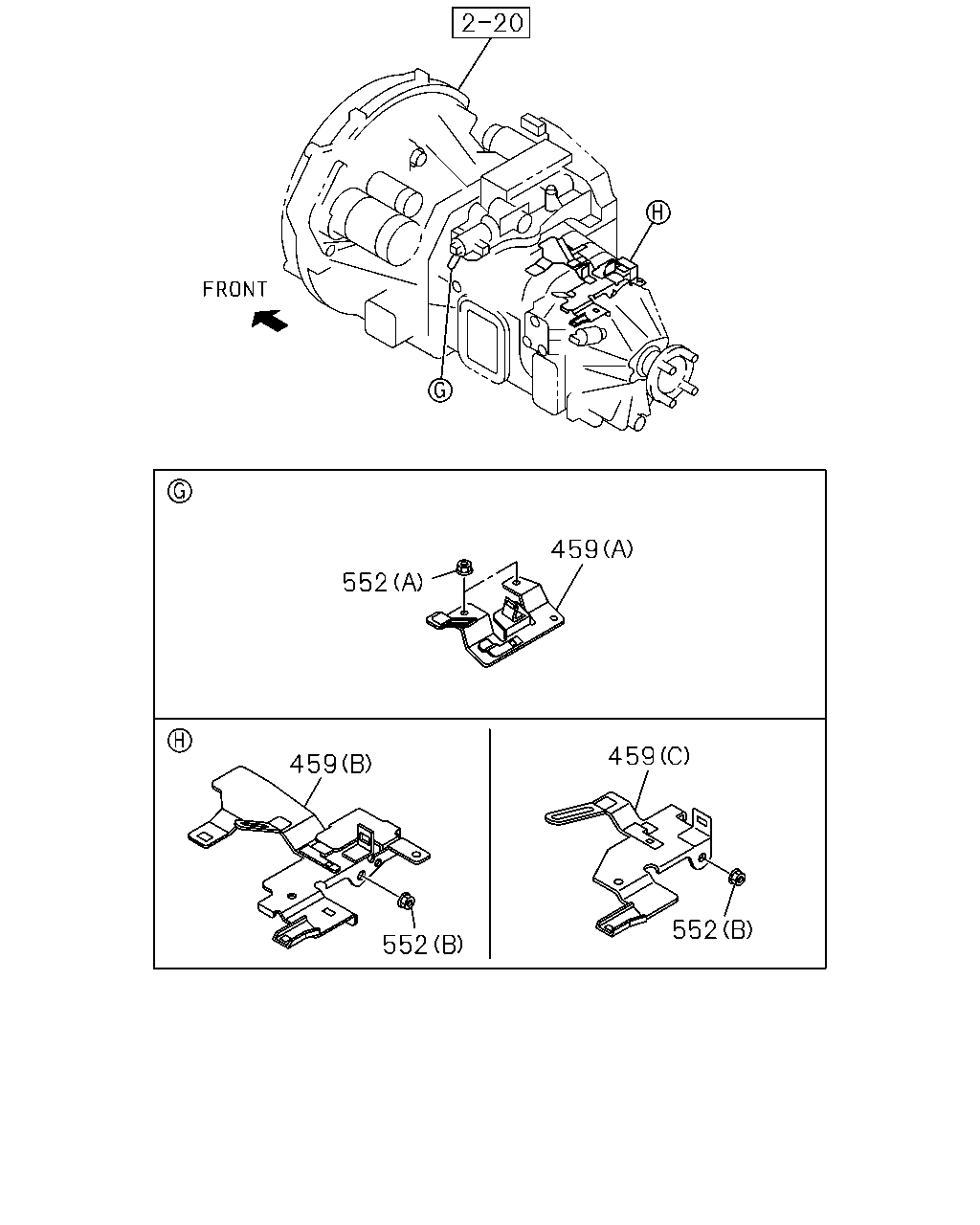

459 552 459 459 552 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
459	BRACKET; SUPPORT,HARNESS (A)	8-98020-227-3	01	1	1012-	●	●
459	BRACKET; SUPPORT,HARNESS (B)	8-98030-990-2	01	1	1012-1109	●	●
459	BRACKET; SUPPORT,HARNESS (C)	8-98196-974-0	01	1	1110-	●	●
552	NUT; BRKT,HARNESS (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
552	NUT; BRKT,HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●

7 53 313 139 139 53 577 7 53 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	1012-	●	●
7	BRACKET; CONNECTOR (A)	8-98056-073-3	01	1	1012-	●	●
53	BRACKET; HARNESS FRAME-KICK UP<7EW> (L)	8-98111-813-0	01	1	1407-1407		●
53	BRACKET; HARNESS FRAME-KICK UP<7EW> (M)	8-98123-409-1	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (K)	8-98084-699-0	01	1	1201-	●	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1012-1301	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1302-1309	●
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1302-1309		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-1406	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-1406	●
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1310-1406		●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1407-1407	●	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1407-1407	●
53	BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1407-1407		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1408-	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1408-	●
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1408-		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1012-1301	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1302-1309	●
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1302-1309		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-1406	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-1406	●
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1310-1406		●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1407-1407	●	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1407-1407	●
53	BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1407-1407		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1408-	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1408-	●
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1408-		●
53	BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-	●	●
53	BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●
53	BRACKET; HARNESS (H)	8-98074-502-0	01	1	1012-	●	●
53	BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-	●	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98105-778-0	01	1	1012-1301	●
53	BRACKET; HARNESS (E)	8-98105-778-0	01	1	1012-1301		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98105-778-0	01	1	1302-1309	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1310-1406	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1407-1407	●
53	BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1408-	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98107-111-1	01	1	1012-1301	●
53	BRACKET; HARNESS (I)	8-98107-111-1	01	1	1012-1301		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98107-111-1	01	1	1302-1309	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1310-1406	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1407-1407	●
53	BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1408-	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98171-457-0	01	1	1012-1301	●
53	BRACKET; HARNESS (B)	8-98171-457-0	01	1	1012-1301		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98171-457-0	01	1	1302-1309	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98171-457-0	01	1	1310-1406	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98171-457-0	01	1	1407-1407	●
53	BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B)	8-98171-457-0	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98171-457-0	01	1	1408-	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (J)	8-98175-428-0	01	1	1012-1012	●
53	BRACKET; HARNESS (J)	8-98175-428-0	01	1	1012-1012		●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1201-1212	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
139	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
139	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	1012-	●	●
139	BOLT; BRKT (C) M6X12 FLANGE	8-97108-669-0	01	1	1012-	●	●
313	BOLT; BRKT M6X16 FLANGE	0-28450-616-0	01	1	1012-	●	●
575	BRACKET; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98132-932-1	01	1	1201-	●	●
575	BRACKET; FUSE BOX	8-98054-320-2	01	1	1012-1112	●	●
575	BRACKET; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98054-320-2	01	1	1201-	●	●
577	NUT; FUSE BOX M6 FLANGE	0-91180-106-0	04	1	1012-	●	●

22 16 16 504 513 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1012-1406	●	●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1407-1407	●
16	CLIP; HARNESS EXC. FRAME-KICK UP<7EW> (H) L=250	5-09707-030-1	01	1	1407-1407		●
16	CLIP; HARNESS (H) L=250	5-09707-030-1	01	1	1408-	●	●
16	CLIP; HARNESS (B) ID=6 & 10	8-94154-844-0	01	1	1012-1112	●	●
16	CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10	8-94154-844-0	01	1	1201-	●	●
16	CLIP; HARNESS (E) L=91 ID=8.5	8-94329-956-0	01	1	1012-	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1012-1301	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1302-1302	●	●
16	CLIP; HARNESS (D) ID=10 & 16	8-94413-325-0	01	1	1303-	●	●
16	CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●
16	CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1012-	●	●
16	CLIP; HARNESS (G) D8.5X19 PUSH RIVET	8-97857-210-0	01	1	1012-	●	●
16	CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●
22	CLIP; ENG HARNESS (A) L=140	5-09707-031-1	01	1	1012-1311	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (A) L=140	5-09707-031-1	01	1	1012-1311	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (A) L=140	5-09707-031-1	01	1	1312-	●	●
22	CLIP; ENG HARNESS (D) L=119.5	1-09707-197-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS (B) L=100	5-09707-036-1	01	1	1012-	●	●
22	CLIP; ENG HARNESS (C) ID=34	8-98069-482-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●	●
22	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●	●
504	PROTECTOR; HARNESS EXC. KD PREPARATORY PACK<6HF>	8-98208-886-0	01	1	1201-	●	●
513	TAPE; SOFT,HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1201-	●	●

53 53 480 53 480 53 53 480 53 515 53 53 515

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BRACKET; HARNESS FRAME-KICK UP<7EW> (L)	8-98111-813-0	01	1	1407-1407		●
53	BRACKET; HARNESS FRAME-KICK UP<7EW> (M)	8-98123-409-1	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (K)	8-98084-699-0	01	1	1201-	●	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1012-1301	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (F)	8-98033-918-2	01	1	1302-1309	●
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1302-1309		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-1406	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1310-1406	●
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1310-1406		●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1407-1407	●	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1407-1407	●
53	BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1407-1407		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1408-	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (F)	8-98033-918-2	01	1	1408-	●
53	BRACKET; HARNESS (F)	8-98033-918-2	01	1	1408-		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1012-1301	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98052-900-1	01	1	1302-1309	●
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1302-1309		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-1406	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1310-1406	●
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1310-1406		●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1407-1407	●	●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1407-1407	●
53	BRACKET; HARNESS FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1407-1407		●
53	BRACKET; HARNESS FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1408-	●
53	BRACKET; HARNESS HEAVY DUTY FRAME<6WB> (E)	8-98052-900-1	01	1	1408-	●
53	BRACKET; HARNESS (E)	8-98052-900-1	01	1	1408-		●
53	BRACKET; HARNESS (C)	8-98014-410-2	01	1	1012-	●	●
53	BRACKET; HARNESS (D)	8-98032-016-1	01	1	1012-	●	●
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●
53	BRACKET; HARNESS (H)	8-98074-502-0	01	1	1012-	●	●
53	BRACKET; HARNESS (G)	8-98089-765-1	01	1	1012-	●	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98105-778-0	01	1	1012-1301	●
53	BRACKET; HARNESS (E)	8-98105-778-0	01	1	1012-1301		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (E)	8-98105-778-0	01	1	1302-1309	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1310-1406	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1407-1407	●
53	BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (E)	8-98105-778-0	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (E)	8-98105-778-0	01	1	1408-	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98107-111-1	01	1	1012-1301	●
53	BRACKET; HARNESS (I)	8-98107-111-1	01	1	1012-1301		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (I)	8-98107-111-1	01	1	1302-1309	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1310-1406	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1407-1407	●
53	BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (I)	8-98107-111-1	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (I)	8-98107-111-1	01	1	1408-	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98171-457-0	01	1	1012-1301	●
53	BRACKET; HARNESS (B)	8-98171-457-0	01	1	1012-1301		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (B)	8-98171-457-0	01	1	1302-1309	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98171-457-0	01	1	1310-1406	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98171-457-0	01	1	1407-1407	●
53	BRACKET; HARNESS EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B)	8-98171-457-0	01	1	1407-1407		●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (B)	8-98171-457-0	01	1	1408-	●
53	BRACKET; HARNESS EXC. FRT INDEPENDENT SUSPENSION(FF0) (J)	8-98175-428-0	01	1	1012-1012	●
53	BRACKET; HARNESS (J)	8-98175-428-0	01	1	1012-1012		●
480	BOLT; BRKT FRAME-KICK UP<7EW> (E) M8X25 FLANGE	0-28650-825-0	02	1	1407-1407		●
480	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) (C) M8X20 FLANGE	0-28650-820-0	01	1	1012-1301	●
480	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-1309	●
480	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1302-1309		●
480	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-1406	●
480	BOLT; BRKT HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-1406	●
480	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1310-1406		●
480	BOLT; BRKT HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1407-1407	●	●
480	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1407-1407	●
480	BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1407-1407		●
480	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1408-	●
480	BOLT; BRKT HEAVY DUTY FRAME<6WB> (C) M8X20 FLANGE	0-28650-820-0	01	1	1408-	●
480	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	1408-		●
480	BOLT; BRKT (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M10X25 FLANGE	0-28651-025-0	01	1	1012-1012	●
480	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	01	1	1012-1012		●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) M10X30 FLANGE	0-28651-030-0	01	1	1012-1301	●
480	BOLT; BRKT (D) M10X30 FLANGE	0-28651-030-0	01	1	1012-1301		●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (D) M10X30 FLANGE	0-28651-030-0	01	1	1302-1309	●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (D) M10X30 FLANGE	0-28651-030-0	01	1	1310-1406	●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (D) M10X30 FLANGE	0-28651-030-0	01	1	1407-1407	●
480	BOLT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (D) M10X30 FLANGE	0-28651-030-0	01	1	1407-1407		●
480	BOLT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (D) M10X30 FLANGE	0-28651-030-0	01	1	1408-	●
515	NUT; BRKT FRAME-KICK UP<7EW> (D) M8 FLANGE	0-91180-108-0	01	1	1407-1407		●
515	NUT; BRKT (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●
515	NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	02	1	1012-1012		●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1012-1301	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1012-1301	●
515	NUT; BRKT (C) M10 FLANGE	0-91180-110-0	01	1	1012-1301		●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1302-1309	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE	0-91180-110-0	01	1	1302-1309	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1310-1406	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1310-1406	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407	●
515	NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407		●
515	NUT; BRKT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (C) M10 FLANGE	0-91180-110-0	01	1	1407-1407		●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1408-	●
515	NUT; BRKT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB> (C) M10 FLANGE	0-91180-110-0	01	1	1408-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
