8-10 — WIRING HARNESS AND FUSE (#53663) — 142 parça

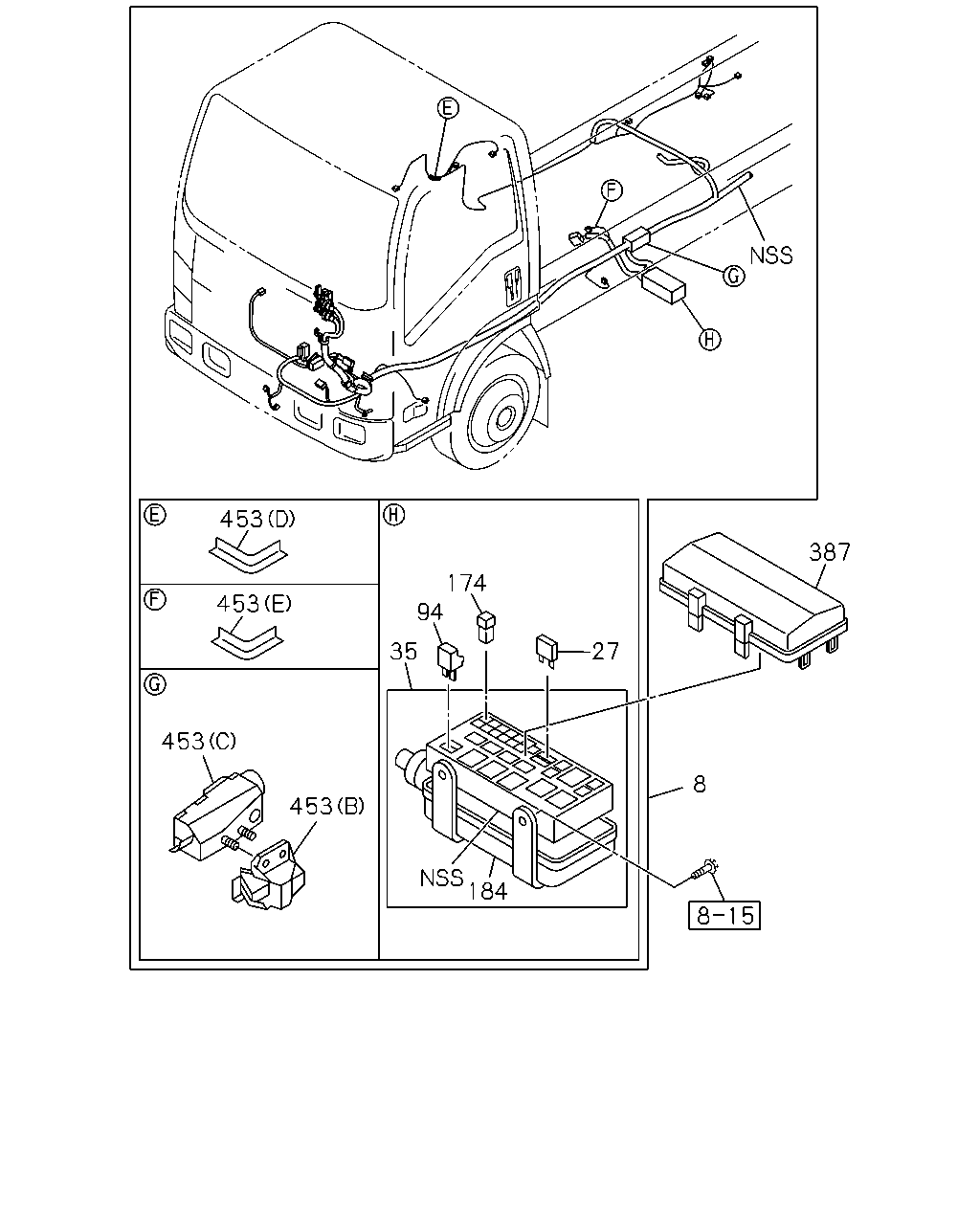

453 453 453 453 35 94 174 27 8 387 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98139-554-0	01	1	1012-1301	●
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98139-554-1	01	1	1302-1309	●
8	HARNESS; FRAME,FRT	8-98139-554-1	01	1	1302-1309		●
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98139-554-1	01	1	1310-1406	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-554-1	01	1	1310-1406	●
8	HARNESS; FRAME,FRT	8-98139-554-1	01	1	1310-1406		●
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98139-554-1	01	1	1407-1407	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-554-1	01	1	1407-1407	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW>	8-98139-554-1	01	1	1407-1407		●
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98139-554-1	01	1	1408-1409	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-554-1	01	1	1408-1409	●
8	HARNESS; FRAME,FRT	8-98139-554-1	01	1	1408-1409		●
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98293-873-0	01	1	1410-	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98293-873-0	01	1	1410-	●
8	HARNESS; FRAME,FRT	8-98293-873-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98129-234-1	01	1	1012-1301	●
8	HARNESS; FRAME,FRT	8-98129-234-1	01	1	1012-1301		●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98129-234-2	01	1	1302-1309	●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98129-234-2	01	1	1310-1406	●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98129-234-2	01	1	1407-1407	●
8	HARNESS; FRAME,FRT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW>	8-98129-234-2	01	1	1407-1407		●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98129-234-2	01	1	1408-1409	●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98293-872-0	01	1	1410-	●
27	FUSE UNIT 10A RED	8-98054-257-0	AR	1	1012-1406	●	●
27	FUSE UNIT 10A RED	8-98054-257-0	03	1	1407-	●	●
35	BOX; RELAY & FUSE	8-98030-763-0	01	1	1012-	●	●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	1012-1406	●	●
94	DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	1407-	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	1012-1406	●	●
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1407-	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	1012-1406	●	●
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1407-	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	1012-1406	●	●
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	01	1	1407-	●	●
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	1012-1406	●	●
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW	8-97219-407-0	04	1	1407-	●	●
184	COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	1012-	●	●
387	COVER; RELAY BOX	8-98081-367-0	01	1	1012-	●	●
453	PROTECTOR; HARNESS (D)	8-94417-716-0	02	1	1012-	●	●
453	PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	1012-	●	●
453	PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1012-	●	●
453	PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1012-	●	●
453	PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1012-	●	●

8 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98139-554-0	01	1	1012-1301	●
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0)	8-98139-554-1	01	1	1302-1309	●
8	HARNESS; FRAME,FRT	8-98139-554-1	01	1	1302-1309		●
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98139-554-1	01	1	1310-1406	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-554-1	01	1	1310-1406	●
8	HARNESS; FRAME,FRT	8-98139-554-1	01	1	1310-1406		●
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98139-554-1	01	1	1407-1407	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-554-1	01	1	1407-1407	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW>	8-98139-554-1	01	1	1407-1407		●
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98139-554-1	01	1	1408-1409	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98139-554-1	01	1	1408-1409	●
8	HARNESS; FRAME,FRT	8-98139-554-1	01	1	1408-1409		●
8	HARNESS; FRAME,FRT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB>	8-98293-873-0	01	1	1410-	●
8	HARNESS; FRAME,FRT HEAVY DUTY FRAME<6WB> EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98293-873-0	01	1	1410-	●
8	HARNESS; FRAME,FRT	8-98293-873-0	01	1	1410-		●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98129-234-1	01	1	1012-1301	●
8	HARNESS; FRAME,FRT	8-98129-234-1	01	1	1012-1301		●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0)	8-98129-234-2	01	1	1302-1309	●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98129-234-2	01	1	1310-1406	●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98129-234-2	01	1	1407-1407	●
8	HARNESS; FRAME,FRT EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW>	8-98129-234-2	01	1	1407-1407		●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98129-234-2	01	1	1408-1409	●
8	HARNESS; FRAME,FRT EXC. FRT INDEPENDENT SUSPENSION(FF0),HEAVY DUTY FRAME<6WB>	8-98293-872-0	01	1	1410-	●

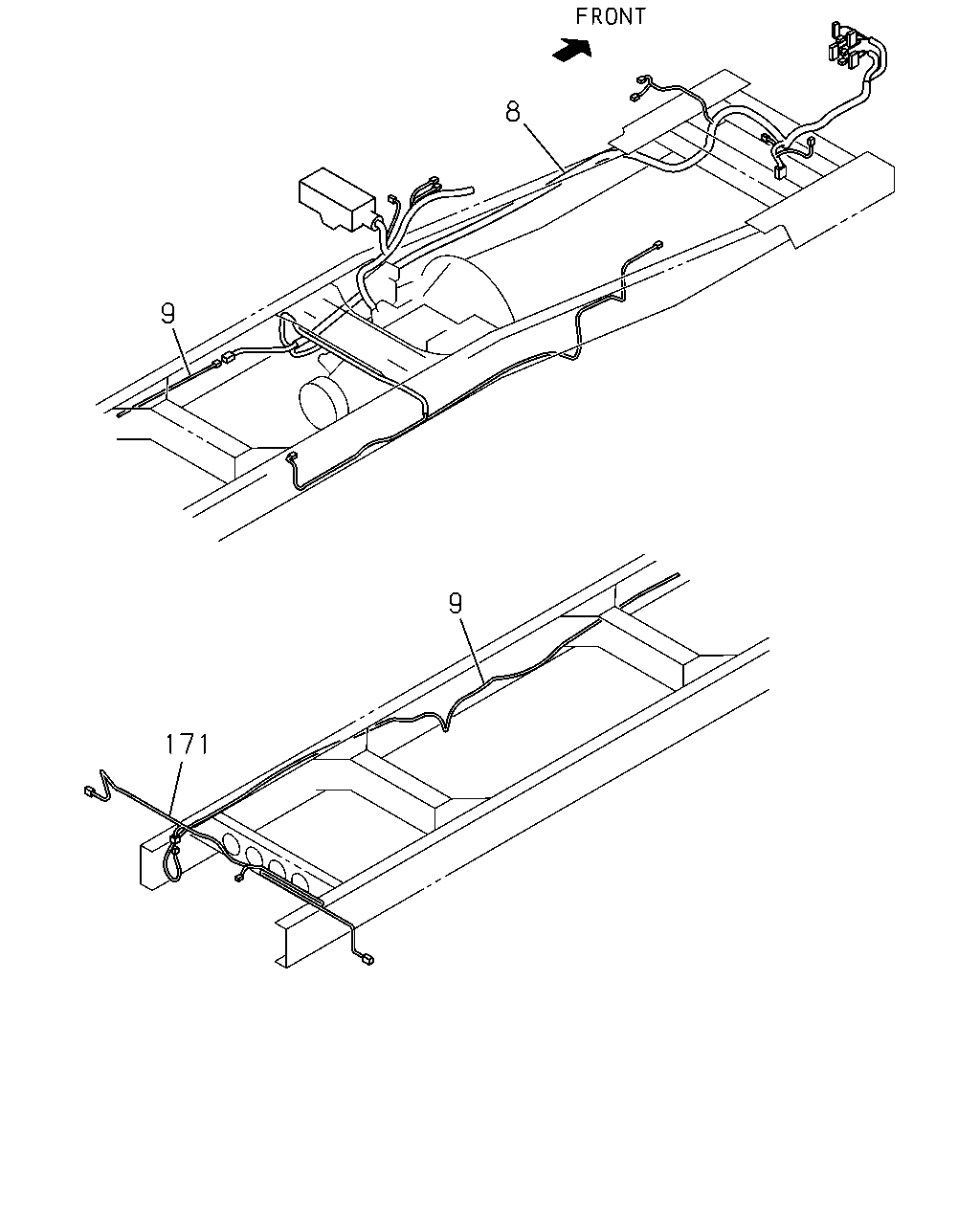

9	HARNESS; FRAME,RR	8-98048-413-4	01	1	1012-	●
9	HARNESS; FRAME,RR WHEEL BASE 2400MM(24W)	8-98048-412-2	01	1	1012-1406		●
9	HARNESS; FRAME,RR WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-98048-412-2	01	1	1407-1407		●
9	HARNESS; FRAME,RR WHEEL BASE 2400MM(24W)	8-98048-412-2	01	1	1408-		●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98048-422-2	01	1	1012-1406		●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW>	8-98048-422-2	01	1	1407-1407		●
9	HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98048-422-2	01	1	1408-		●
171	HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1012-1406	●	●
171	HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1407-1407	●
171	HARNESS; CABLE,TAIL LAMP EXC. FRAME-KICK UP<7EW>	8-98156-028-0	01	1	1407-1407		●
171	HARNESS; CABLE,TAIL LAMP	8-98156-028-0	01	1	1408-	●	●

101 290 267 101 267 101 290 101 101 290 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

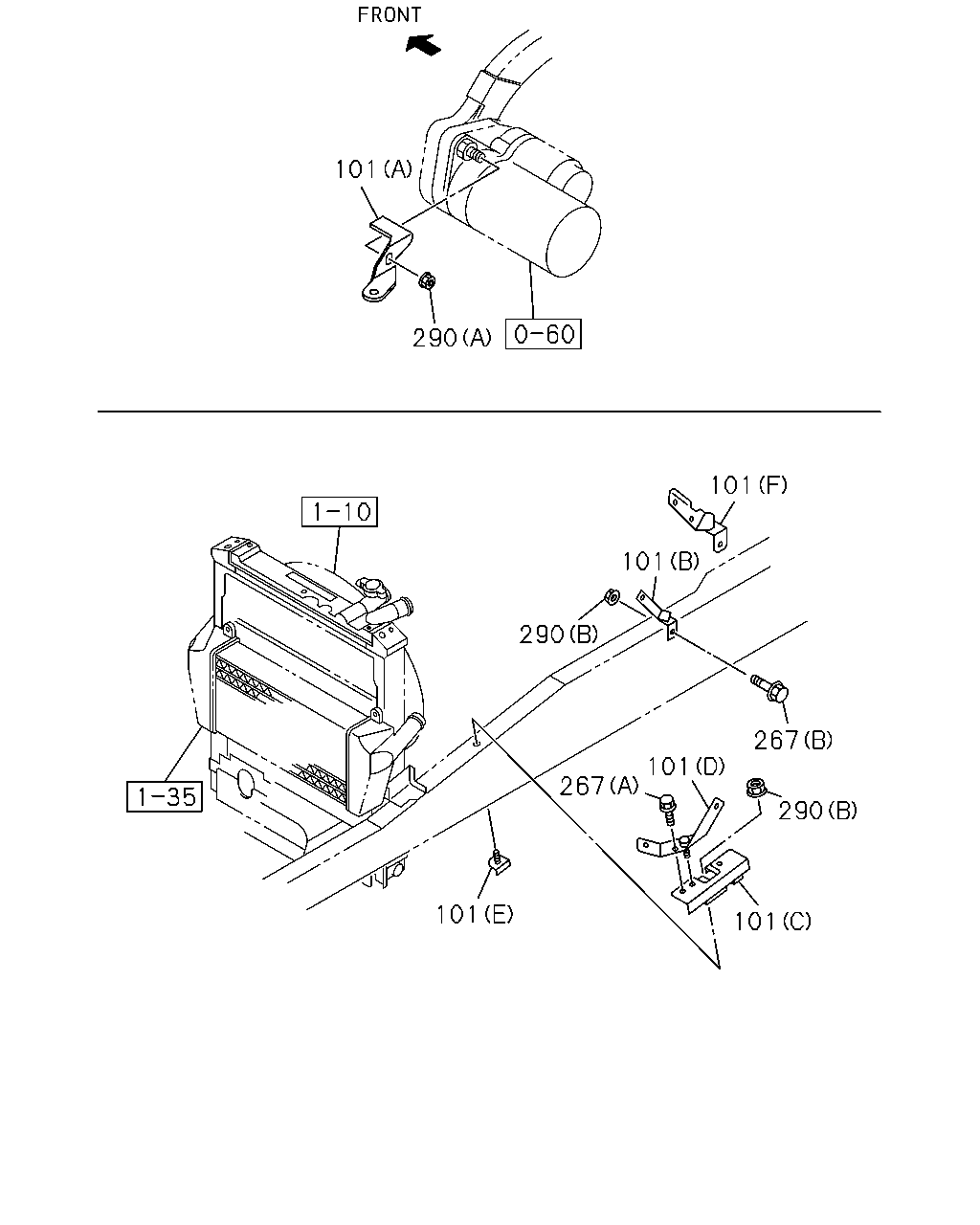

101	BRACKET; HARNESS CONNECTOR (A)	8-98030-725-1	01	1	1012-	●	●
101	BRACKET; HARNESS CONNECTOR (C)	8-98078-070-1	01	1	1012-	●	●
101	BRACKET; HARNESS CONNECTOR (D)	8-98078-071-1	01	1	1012-	●	●
101	BRACKET; HARNESS CONNECTOR (B)	8-98079-011-1	01	1	1012-1205	●	●
101	BRACKET; HARNESS CONNECTOR (F)	8-98217-757-0	01	1	1206-	●	●
101	BRACKET; HARNESS CONNECTOR (E)	8-98093-465-1	01	1	1012-	●	●
267	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) (B) M8X25 FLANGE	0-28650-825-0	01	1	1012-1301	●
267	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-1309	●
267	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1302-1309		●
267	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (B) M8X25 FLANGE	0-28650-825-0	01	1	1310-1406	●
267	BOLT; BRKT HEAVY DUTY FRAME<6WB> (B) M8X25 FLANGE	0-28650-825-0	01	1	1310-1406	●
267	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1310-1406		●
267	BOLT; BRKT HEAVY DUTY FRAME<6WB> (B) M8X25 FLANGE	0-28650-825-0	01	1	1407-1407	●	●
267	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (B) M8X25 FLANGE	0-28650-825-0	01	1	1407-1407	●
267	BOLT; BRKT FRAME-KICK UP<7EW> EXC. HEAVY DUTY FRAME<6WB> (B) M8X25 FLANGE	0-28650-825-0	01	1	1407-1407		●
267	BOLT; BRKT FRT INDEPENDENT SUSPENSION(FF0) EXC. HEAVY DUTY FRAME<6WB> (B) M8X25 FLANGE	0-28650-825-0	01	1	1408-	●
267	BOLT; BRKT HEAVY DUTY FRAME<6WB> (B) M8X25 FLANGE	0-28650-825-0	01	1	1408-	●
267	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	1408-		●
267	BOLT; BRKT (A) M6X25 FLANGE	0-28650-625-0	01	1	1012-	●	●
290	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
290	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●

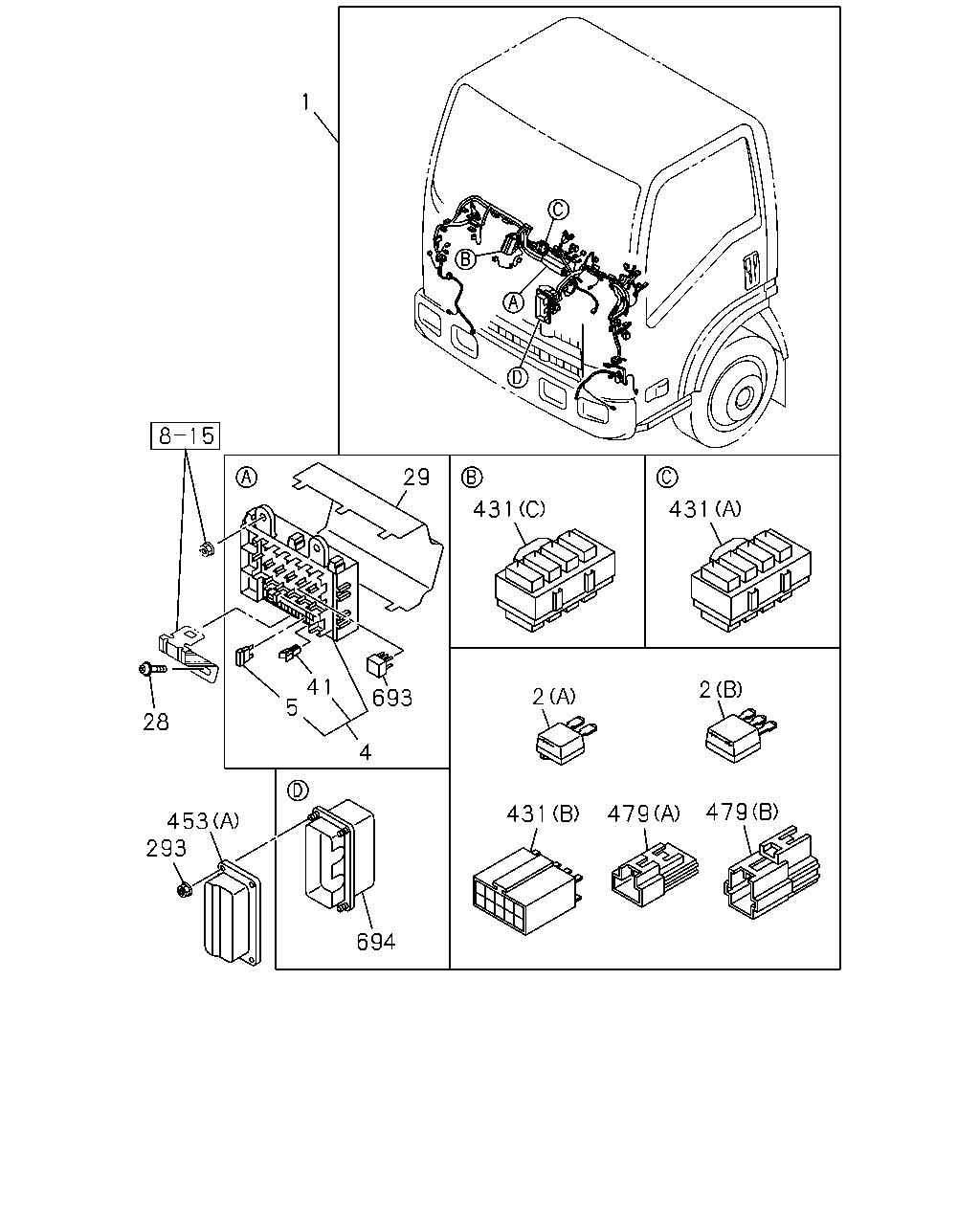

1 29 431 431 41 5 2 2 693 28 4 479 431 479 453 293 694

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB	8-98158-762-1	01	1	1012-1204	●	●
1	HARNESS; CAB	8-98200-863-0	01	1	1205-1312	●	●
1	HARNESS; CAB	8-98257-650-0	01	1	1401-	●	●
2	DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	1012-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	1012-	●	●
4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1012-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1012-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1012-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1012-	●	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1101	●	●
28	SCREW; FUSE BOX M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●
28	SCREW; FUSE BOX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	1012-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	1012-	●	●
293	NUT M6 FLANGE	0-91180-106-0	04	1	1012-	●	●
431	CONNECTOR; JOINT (B) 10P	8-97077-943-0	02	1	1012-1204	●	●
431	CONNECTOR; JOINT (C)	8-98046-205-0	01	1	1012-	●	●
431	CONNECTOR; JOINT (A)	8-98046-206-0	01	1	1012-	●	●
453	PROTECTOR; HARNESS (D)	8-94417-716-0	02	1	1012-	●	●
453	PROTECTOR; HARNESS (E)	8-94452-553-0	01	1	1012-	●	●
453	PROTECTOR; HARNESS (B)	8-98031-850-1	01	1	1012-	●	●
453	PROTECTOR; HARNESS (C)	8-98031-851-2	01	1	1012-	●	●
453	PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	1012-	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	1201-	●	●
479	CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	1201-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-	●	●
694	BOX ASM; CONNECTOR	8-98057-640-0	01	1	1012-1204	●	●
694	BOX ASM; CONNECTOR	8-98190-772-0	01	1	1205-	●	●

18 85 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

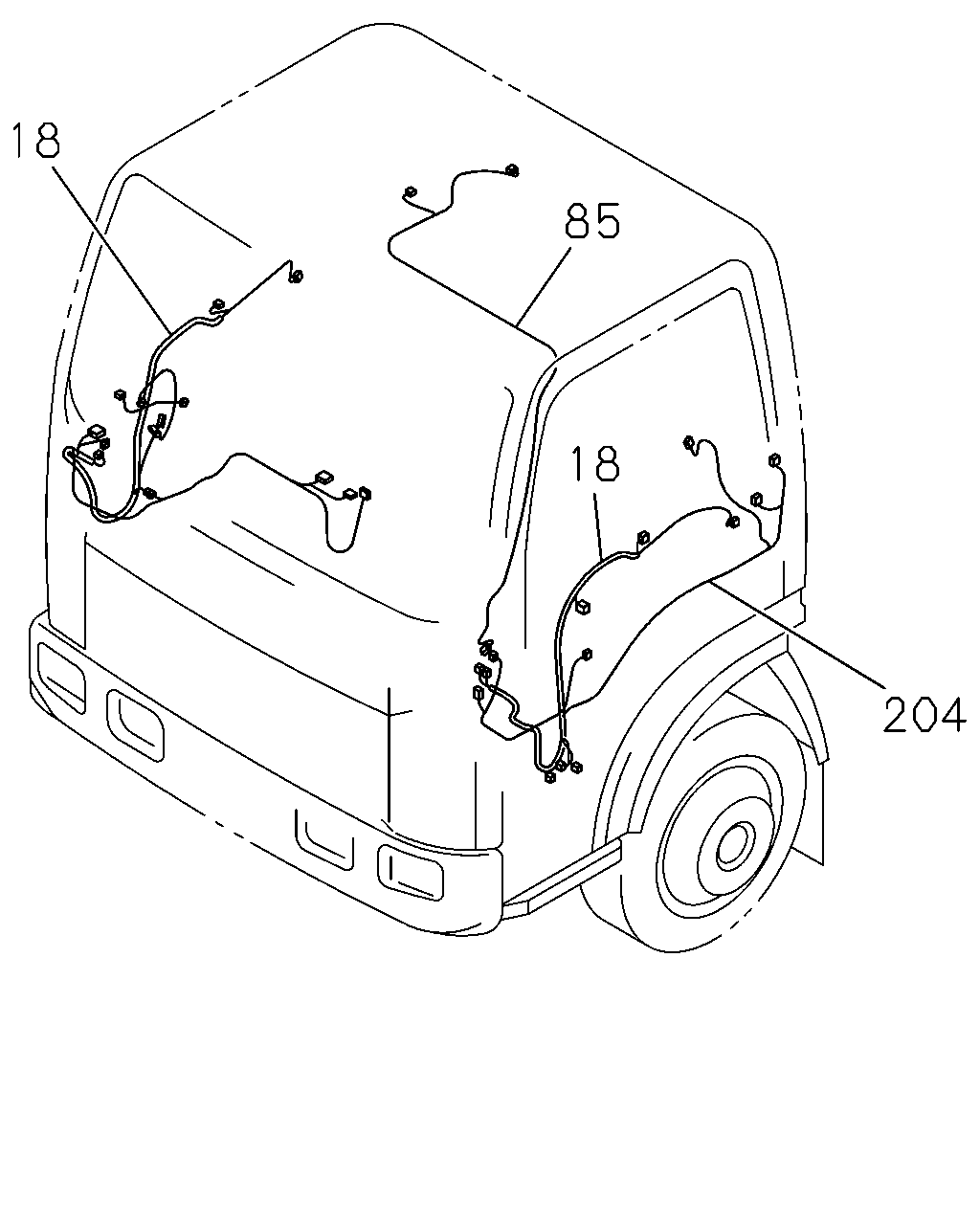

18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98077-592-3	01	1	1012-	●	●
18	HARNESS; DOOR POWER WINDOW FRT DOOR<A32>	8-98077-600-3	01	1	1012-	●	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98077-591-2	01	1	1012-	●	●
18	HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>	8-98077-599-2	01	1	1012-	●	●
85	HARNESS; ROOM LAMP	8-98072-201-2	01	1	1012-	●	●
204	HARNESS; CABLE,FLOOR	8-98071-321-4	01	1	1012-	●	●

374

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

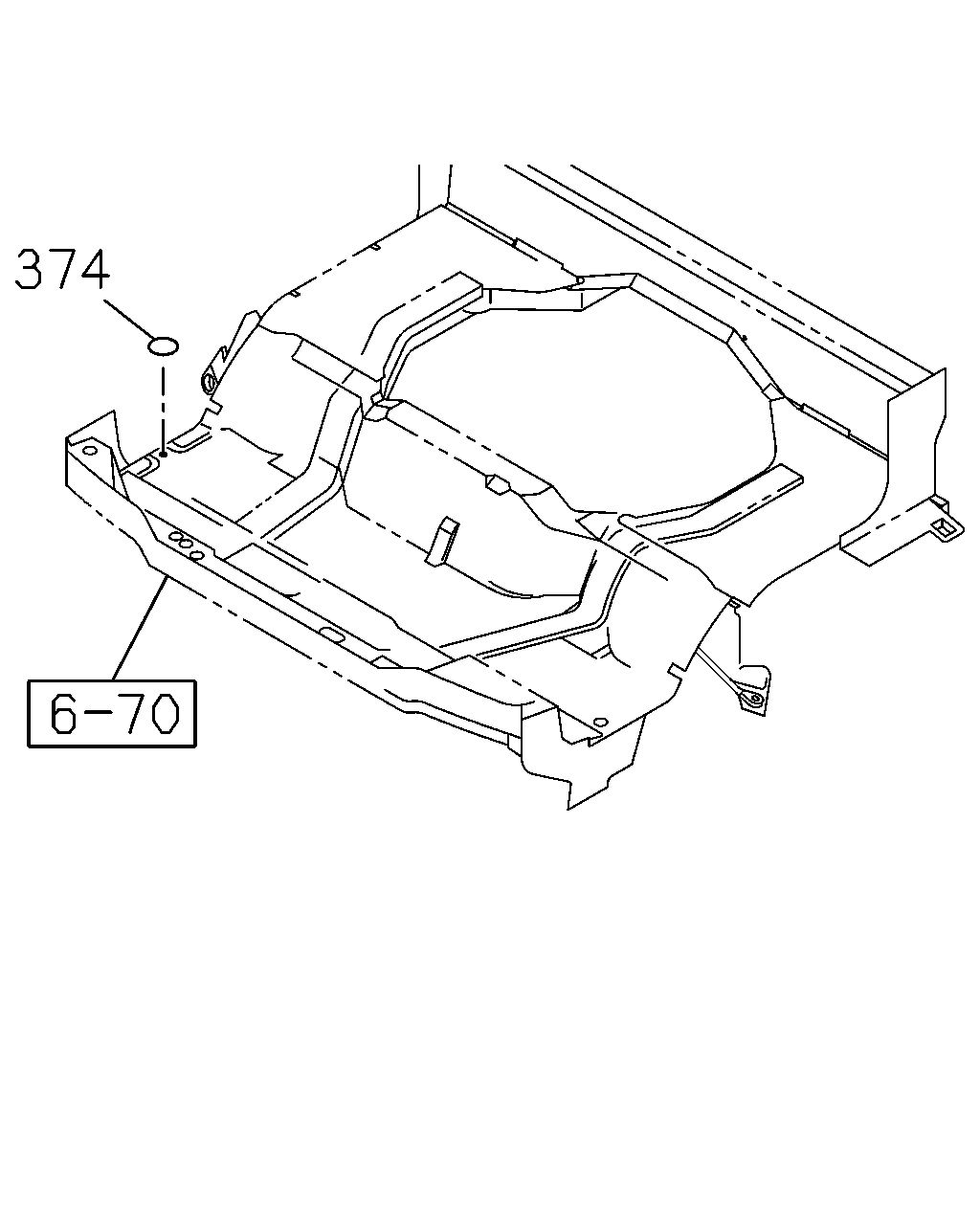

	374	PLUG; HARNESS CONNECTOR OD=32 BLACK	8-98031-126-0	01	1	1012-	●	●

13 699 161 329 699

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

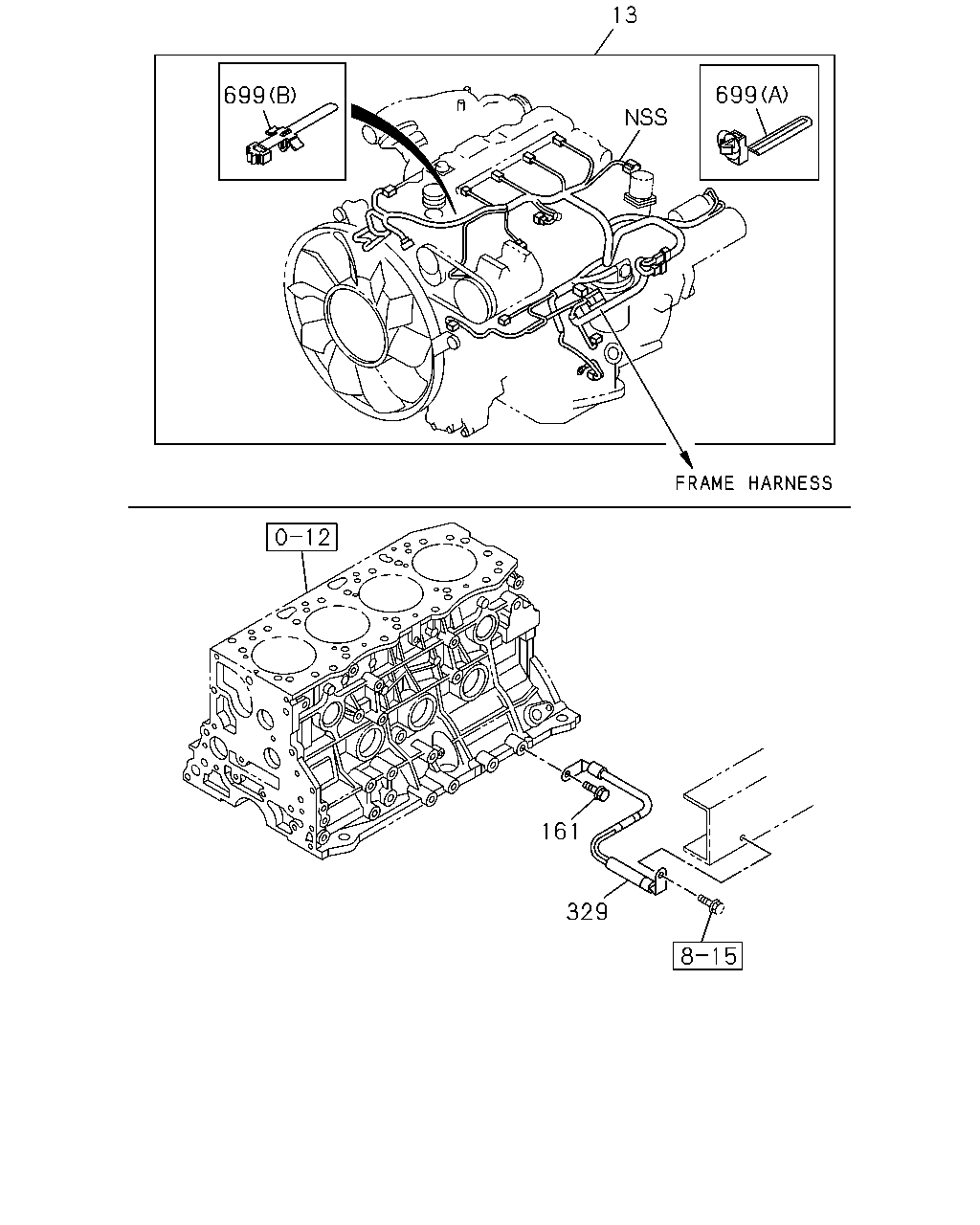

13	HARNESS; ENG EXC. KD PREPARATORY PACK<6HF>	8-98147-729-0	01	1	1012-	●	●
161	BOLT; GROUND,HARNESS M10X16 FLANGE	0-28051-016-0	01	1	1012-	●	●
329	CABLE; ENG TO FRAME	8-98039-854-1	01	1	1012-	●	●
699	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (A) L=140	8-97122-360-0	03	1	1012-	●	●
699	CLIP; ENG HARNESS EXC. KD PREPARATORY PACK<6HF> (B)	8-98088-438-0	01	1	1012-	●	●

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

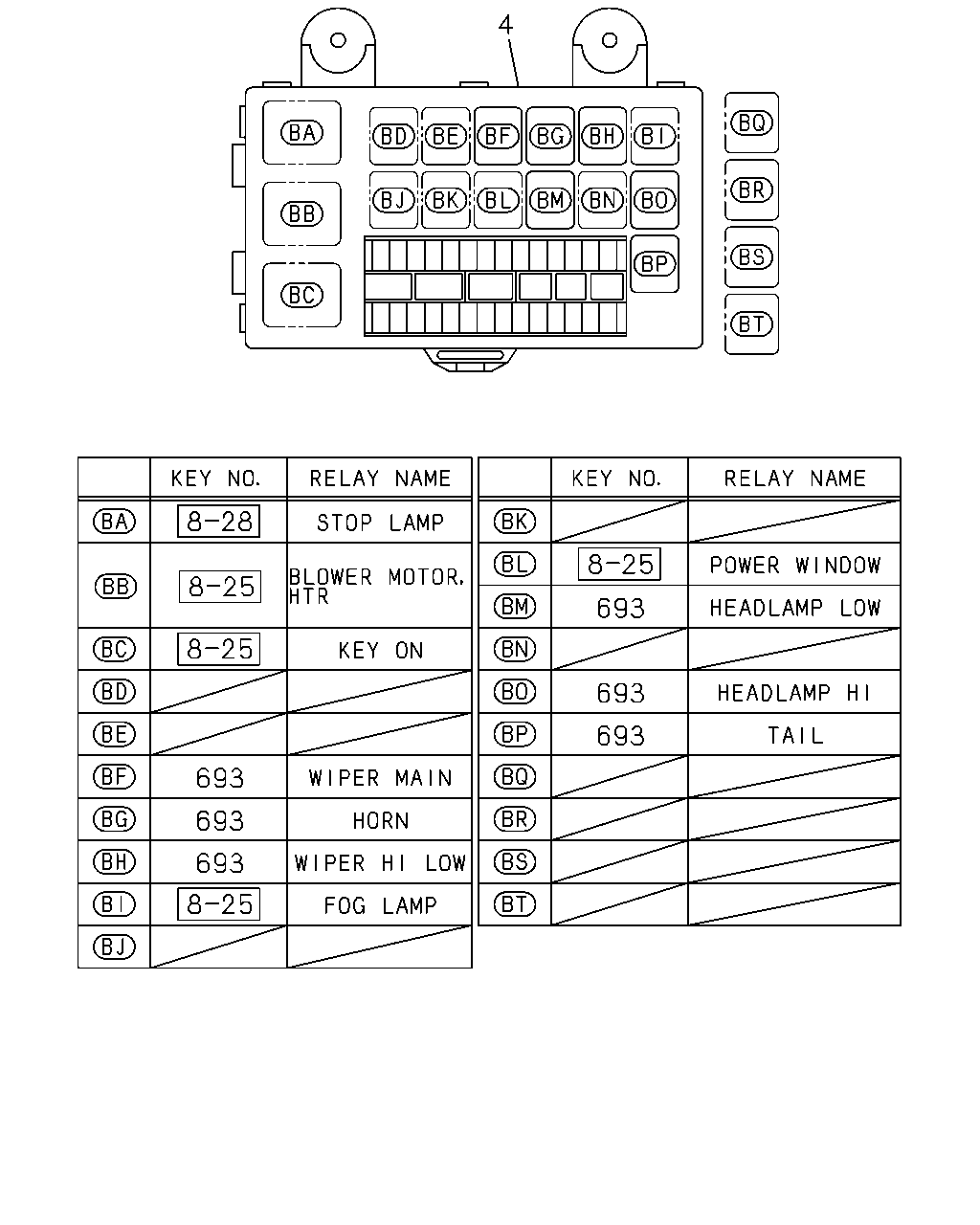

	4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1012-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-	●	●

4 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

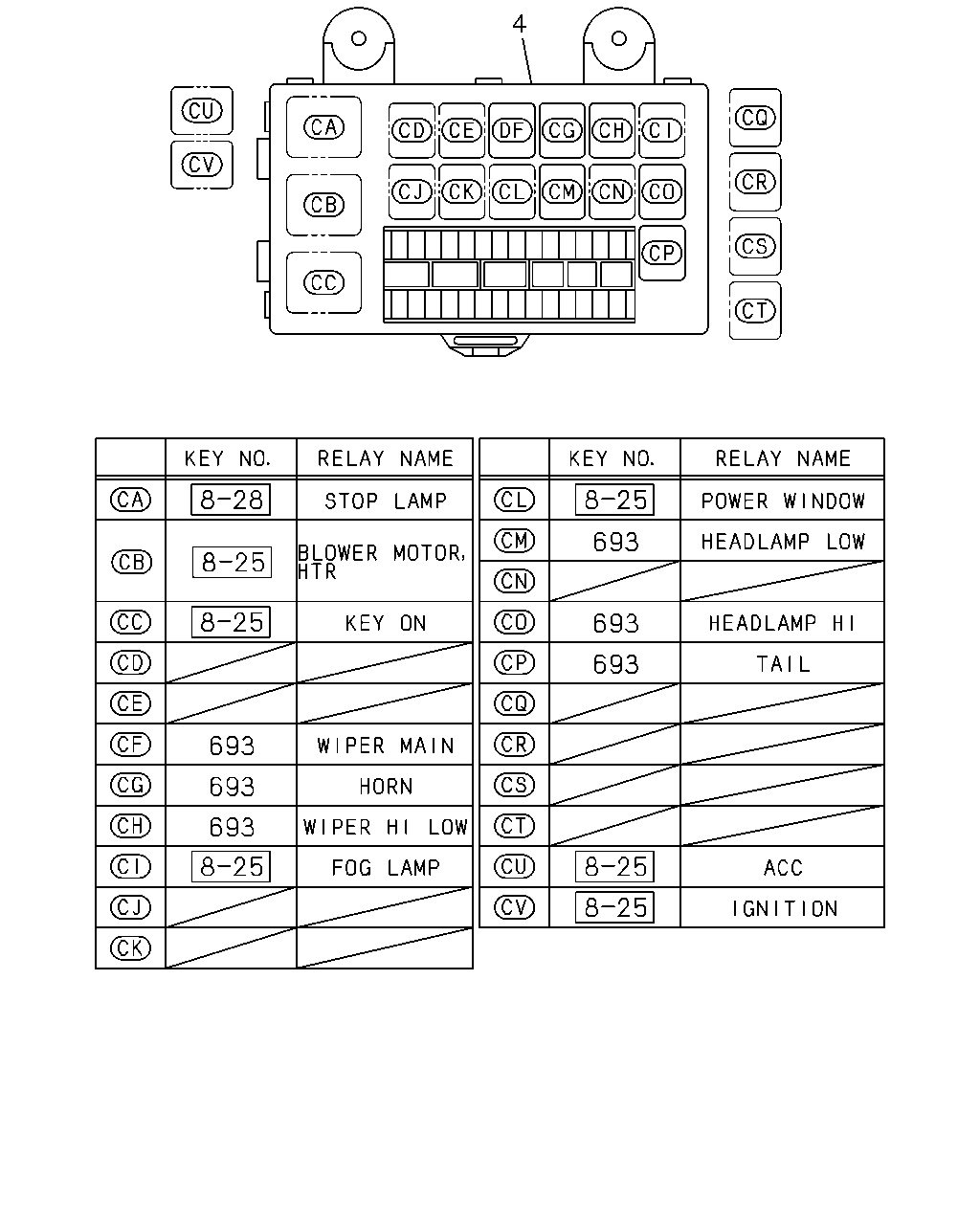

	4	BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	1012-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1012-	●	●
