7-60 — SEAT BELT (#53659) — 16 parça

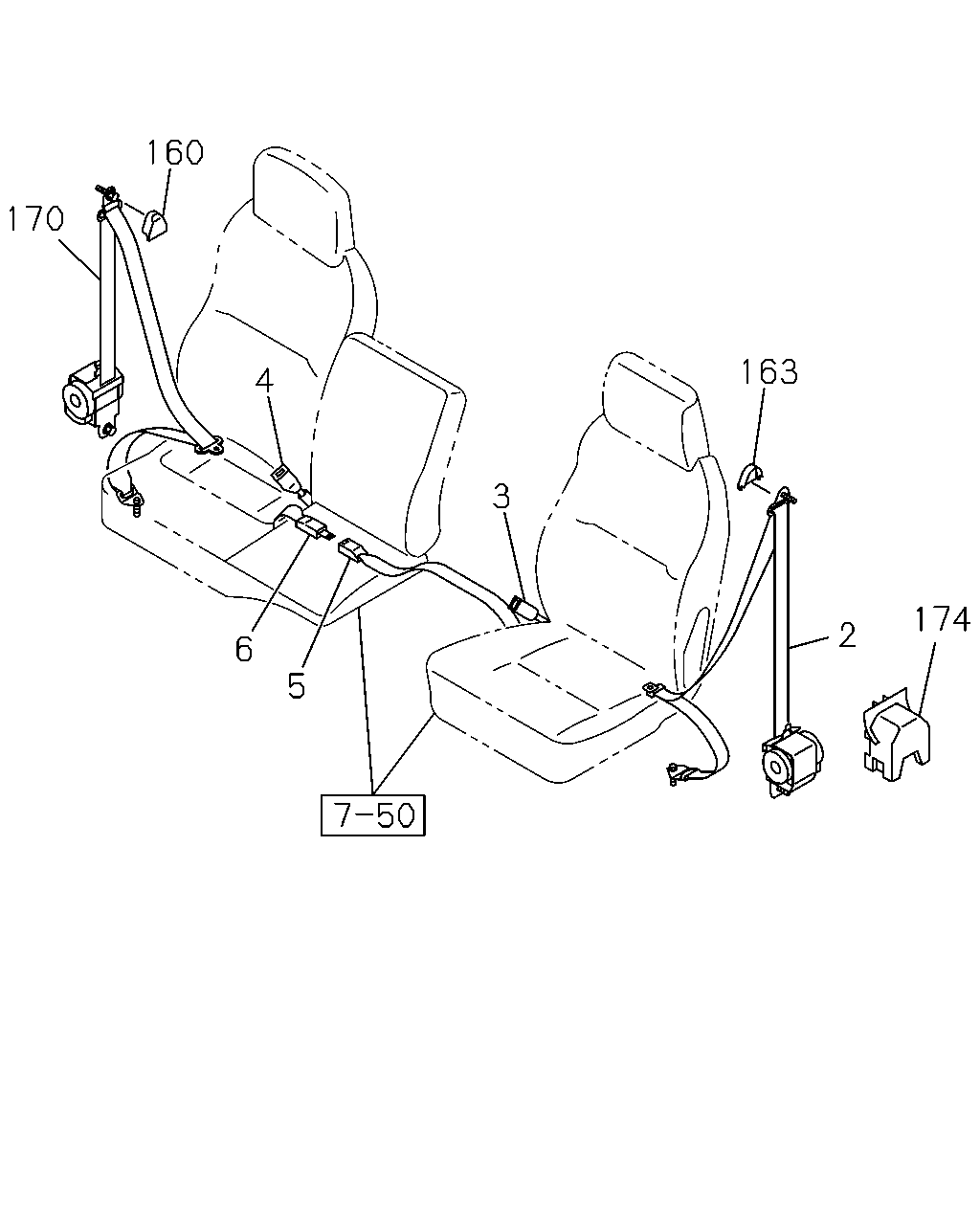

çizim 174804

160 170 163 4 3 174 2 6 5

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	BELT; SEAT,TONGUE SIDE GRAY	8-97414-693-1	01	1	1012-	●	●
	3	BELT; SEAT,BUCKLE SIDE GRAY	8-97406-994-2	01	1	1012-	●	●
	4	BELT; PASSENGER SEAT,BUCKLE SIDE GRAY	8-97409-471-0	01	1	1012-	●	●
	5	BELT; CENTER SEAT,BUCKLE SIDE GRAY	8-97409-469-0	01	1	1012-	●	●
	6	BELT; CENTER SEAT,TONGUE SIDE GRAY	8-97414-694-0	01	1	1012-	●	●
	160	COVER; THROUGH ANCHOR GRAY	8-97405-991-0	01	1	1012-	●	●
	163	COVER; ADJUSTER GRAY	8-97405-991-0	01	1	1012-	●	●
	170	BELT; PASSENGER SEAT,TONGUE SIDE GRAY	8-97414-693-1	01	1	1012-	●	●
	174	COVER; RETRACTOR,SEAT BELT	8-98039-376-1	01	1	1012-	●	●

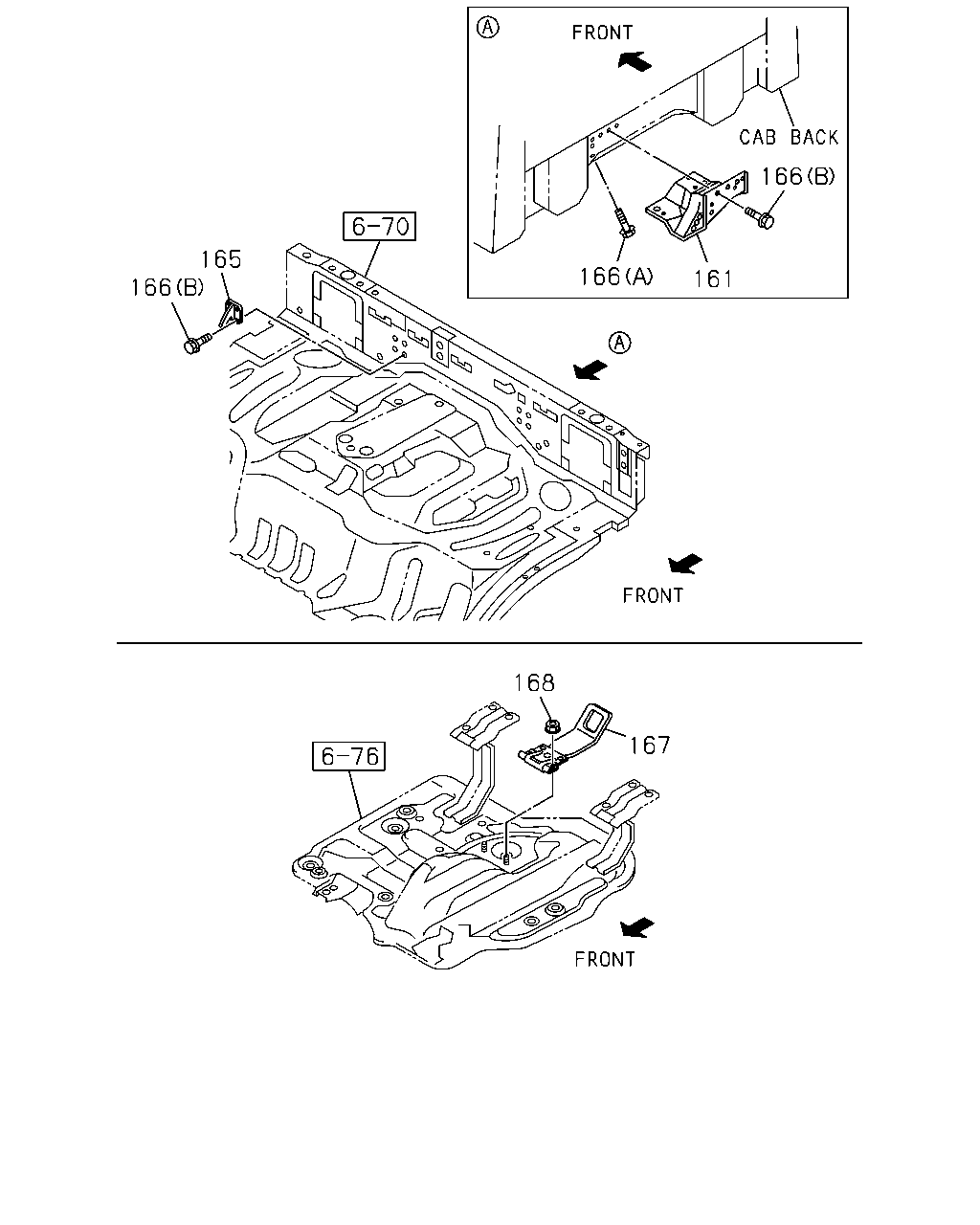

çizim 174823

166 165 166 166 161 168 167

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	161	REINFORCEMENT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA>	8-98021-748-0	01	1	1012-	●	●
	165	HOOK; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA>	8-98040-143-0	01	1	1012-	●	●
	166	BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE	0-28650-825-0	04	1	1012-	●	●
	166	BOLT; SEAT BELT ANCHOR INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE	0-28650-825-0	04	1	1012-	●	●
	166	BOLT; SEAT BELT ANCHOR EXC. INSPECTION ENGINE COVER<8GA> (A) M8X20 FLANGE	0-28050-820-0	02	1	1012-	●	●
	167	PLATE; ANCHOR INSPECTION ENGINE COVER<8GA>	8-97589-140-0	01	1	1012-	●	●
	168	NUT; ANCHOR PLATE INSPECTION ENGINE COVER<8GA> M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
