◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51287 - ELF200/300(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#53658) — 52 parça

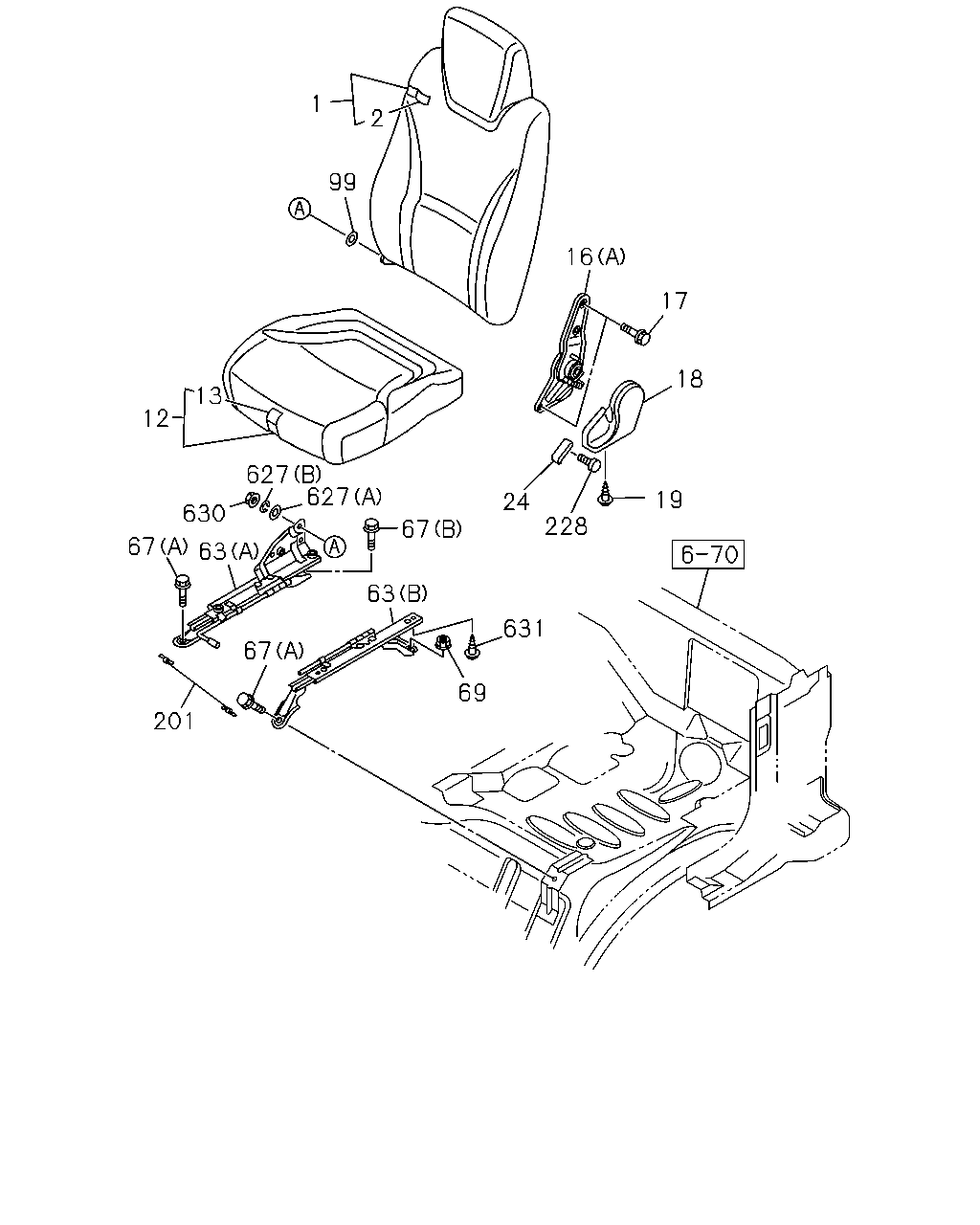

çizim 174810
1 2 99 16 17 18 13 12 627 627 19 24 630 228 67 67 63 63 631 67 69 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-160-7 01 1 1012- ● ●
1 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-155-5 01 1 1012- ● ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-237-1 01 1 1012- ● ●
1 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-236-1 01 1 1012- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-038-2 01 1 1012- ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-152-2 01 1 1012- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-256-0 01 1 1012- ● ●
2 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-255-0 01 1 1012- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-163-3 01 1 1012- ● ●
12 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-153-3 01 1 1012- ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-243-2 01 1 1012- ● ●
12 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-242-2 01 1 1012- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-164-2 01 1 1012- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97414-154-2 01 1 1012- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-262-2 01 1 1012- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-261-2 01 1 1012- ● ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB 		8-97859-274-3 01 1 1012- ● ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98005-418-1 01 1 1012- ● ●
17 BOLT; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M10X20 		8-98062-661-0 04 1 1012- ● ●
18 COVER; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-361-0 01 1 1012- ● ●
19 SCREW; COVER
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M5 		8-98062-663-0 01 1 1012- ● ●
24 KNOB; RECLINING,FRT,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97409-362-0 01 1 1012- ● ●
63 ADJUSTER; SEAT SLIDE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) INNER 		8-98002-907-2 01 1 1012- ● ●
63 ADJUSTER; SEAT SLIDE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) OUTER 		8-98002-908-1 01 1 1012- ● ●
67 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE 		8-98055-941-0 02 1 1012- ● ●
67 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE 		8-98055-942-0 01 1 1012- ● ●
69 NUT; FRT SEAT
M10 FLANGE 		8-98055-961-0 01 1 1012- ● ●
99 BUSHING; SEAT BACK
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> 		8-98112-751-0 01 1 1012- ● ●
201 CABLE; ADJ
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> 		8-98003-086-1 01 1 1012- ● ●
228 SCREW; KNOB
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M4 		8-98062-662-0 01 1 1012- ● ●
627 WASHER; FRT SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98063-223-0 01 1 1012- ● ●
627 WASHER; FRT SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) 		8-98063-224-0 01 1 1012- ● ●
630 NUT; CAP
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8 		8-98063-225-0 01 1 1012- ● ●
631 BOLT; ADJ,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> OUTER M8X25 W/LK WASHER 		8-98062-658-0 02 1 1012- ● ●
631 BOLT; ADJ,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> INNER M8X32 W/LK WASHER 		8-98062-659-0 02 1 1012- ● ●

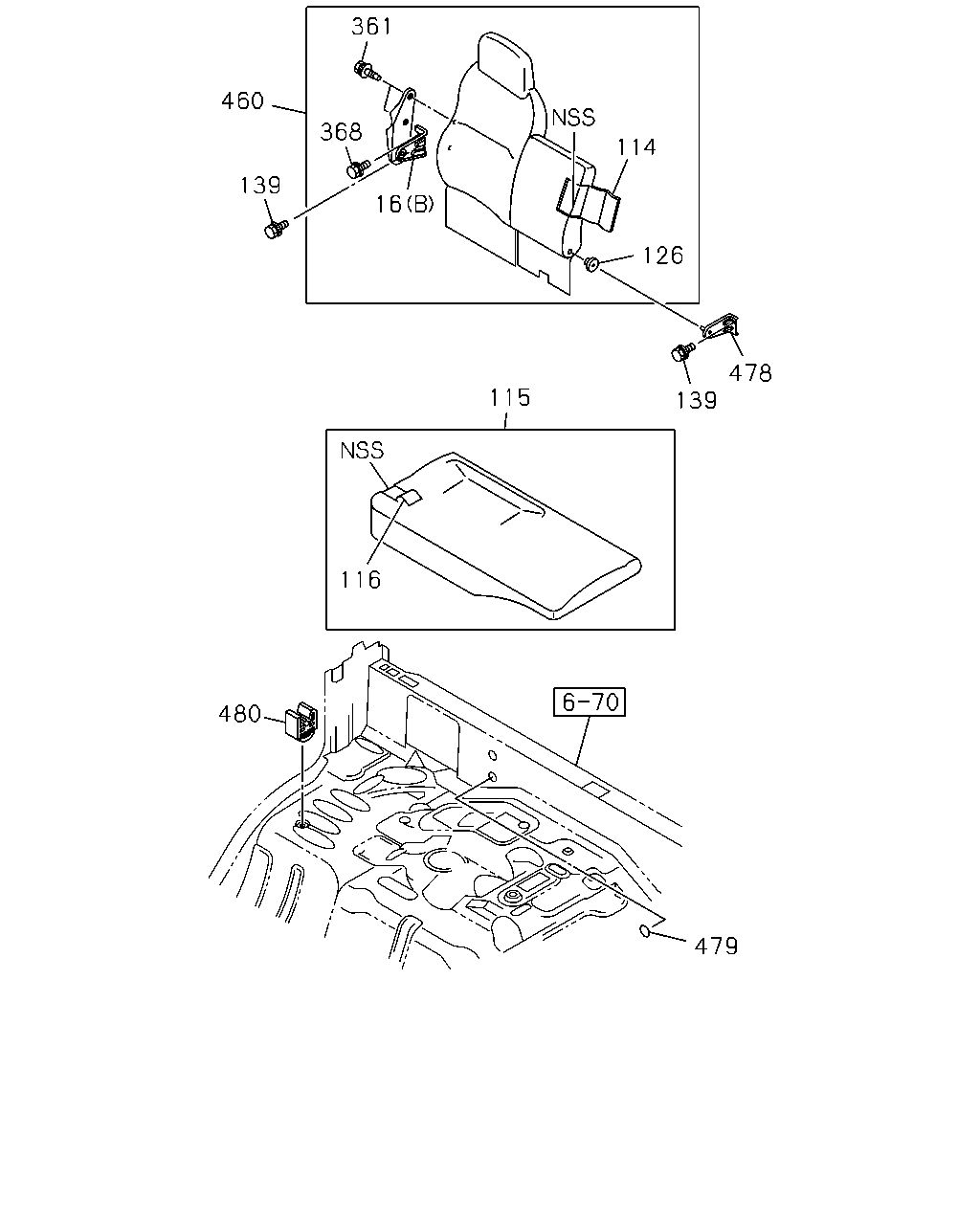

çizim 174814
361 460 368 114 139 16 126 478 115 139 116 480 479
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB 		8-97859-274-3 01 1 1012- ● ●
16 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) 		8-98005-418-1 01 1 1012- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-722-0 01 1 1012- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-294-1 01 1 1012- ● ●
115 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-707-1 01 1 1012- ● ●
115 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-323-2 01 1 1012- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-736-1 01 1 1012- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-343-2 01 1 1012- ● ●
126 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> 		8-98069-558-0 01 1 1012- ● ●
139 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 03 1 1012- ● ●
361 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X18 		8-94279-109-1 02 1 1012- ● ●
368 BOLT; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 1012- ● ●
460 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97418-693-1 01 1 1012- ● ●
460 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY 		8-97421-281-2 01 1 1012- ● ●
478 BRACKET ASM; HINGE,PASSENGER SEAT 8-97868-187-0 01 1 1012- ● ●
479 PLUG; HINGE
OD=25 BLACK 		1-76798-019-0 02 1 1012- ● ●
480 CLIP; CUSHION 8-94279-977-0 05 1 1012- ● ●
