6-20 — SIDE PANEL AND STEP (#53651) — 257 parça

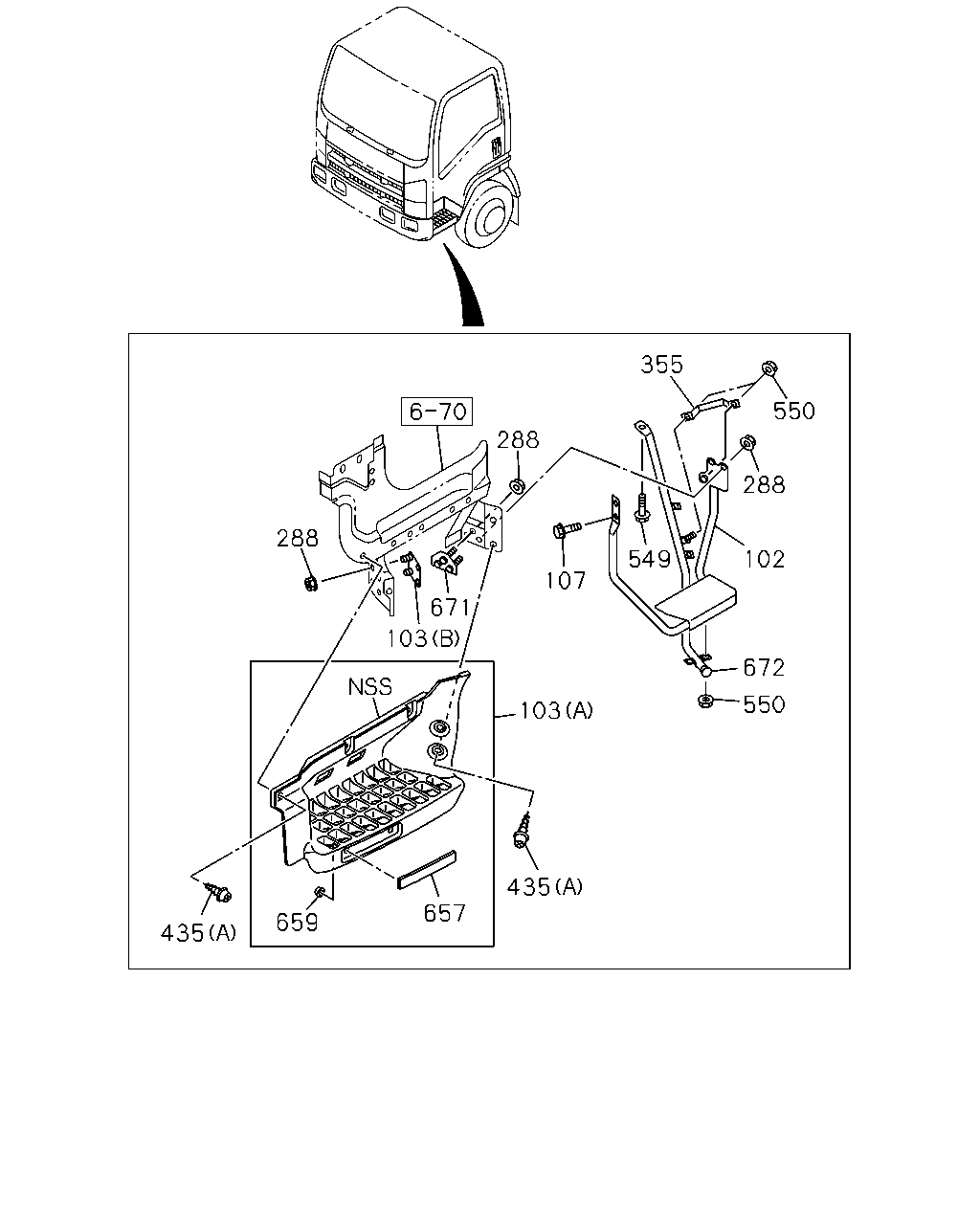

çizim 157267
355 550 288 288 288 549 102 107 671 103 672 550 103 435 657 659 435
BalonParca AdiParca NoAdetTipApplied Date A B
102 12.934 STEP; BODY SIDE 8-98070-083-0 01 1 0710- ● ●
102 12.934 STEP; BODY SIDE 8-98070-082-0 01 1 0710- ● ●
103 08.228 PLATE; STEP
(B) 		8-98070-092-1 01 1 0710- ● ●
103 08.228 PLATE; STEP
(A) 		8-98077-159-0 01 1 0710- ● ●
103 08.228 PLATE; STEP
(B) 		8-98070-091-1 01 1 0710- ● ●
103 08.228 PLATE; STEP
(A) 		8-98077-158-0 01 1 0710- ● ●
107 08.228 BOLT; SIDE STEP
06.216 M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
288 08.225 NUT; STEP
01.062 FRONT M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
288 08.225 NUT; STEP
01.062 REAR M8 FLANGE 		0-91180-108-0 04 1 0710- ●
355 08.225 STAY 8-98070-088-1 02 1 0710- ● ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 0710- ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 0710- ●
549 08.225 BOLT; STAY
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
550 16.714 NUT; STAY
01.062 M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
657 16.585 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 0710- ● ●
659 08.131 CLIP; SPRING NUT 8-97811-510-0 04 1 0710- ● ●
671 16.575 PLATE; STEP RR 8-98070-093-0 02 1 0710- ● ●
672 08.225 STAY; STEP 8-98070-086-0 01 1 0710- ● ●
672 08.225 STAY; STEP 8-98070-085-0 01 1 0710- ● ●

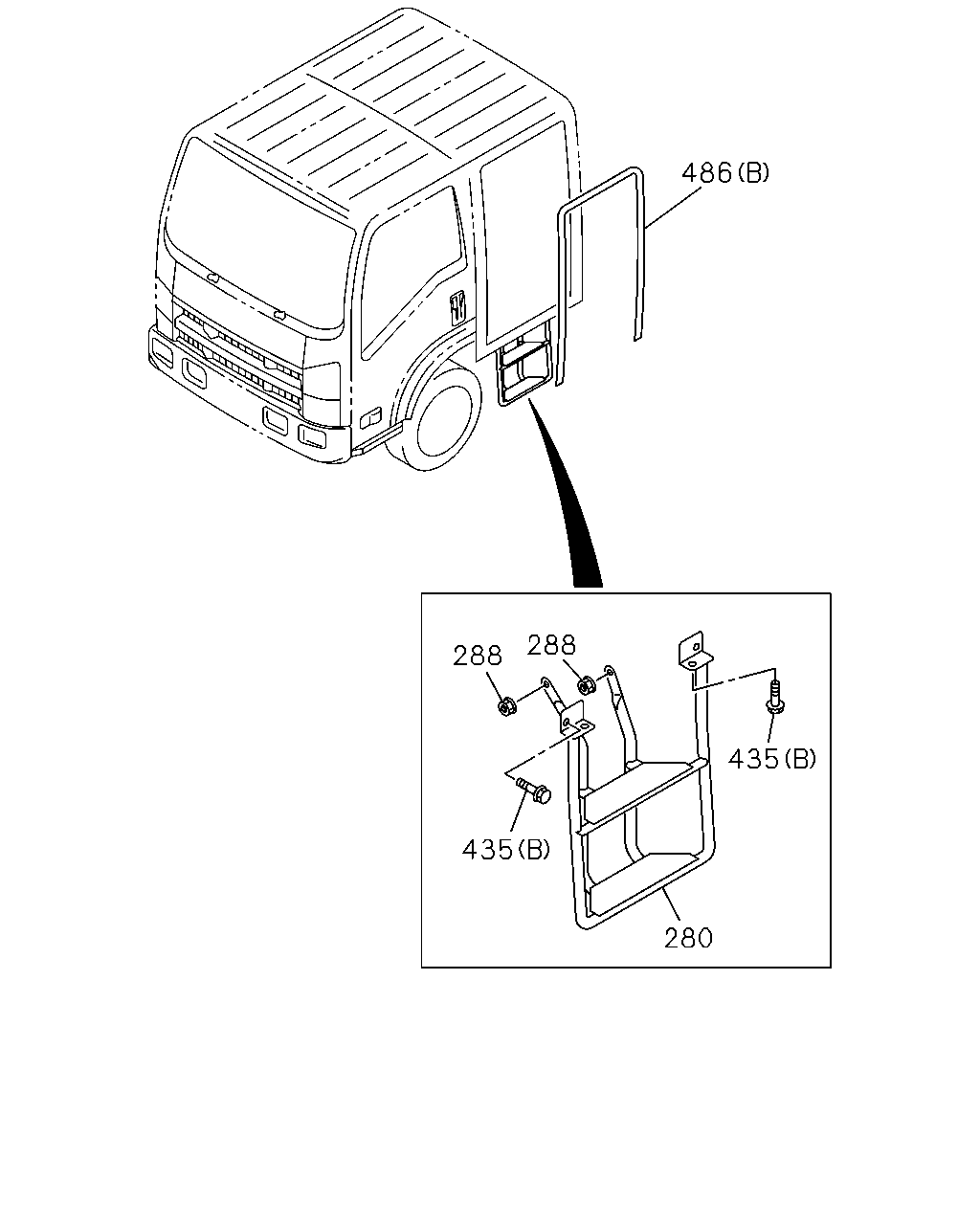

çizim 157270
486 288 288 435 435 280
BalonParca AdiParca NoAdetTipApplied Date A B
280 08.225 STEP ASM; RR 8-98075-437-2 01 1 0710- ●
280 08.225 STEP ASM; RR 8-98075-436-2 01 1 0710- ●
288 08.225 NUT; STEP
01.062 FRONT M8 FLANGE 		0-91180-108-0 08 1 0710- ● ●
288 08.225 NUT; STEP
01.062 REAR M8 FLANGE 		0-91180-108-0 04 1 0710- ●
435 08.225 BOLT; RR STEP
(A) M8X18 		8-98004-345-0 12 1 0710- ● ●
435 08.225 BOLT; RR STEP
01.531 (B) M8X20 FLANGE 		0-28650-820-0 08 1 0710- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710-0903 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR FT ORANGE(609),BODY COLOR GOLDEN YELLOW(904),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710-0802 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLO R HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ●
486 16.570 SEAL; BODY SIDE
(B) DARK GRAY 		8-97405-303-2 02 1 0710-0912 ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1001- ●

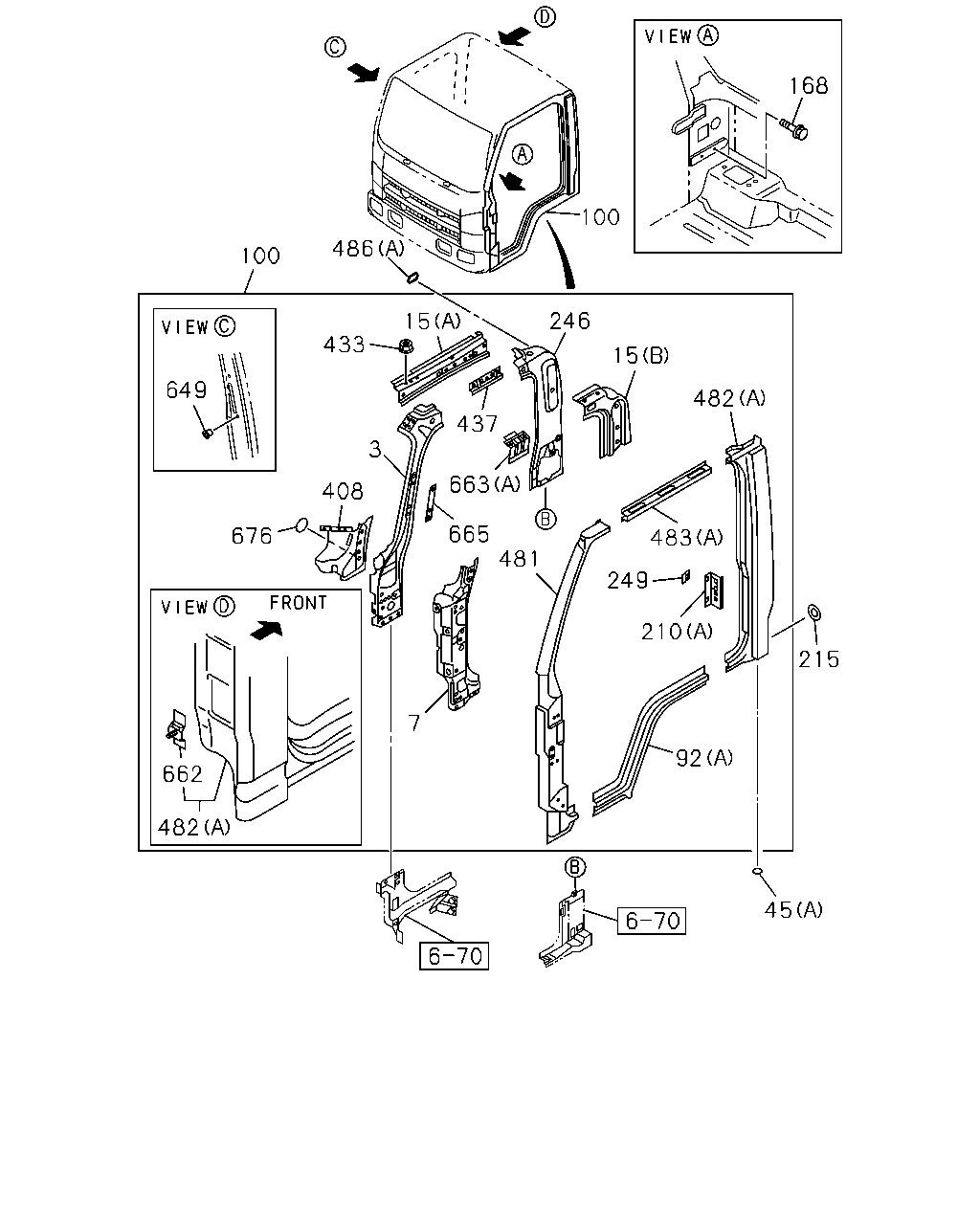

çizim 157281
168 100 486 100 246 15 433 15 649 482 437 3 663 408 665 481 676 483 249 210 215 7 92 662 482 45
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710- ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0710- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0710- ● ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 0710- ●
45 16.570 SEAL; B-C POST
EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0710-0710 ●
45 16.570 SEAL; B-C POST
(B) 		8-97853-731-2 02 1 0710- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0710- ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0710- ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 0710- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0812-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0812-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0803 ●
100 16.570 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> 		8-98088-547-2 01 1 0804-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0803 ●
100 16.570 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> 		8-98088-545-1 01 1 0804-0811 ●
100 16.570 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97586-042-7 01 1 0804-0811 ●
100 16.570 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-042-8 01 1 0812- ●
100 16.570 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97586-034-5 01 1 0804-0811 ●
100 16.570 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-034-6 01 1 0812- ●
100 16.570 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97585-200-9 01 1 0804- ●
100 16.570 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-023-5 01 1 0804- ●
168 16.570 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0803 ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0804- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 0710- ●
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0710- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97585-301-3 01 1 0710- ●
246 16.575 PANEL; RR PILLAR,INNER 8-97586-154-3 01 1 0710- ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0710-0803 ●
249 16.674 REINFORCEMENT; RR PILLAR 8-98012-287-1 01 1 0710-0803 ●
249 16.674 REINFORCEMENT; RR PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98012-287-1 01 1 0804- ●
249 16.674 REINFORCEMENT; RR PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98012-287-1 01 1 0804- ●
249 16.674 REINFORCEMENT; RR PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98012-287-1 02 1 0804- ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 0710- ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 0710- ● ●
433 16.585 NUT; HEADER SHELF
EXC. LAMPS TWO ROOF MARKER<TEC> 16.545 M6 		9-09114-086-0 04 1 0804- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710-0803 ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710-0803 ● ●
433 16.585 NUT; HEADER SHELF
LAMPS TWO ROOF MARKER<TEC> 16.545 M6 		9-09114-086-0 02 1 0804- ●
433 16.585 NUT; HEADER SHELF
LAMPS TWO ROOF MARKER<TEC> 16.545 M6 		9-09114-086-0 02 1 0804- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0804- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0804- ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 0710- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0710- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 0710-0803 ● ●
481 16.570 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98072-714-1 01 1 0804- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 0804- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710-0803 ● ●
481 16.570 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-579-0 01 1 0804- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0804- ●
481 16.570 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-451-0 01 1 0804- ●
481 16.570 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 0804- ●
482 16.570 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) (A) 		8-98092-918-0 01 1 0808-0811 ●
482 16.570 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) (A) 		8-98092-920-0 01 1 0812-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) (A) 		8-98092-921-0 01 1 0808-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0710-0807 ●
482 16.570 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98055-464-0 01 1 0808-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0902- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-472-0 01 1 0710-0807 ●
482 16.570 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98055-472-0 01 1 0808-0811 ●
482 16.570 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98055-463-0 01 1 0812-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 0902- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 0710- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-241-0 01 1 0710-0811 ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 0812- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0710- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710-0903 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> (A) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ●
486 16.570 SEAL; BODY SIDE
BODY COLOR FT ORANGE(609),BODY COLOR GOLDEN YELLOW(904),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710-0802 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ●
486 16.570 SEAL; BODY SIDE
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLO R HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 (A) OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ●
486 16.570 SEAL; BODY SIDE
(B) DARK GRAY 		8-97405-303-2 02 1 0710-0912 ●
486 16.570 SEAL; BODY SIDE
(B) 		8-98154-664-0 02 1 1001- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 0710- ● ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 0710- ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 0710- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0710- ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0710- ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97585-314-0 02 1 0804- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710-0803 ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710-0803 ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST
LAMPS TWO ROOF MARKER<TEC> 		8-97585-314-0 01 1 0804- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST
LAMPS TWO ROOF MARKER<TEC> 		8-97585-314-0 01 1 0804- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0804- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0804- ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1007- ● ●

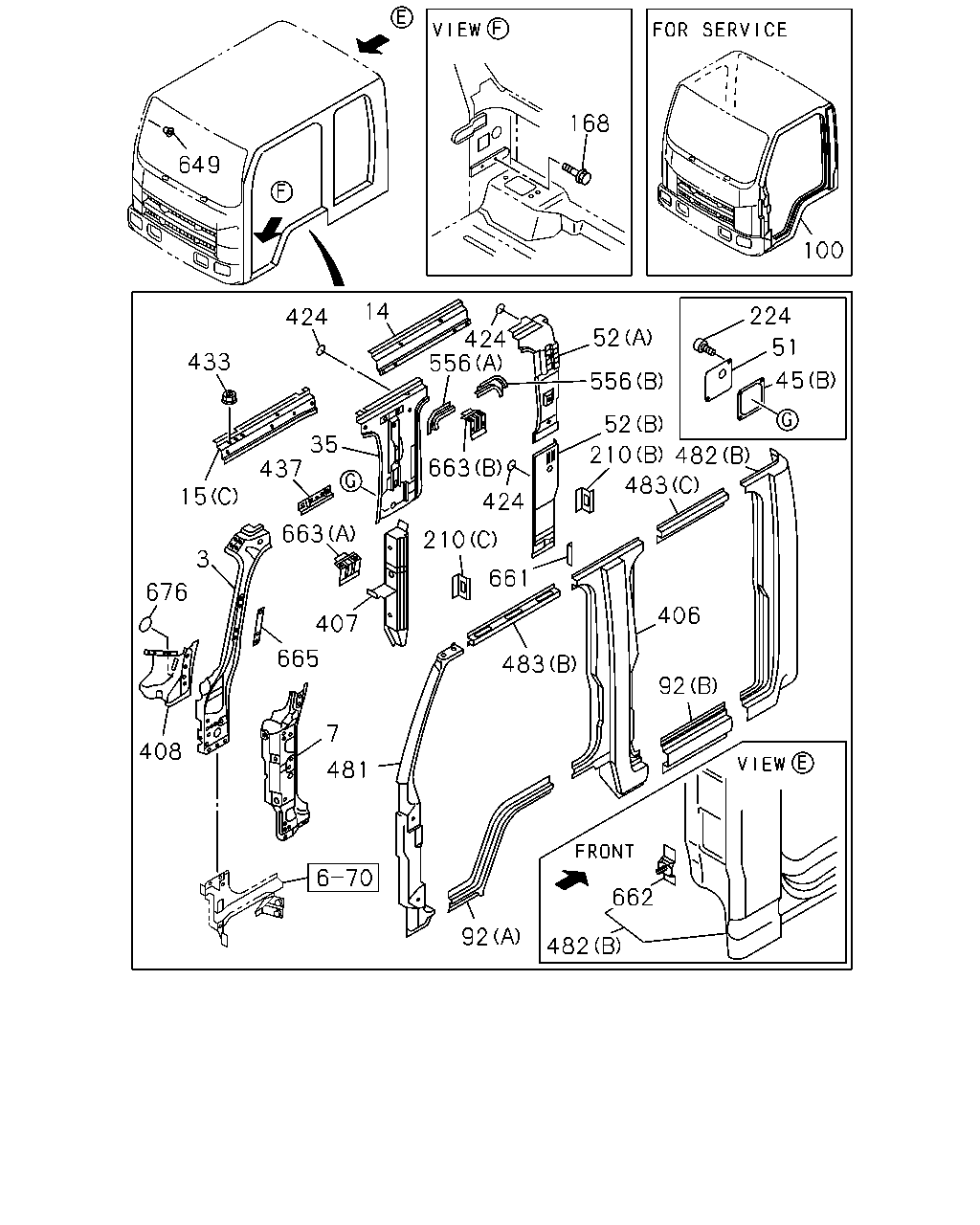

çizim 157289
168 649 100 14 224 424 52 424 556 51 433 45 556 52 35 437 210 482 663 483 15 424 663 210 3 661 676 406 407 665 483 92 7 408 481 662 92 482
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0710- ● ●
3 16.592 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0710- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0710- ● ●
7 16.570 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0710- ● ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 0710- ●
14 16.592 PANEL; REINF,SIDE DRIP 8-97583-706-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-295-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-303-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97585-294-2 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97585-302-1 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-740-1 01 1 0710- ●
15 16.592 PANEL; CANT RAIL SIDE
(C) 		8-97583-739-1 01 1 0710- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-97583-703-4 01 1 0710- ●
35 16.570 PANEL; CENTER PILLAR,INNER 8-98013-489-4 01 1 0710- ●
45 16.570 SEAL; B-C POST
EXC. MANUAL TILT CAB<RWZ> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0710-0710 ●
45 16.570 SEAL; B-C POST
(B) 		8-97853-731-2 02 1 0710- ●
51 16.570 COVER; HOLE,B-C POST 8-94273-658-0 02 1 0710- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-708-4 01 1 0710- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-780-2 01 1 0710- ●
52 16.588 PANEL; D-POST UPR
(A) 		8-97583-707-4 01 1 0710- ●
52 16.588 PANEL; D-POST UPR
(B) 		8-97583-779-2 01 1 0710- ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-462-1 01 1 0710- ● ●
92 16.570 PANEL; SIDE SILL,CAB
(A) 		8-98055-461-1 01 1 0710- ● ●
92 16.570 PANEL; SIDE SILL,CAB
16.507 (B) 		8-98069-113-0 02 1 0710- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 0812-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-034-6 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 0812-1402 ●
100 16.570 PANEL ASM; BODY SIDE 8-97586-042-8 01 1 1403- ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-547-2 01 1 0710-0803 ●
100 16.570 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> 		8-98088-547-2 01 1 0804-0811 ●
100 16.570 PANEL ASM; BODY SIDE 8-98088-545-1 01 1 0710-0803 ●
100 16.570 PANEL ASM; BODY SIDE
AUSTRALIA EQUIPMENT(B13) LAMPS TWO ROOF MARKER<TEC> 		8-98088-545-1 01 1 0804-0811 ●
100 16.570 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97586-042-7 01 1 0804-0811 ●
100 16.570 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-042-8 01 1 0812- ●
100 16.570 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. AUSTRALIA EQUIPMENT(B13) 		8-97586-034-5 01 1 0804-0811 ●
100 16.570 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-97586-034-6 01 1 0812- ●
100 16.570 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97585-200-9 01 1 0804- ●
100 16.570 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-023-5 01 1 0804- ●
168 16.570 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0710-0803 ● ●
168 16.570 BOLT; BODY SIDE PANEL
16.650 T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0804- ● ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-261-4 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(A) 		8-97585-260-4 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-446-1 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-549-0 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(B) 		8-97851-445-1 01 1 0710- ●
210 16.588 PANEL; DOOR STRIKER REINF
(C) 		8-98014-548-0 01 1 0710- ●
224 16.570 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 0710- ●
406 16.570 PILLAR; CENTER 8-98097-234-0 01 1 0710-0901 ●
406 16.570 PILLAR; CENTER 8-98069-086-0 01 1 0902- ●
406 16.570 PILLAR; CENTER 8-98097-233-0 01 1 0710-0901 ●
406 16.570 PILLAR; CENTER 8-98069-085-0 01 1 0902- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-98089-274-1 01 1 0710-0811 ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-824-2 01 1 0812- ●
407 16.570 PILLAR; HINGE,RR DOOR 8-97410-822-2 01 1 0710- ●
408 16.570 GUSSET; PILLAR 8-97585-317-4 01 1 0710- ● ●
408 16.570 GUSSET; PILLAR 8-97585-316-3 01 1 0710- ● ●
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 0710-0903 ●
424 16.570 SEAL; CLOSING
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 12 1 0904- ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR GOLDEN YELLOW(904),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 0710-0802 ●
424 16.570 SEAL; CLOSING
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 0803-0903 ●
424 16.570 SEAL; CLOSING
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR BRIGHT YELLOW(538), BODY COLOR TELEMAGENTA(539),BODY COLOR FTORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY C OLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLO R HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 12 1 0904- ●
433 16.585 NUT; HEADER SHELF
EXC. LAMPS TWO ROOF MARKER<TEC> 16.545 M6 		9-09114-086-0 04 1 0804- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710-0803 ● ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0710-0803 ● ●
433 16.585 NUT; HEADER SHELF
LAMPS TWO ROOF MARKER<TEC> 16.545 M6 		9-09114-086-0 02 1 0804- ●
433 16.585 NUT; HEADER SHELF
LAMPS TWO ROOF MARKER<TEC> 16.545 M6 		9-09114-086-0 02 1 0804- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0804- ●
433 16.585 NUT; HEADER SHELF
16.545 M6 		9-09114-086-0 02 1 0804- ●
437 08.155 BRACKET; ROOF RAIL 8-98039-020-0 01 1 0710- ● ●
437 08.155 BRACKET; ROOF RAIL 8-98039-019-0 01 1 0710- ● ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 0710-0803 ● ●
481 16.570 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98072-714-1 01 1 0804- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98072-714-1 01 1 0804- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0710-0803 ● ●
481 16.570 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-579-0 01 1 0804- ●
481 16.570 PANEL; SIDE FRT PILLAR 8-98093-579-0 01 1 0804- ●
481 16.570 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-451-0 01 1 0804- ●
481 16.570 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 0804- ●
482 16.570 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) (A) 		8-98092-918-0 01 1 0808-0811 ●
482 16.570 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) (A) 		8-98092-920-0 01 1 0812-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
AUSTRALIA EQUIPMENT(B13) (A) 		8-98092-921-0 01 1 0808-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0710-0807 ●
482 16.570 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98055-464-0 01 1 0808-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-464-0 01 1 0902- ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-472-0 01 1 0710-0807 ●
482 16.570 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98055-472-0 01 1 0808-0811 ●
482 16.570 PANEL; SIDE RR PILLAR
EXC. AUSTRALIA EQUIPMENT(B13) (A) 		8-98055-463-0 01 1 0812-0901 ●
482 16.570 PANEL; SIDE RR PILLAR
(A) 		8-98055-463-0 01 1 0902- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-238-0 01 1 0710- ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-241-0 01 1 0710-0811 ●
482 16.570 PANEL; SIDE RR PILLAR
(B) 		8-98097-237-0 01 1 0812- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-460-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(A) 		8-98055-458-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
16.592 (C) 		8-98069-095-0 02 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-609-0 01 1 0710- ●
483 16.570 PANEL; SIDE CANTRAIL
(B) 		8-98056-608-0 01 1 0710- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-391-0 01 1 0710- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-393-0 01 1 0710- ●
556 16.570 PATCH; ROOF SIDE
(A) 		8-98024-390-0 01 1 0710- ●
556 16.570 PATCH; ROOF SIDE
(B) 		8-98024-392-0 01 1 0710- ●
649 16.570 NUT; POP
09.647 M5 POP NUT 		8-97249-574-0 02 1 0710- ● ●
661 16.570 BRACKET; SIDE PANEL 8-98012-623-1 01 1 0710- ●
661 16.570 BRACKET; SIDE PANEL 8-98012-621-1 01 1 0710- ●
662 16.570 BRACKET; DUCT 8-97584-611-1 01 1 0710- ●
662 16.570 BRACKET; DUCT 8-98006-778-1 01 1 0710- ●
663 08.228 BRACKET; AIR
(A) 		8-97585-208-2 01 1 0710- ● ●
663 08.228 BRACKET; AIR
(A) 		8-97585-207-2 01 1 0710- ● ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ●
663 08.228 BRACKET; AIR
(B) 		8-98020-643-1 01 1 0710- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97585-314-0 02 1 0804- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710-0803 ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0710-0803 ● ●
665 16.575 REINFORCEMENT; GRIP,ASSIST
LAMPS TWO ROOF MARKER<TEC> 		8-97585-314-0 01 1 0804- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST
LAMPS TWO ROOF MARKER<TEC> 		8-97585-314-0 01 1 0804- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0804- ●
665 16.575 REINFORCEMENT; GRIP,ASSIST 8-97585-314-0 01 1 0804- ●
676 16.520 SEAL
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 1007- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
