1 |
SHOE; BRK,RR
REARWARD
|
1-47110-853-0 |
04 |
1 |
9603-9901 |
● |
|
|
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
|
1-47120-660-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
CXM=FORWARD
|
1-47110-893-0 |
04 |
1 |
9603-9901 |
● |
|
|
| |
1 |
SHOE; BRK,RR

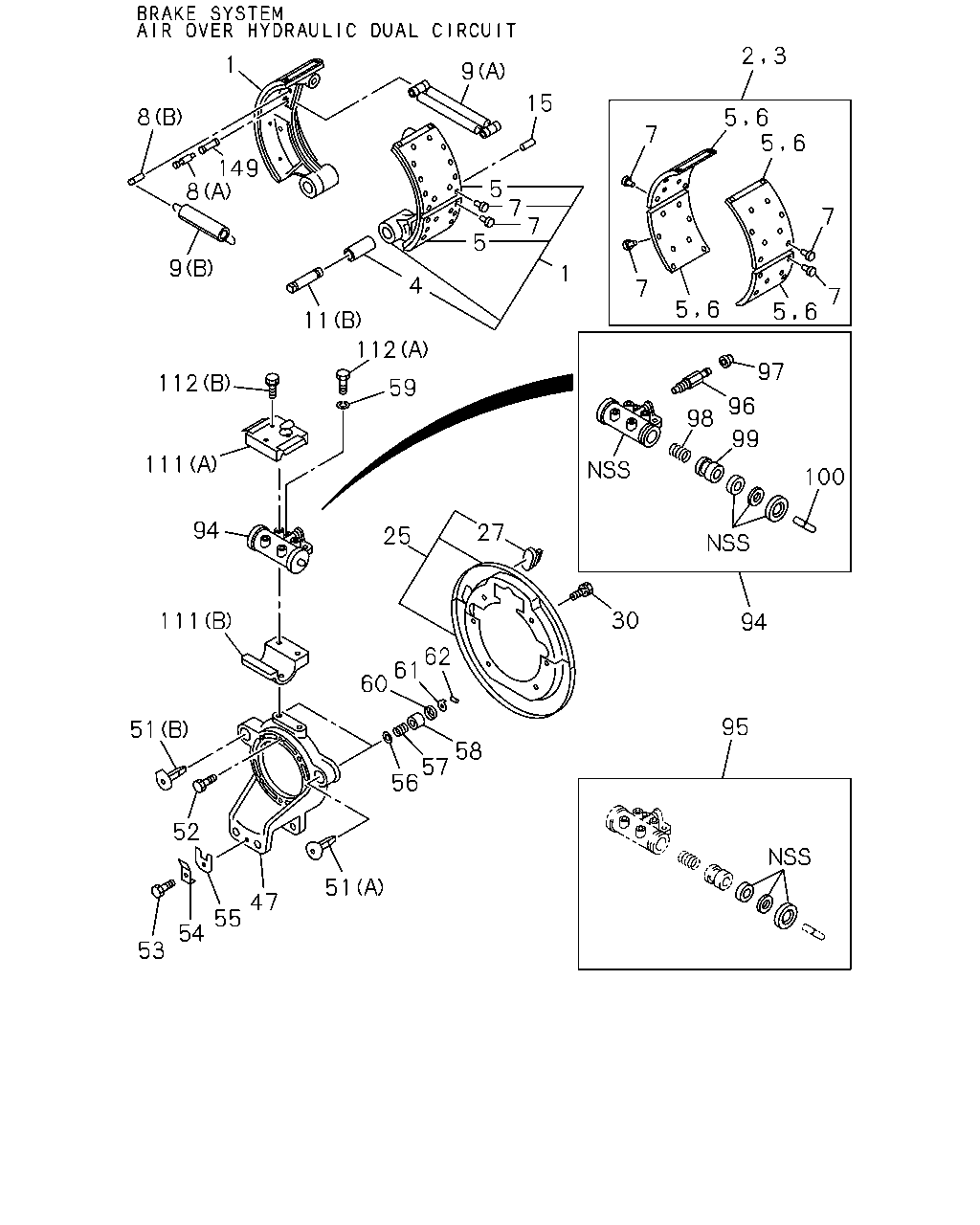

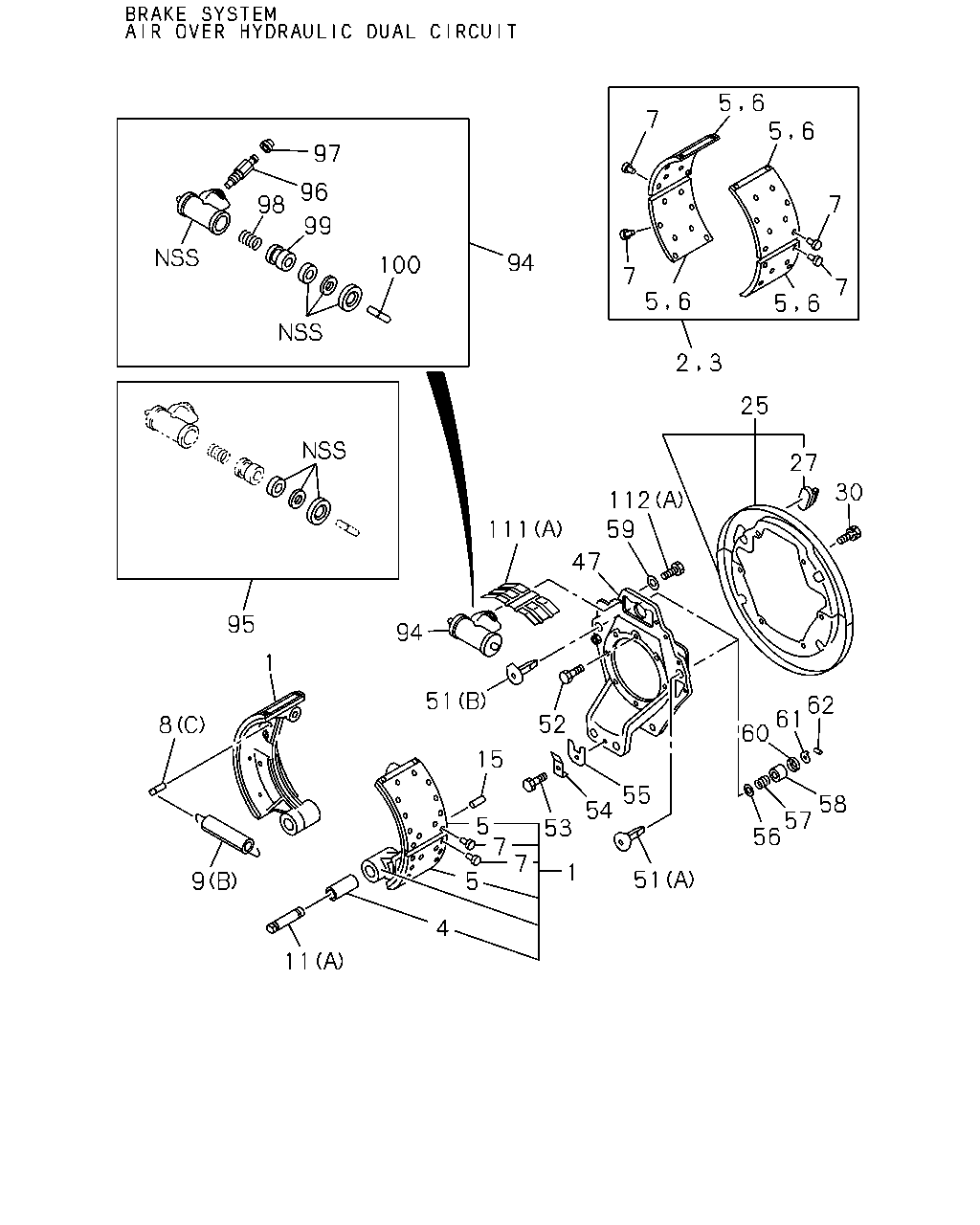

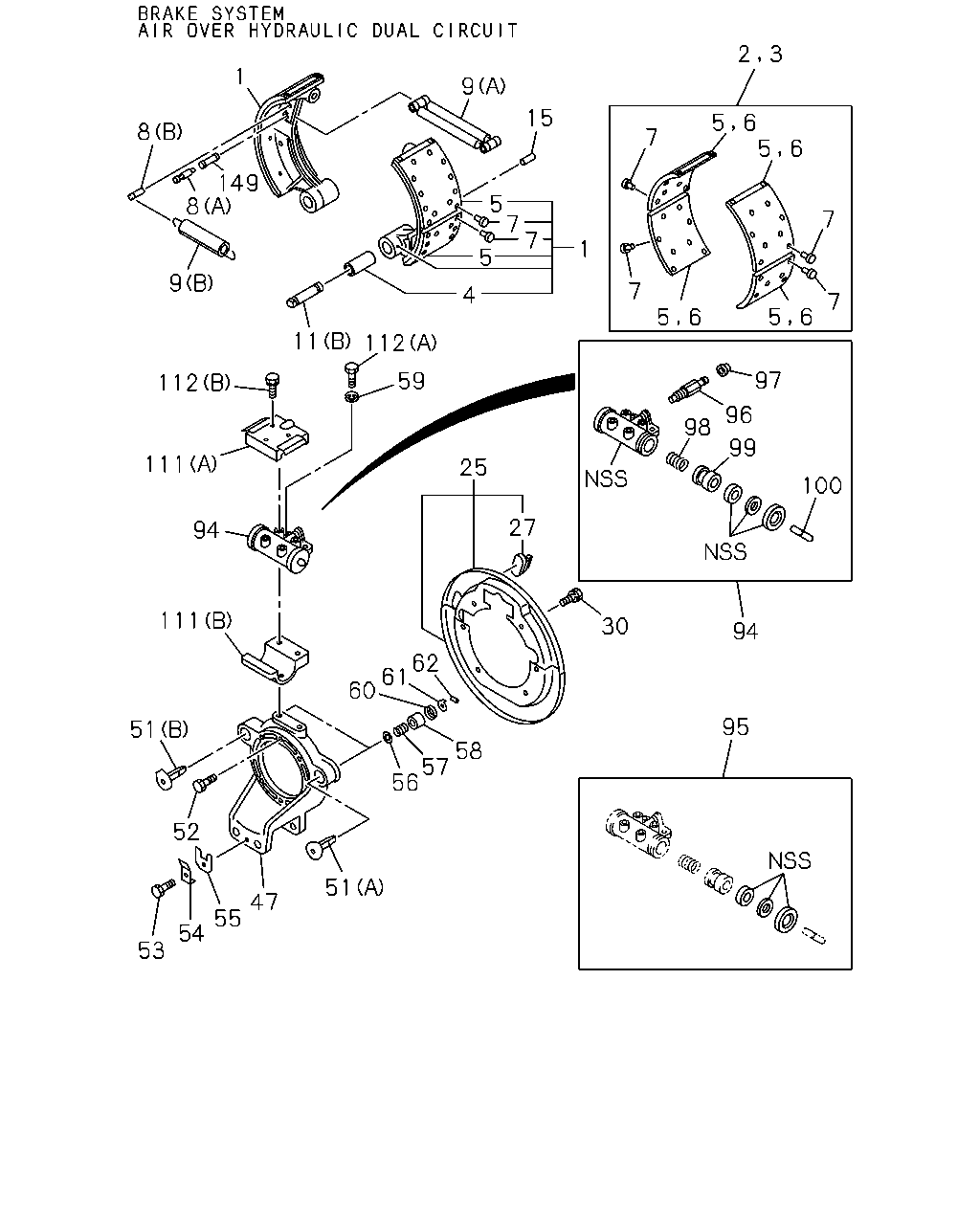

BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47110-893-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47110-893-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FORWARD
|
1-47120-328-0 |
04 |
1 |
9905- |
● |
|
|
| |
1 |
SHOE; BRK,RR
CXM=REARWARD
|
1-47120-329-0 |
04 |
1 |
9905- |
● |
|
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=REARWARD
|
1-47120-329-0 |
04 |
1 |
9905- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=REARWARD
|
1-47120-329-0 |
04 |
1 |
9905- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-47110-928-0 |
04 |
1 |
9603-9901 |
|
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-47110-928-0 |
04 |
1 |
9603-9901 |
|
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-47120-330-0 |
04 |
1 |
9905- |
|
● |
|
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-47120-330-0 |
04 |
1 |
9905- |
|
● |
|
| |
1 |
SHOE; BRK,RR

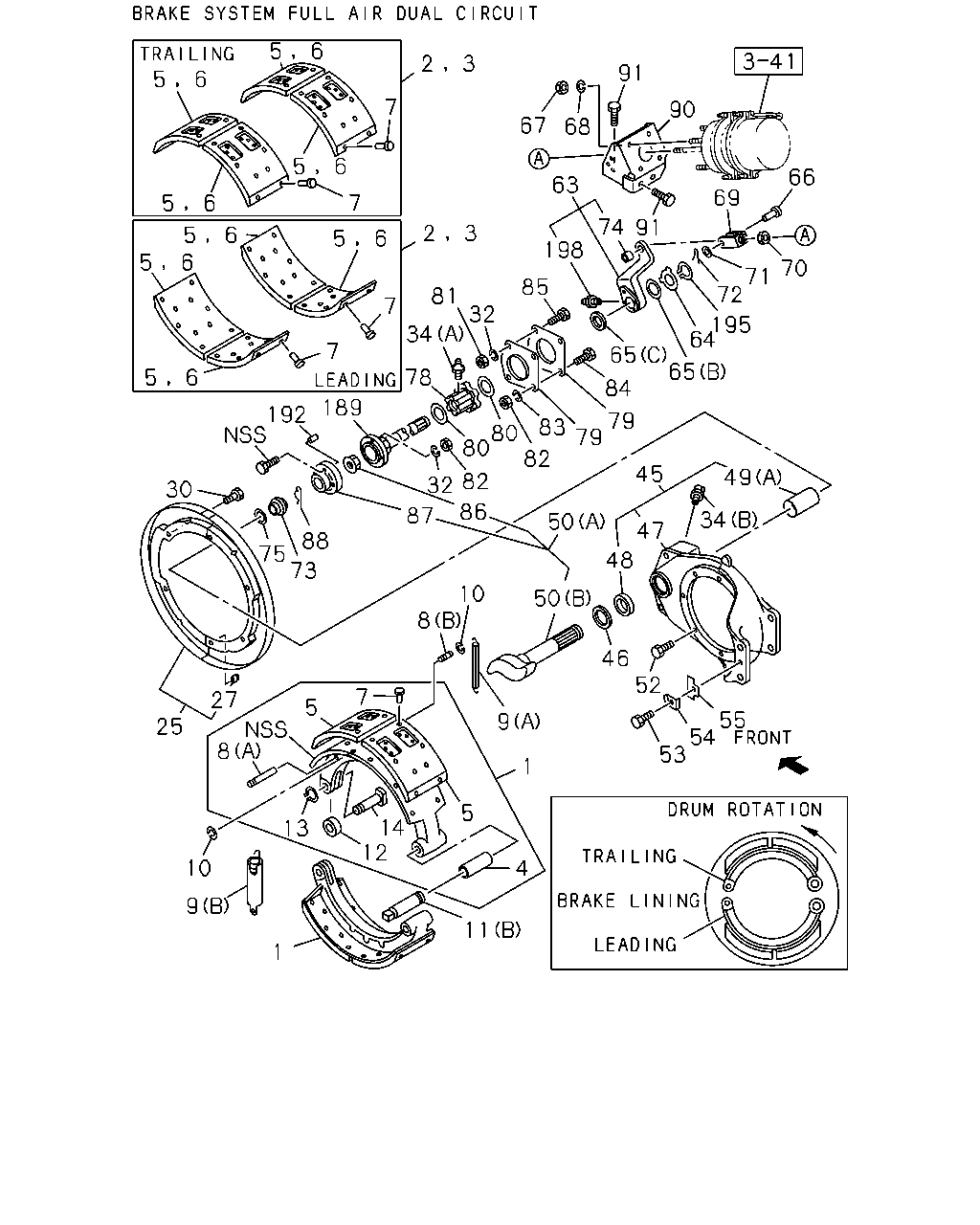

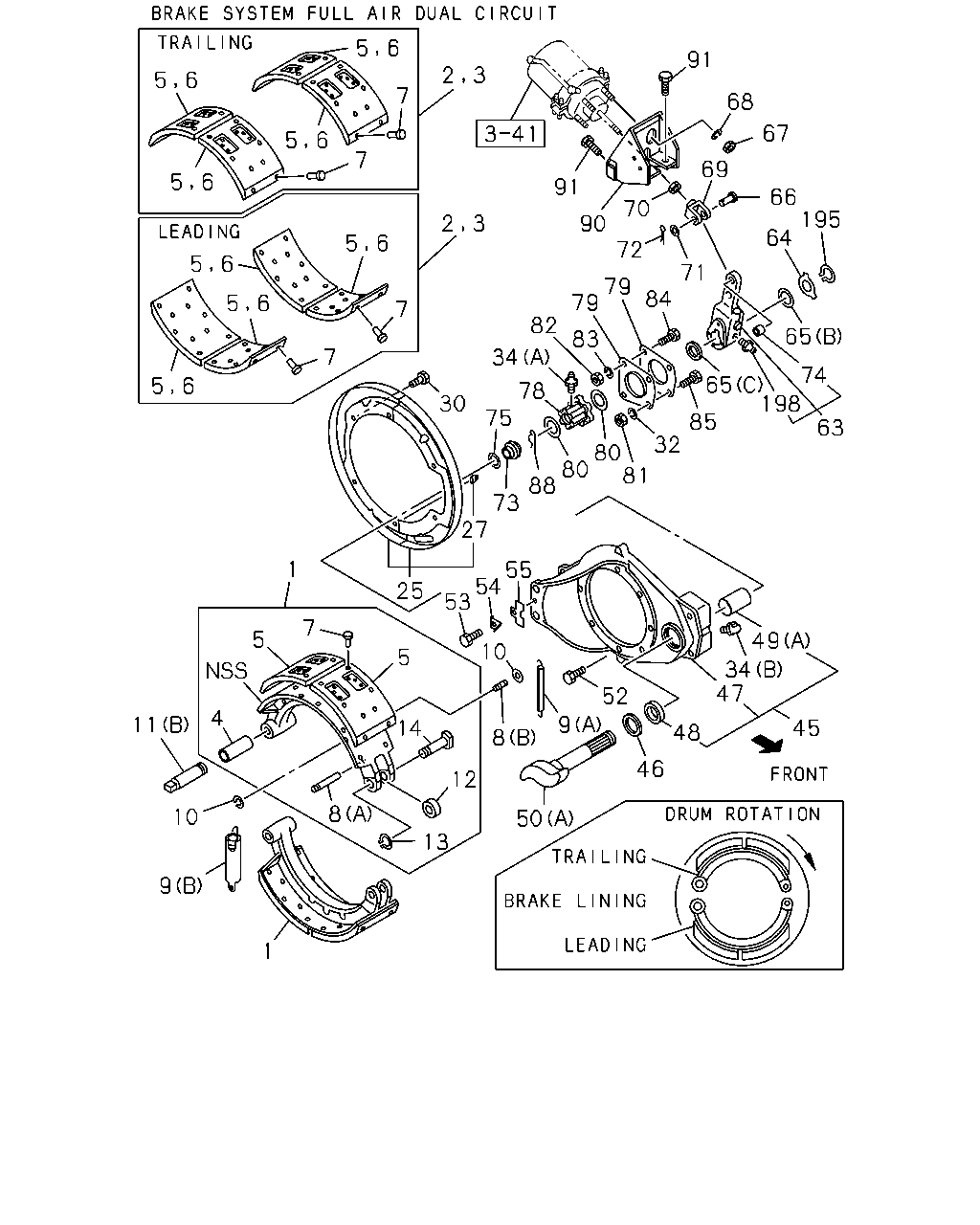

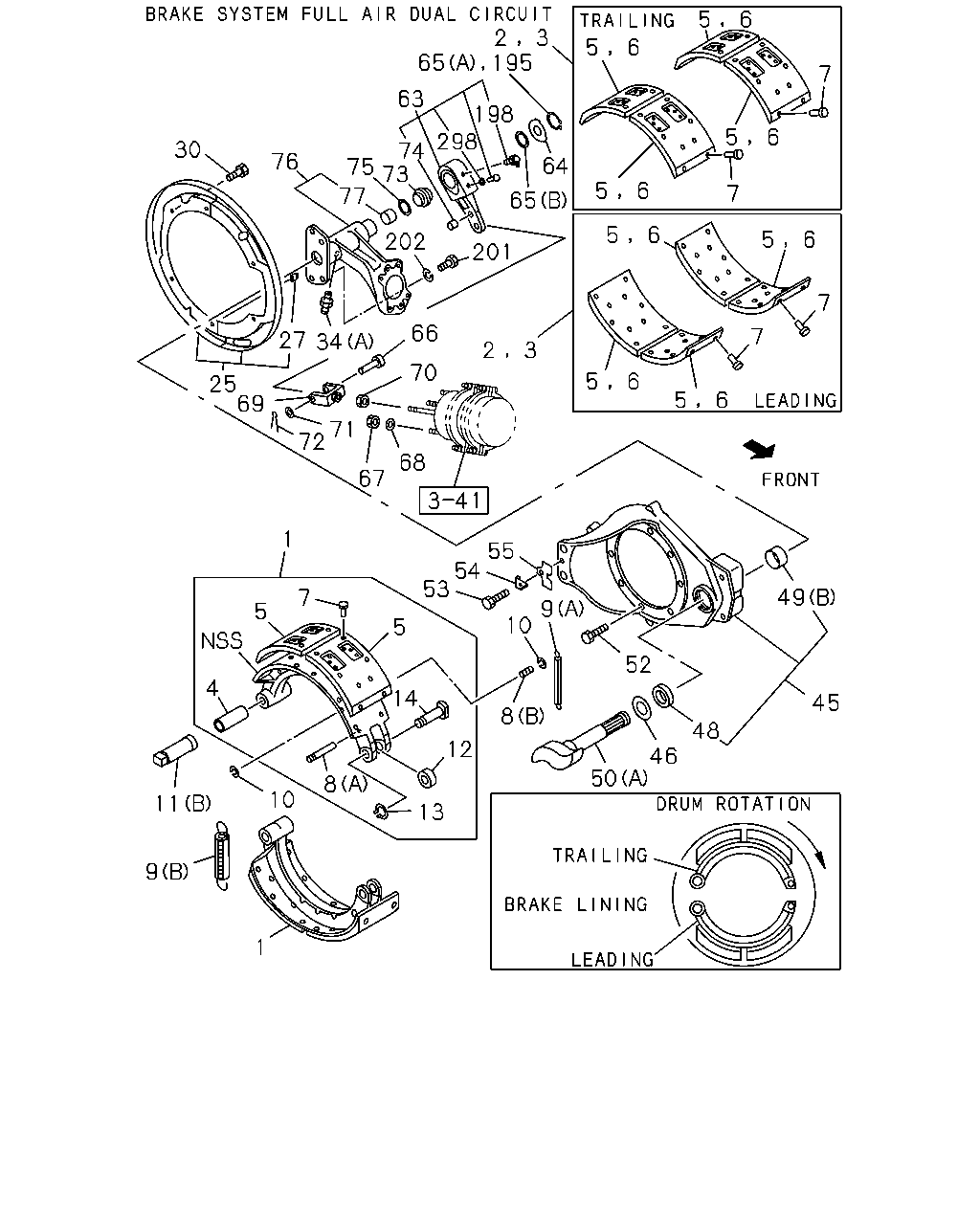

BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47110-969-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47110-969-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
SHOE; BRK,RR

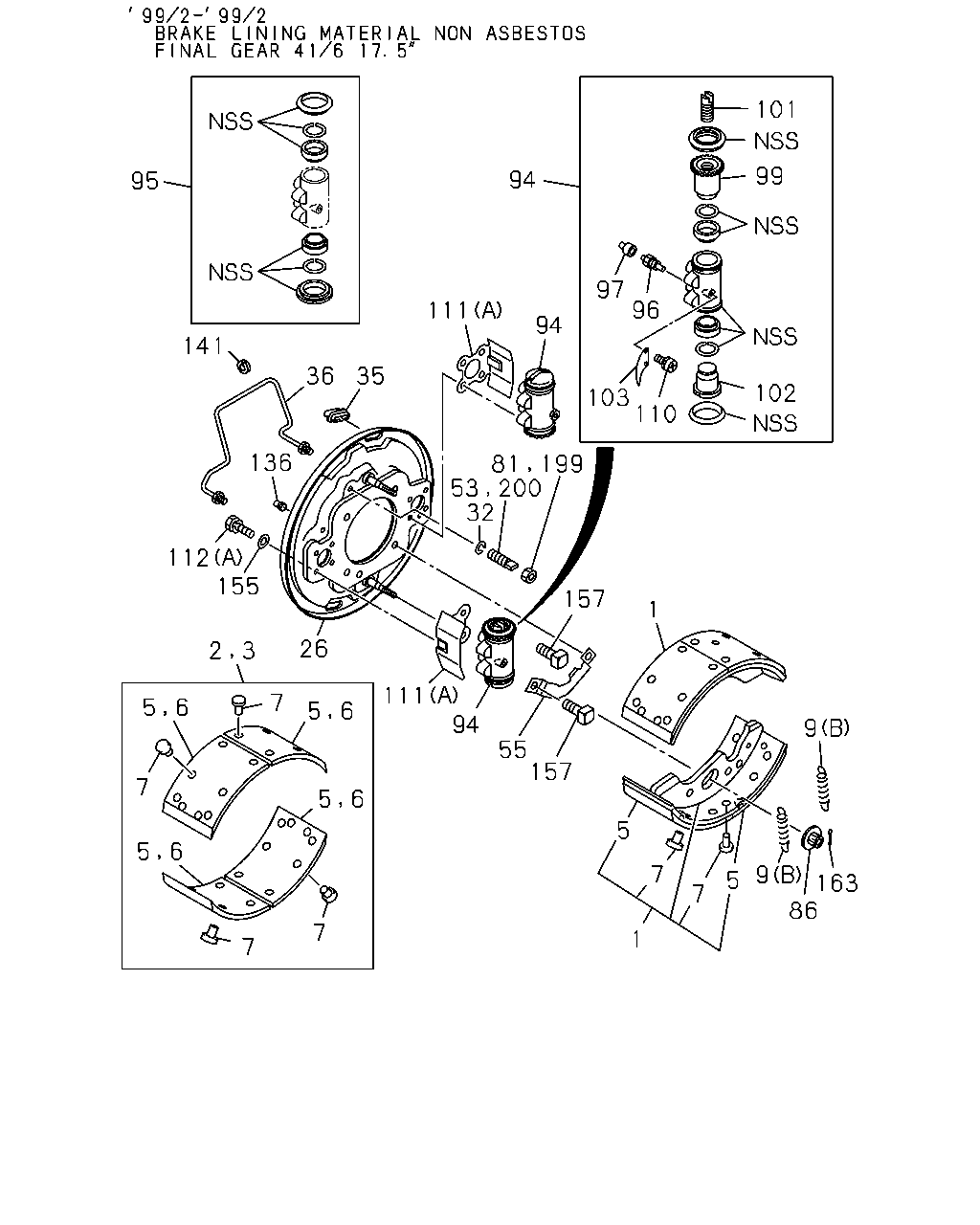

FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
|
1-47120-338-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
|
1-47120-338-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
|
1-47120-338-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
|
1-47120-338-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47120-338-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47120-338-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-338-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
|
1-47120-338-0 |
01 |
1 |
9911- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
|
1-47120-338-0 |
01 |
1 |
9911- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47110-970-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47110-970-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
TRAILING
|
1-47120-339-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
TRAILING
|
1-47120-339-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
TRAILING
|
1-47120-339-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
TRAILING
|
1-47120-339-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47120-339-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47120-339-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-339-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
TRAILING
|
1-47120-339-0 |
01 |
1 |
9911- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
TRAILING
|
1-47120-339-0 |
01 |
1 |
9911- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING BLACK 2 LINES
|
1-47110-967-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING BLACK 2 LINES
|
1-47110-967-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
|
1-47120-336-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
|
1-47120-336-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
|
1-47120-336-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
|
1-47120-336-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47120-336-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
LEADING
|
1-47120-336-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-336-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
|
1-47120-336-0 |
01 |
1 |
9911- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
|
1-47120-336-0 |
01 |
1 |
9911- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING BLACK 2 LINES
|
1-47110-968-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING BLACK 2 LINES
|
1-47110-968-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
TRAILING
|
1-47120-337-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
TRAILING
|
1-47120-337-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
TRAILING
|
1-47120-337-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
TRAILING
|
1-47120-337-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47120-337-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
TRAILING
|
1-47120-337-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-337-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
TRAILING
|
1-47120-337-0 |
01 |
1 |
9911- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
TRAILING
|
1-47120-337-0 |
01 |
1 |
9911- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-969-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-969-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-969-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-969-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-715-0 |
01 |
1 |
0007- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-715-0 |
01 |
1 |
0007- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-970-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-970-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-970-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-970-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-716-0 |
01 |
1 |
0007- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-716-0 |
01 |
1 |
0007- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-967-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-967-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-967-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-967-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-713-0 |
01 |
1 |
0007- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-713-0 |
01 |
1 |
0007- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-968-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-968-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-968-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-968-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-714-0 |
01 |
1 |
0007- |
|
● |
● |
| |
1 |
SHOE; BRK,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-714-0 |
01 |
1 |
0007- |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
REARWARD
|
1-88302-923-0 |
02 |
1 |
9603-9901 |
● |
|
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
|
1-88310-313-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
|
1-88310-313-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
|
1-88310-313-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
|
1-88310-313-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
LEADING
|
1-88310-313-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
LEADING
|
1-88310-313-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
CXM=FORWARD
|
1-88310-313-0 |
02 |
1 |
9905-9908 |
● |
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CXM=FORWARD
|
1-88310-313-0 |
02 |
1 |
9905-9908 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
CXM=FORWARD
|
1-88310-313-0 |
02 |
1 |
9909- |
● |
|
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-88310-313-0 |
02 |
1 |
9909- |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-88310-313-0 |
02 |
1 |
9909- |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
CXM=FORWARD
|
1-88302-925-0 |
02 |
1 |
9603-9901 |
● |
|
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-88302-925-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-88302-925-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
TRAILING
|
1-88310-315-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
TRAILING
|
1-88310-315-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
TRAILING
|
1-88310-315-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
TRAILING
|
1-88310-315-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
TRAILING
|
1-88310-315-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
TRAILING
|
1-88310-315-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-315-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
TRAILING
|
1-88310-315-0 |
01 |
1 |
9911- |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
TRAILING
|
1-88310-315-0 |
01 |
1 |
9911- |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
REARWARD
|
1-88310-573-0 |
02 |
1 |
9905- |
● |
|
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-88302-951-0 |
02 |
1 |
9603-9901 |
|
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-88302-951-0 |
02 |
1 |
9603-9901 |
|
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
|
1-88310-553-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-88310-317-0 |
02 |
1 |
9905- |
|
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-88310-317-0 |
02 |
1 |
9905- |
|
● |
|
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-88302-925-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-88302-925-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88302-933-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88302-933-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-313-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-313-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
|
1-88310-313-0 |
01 |
1 |
9911- |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
|
1-88310-313-0 |
01 |
1 |
9911- |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-315-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-315-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-925-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-925-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-925-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-925-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-521-0 |
01 |
1 |
0007- |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-521-0 |
01 |
1 |
0007- |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88302-933-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88302-933-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88302-933-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88302-933-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-523-0 |
01 |
1 |
0007- |
|
● |
● |
| |
2 |
LINING SET; RR BRK,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-523-0 |
01 |
1 |
0007- |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
REARWARD
|
1-88302-924-0 |
02 |
1 |
9603-9901 |
● |
|
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
|
1-88310-314-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
|
1-88310-314-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
|
1-88310-314-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
|
1-88310-314-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
LEADING
|
1-88310-314-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
LEADING
|
1-88310-314-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
LEADING
|
1-88310-314-0 |
02 |
1 |
9905-9908 |
● |
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
LEADING
|
1-88310-314-0 |
02 |
1 |
9905-9908 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
CXM=FORWARD
|
1-88310-314-0 |
02 |
1 |
9909- |
● |
|
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-88310-314-0 |
02 |
1 |
9909- |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-88310-314-0 |
02 |
1 |
9909- |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
CXM=FORWARD
|
1-88302-926-0 |
02 |
1 |
9603-9901 |
● |
|
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-88302-926-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-88302-926-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
TRAILING
|
1-88310-316-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
TRAILING
|
1-88310-316-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
TRAILING
|
1-88310-316-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
TRAILING
|
1-88310-316-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
TRAILING
|
1-88310-316-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
TRAILING
|
1-88310-316-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-316-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
TRAILING
|
1-88310-316-0 |
01 |
1 |
9911- |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
TRAILING
|
1-88310-316-0 |
01 |
1 |
9911- |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
REARWARD
|
1-88310-574-0 |
02 |
1 |
9905- |
● |
|
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-88302-952-0 |
02 |
1 |
9603-9901 |
|
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-88302-952-0 |
02 |
1 |
9603-9901 |
|
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
|
1-88310-554-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-88310-318-0 |
02 |
1 |
9905- |
|
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-88310-318-0 |
02 |
1 |
9905- |
|
● |
|
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-88302-926-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-88302-926-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88302-934-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88302-934-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88302-934-0 |
01 |
1 |
9905-0006 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-88302-934-0 |
01 |
1 |
9905-0006 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-524-0 |
01 |
1 |
0007- |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-524-0 |
01 |
1 |
0007- |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-314-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-314-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
|
1-88310-314-0 |
01 |
1 |
9911- |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
|
1-88310-314-0 |
01 |
1 |
9911- |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-316-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-316-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-926-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-926-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-926-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-926-0 |
01 |
1 |
9911-0006 |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-522-0 |
01 |
1 |
0007- |
|
● |
● |
| |
3 |
LINING SET; RR BRK,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-522-0 |
01 |
1 |
0007- |
|
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
REARWARD
|
1-47112-011-0 |
04 |
1 |
9603-9901 |
● |
|
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
REARWARD
|
1-47112-011-0 |
04 |
1 |
9905- |
● |
|
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
CXM=FORWARD
|
1-47112-012-0 |
04 |
1 |
9603-9901 |
● |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
CXM=FORWARD
|
1-47112-012-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47112-012-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47112-012-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47112-012-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47112-012-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
|
1-47112-012-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
|
1-47112-012-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47112-012-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CXM=FORWARD
|
1-47112-012-0 |
04 |
1 |
9911-9911 |
● |
● |
|
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
CXM=FORWARD
|
1-47112-012-0 |
04 |
1 |
9911-9911 |
|
|
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
CXM=FORWARD
|
1-47112-012-0 |
04 |
1 |
9911- |
● |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
CXM=FORWARD
|
1-47112-012-0 |
04 |
1 |
9911- |
|
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
CXM=FORWARD
|
1-47112-012-0 |
04 |
1 |
9905-9910 |
● |
● |
● |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
CXM=FORWARD
|
1-47112-012-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
REARWARD
|
1-47115-771-0 |
08 |
1 |
9603-9901 |
● |
|
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
CXM=FORWARD
W/INDICATOR HOLE
|
1-47125-445-0 |
08 |
1 |
9905-9908 |
● |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CXM=FORWARD
W/INDICATOR HOLE
|
1-47125-445-0 |
08 |
1 |
9905-9908 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
CXM=FORWARD
W/INDICATOR HOLE
|
1-47125-445-0 |
08 |
1 |
9909- |
● |
|
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
W/INDICATOR HOLE
|
1-47125-445-0 |
08 |
1 |
9909- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
W/INDICATOR HOLE
|
1-47125-445-0 |
08 |
1 |
9909- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
CXM=FORWARD
|
1-47115-773-0 |
08 |
1 |
9603-9901 |
● |
|
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47115-773-0 |
08 |
1 |
9603-9901 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47115-773-0 |
08 |
1 |
9603-9901 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
|
1-47125-839-0 |
08 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
REARWARD EXC.W/IND HOLE
|
1-47125-431-0 |
08 |
1 |
9905- |
● |
|
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
REARWARD W/IND HOLE
|
1-47125-443-0 |
08 |
1 |
9905- |
● |
|
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-47115-775-0 |
08 |
1 |
9603-9901 |
|
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-47115-775-0 |
08 |
1 |
9603-9901 |
|
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
T=16
|
1-47125-436-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
9911- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
9911- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
EXC.WEAR IND HOLE BLUE 2 LINES
|
1-47125-439-0 |
08 |
1 |
9905- |
|
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
EXC.WEAR IND HOLE BLUE 2 LINES
|
1-47125-439-0 |
08 |
1 |
9905- |
|
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
WEAR IND HOLE BLUE 2 LINES
|
1-47125-447-0 |
08 |
1 |
9905- |
|
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
WEAR IND HOLE BLUE 2 LINES
|
1-47125-447-0 |
08 |
1 |
9905- |
|
● |
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47115-773-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING
|
1-47115-773-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47115-817-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TRAILING
|
1-47115-817-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
LEADING
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
LEADING
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
CXM=FORWARD
WO/INDICATOR HOLE
|
1-47125-435-0 |
08 |
1 |
9905-9908 |
● |
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CXM=FORWARD
WO/INDICATOR HOLE
|
1-47125-435-0 |
08 |
1 |
9905-9908 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
CXM=FORWARD
WO/INDICATOR HOLE
|
1-47125-435-0 |
08 |
1 |
9909- |
● |
|
|
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
WO/INDICATOR HOLE
|
1-47125-435-0 |
08 |
1 |
9909- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
WO/INDICATOR HOLE
|
1-47125-435-0 |
08 |
1 |
9909- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
9911- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
WO/INDICATOR HOLE
|
1-47125-435-0 |
04 |
1 |
9911- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
T=16
|
1-47125-436-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
9911- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
W/INDICATOR HOLE
|
1-47125-445-0 |
04 |
1 |
9911- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-773-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-773-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-773-0 |
04 |
1 |
9911-0006 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-773-0 |
04 |
1 |
9911-0006 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47125-797-0 |
04 |
1 |
0007- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47125-797-0 |
04 |
1 |
0007- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-817-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-817-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-817-0 |
04 |
1 |
9911-0006 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-817-0 |
04 |
1 |
9911-0006 |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47125-799-0 |
04 |
1 |
0007- |
|
● |
● |
| |
5 |
LINING; RR BRK SHOE,STANDARD
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47125-799-0 |
04 |
1 |
0007- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
REARWARD T=17.0 W=180
|
1-47115-772-0 |
08 |
1 |
9603-9901 |
● |
|
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
WO/INDICATOR HOLE
|
1-47125-437-0 |
08 |
1 |
9905-9908 |
● |
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
WO/INDICATOR HOLE
|
1-47125-437-0 |
08 |
1 |
9905-9908 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
WO/INDICATOR HOLE
|
1-47125-437-0 |
08 |
1 |
9909- |
● |
|
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
WO/INDICATOR HOLE
|
1-47125-437-0 |
08 |
1 |
9909- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
WO/INDICATOR HOLE
|
1-47125-437-0 |
08 |
1 |
9909- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
CXM=FORWARD T=17.0 W=180
|
1-47115-774-0 |
08 |
1 |
9603-9901 |
● |
|
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD T=17.0 W=180
|
1-47115-774-0 |
08 |
1 |
9603-9901 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD T=17.0 W=180
|
1-47115-774-0 |
08 |
1 |
9603-9901 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
W/INDICATOR HOLE
|
1-47125-446-0 |
08 |
1 |
9905-9908 |
● |
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
W/INDICATOR HOLE
|
1-47125-446-0 |
08 |
1 |
9905-9908 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
W/INDICATOR HOLE
|
1-47125-446-0 |
08 |
1 |
9909- |
● |
|
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
W/INDICATOR HOLE
|
1-47125-446-0 |
08 |
1 |
9909- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
W/INDICATOR HOLE
|
1-47125-446-0 |
08 |
1 |
9909- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
LEADING
|
1-47125-433-0 |
08 |
1 |
9905- |
● |
|
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
TRAILING
|
1-47125-444-0 |
08 |
1 |
9905- |
● |
|
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
T=17.0 W=180
|
1-47115-776-0 |
08 |
1 |
9603-9901 |
|
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
T=17.0 W=180
|
1-47115-776-0 |
08 |
1 |
9603-9901 |
|
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
T=17
|
1-47125-438-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
T=17
|
1-47125-438-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
T=17
|
1-47125-438-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
T=17
|
1-47125-438-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
T=17
|
1-47125-438-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
T=17
|
1-47125-438-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
T=17
|
1-47125-438-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
T=17
|
1-47125-438-0 |
04 |
1 |
9911- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
T=17
|
1-47125-438-0 |
04 |
1 |
9911- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
EXC.WEAR IND HOLE BLUE 2 LINES
|
1-47125-441-0 |
08 |
1 |
9905- |
|
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
EXC.WEAR IND HOLE BLUE 2 LINES
|
1-47125-441-0 |
08 |
1 |
9905- |
|
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
WEAR IND HOLE BLUE 2 LINES
|
1-47125-448-0 |
08 |
1 |
9905- |
|
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
WEAR IND HOLE BLUE 2 LINES
|
1-47125-448-0 |
08 |
1 |
9905- |
|
● |
|
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING T=17.0 W=180
|
1-47115-774-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
LEADING T=17.0 W=180
|
1-47115-774-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
|
1-47125-840-0 |
08 |
1 |
9902-9902 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47115-818-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47115-818-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
9911- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
LEADING
WO/INDICATOR HOLE
|
1-47125-437-0 |
04 |
1 |
9911- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
T=17
|
1-47125-438-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
T=17
|
1-47125-438-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
9911- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
W/INDICATOR HOLE
|
1-47125-446-0 |
04 |
1 |
9911- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-774-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-774-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-774-0 |
04 |
1 |
9911-0006 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-774-0 |
04 |
1 |
9911-0006 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47125-798-0 |
04 |
1 |
0007- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47125-798-0 |
04 |
1 |
0007- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-818-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-818-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-818-0 |
04 |
1 |
9911-0006 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-818-0 |
04 |
1 |
9911-0006 |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47125-800-0 |
04 |
1 |
0007- |
|
● |
● |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE SYSTEM HEAVY DUTY(J55),BRAKE LINING
MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47125-800-0 |
04 |
1 |
0007- |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
9603-9901 |
● |
|
|
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
L=18.5
|
1-09732-034-0 |
AR |
1 |
9902-9902 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
L=18.5
|
1-09732-034-0 |
AR |
1 |
9902-9902 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
L=18.5
|
1-09732-034-0 |
AR |
1 |
9902-9902 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
L=18.5
|
1-09732-034-0 |
AR |
1 |
9902-9902 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
9903-9904 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
9903-9904 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
80 |
1 |
0007- |
● |
|
|
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
9603-9901 |
● |
|
|
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
L=18.5
|
1-09732-034-0 |
AR |
1 |
9603-9901 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
L=18.5
|
1-09732-034-0 |
AR |
1 |
9603-9901 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=18.5
|
1-09732-034-0 |
AR |
1 |
9603-9901 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
L=18.5
|
1-09732-034-0 |
AR |
1 |
9603-9901 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
|
1-09732-029-0 |
AR |
1 |
9902-9902 |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
L=18.5
|
1-09732-034-0 |
AR |
1 |
9905-9910 |
● |
● |
● |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
AR |
1 |
9911- |
● |
|
|
| |
7 |
RIVET; LINING,RR BRK
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
L=18.5
|
1-09732-034-0 |
AR |
1 |
9911- |
|
● |
● |
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
L=19.5
|
1-09732-035-0 |
AR |
1 |
9603-9901 |
|
● |
|
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
L=19.5
|
1-09732-035-0 |
AR |
1 |
9603-9901 |
|
● |
|
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
L=19.5
|
1-09732-035-0 |
AR |
1 |
9905- |
|
● |
|
| |
7 |
RIVET; LINING,RR BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
L=19.5
|
1-09732-035-0 |
AR |
1 |
9905- |
|
● |
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A) CXM=FORWARD
|
1-09744-051-0 |
04 |
1 |
9603-9901 |
● |
|
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A) CXM=FORWARD
|
1-09744-051-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A) CXM=FORWARD
|
1-09744-051-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(C) REARWARD
L=73.5
|
1-47119-017-1 |
04 |
1 |
9603-9901 |
● |
|
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(B) CXM=FORWARD
|
1-47119-025-0 |
04 |
1 |
9603-9901 |
● |
|
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B) CXM=FORWARD
|
1-47119-025-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(B) CXM=FORWARD
|
1-47119-025-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(C) REARWARD
L=73.5
|
1-47119-017-1 |
04 |
1 |
9905- |
● |
|
|
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A) CXM=FORWARD
|
1-09744-051-0 |
04 |
1 |
9905-9908 |
● |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A) CXM=FORWARD
|
1-09744-051-0 |
04 |
1 |
9905-9908 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A) CXM=FORWARD
|
1-09744-051-0 |
04 |
1 |
9909-9910 |
● |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A) CXM=FORWARD
|
1-09744-051-0 |
04 |
1 |
9909-9910 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A) CXM=FORWARD
|
1-09744-051-0 |
04 |
1 |
9911- |
● |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A) CXM=FORWARD
|
1-09744-051-0 |
04 |
1 |
9911- |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B) CXM=FORWARD
|
1-47119-025-0 |
04 |
1 |
9905-9908 |
● |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B) CXM=FORWARD
|
1-47119-025-0 |
04 |
1 |
9905-9908 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(B) CXM=FORWARD
|
1-47119-025-0 |
04 |
1 |
9909-9910 |
● |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(B) CXM=FORWARD
|
1-47119-025-0 |
04 |
1 |
9909-9910 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B) CXM=FORWARD
|
1-47119-025-0 |
04 |
1 |
9911- |
● |
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B) CXM=FORWARD
|
1-47119-025-0 |
04 |
1 |
9911- |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(B) L=58
|
1-47119-021-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9911- |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9911- |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A) L=48
|
1-47119-029-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9911- |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9911- |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(B) L=58
|
1-47119-021-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A) L=48
|
1-47119-029-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(A) CXM=FORWARD
|
1-09583-210-0 |
04 |
1 |
9603-9901 |
● |
|
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
(A) CXM=FORWARD
|
1-09583-210-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
(A) CXM=FORWARD
|
1-09583-210-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
(B)
|
1-09583-271-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(A) CXM=FORWARD
|
1-09583-210-0 |
04 |
1 |
9905- |
● |
|
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
(A) CXM=FORWARD
|
1-09583-210-0 |
04 |
1 |
9905- |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
(A) CXM=FORWARD
|
1-09583-210-0 |
04 |
1 |
9905- |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-09583-175-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-09583-175-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(B)
|
1-09583-175-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-09583-175-0 |
02 |
1 |
9911-9911 |
● |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(B)
|
1-09583-175-0 |
02 |
1 |
9911-9911 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9911- |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9911- |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9905-9910 |
● |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9905-9910 |
● |
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) CXM=FORWARD,REARWARD
|
1-09583-175-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
(A)
|
1-09583-210-0 |
02 |
1 |
9603-9901 |
|
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
(A)
|
1-09583-210-0 |
02 |
1 |
9603-9901 |
|
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
(B)
|
1-09583-277-2 |
02 |
1 |
9603-9901 |
|
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
(B)
|
1-09583-277-2 |
02 |
1 |
9603-9901 |
|
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
(A)
|
1-09583-210-0 |
02 |
1 |
9905- |
|
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
(A)
|
1-09583-210-0 |
02 |
1 |
9905- |
|
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
(B)
|
1-09583-277-2 |
02 |
1 |
9905- |
|
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
(B)
|
1-09583-277-2 |
02 |
1 |
9905- |
|
● |
|
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-09583-196-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-09583-196-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(A)
|
1-09583-196-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(A)
|
1-09583-196-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(A)
|
1-09583-196-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(A)
|
1-09583-196-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(A)
|
1-09583-196-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
(A)
|
1-09583-196-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A)
|
1-09583-196-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-09583-196-0 |
02 |
1 |
9911- |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-09583-196-0 |
02 |
1 |
9911- |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A)
|
1-09583-196-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
9 |
SPRING; RETURN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A)
|
1-09583-196-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=10
|
9-09185-410-0 |
08 |
1 |
9603-9901 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=10
|
9-09185-410-0 |
08 |
1 |
9603-9901 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
ID=10
|
9-09185-410-0 |
08 |
1 |
9902-9902 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
ID=10
|
9-09185-410-0 |
08 |
1 |
9902-9902 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
ID=10
|
9-09185-410-0 |
08 |
1 |
9902-9902 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
ID=10
|
9-09185-410-0 |
08 |
1 |
9902-9902 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
ID=10
|
9-09185-410-0 |
08 |
1 |
9903-9904 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
ID=10
|
9-09185-410-0 |
08 |
1 |
9903-9904 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
ID=10
|
9-09185-410-0 |
16 |
1 |
9905-9910 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=10
|
9-09185-410-0 |
08 |
1 |
9911- |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=10
|
9-09185-410-0 |
08 |
1 |
9911- |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
ID=10
|
9-09185-410-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
10 |
RING; SNAP,SPR PIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
ID=10
|
9-09185-410-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(A) REARWARD
L=106.5
|
1-47131-038-0 |
04 |
1 |
9603-9901 |
● |
|
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(A) REARWARD
L=106.5
|
1-47131-038-0 |
04 |
1 |
9905- |
● |
|
|
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(B) CXM=FORWARD
L=121.5
|
1-47131-039-0 |
04 |
1 |
9603-9901 |
● |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(B) CXM=FORWARD
L=121.5
|
1-47131-039-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(B) CXM=FORWARD
L=121.5
|
1-47131-039-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(B) CXM=FORWARD
L=121.5
|
1-47131-039-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(B) CXM=FORWARD
L=121.5
|
1-47131-039-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(B) CXM=FORWARD
L=121.5
|
1-47131-039-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(B)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(B)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(B)
L=121.5
|
1-47131-039-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(B)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9911- |
● |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(B)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9911- |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(B)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9905-9905 |
● |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(B)
L=121.5
|
1-47131-039-0 |
04 |
1 |
9905-9905 |
|
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(B) CXM=FORWARD
L=121.5
|
1-47131-039-0 |
04 |
1 |
9905-9910 |
● |
● |
● |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
(B) CXM=FORWARD
L=121.5
|
1-47131-039-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47113-005-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47113-005-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47113-005-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47113-005-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47113-005-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47113-005-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47113-005-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47113-005-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47113-005-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47113-005-0 |
04 |
1 |
9911- |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47113-005-0 |
04 |
1 |
9911- |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47113-005-0 |
04 |
1 |
9905-9905 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47113-005-0 |
04 |
1 |
9905-9905 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47113-005-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
12 |
ROLLER; CAM,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47113-005-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-47119-022-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-47119-022-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
9-47119-022-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
9-47119-022-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
9-47119-022-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
9-47119-022-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
9-47119-022-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
9-47119-022-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
9-47119-022-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-47119-022-0 |
04 |
1 |
9911- |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-47119-022-0 |
04 |
1 |
9911- |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
9-47119-022-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
9-47119-022-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-061-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-061-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-09744-061-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-09744-061-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-09744-061-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-09744-061-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
|
1-09744-061-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
|
1-09744-061-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-09744-061-0 |
08 |
1 |
9905-9910 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-061-0 |
04 |
1 |
9911- |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-061-0 |
04 |
1 |
9911- |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-09744-061-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
14 |
PIN; CAM ROLLER,BRK SHOE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-09744-061-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
REARWARD
|
1-47151-458-1 |
02 |
1 |
9603-9901 |
● |
|
|
| |
25 |
COVER SET; RR BRK DRUM
CXM=FORWARD
|
1-47151-526-1 |
02 |
1 |
9603-9704 |
● |
|
|
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47151-526-1 |
02 |
1 |
9603-9704 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47151-526-1 |
02 |
1 |
9603-9704 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
CXM=FORWARD
|
1-47151-461-1 |
02 |
1 |
9705-9901 |
● |
|
|
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47151-461-1 |
02 |
1 |
9705-9901 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47151-461-1 |
02 |
1 |
9705-9901 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
REARWARD
|
1-47151-458-1 |
02 |
1 |
9905- |
● |
|
|
| |
25 |
COVER SET; RR BRK DRUM
CXM=FORWARD
|
1-47151-461-1 |
02 |
1 |
9905- |
● |
|
|
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47151-461-1 |
02 |
1 |
9905- |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47151-461-1 |
02 |
1 |
9905- |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47151-527-1 |
02 |
1 |
9603-9704 |
|
● |
|
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47151-527-1 |
02 |
1 |
9603-9704 |
|
● |
|
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47151-664-0 |
02 |
1 |
9705-9901 |
|
● |
|
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
|
1-47151-664-0 |
02 |
1 |
9705-9901 |
|
● |
|
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47151-462-1 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47151-462-1 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47151-462-1 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47151-462-1 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-462-1 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-462-1 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47151-462-1 |
02 |
1 |
9911- |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47151-462-1 |
02 |
1 |
9911- |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-47151-664-0 |
02 |
1 |
9905- |
|
● |
|
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
|
1-47151-664-0 |
02 |
1 |
9905- |
|
● |
|
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47151-462-1 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47151-462-1 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47151-462-1 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
25 |
COVER SET; RR BRK DRUM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47151-462-1 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
9603-9901 |
● |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
9603-9901 |
● |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
9902-9904 |
|
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
9902-9904 |
|
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
9905- |
● |
● |
● |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
9905- |
● |
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9603-9901 |
● |
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9603-9901 |
● |
● |
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9902-9902 |
|
● |
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9902-9902 |
|
● |
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9902-9902 |
|
● |
● |
| |
30 |
BOLT; DRUM COVER
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9902-9902 |
|
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9903-9904 |
|
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9903-9904 |
|
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9911- |
● |
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9911- |
● |
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9905-9910 |
● |
● |
● |
| |
30 |
BOLT; DRUM COVER
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
9905-9910 |
● |
● |
● |
| |
32 |
WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD LH,RH
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
32 |
WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD LH,RH
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
32 |
WASHER; LK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
32 |
WASHER; LK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
32 |
WASHER; LK
REARWARD LH,RH
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
32 |
WASHER; LK
REARWARD LH,RH
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
32 |
WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD LH,RH
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9905- |
|
● |
● |
| |
32 |
WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD LH,RH
ID=10.2
|
9-09150-510-0 |
04 |
1 |
9905- |
|
● |
● |
| |
32 |
WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
0007- |
|
● |
● |
| |
32 |
WASHER; LK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=12.2
|
9-09150-612-0 |
04 |
1 |
0007- |
|
● |
● |
| |
32 |
WASHER; LK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
ID=12.2
|
9-09150-512-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9911- |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9911- |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(B) REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(B) REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
(B) REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
(B) REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9905- |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9905- |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
34 |
NIPPLE; GREASE,CHAMBER BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(A) FORWARD,REARWARD
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD
|
1-47137-120-2 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
FORWARD
|
1-47137-120-2 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD
|
1-47137-120-2 |
02 |
1 |
9905- |
|
● |
● |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47137-128-1 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47137-128-1 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47137-128-1 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47137-128-1 |
01 |
1 |
0007- |
|
● |
● |
| |
45 |
BRACKET; ANCHOR PIN,W/BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47137-128-1 |
01 |
1 |
0007- |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-47143-005-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-47143-005-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47143-005-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47143-005-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47143-005-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47143-005-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
FORWARD,REARWARD
|
1-47143-005-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
FORWARD,REARWARD
|
1-47143-005-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-47143-005-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47143-005-0 |
02 |
1 |
9911- |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47143-005-0 |
02 |
1 |
9911- |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-47143-005-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
46 |
RING; SPACER,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-47143-005-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD
|
1-47137-112-3 |
02 |
1 |
9603-9901 |
● |
|
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
CXM=FORWARD
|
1-47137-151-0 |
02 |
1 |
9603-9901 |
● |
|
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CXM=FORWARD
|
1-47137-151-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
CXM=FORWARD
|
1-47137-151-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
REARWARD
|
1-47137-112-3 |
02 |
1 |
9905- |
● |
|
|
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CXM=FORWARD
|
1-47137-151-0 |
02 |
1 |
9905-9908 |
● |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CXM=FORWARD
|
1-47137-151-0 |
02 |
1 |
9905-9908 |
|
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
CXM=FORWARD
|
1-47137-151-0 |
02 |
1 |
9909-9910 |
● |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
CXM=FORWARD
|
1-47137-151-0 |
02 |
1 |
9909-9910 |
|
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CXM=FORWARD
|
1-47137-151-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
CXM=FORWARD
|
1-47137-151-0 |
02 |
1 |
9911- |
|
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47137-153-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47137-153-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-09625-228-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9911- |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9911- |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
48 |
SEAL; OIL,CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-09625-228-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) FORWARD
|
1-47146-003-1 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
(B) FORWARD
|
1-47146-003-1 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) FORWARD
|
1-47146-003-1 |
02 |
1 |
9905- |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47146-009-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47146-009-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(A) REARWARD
|
1-47146-009-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(A) REARWARD
|
1-47146-009-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
(A) REARWARD
|
1-47146-009-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
(A) REARWARD
|
1-47146-009-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47146-009-0 |
02 |
1 |
9905- |
|
● |
● |
| |
49 |
BUSHING; CM/SHF,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47146-009-0 |
02 |
1 |
9905- |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) FORWARD
|
1-47141-053-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
(A) FORWARD
|
1-47141-053-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) FORWARD
|
1-47141-053-0 |
01 |
1 |
9905- |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47141-066-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47141-066-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(A) REARWARD
|
1-47141-066-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(A) REARWARD
|
1-47141-066-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
(A) REARWARD
|
1-47141-066-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
(A) REARWARD
|
1-47141-066-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47141-066-0 |
01 |
1 |
9905- |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47141-066-0 |
01 |
1 |
9905- |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) FORWARD
|
1-47141-054-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
(A) FORWARD
|
1-47141-054-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) FORWARD
|
1-47141-054-0 |
01 |
1 |
9905- |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47141-063-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47141-063-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(A) REARWARD
|
1-47141-063-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(A) REARWARD
|
1-47141-063-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
(A) REARWARD
|
1-47141-063-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
(A) REARWARD
|
1-47141-063-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47141-063-0 |
01 |
1 |
9905- |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) REARWARD
|
1-47141-063-0 |
01 |
1 |
9905- |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) REARWARD
|
1-47141-119-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) REARWARD
|
1-47141-119-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) REARWARD
|
1-47141-118-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
50 |
CAMSHAFT; BRK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) REARWARD
|
1-47141-118-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9603-9901 |
● |
|
|
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
M14X50
|
1-09040-066-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9905-9910 |
● |
|
|
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
M14X43
|
1-09040-045-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
M14X43
|
1-09040-045-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
M14X43
|
1-09040-045-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
M14X43
|
1-09040-045-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
M14X43
|
1-09040-045-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
M14X43
|
1-09040-045-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
M14X43
|
1-09040-045-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
M14X43
|
1-09040-045-0 |
02 |
1 |
9911- |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. BRAKE SYSTEM HEAVY DUTY(J55)
M14X43
|
1-09040-045-0 |
02 |
1 |
9911- |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X43
|
1-09040-045-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X43
|
1-09040-045-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X50
|
1-09040-066-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X50
|
1-09040-066-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
M14X50
|
1-09040-066-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
M14X50
|
1-09040-066-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
M14X50
|
1-09040-066-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
M14X50
|
1-09040-066-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
M14X50
|
1-09040-066-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M14X50
|
1-09040-066-0 |
02 |
1 |
9911-9911 |
● |
|
|
| |
52 |
BOLT; ANCHOR BRKT
M14X50
|
1-09040-066-0 |
02 |
1 |
9911-9911 |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9911- |
● |
|
|
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9911- |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
BRAKE SYSTEM HEAVY DUTY(J55)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9911- |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9911- |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CXM=FORWARD
M14X50
|
1-09040-066-0 |
02 |
1 |
9911- |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X43
|
1-09040-045-0 |
01 |
1 |
9905- |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X43
|
1-09040-045-0 |
01 |
1 |
9905- |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X50
|
1-09040-066-0 |
01 |
1 |
9905- |
|
● |
● |
| |
52 |
BOLT; ANCHOR BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M14X50
|
1-09040-066-0 |
01 |
1 |
9905- |
|
● |
● |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
53 |
BOLT; LOCK PLATE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
M10X16
|
0-20801-016-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
53 |
BOLT; LOCK PLATE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
M10X16
|
0-20801-016-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
53 |
BOLT; LOCK PLATE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
M10X16
|
0-20801-016-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
53 |
BOLT; LOCK PLATE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
M10X16
|
0-20801-016-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
53 |
BOLT; LOCK PLATE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
M10X16
|
0-20801-016-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9905-9910 |
● |
● |
● |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20801-016-0 |
02 |
1 |
9905-9910 |
● |
● |
● |
| |
53 |
BOLT; LOCK PLATE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
|
1-47162-017-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47133-011-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47133-011-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47133-011-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47133-011-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47133-011-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9905-9910 |
● |
● |
● |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
9905-9910 |
● |
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9603-9901 |
● |
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47133-005-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47133-005-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47133-005-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47133-005-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
|
1-47133-005-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9911- |
● |
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9905-9910 |
● |
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
9905-9910 |
● |
● |
● |
| |
55 |
PLATE; LK,RR WHEEL CYL
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
|
1-47139-064-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD LH,REARWARD RH
|
1-48270-045-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD LH,REARWARD RH
|
1-48270-045-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-48270-045-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-48270-045-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-48270-045-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-48270-045-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FORWARD LH,REARWARD RH
|
1-48270-045-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FORWARD LH,REARWARD RH
|
1-48270-045-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD LH,REARWARD RH
|
1-48270-045-0 |
01 |
1 |
9905- |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD LH,REARWARD RH
|
1-48270-045-0 |
01 |
1 |
9905- |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-48270-050-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-48270-050-1 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-48270-050-1 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-48270-050-1 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
REARWARD
|
1-48270-050-1 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
REARWARD
|
1-48270-050-1 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-48270-050-1 |
01 |
1 |
9905- |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-48270-050-1 |
01 |
1 |
9905- |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-48270-046-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
REARWARD
|
1-48270-046-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-48270-046-0 |
01 |
1 |
9905- |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48270-058-1 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48270-058-1 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48270-059-1 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
63 |
ADJUSTER ASM; SLACK,RR BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48270-059-1 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD
|
1-47149-022-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
FORWARD
|
1-47149-022-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD
|
1-47149-022-0 |
02 |
1 |
9905- |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47149-040-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47149-040-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47149-040-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47149-040-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
REARWARD
|
1-47149-040-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
REARWARD
|
1-47149-040-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47149-040-0 |
02 |
1 |
9905- |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47149-040-0 |
02 |
1 |
9905- |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47149-086-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
64 |
PLATE; STOPPER,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47149-086-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(B) FORWARD,REARWARD
|
1-47143-004-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9911- |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9911- |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C) REARWARD
|
1-47143-007-0 |
02 |
1 |
9603-9705 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C) REARWARD
|
1-47143-007-0 |
02 |
1 |
9603-9705 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. REAR AXLE RT260<C2B>
(C) REARWARD
|
1-47143-007-0 |
02 |
1 |
9706-9708 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) FORWARD
|
9-09180-038-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(A) FORWARD
|
9-09180-038-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A) FORWARD
|
9-09180-038-0 |
01 |
1 |
9905- |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C) REARWARD
|
1-47143-014-0 |
02 |
1 |
9706-9901 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C) REARWARD
|
1-47143-014-0 |
02 |
1 |
9706-9901 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
(C) REARWARD
|
1-47143-014-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
(C) REARWARD
|
1-47143-014-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(C) REARWARD
|
1-47143-014-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
(C) REARWARD
|
1-47143-014-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C) REARWARD
|
1-47143-014-0 |
02 |
1 |
9905- |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(C) REARWARD
|
1-47143-014-0 |
02 |
1 |
9905- |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
65 |
SPACER; SLACK ADJ,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
(B) FORWARD,REARWARD
|
1-47143-004-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
66 |
PIN; JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-088-0 |
02 |
1 |
9603-9702 |
|
● |
● |
| |
66 |
PIN; JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-088-0 |
02 |
1 |
9703-9901 |
|
● |
● |
| |
66 |
PIN; JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-088-0 |
02 |
1 |
9703-9901 |
|
● |
● |
| |
66 |
PIN; JAW JOINT
|
1-09744-088-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
66 |
PIN; JAW JOINT
|
1-09744-088-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
66 |
PIN; JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-088-0 |
02 |
1 |
9905- |
|
● |
● |
| |
66 |
PIN; JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09744-088-0 |
02 |
1 |
9905- |
|
● |
● |
| |
67 |
NUT; POWER CHAMBER FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99110-416-0 |
08 |
1 |
9603-9702 |
|
● |
● |
| |
67 |
NUT; POWER CHAMBER FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99110-416-0 |
08 |
1 |
9703-9901 |
|
● |
● |
| |
67 |
NUT; POWER CHAMBER FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99110-416-0 |
08 |
1 |
9703-9901 |
|
● |
● |
| |
67 |
NUT; POWER CHAMBER FIX
M16
|
9-99110-416-0 |
08 |
1 |
9902-9904 |
|
● |
● |
| |
67 |
NUT; POWER CHAMBER FIX
M16
|
9-99110-416-0 |
08 |
1 |
9902-9904 |
|
● |
● |
| |
67 |
NUT; POWER CHAMBER FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99110-416-0 |
08 |
1 |
9905- |
|
● |
● |
| |
67 |
NUT; POWER CHAMBER FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99110-416-0 |
08 |
1 |
9905- |
|
● |
● |
| |
68 |
WASHER; LK,CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16.2
|
9-09150-516-0 |
08 |
1 |
9603-9702 |
|
● |
● |
| |
68 |
WASHER; LK,CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16.2
|
9-09150-516-0 |
08 |
1 |
9703-9901 |
|
● |
● |
| |
68 |
WASHER; LK,CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16.2
|
9-09150-516-0 |
08 |
1 |
9703-9901 |
|
● |
● |
| |
68 |
WASHER; LK,CHAMBER
ID=16.2
|
9-09150-516-0 |
08 |
1 |
9902-9904 |
|
● |
● |
| |
68 |
WASHER; LK,CHAMBER
ID=16.2
|
9-09150-516-0 |
08 |
1 |
9902-9904 |
|
● |
● |
| |
68 |
WASHER; LK,CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16.2
|
9-09150-516-0 |
08 |
1 |
9905- |
|
● |
● |
| |
68 |
WASHER; LK,CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=16.2
|
9-09150-516-0 |
08 |
1 |
9905- |
|
● |
● |
| |
69 |
JOINT; JAW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09768-060-0 |
02 |
1 |
9603-9702 |
|
● |
● |
| |
69 |
JOINT; JAW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09768-060-0 |
02 |
1 |
9703-9901 |
|
● |
● |
| |
69 |
JOINT; JAW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09768-060-0 |
02 |
1 |
9703-9901 |
|
● |
● |
| |
69 |
JOINT; JAW
|
1-09768-060-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
69 |
JOINT; JAW
|
1-09768-060-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
69 |
JOINT; JAW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09768-060-1 |
02 |
1 |
9905- |
|
● |
● |
| |
69 |
JOINT; JAW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09768-060-1 |
02 |
1 |
9905- |
|
● |
● |
| |
70 |
NUT; LK,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99111-416-0 |
02 |
1 |
9603-9702 |
|
● |
● |
| |
70 |
NUT; LK,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99111-416-0 |
02 |
1 |
9703-9901 |
|
● |
● |
| |
70 |
NUT; LK,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99111-416-0 |
02 |
1 |
9703-9901 |
|
● |
● |
| |
70 |
NUT; LK,JAW JOINT
M16
|
9-99111-416-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
70 |
NUT; LK,JAW JOINT
M16
|
9-99111-416-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
70 |
NUT; LK,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99111-416-0 |
02 |
1 |
9905- |
|
● |
● |
| |
70 |
NUT; LK,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16
|
9-99111-416-0 |
02 |
1 |
9905- |
|
● |
● |
| |
71 |
WASHER; PL,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
9603-9702 |
|
● |
● |
| |
71 |
WASHER; PL,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
9703-9901 |
|
● |
● |
| |
71 |
WASHER; PL,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
9703-9901 |
|
● |
● |
| |
71 |
WASHER; PL,JAW JOINT
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
71 |
WASHER; PL,JAW JOINT
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
71 |
WASHER; PL,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
9905- |
|
● |
● |
| |
71 |
WASHER; PL,JAW JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
9905- |
|
● |
● |
| |
72 |
PIN; SPLIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
9603-9702 |
|
● |
● |
| |
72 |
PIN; SPLIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
9703-9901 |
|
● |
● |
| |
72 |
PIN; SPLIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
9703-9901 |
|
● |
● |
| |
72 |
PIN; SPLIT
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
72 |
PIN; SPLIT
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
9902-9904 |
|
● |
● |
| |
72 |
PIN; SPLIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
9905- |
|
● |
● |
| |
72 |
PIN; SPLIT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
9905- |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD
|
1-47143-003-0 |
02 |
1 |
9603-9705 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. REAR AXLE RT260<C2B>
FORWARD
|
1-47143-003-0 |
02 |
1 |
9706-9708 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47143-006-0 |
02 |
1 |
9603-9708 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47143-006-0 |
02 |
1 |
9603-9708 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,FORWARD
|
1-47143-016-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,FORWARD
|
1-47143-016-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REAR AXLE RT260<C2B>
FORWARD,FORWARD
|
1-47143-016-0 |
02 |
1 |
9706-9708 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,FORWARD
|
1-47143-016-0 |
02 |
1 |
9709-9901 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,FORWARD
|
1-47143-016-0 |
02 |
1 |
9709-9901 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47143-016-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47143-016-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47143-016-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47143-016-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
FORWARD,FORWARD
|
1-47143-016-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
FORWARD,FORWARD
|
1-47143-016-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,FORWARD
|
1-47143-016-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,FORWARD
|
1-47143-016-0 |
02 |
1 |
9911- |
|
● |
● |
| |
73 |
COLLAR; FELT RING,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,FORWARD
|
1-47143-016-0 |
02 |
1 |
9911- |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09330-041-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09330-041-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-09330-041-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-09330-041-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-09330-041-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-09330-041-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
FORWARD,REARWARD
|
1-09330-041-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
FORWARD,REARWARD
|
1-09330-041-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-09330-041-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09330-041-0 |
02 |
1 |
9911- |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09330-041-0 |
02 |
1 |
9911- |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-09330-041-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
74 |
BUSHING; SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-09330-041-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09620-009-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09620-009-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-09620-009-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-09620-009-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-09620-009-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-09620-009-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
FORWARD,REARWARD
|
1-09620-009-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
FORWARD,REARWARD
|
1-09620-009-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-09620-009-0 |
04 |
1 |
9905-9910 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09620-009-0 |
02 |
1 |
9911- |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
|
1-09620-009-0 |
02 |
1 |
9911- |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-09620-009-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
75 |
RING; FELT,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
FORWARD,REARWARD
|
1-09620-009-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
78 |
BUSHING; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47146-008-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
78 |
BUSHING; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47146-008-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
78 |
BUSHING; BRKT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47146-008-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
78 |
BUSHING; BRKT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47146-008-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
78 |
BUSHING; BRKT
REARWARD
|
1-47146-008-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
78 |
BUSHING; BRKT
REARWARD
|
1-47146-008-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
78 |
BUSHING; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47146-008-0 |
02 |
1 |
9905- |
|
● |
● |
| |
78 |
BUSHING; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-47146-008-0 |
02 |
1 |
9905- |
|
● |
● |
| |
79 |
BRACKET; CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
9-47145-013-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
79 |
BRACKET; CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
9-47145-013-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
79 |
BRACKET; CM/SHF
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
9-47145-013-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
79 |
BRACKET; CM/SHF
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
9-47145-013-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
79 |
BRACKET; CM/SHF
REARWARD
|
9-47145-013-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
79 |
BRACKET; CM/SHF
REARWARD
|
9-47145-013-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
79 |
BRACKET; CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
9-47145-013-0 |
04 |
1 |
9905- |
|
● |
● |
| |
79 |
BRACKET; CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
9-47145-013-0 |
04 |
1 |
9905- |
|
● |
● |
| |
80 |
GASKET; BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
ID=39.7
|
9-09561-340-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
80 |
GASKET; BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
ID=39.7
|
9-09561-340-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
80 |
GASKET; BUSHING
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
ID=39.7
|
9-09561-340-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
80 |
GASKET; BUSHING
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
ID=39.7
|
9-09561-340-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
80 |
GASKET; BUSHING
REARWARD
ID=39.7
|
9-09561-340-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
80 |
GASKET; BUSHING
REARWARD
ID=39.7
|
9-09561-340-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
80 |
GASKET; BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
ID=39.7
|
9-09561-340-0 |
04 |
1 |
9905- |
|
● |
● |
| |
80 |
GASKET; BUSHING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
ID=39.7
|
9-09561-340-0 |
04 |
1 |
9905- |
|
● |
● |
| |
81 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M10
|
9-09110-410-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
81 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M10
|
9-09110-410-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
81 |
NUT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
M10
|
9-09110-410-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
81 |
NUT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
M10
|
9-09110-410-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
81 |
NUT
REARWARD
M10
|
9-09110-410-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
81 |
NUT
REARWARD
M10
|
9-09110-410-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
81 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M10
|
9-09110-410-0 |
04 |
1 |
9905- |
|
● |
● |
| |
81 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M10
|
9-09110-410-0 |
04 |
1 |
9905- |
|
● |
● |
| |
82 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M16
|
9-99110-516-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
82 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M16
|
9-99110-516-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
82 |
NUT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
M16
|
9-99110-516-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
82 |
NUT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
M16
|
9-99110-516-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
82 |
NUT
REARWARD
M16
|
9-99110-516-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
82 |
NUT
REARWARD
M16
|
9-99110-516-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
82 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M16
|
9-99110-516-0 |
04 |
1 |
9905- |
|
● |
● |
| |
82 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M16
|
9-99110-516-0 |
04 |
1 |
9905- |
|
● |
● |
| |
82 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12
|
9-99110-512-0 |
04 |
1 |
0007- |
|
● |
● |
| |
82 |
NUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12
|
9-99110-512-0 |
04 |
1 |
0007- |
|
● |
● |
| |
83 |
WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
ID=16.2
|
9-09851-672-2 |
08 |
1 |
9603-9901 |
|
● |
● |
| |
83 |
WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
ID=16.2
|
9-09851-672-2 |
08 |
1 |
9603-9901 |
|
● |
● |
| |
83 |
WASHER; PL
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
ID=16.2
|
9-09851-672-2 |
08 |
1 |
9902-9902 |
|
● |
● |
| |
83 |
WASHER; PL
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
ID=16.2
|
9-09851-672-2 |
08 |
1 |
9902-9902 |
|
● |
● |
| |
83 |
WASHER; PL
REARWARD
ID=16.2
|
9-09851-672-2 |
08 |
1 |
9903-9904 |
|
● |
● |
| |
83 |
WASHER; PL
REARWARD
ID=16.2
|
9-09851-672-2 |
08 |
1 |
9903-9904 |
|
● |
● |
| |
83 |
WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
ID=16.2
|
9-09851-672-2 |
08 |
1 |
9905- |
|
● |
● |
| |
83 |
WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
ID=16.2
|
9-09851-672-2 |
08 |
1 |
9905- |
|
● |
● |
| |
84 |
BOLT; BRKT TO CASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M16X40
|
9-92061-640-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
84 |
BOLT; BRKT TO CASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M16X40
|
9-92061-640-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
84 |
BOLT; BRKT TO CASE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
M16X40
|
9-92061-640-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
84 |
BOLT; BRKT TO CASE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
M16X40
|
9-92061-640-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
84 |
BOLT; BRKT TO CASE
M16X40
|
9-92061-640-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
84 |
BOLT; BRKT TO CASE
M16X40
|
9-92061-640-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
84 |
BOLT; BRKT TO CASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16X40
|
9-92061-640-0 |
04 |
1 |
9905- |
|
● |
● |
| |
84 |
BOLT; BRKT TO CASE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M16X40
|
9-92061-640-0 |
04 |
1 |
9905- |
|
● |
● |
| |
85 |
BOLT; CM/SHF BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M10X20
|
0-20801-020-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
85 |
BOLT; CM/SHF BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M10X20
|
0-20801-020-0 |
04 |
1 |
9603-9901 |
|
● |
● |
| |
85 |
BOLT; CM/SHF BRKT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
M10X20
|
0-20801-020-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
85 |
BOLT; CM/SHF BRKT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
M10X20
|
0-20801-020-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
85 |
BOLT; CM/SHF BRKT
REARWARD
M10X20
|
0-20801-020-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
85 |
BOLT; CM/SHF BRKT
REARWARD
M10X20
|
0-20801-020-0 |
04 |
1 |
9903-9904 |
|
● |
● |
| |
85 |
BOLT; CM/SHF BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M10X20
|
0-20801-020-0 |
04 |
1 |
9905- |
|
● |
● |
| |
85 |
BOLT; CM/SHF BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M10X20
|
0-20801-020-0 |
04 |
1 |
9905- |
|
● |
● |
| |
85 |
BOLT; CM/SHF BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12X50
|
5-09000-143-0 |
04 |
1 |
0007- |
|
● |
● |
| |
85 |
BOLT; CM/SHF BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
M12X50
|
5-09000-143-0 |
04 |
1 |
0007- |
|
● |
● |
| |
86 |
NUT; FLANGE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD LH
|
1-09440-020-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
86 |
NUT; FLANGE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD LH
|
1-09440-020-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
86 |
NUT; FLANGE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-09440-020-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
86 |
NUT; FLANGE
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-09440-020-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
86 |
NUT; FLANGE
|
1-09440-020-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
86 |
NUT; FLANGE
|
1-09440-020-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
86 |
NUT; FLANGE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09440-020-0 |
01 |
1 |
9905- |
|
● |
● |
| |
86 |
NUT; FLANGE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09440-020-0 |
01 |
1 |
9905- |
|
● |
● |
| |
86 |
NUT; FLANGE
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT260<C2B>
|
1-09440-003-0 |
04 |
1 |
9902-9902 |
|
● |
● |
| |
87 |
FLANGE; SHAFT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD LH
|
1-47149-041-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
87 |
FLANGE; SHAFT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD LH
|
1-47149-041-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
87 |
FLANGE; SHAFT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-47149-041-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
87 |
FLANGE; SHAFT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-47149-041-0 |
01 |
1 |
9902-9902 |
|
● |
● |
| |
87 |
FLANGE; SHAFT
|
1-47149-041-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
87 |
FLANGE; SHAFT
|
1-47149-041-0 |
01 |
1 |
9903-9904 |
|
● |
● |
| |
87 |
FLANGE; SHAFT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47149-041-0 |
01 |
1 |
9905- |
|
● |
● |
| |
87 |
FLANGE; SHAFT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47149-041-0 |
01 |
1 |
9905- |
|
● |
● |
| |
88 |
CLIP; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-09589-018-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
88 |
CLIP; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-09589-018-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
88 |
CLIP; BRKT
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
1-09589-018-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
88 |
CLIP; BRKT
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
1-09589-018-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
88 |
CLIP; BRKT
|
1-09589-018-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
88 |
CLIP; BRKT
|
1-09589-018-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
88 |
CLIP; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09589-018-0 |
02 |
1 |
9905- |
|
● |
● |
| |
88 |
CLIP; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-09589-018-0 |
02 |
1 |
9905- |
|
● |
● |
| |
90 |
BRACKET; CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-42129-046-3 |
01 |
1 |
9603-9612 |
|
● |
● |
| |
90 |
BRACKET; CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-42129-240-0 |
01 |
1 |
9701-9901 |
|
● |
● |
| |
90 |
BRACKET; CHAMBER
REARWARD
|
1-42129-240-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
90 |
BRACKET; CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-42129-240-0 |
01 |
1 |
9905- |
|
● |
● |
| |
90 |
BRACKET; CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-42129-045-3 |
01 |
1 |
9603-9612 |
|
● |
● |
| |
90 |
BRACKET; CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-42129-241-0 |
01 |
1 |
9701-9901 |
|
● |
● |
| |
90 |
BRACKET; CHAMBER
REARWARD
|
1-42129-241-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
90 |
BRACKET; CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
1-42129-241-0 |
01 |
1 |
9905- |
|
● |
● |
| |
91 |
BOLT; CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
RAERWARD
M16X30 FLANGE
|
0-28981-630-0 |
08 |
1 |
9603-9901 |
|
● |
● |
| |
91 |
BOLT; CHAMBER
REARWARD
M16X30 FLANGE
|
0-28981-630-0 |
08 |
1 |
9902-9904 |
|
● |
● |
| |
91 |
BOLT; CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
M16X30 FLANGE
|
0-28981-630-0 |
08 |
1 |
9905- |
|
● |
● |
| |
189 |
SHAFT; RR,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47141-065-1 |
01 |
1 |
0007- |
|
● |
● |
| |
189 |
SHAFT; RR,BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-47141-065-1 |
01 |
1 |
0007- |
|
● |
● |
| |
192 |
PIN; KNOCK,FLANGE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
OD=12 L=20
|
9-08161-220-0 |
01 |
1 |
0007- |
|
● |
● |
| |
192 |
PIN; KNOCK,FLANGE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
OD=12 L=20
|
9-08161-220-0 |
01 |
1 |
0007- |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
9-09180-038-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
9-09180-038-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
|
9-09180-038-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
|
9-09180-038-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
REARWARD
|
9-09180-038-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
REARWARD
|
9-09180-038-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
REARWARD
|
9-09180-038-0 |
03 |
1 |
9905-9910 |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-09180-038-0 |
01 |
1 |
9911- |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD
|
9-09180-038-0 |
01 |
1 |
9603-9901 |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
FORWARD
|
9-09180-038-0 |
01 |
1 |
9902-9904 |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD
|
9-09180-038-0 |
01 |
1 |
9905-9910 |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-09180-038-0 |
02 |
1 |
9911- |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
9-09180-038-0 |
02 |
1 |
9911- |
|
● |
● |
| |
195 |
RING; SNAP,CM/SHF
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
REARWARD
|
9-09180-038-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9603-9901 |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
FINAL GEAR 41/6 17.5"(W4W)
REAR AXLE RT210<C2A>
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
FINAL GEAR 45/7 17.5"(W3X),FINAL GEAR 39/7
17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8
17.5"(W4B)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9902-9902 |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
FORWARD,REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
FORWARD,REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9903-9904 |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9905- |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
FORWARD,REARWARD
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9905- |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9905-9910 |
|
● |
● |
| |
198 |
NIPPLE; GREASE,SLACK ADJ
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9905-9910 |
|
● |
● |
