Isuzu WW
▶
TRUCKS
▶
NPS
▶
51162 - NPS-RHD
▶
5 - Frame, Cab Mounting
▶
5-30 - SPARE TIRE CARRIER AND COVER
▶

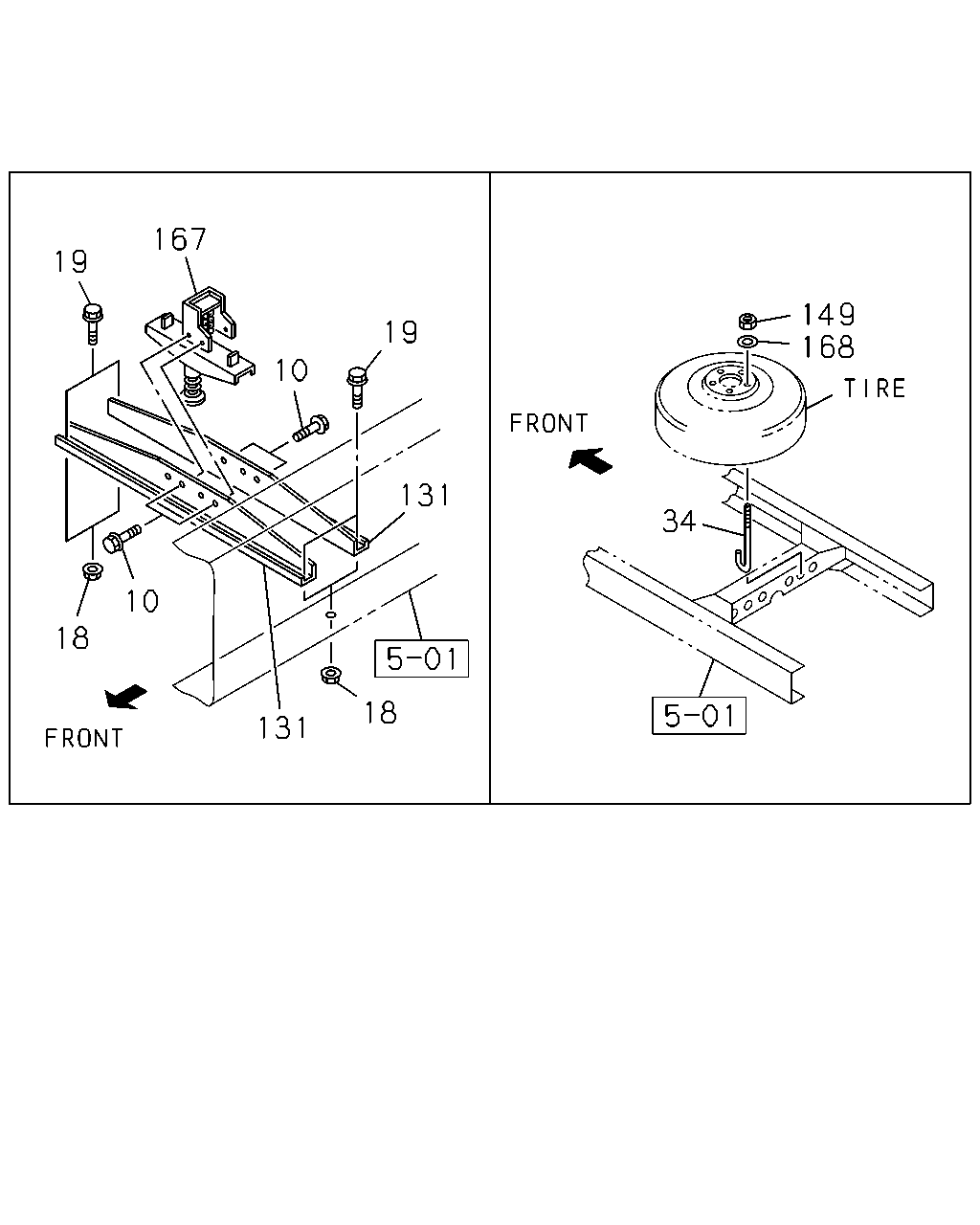

5-30 — SPARE TIRE CARRIER AND COVER
(#53645) — 13 parça
Tümü
A - NPS5SN
B - NPS5WN
167
19
149
168
19
10
131
34
10
18
18
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
07.632 BOLT; TIRE HANGER
06.216 M8X25 FLANGE
0-28650-825-0
04
1
0710-
●
●
18
07.633 NUT; MEMBER
03.162 M10 FLANGE
0-91180-110-0
04
1
0710-
●
●
19
07.632 BOLT; C/MBR
00.029 M10X30 FLANGE
0-28651-030-0
04
1
0710-
●
●
34
07.629 BOLT; SPARE TIRE
M12X305
8-94441-189-0
02
1
0710-1209
●
●
34
07.629 BOLT; SPARE TIRE
M12X330
8-98226-501-0
02
1
1210-
●
●
131
07.629 CROSSMEMBER; SPARE TIRE
8-98035-827-1
02
1
0710-
●
●
149
07.629 NUT; CARRIER
05.002 M12
0-91110-512-0
02
1
0710-
●
●
167
07.629 HANGER; TIRE
8-98049-238-0
01
1
0710-0803
●
●
167
07.629 HANGER; TIRE
FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX)
8-98049-238-0
01
1
0804-1005
●
167
07.629 HANGER; TIRE
8-98049-238-0
01
1
0804-1005
●
167
07.629 HANGER; TIRE
8-98049-238-0
01
1
1006-
●
167
07.629 HANGER; TIRE
F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX)
8-98049-238-0
01
1
1006-
●
168
07.633 WASHER; SPARE TIRE
07.243 ID=12.5 OD=54
8-94466-483-0
02
1
0710-
●
●
