Isuzu WW
▶
TRUCKS
▶
NPS
▶
51162 - NPS-RHD
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#53641) — 77 parça
Tümü
A - NPS5SN
B - NPS5WN
◀
[501A] RIVET,BOLT,NUT (25 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (13 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (11 parça)
[501A] FRAME ASM (4 parça)
[501A] CROSS MEMBER AND BRACKET(NO.1) (24 parça)
▶
376
376
376
376
376
376
376
376
376
376
376
376
376
376
221
221
176
176
296
118
67
222
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
67
07.011 NUT; C/MBR
04.085 M10 FLANGE
0-91180-210-0
14
1
0710-0710
●
●
67
07.011 NUT; C/MBR
04.085 M10 FLANGE
0-91180-210-0
18
1
0711-
●
●
118
07.529 NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
02
1
0710-
●
●
176
04.085 BOLT; C/MBR,ENG MTG
09.171 (A) M10X25 FLANGE
0-28051-025-0
08
1
0710-0710
●
●
176
04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE
0-28051-030-0
04
1
0711-
●
●
176
04.085 BOLT; C/MBR,ENG MTG
00.029 (A) M10X25 FLANGE
0-28651-025-0
02
1
0711-
●
●
176
04.085 BOLT; C/MBR,ENG MTG
00.029 (B) M10X30 FLANGE
0-28651-030-0
02
1
0711-
●
●
221
01.270 BOLT; RAD MTG BRKT,FRAME
01.531 (A) M8X20 FLANGE
0-28650-820-0
02
1
0710-0710
●
●
221
01.270 BOLT; RAD MTG BRKT,FRAME
06.216 (B) M8X25 FLANGE
0-28650-825-0
02
1
0711-
●
●
222
07.039 NUT; RAD MTG BRKT,FRAME
01.540 M8 FLANGE
0-91180-208-0
02
1
0711-
●
●
296
07.039 BOLT; 3RD C/MBR
00.029 M10X30 FLANGE
0-28651-030-0
16
1
0710-
●
●
376
07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END
9-06750-824-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
07.395 (B) D8X26 TAPER END
9-06750-826-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
(C) D10X22 TAPER END
9-06751-022-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
(D) D10X24 TAPER END
9-06751-024-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
(E) D10X26 TAPER END
9-06751-026-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
(F) D10X28 TAPER END
9-06751-028-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
(G) D10X30 TAPER END
9-06751-030-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
(H) D10X32 TAPER END
9-06751-032-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
(I) D10X36 TAPER END
9-06751-036-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
(J) D11X26 TAPER END
9-06751-126-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
(K) D11X30 TAPER END
9-06751-130-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
07.105 (L) D12X30 TAPER END
9-06751-230-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
07.428 (M) D12X36 TAPER END
9-06751-236-0
AR
1
0710-
●
●
376
07.039 RIVET; FRAME
07.112 (N) D12X40 TAPER END
9-06751-240-0
AR
1
0710-
●
●
51
51
42
24
63
141
141
39
31
31
103
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
07.105 BRACKET; FRT SPR,FRT
8-98059-775-0
02
1
0710-
●
●
31
07.428 BUSHING; FRT SPR,RR
07.524
8-97184-699-1
04
1
0710-
●
●
39
07.112 BRACKET; FRT SPR,RR
8-98070-113-0
01
1
0710-
●
●
39
07.112 BRACKET; FRT SPR,RR
8-98070-114-0
01
1
0710-
●
●
42
07.011 MEMBER; CROSS,ENG MTG
8-98067-960-0
01
1
0710-
●
●
43
09.003 BRACKET; CAB MTG,RR
8-98061-561-1
01
1
0710-
●
43
09.003 BRACKET; CAB MTG,RR
8-98061-560-1
01
1
0710-
●
51
07.011 BRACKET; ENG SUPPORT,OUTER
8-98034-961-0
01
1
0710-
●
●
63
01.270 BRACKET; RAD MTG
8-97115-668-0
01
1
0710-
●
●
103
07.420 STOPPER; SUB SPR
07.524 (B)
8-97079-659-1
02
1
0710-
●
●
103
07.420 STOPPER; SUB SPR
(A)
8-97223-748-0
04
1
0710-
●
●
141
07.112 STIFFENER
8-98064-354-2
01
1
0710-
●
●
141
07.112 STIFFENER
8-98064-355-2
01
1
0710-
●
●
140
196
217
139
198
198
74
201
344
130
74
201
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
74
07.039 GUSSET; 4TH C/MBR
RH-LOWER, LH-UPPER
8-98000-583-0
02
1
0710-
●
●
74
07.039 GUSSET; 4TH C/MBR
RH-UPPER, LH-LOWER
8-98000-584-0
02
1
0710-
●
●
130
07.014 MEMBER; CROSS,END
8-97080-872-0
01
1
0710-
●
●
139
07.012 MEMBER; CROSS,6TH
8-97107-384-0
01
1
0710-
●
●
140
07.112 BRACKET; S/ABS,RR
8-97080-884-1
02
1
0710-
●
●
196
07.242 BRACKET; STAB TO FRAME
8-98033-523-0
02
1
0710-
●
●
198
07.039 GUSSET; 6TH C/MBR
8-98092-777-1
01
1
0710-
●
●
198
07.039 GUSSET; 6TH C/MBR
8-98092-778-1
01
1
0710-
●
●
201
07.039 GUSSET; C/MBR
8-97096-871-0
02
1
0710-
●
●
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
8-97202-417-0
02
1
0710-
●
●
344
07.012 MEMBER; CROSS,4TH
8-97175-993-3
01
1
0710-
●
●
1
1

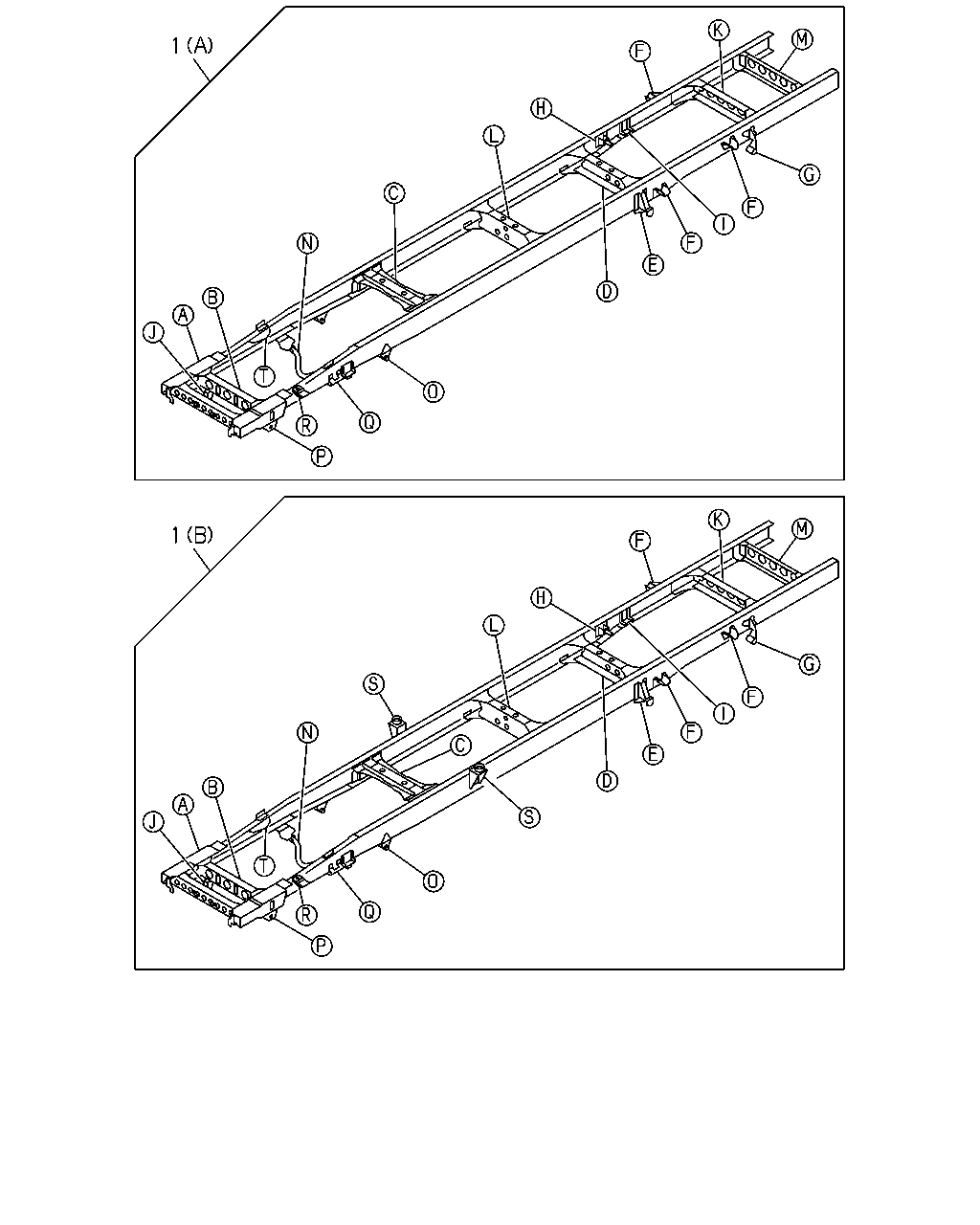

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
07.003 FRAME ASM
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)
8-98162-924-2
01
1
1003-
●
1
07.003 FRAME ASM
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)
8-98071-749-4
01
1
0710-
●
1
07.003 FRAME ASM
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)
8-98071-748-4
01
1
0710-
●
1
07.003 FRAME ASM
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)
8-98071-751-4
01
1
0710-
●
165
20
2
325
325
75
34
345
75
101
446
446
103
215
147
105
215

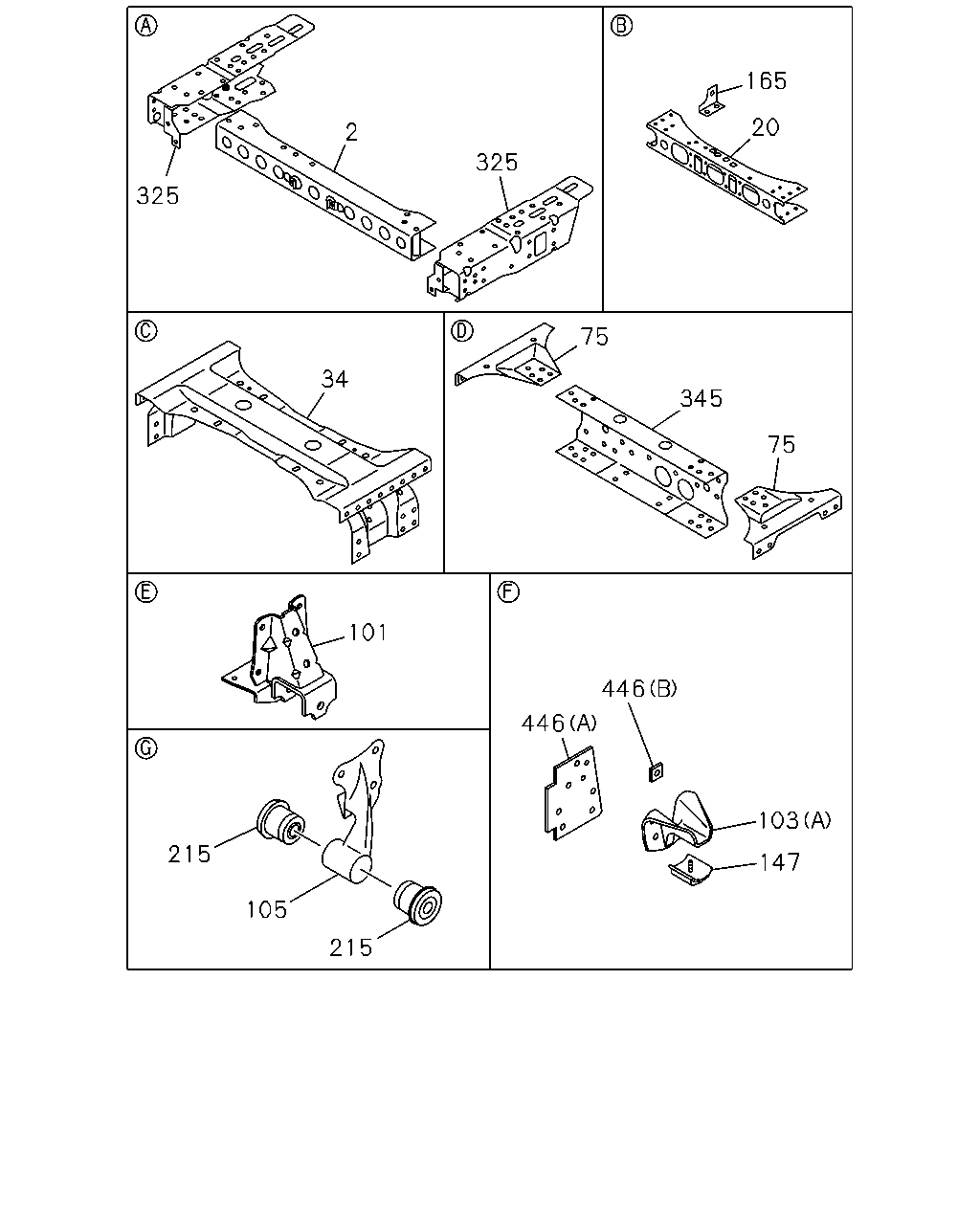

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
07.010 MEMBER; CROSS,1ST
8-97387-866-5
01
1
0710-
●
●
20
07.012 MEMBER; CROSS,2ND
8-98014-074-7
01
1
0710-
●
●
34
07.012 MEMBER; CROSS,3RD
8-98074-639-4
01
1
0710-
●
●
75
07.039 GUSSET; 5TH C/MBR
RH-UPPER, LH-LOWER
8-98000-583-0
02
1
0710-
●
●
75
07.039 GUSSET; 5TH C/MBR
RH-LOWER, LH-UPPER
8-98000-584-0
02
1
0710-
●
●
101
07.112 BRACKET; RR SPR,FRT
8-97042-245-1
02
1
0710-1505
●
●
101
07.112 BRACKET; RR SPR,FRT
8-98243-605-0
02
1
1506-
●
●
103
07.420 STOPPER; SUB SPR
07.524 (B)
8-97079-659-1
02
1
0710-
●
●
103
07.420 STOPPER; SUB SPR
(A)
8-97223-748-0
04
1
0710-
●
●
105
07.112 BRACKET; RR SPR,RR
8-98032-488-0
01
1
0710-
●
●
105
07.112 BRACKET; RR SPR,RR
8-98032-489-0
01
1
0710-
●
●
147
07.535 RUBBER; SUB SPRING
8-97254-387-0
04
1
0710-
●
●
165
01.270 BRACKET; RAD STAY
8-98000-886-0
01
1
0710-
●
●
215
07.524 BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
0710-
●
●
325
07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>
8-98073-344-1
01
1
0710-1002
●
325
07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>
8-98073-344-1
01
1
1003-
●
●
325
07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>
8-98073-345-0
01
1
0710-1002
●
325
07.039 EXTENSION; FRAME
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>
8-98073-345-0
01
1
1003-
●
●
325
07.039 EXTENSION; FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98073-348-1
01
1
0710-
●
●
325
07.039 EXTENSION; FRAME
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98073-349-0
01
1
0710-
●
●
345
07.012 MEMBER; CROSS,5TH
8-97175-993-3
01
1
0710-
●
●
446
07.112 STIFFENER; SPRING STOPPER
(B)
8-97122-173-0
02
1
0710-
●
●
446
07.112 STIFFENER; SPRING STOPPER
(A)
8-98014-080-1
02
1
0710-0802
●
●
446
07.112 STIFFENER; SPRING STOPPER
(A)
8-98014-080-1
02
1
0803-1002
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
