4-80 — ROAD WHEEL (#53640) — 58 parça

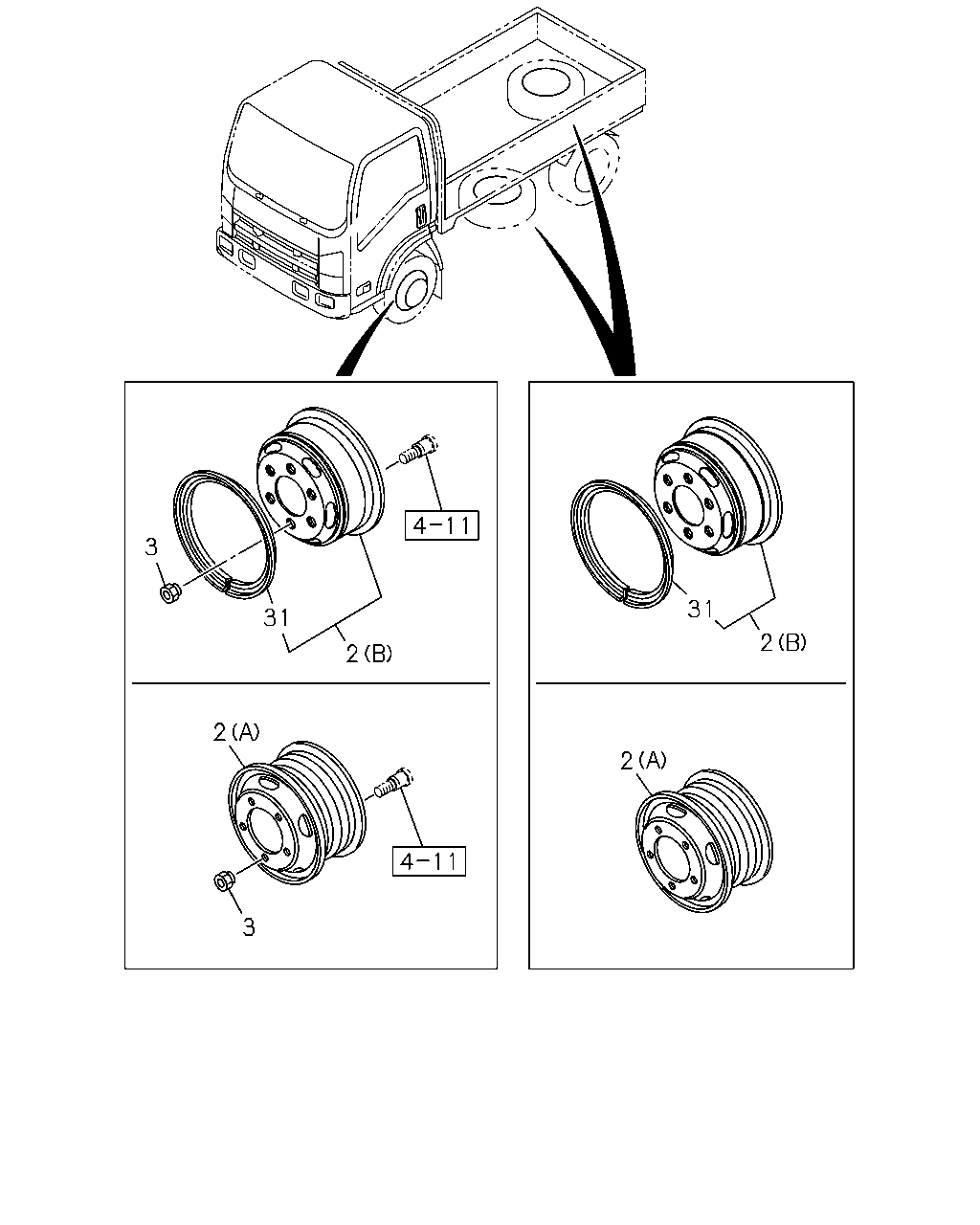

3 31 31 2 2 2 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (B) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0804-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (B) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0804-	●
2	05.803 WHEEL; DISC (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0710-0803	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0804-1005	●
2	05.803 WHEEL; DISC (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0804-1005		●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	1006-1010	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1011-	●	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0710-0803	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX) (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0804-1005	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0804-1005		●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	1006-1010	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1011-	●	●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0710-0803	●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX) M20 LH THREAD	8-97359-808-0	06	1	0804-1005	●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	0804-1005		●
3	05.813 NUT; WHEEL,FRT AXLE M20 LH THREAD	8-97359-808-0	06	1	1006-	●
3	05.813 NUT; WHEEL,FRT AXLE F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) M20 LH THREAD	8-97359-808-0	06	1	1006-		●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0710-0803	●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX) M20 RH THREAD	8-97359-807-0	06	1	0804-1005	●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	0804-1005		●
3	05.813 NUT; WHEEL,FRT AXLE M20 RH THREAD	8-97359-807-0	06	1	1006-	●
3	05.813 NUT; WHEEL,FRT AXLE F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) M20 RH THREAD	8-97359-807-0	06	1	1006-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0804-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0804-	●

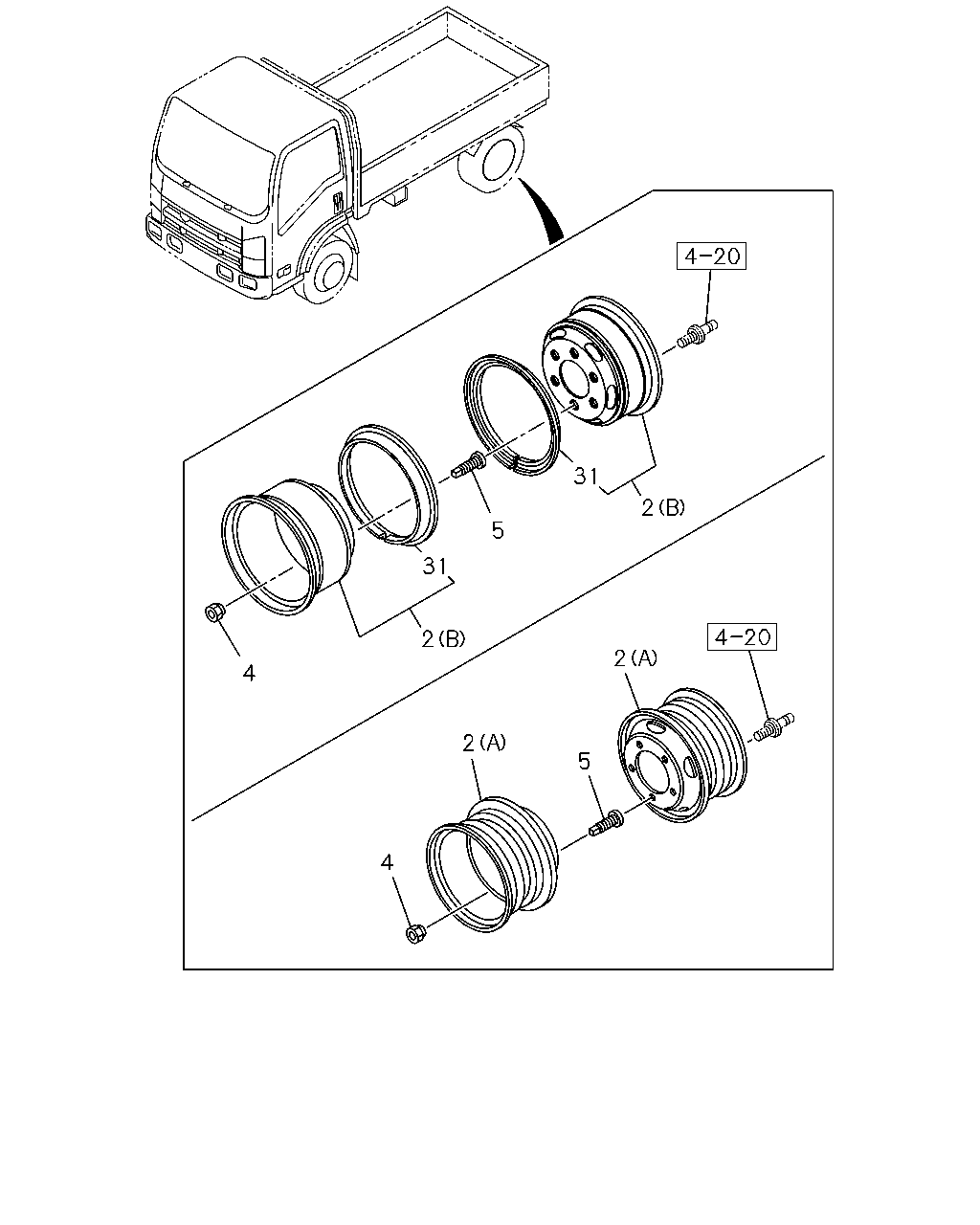

31 2 5 31 2 2 4 2 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (B) SPARE 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	01	1	0804-	●
2	05.803 WHEEL; DISC FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) (B) FRONT,REAR 6.0GSX16 OFFSET=127 BLACK 6-HOLE	8-94438-670-4	06	1	0804-	●
2	05.803 WHEEL; DISC (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0710-0803	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0804-1005	●
2	05.803 WHEEL; DISC (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	0804-1005		●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	01	1	1006-1010	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) (A) SPARE 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	01	1	1011-	●	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0710-0803	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX) (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0804-1005	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	0804-1005		●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98012-855-0	06	1	1006-1010	●	●
2	05.803 WHEEL; DISC F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) (A) FRONT,REAR 17.5X6.00 OFFSET=127 SILVER 6-HOLE	8-98168-215-0	06	1	1011-	●	●
4	05.813 NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0710-0803	●	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX) M30 LH THREAD	8-97359-810-0	06	1	0804-1005	●
4	05.813 NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	0804-1005		●
4	05.813 NUT; WHEEL,RR AXLE M30 LH THREAD	8-97359-810-0	06	1	1006-	●
4	05.813 NUT; WHEEL,RR AXLE F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) M30 LH THREAD	8-97359-810-0	06	1	1006-		●
4	05.813 NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0710-0803	●	●
4	05.813 NUT; WHEEL,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX) M30 RH THREAD	8-97359-809-0	06	1	0804-1005	●
4	05.813 NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	0804-1005		●
4	05.813 NUT; WHEEL,RR AXLE M30 RH THREAD	8-97359-809-0	06	1	1006-	●
4	05.813 NUT; WHEEL,RR AXLE F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) M30 RH THREAD	8-97359-809-0	06	1	1006-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0710-0803	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0804-1005	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	0804-1005		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1006-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	06	1	1006-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0710-0803	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC),F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL/NUT(CTX) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0804-1005	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	0804-1005		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1006-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE F&R8.50R17.5(MICHELIN)17.5X6.00-127 6-WHL /NUT(CTX),F&R8.50R17.5(BS BRAND)17.5X6.00-127 6-WHL/NUT(CVX) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	06	1	1006-		●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	0804-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5R-16-10 6GSX16-127 6WHL/NUT(CRC) FRONT,REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	06	1	0804-	●
