4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#53631) — 152 parça

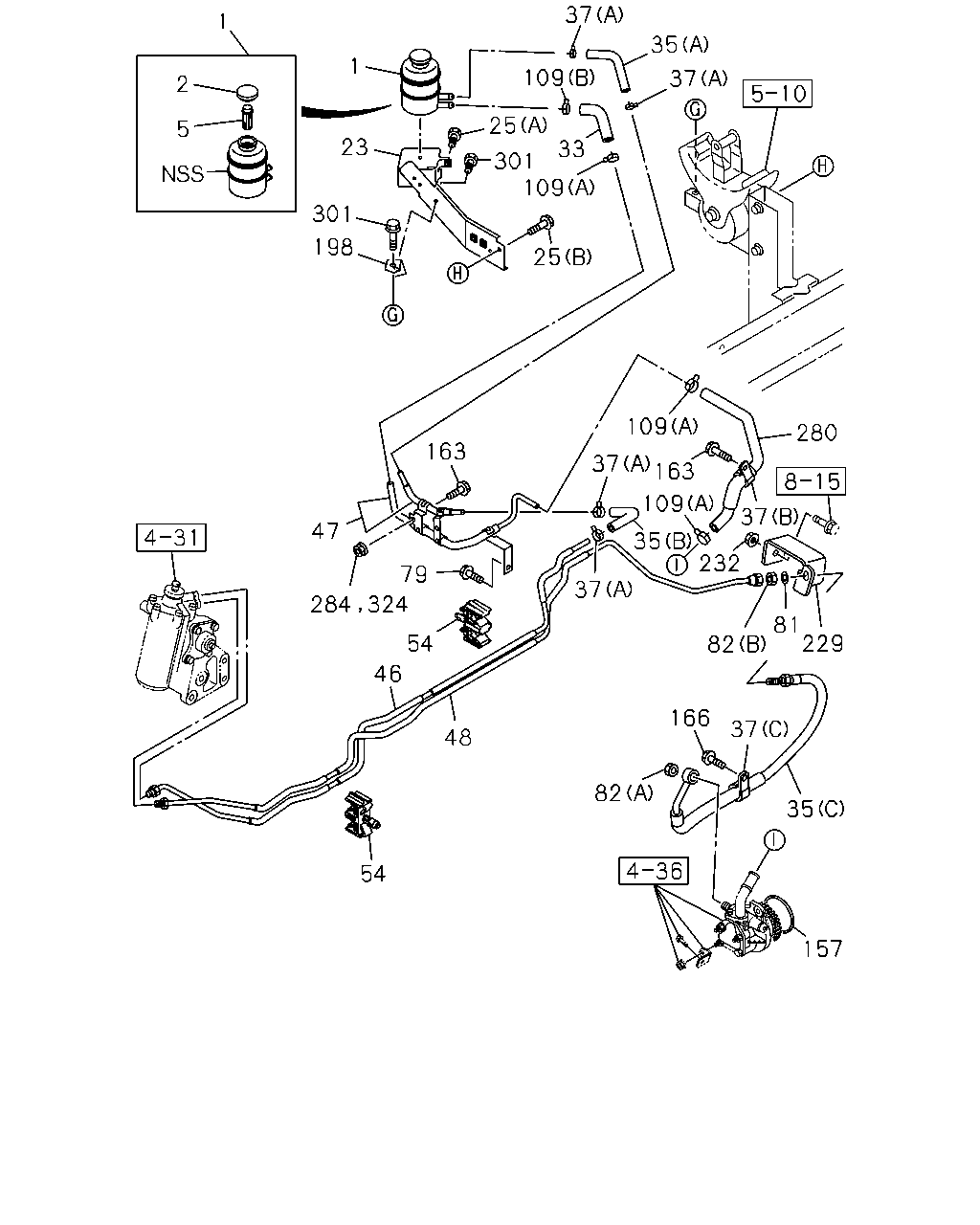

37 1 35 1 109 37 2 25 5 23 33 301 109 301 198 25 109 280 163 37 163 109 37 47 35 232 79 37 284 81 82 229 54 46 166 37 48 82 35 54 157 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0710-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0710-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0710-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0710-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0710-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0710-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0710-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0710-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0710-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98043-490-3	01	1	0710-		●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	0710-	●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S CATALYSIS CONTROL WITH DPD(8JM) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0804-	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0804-		●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0710-0911	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	0710-	●	●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	0710-0803	●
47	06.671 PIPE; RETURN CATALYSIS CONTROL WITH DPD(8JM)	8-98033-896-4	01	1	0804-	●
47	06.671 PIPE; RETURN EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98083-166-1	01	1	0804-	●
47	06.671 PIPE; RETURN	8-98043-420-4	01	1	0710-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	0710-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	0710-		●
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	0710-	●	●
79	06.672 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-		●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0710-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0710-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0710-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0710-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0710-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0710-1003	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0710-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0710-	●	●
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	0710-	●
229	06.606 BRACKET; HOSE,POWER STRG 06.672	8-98043-418-2	01	1	0710-		●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-248-1	01	1	0710-0803	●
280	06.672 HOSE; P/S OIL PUMP,INL CATALYSIS CONTROL WITH DPD(8JM)	8-98052-248-1	01	1	0804-	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98082-973-0	01	1	0804-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98043-489-0	01	1	0710-		●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-		●

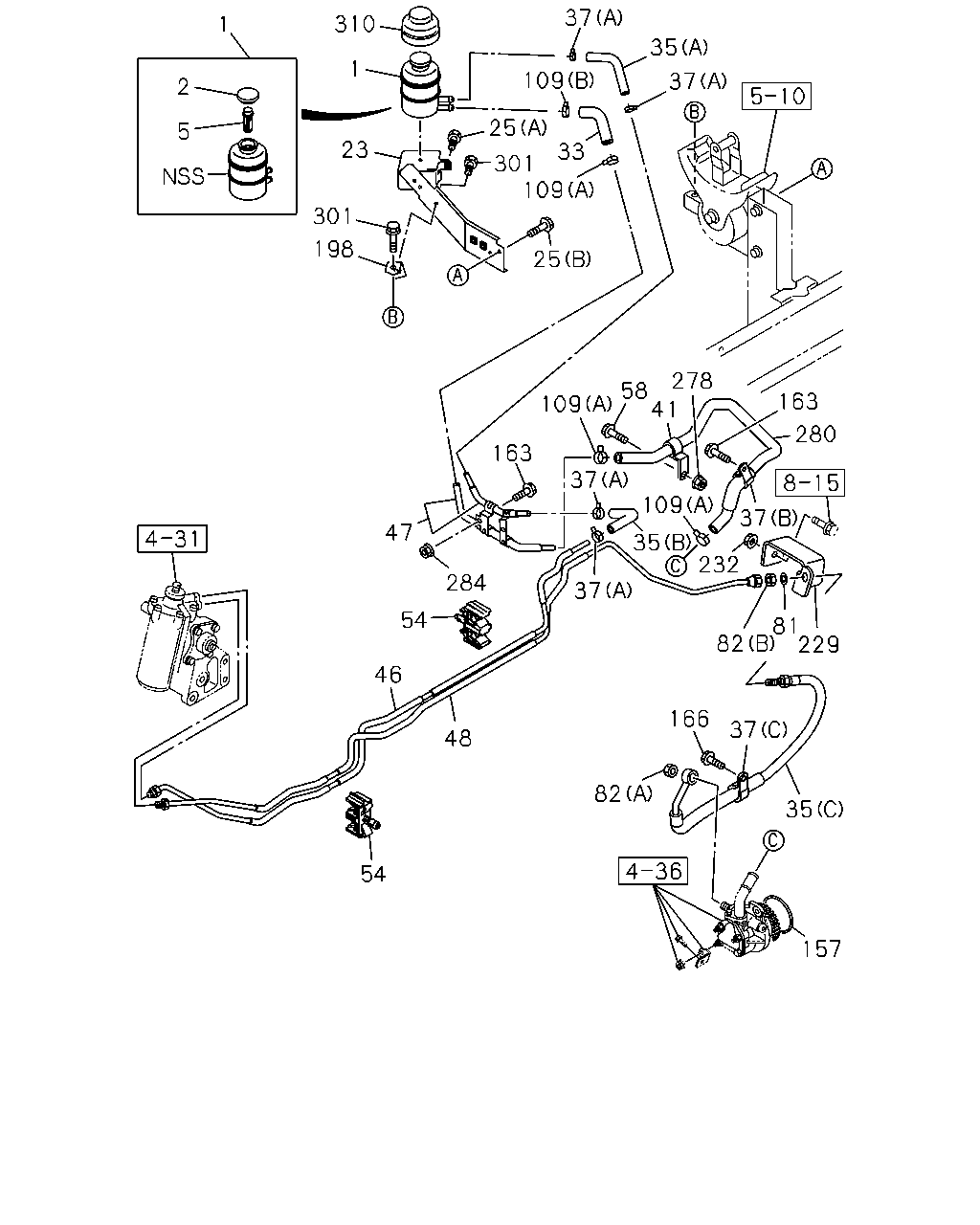

37 310 1 35 1 109 37 2 25 5 23 33 301 109 301 198 25 109 280 163 109 37 232 35 47 284 37 54 81 82 229 46 166 37 48 82 35 54 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0710-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0710-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0710-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0710-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0710-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0710-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0710-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0710-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0710-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98043-490-3	01	1	0710-		●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	0710-	●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S CATALYSIS CONTROL WITH DPD(8JM) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0804-	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0804-		●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0710-0911	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	0710-	●	●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	0710-0803	●
47	06.671 PIPE; RETURN CATALYSIS CONTROL WITH DPD(8JM)	8-98033-896-4	01	1	0804-	●
47	06.671 PIPE; RETURN EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98083-166-1	01	1	0804-	●
47	06.671 PIPE; RETURN	8-98043-420-4	01	1	0710-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	0710-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	0710-		●
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	0710-	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0710-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0710-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0710-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0710-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0710-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0710-1003	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0710-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0710-	●	●
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	0710-	●
229	06.606 BRACKET; HOSE,POWER STRG 06.672	8-98043-418-2	01	1	0710-		●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-248-1	01	1	0710-0803	●
280	06.672 HOSE; P/S OIL PUMP,INL CATALYSIS CONTROL WITH DPD(8JM)	8-98052-248-1	01	1	0804-	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98082-973-0	01	1	0804-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98043-489-0	01	1	0710-		●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0710-	●

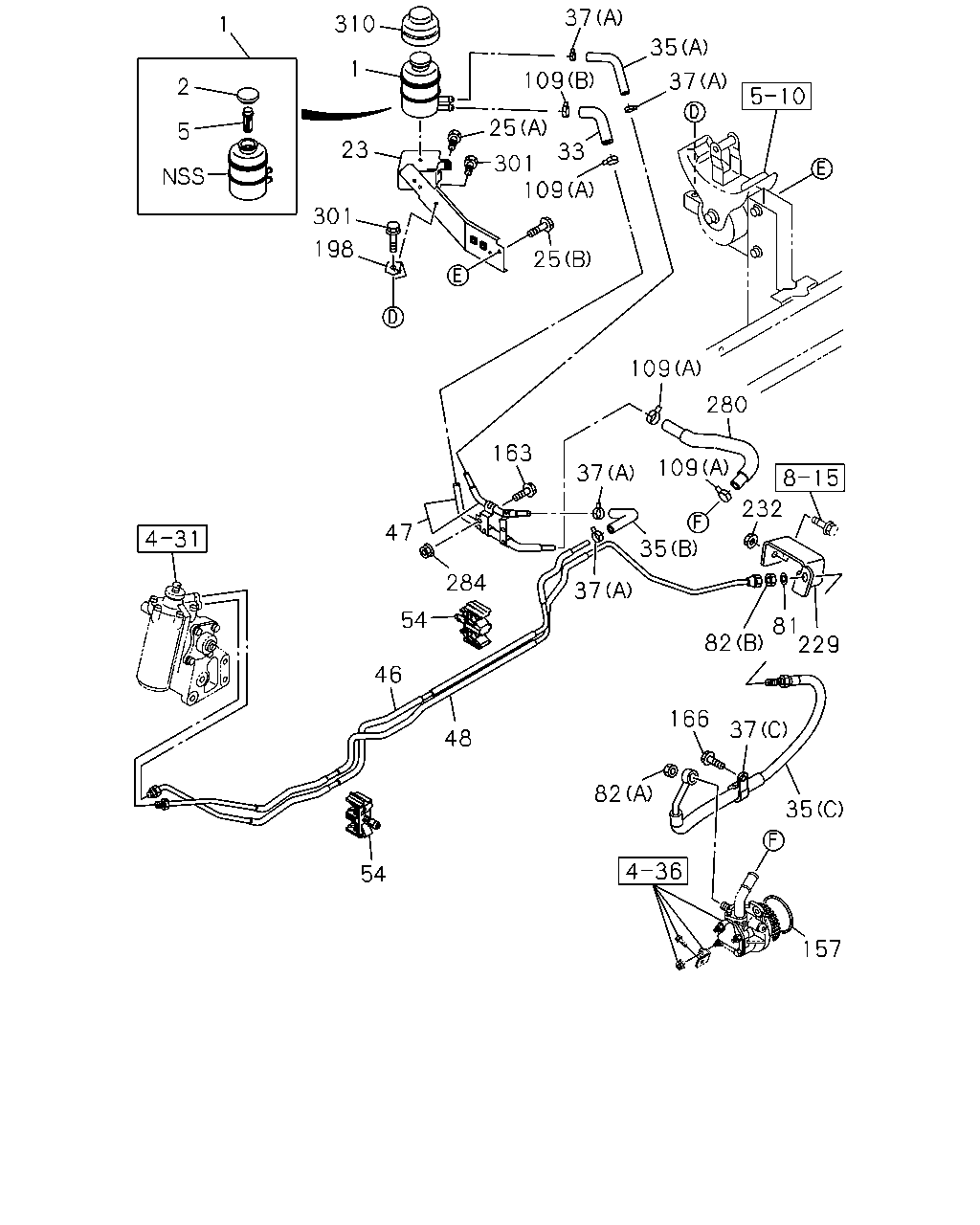

37 310 1 35 1 109 37 2 25 5 23 33 301 109 301 198 25 278 58 41 163 109 280 163 37 109 37 47 35 232 284 37 54 81 46 166 37 48 82 35 54 157 82 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0710-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0710-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0710-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98077-631-0	01	1	0710-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0710-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-97389-811-0	01	1	0710-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-97389-832-2	01	1	0710-	●
35	06.671 HOSE; RETURN,P/S TANK (A)	8-97389-842-1	01	1	0710-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98000-701-1	01	1	0710-	●	●
35	06.671 HOSE; RETURN,P/S TANK (C)	8-98043-490-3	01	1	0710-		●
37	01.762 CLIP; HOSE,P/S (C) ID=26 L=26	1-09701-236-0	01	1	0710-	●	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0710-0803	●	●
37	01.762 CLIP; HOSE,P/S CATALYSIS CONTROL WITH DPD(8JM) 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0804-	●
37	01.762 CLIP; HOSE,P/S 02.559 (B) ID=32 L=35	1-09701-244-0	01	1	0804-		●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	04	1	0710-0911	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	04	1	0912-	●	●
41	06.672 CLIP; HOSE,P/S	8-98074-004-0	01	1	0710-0803	●
41	06.672 CLIP; HOSE,P/S CATALYSIS CONTROL WITH DPD(8JM)	8-98074-004-0	01	1	0804-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-98041-184-3	01	1	0710-	●	●
47	06.671 PIPE; RETURN	8-98033-896-4	01	1	0710-0803	●
47	06.671 PIPE; RETURN CATALYSIS CONTROL WITH DPD(8JM)	8-98033-896-4	01	1	0804-	●
47	06.671 PIPE; RETURN EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98083-166-1	01	1	0804-	●
47	06.671 PIPE; RETURN	8-98043-420-4	01	1	0710-		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98041-185-4	01	1	0710-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98069-442-4	01	1	0710-		●
54	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	02	1	0710-	●	●
58	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-0803	●	●
58	06.672 BOLT; CLIP CATALYSIS CONTROL WITH DPD(8JM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-	●
58	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0804-		●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0710-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.897 (B) M16	8-94370-339-0	01	1	0710-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (A) M12 SELF LOCK	8-97028-390-1	01	1	0710-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0710-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0710-0911	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	0912-	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0710-1003	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	8-97101-875-2	01	1	0710-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
166	06.672 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0710-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-97081-778-2	01	1	0710-	●	●
229	06.606 BRACKET; HOSE,POWER STRG	8-98079-341-0	01	1	0710-	●
229	06.606 BRACKET; HOSE,POWER STRG 06.672	8-98043-418-2	01	1	0710-		●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-0803	●
278	06.670 NUT; HOSE CLIP CATALYSIS CONTROL WITH DPD(8JM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0804-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98052-248-1	01	1	0710-0803	●
280	06.672 HOSE; P/S OIL PUMP,INL CATALYSIS CONTROL WITH DPD(8JM)	8-98052-248-1	01	1	0804-	●
280	06.672 HOSE; P/S OIL PUMP,INL EXC. CATALYSIS CONTROL WITH DPD(8JM)	8-98082-973-0	01	1	0804-	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98043-489-0	01	1	0710-		●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	0710-	●
