◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXM ▶ 10721 - CXM/CXZ LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85B - POWER TAKE OFF CONTROL ▶
2-85B — POWER TAKE OFF CONTROL (#5363) — 42 parça

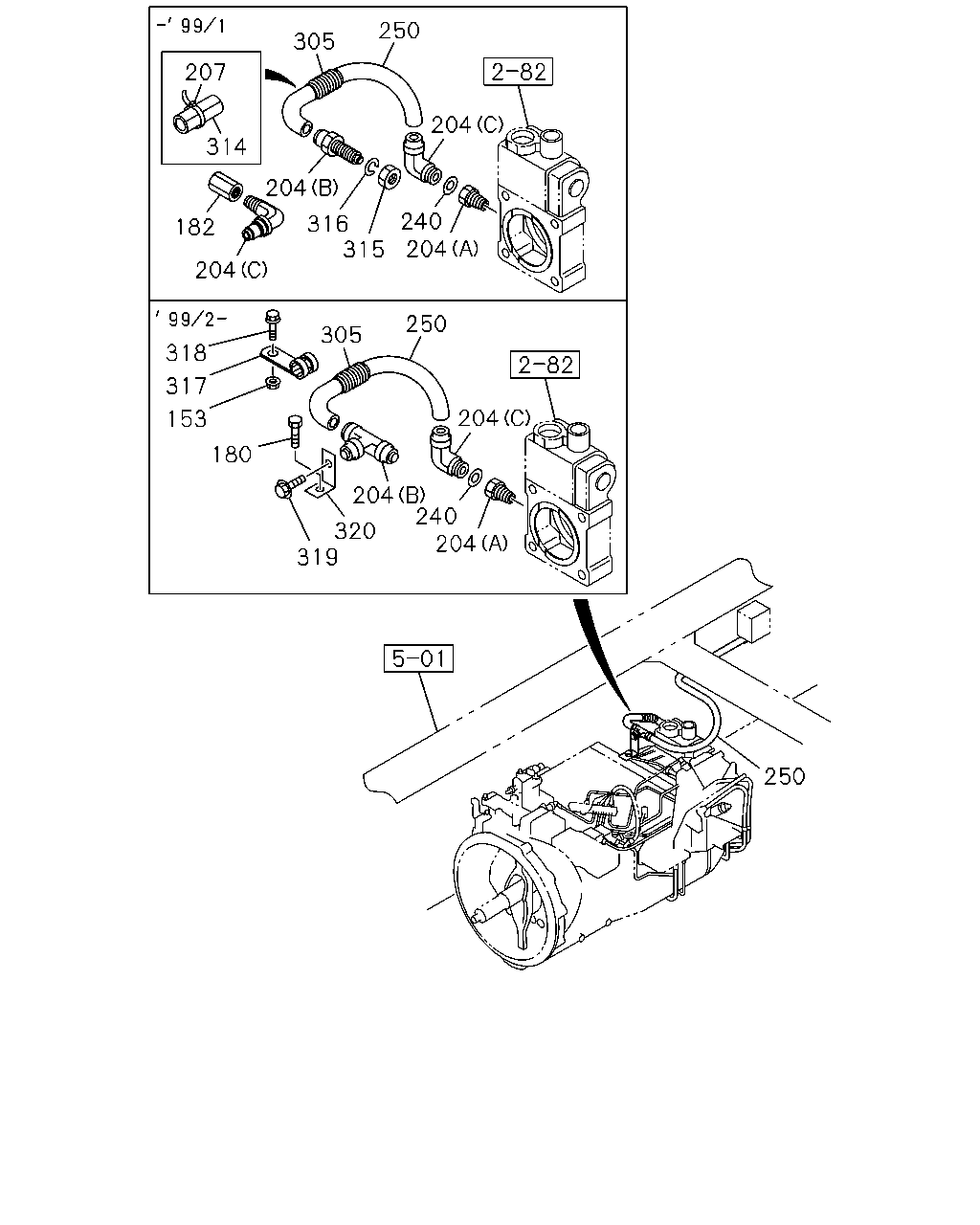

çizim 42244
250 305 207 204 314 204 240 204 316 315 182 204 250 305 318 317 204 153 180 204 240 204 320 319 250
BalonParca AdiParca NoAdetTipApplied Date A B C
153 NUT; CLIP
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91150-108-0 01 1 9910- ● ● ●
180 BOLT; BRKT
PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28881-625-0 01 1 9902-9909 ● ●
180 BOLT; BRKT
PTO ZF TRANS RR(BDM) M16X25 FLANGE 		0-28881-625-0 01 1 9910- ● ● ●
182 CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) DIN8 & M12 STRAIGHT 		1-09660-766-0 01 1 9603-9802 ●
182 CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) 		1-09660-880-0 01 1 9803-9901 ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (A) 		1-09654-396-0 01 1 9803-9901 ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (A) 		1-09654-396-0 01 1 9902-9909 ● ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (A) 		1-09654-396-0 01 1 9910- ● ● ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-649-1 02 1 9803-9901 ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9902-9909 ● ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 9910- ● ● ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (B) DIN8 & M14 STRAIGHT 		1-09660-726-2 01 1 9803-9901 ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (B) 		1-09660-788-0 01 1 9902-9909 ● ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) (B) 		1-09660-788-0 01 1 9910- ● ● ●
207 CLIP; BAND
PTO ZF TRANS RR(BDM) L=140 		5-09707-031-0 02 1 9803-9901 ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		9-09571-412-0 01 1 9603-9802 ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 9803-9901 ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 9902-9909 ● ●
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 9910- ● ● ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9902-9909 ● ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9910- ● ● ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) L=480 SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 9803-9901 ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) L=400 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9803-9901 ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) L=150 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9902-9909 ● ●
305 TUBE; CORRUGATE
PTO ZF TRANS RR(BDM) L=150 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 9910- ● ● ●
314 SLEEVE; RUBBER
PTO ZF TRANS RR(BDM) ID=14 OD=18 L=60 		1-09337-030-0 02 1 9803-9901 ●
315 NUT; CONNECTOR
PTO ZF TRANS RR(BDM) M14 		9-99110-414-0 01 1 9803-9901 ●
316 WASHER; CONNECTOR
PTO ZF TRANS RR(BDM) ID=14.2 		9-09150-514-0 01 1 9803-9901 ●
317 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) ID=14.5 L=40 		1-09701-014-0 01 1 9910- ● ● ●
318 BOLT; CLIP
PTO ZF TRANS RR(BDM) M8X25 FLANGE 		0-28680-825-0 01 1 9910- ● ● ●
319 BOLT; CONNECTOR
PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28080-816-0 01 1 9902-9909 ● ●
319 BOLT; CONNECTOR
PTO ZF TRANS RR(BDM) M8X16 FLANGE 		0-28080-816-0 01 1 9910- ● ● ●
320 BRACKET; UNION
PTO ZF TRANS RR(BDM) 		1-47478-250-0 01 1 9902-9909 ● ●
320 BRACKET; UNION
PTO ZF TRANS RR(BDM) 		1-47478-250-0 01 1 9910- ● ● ●

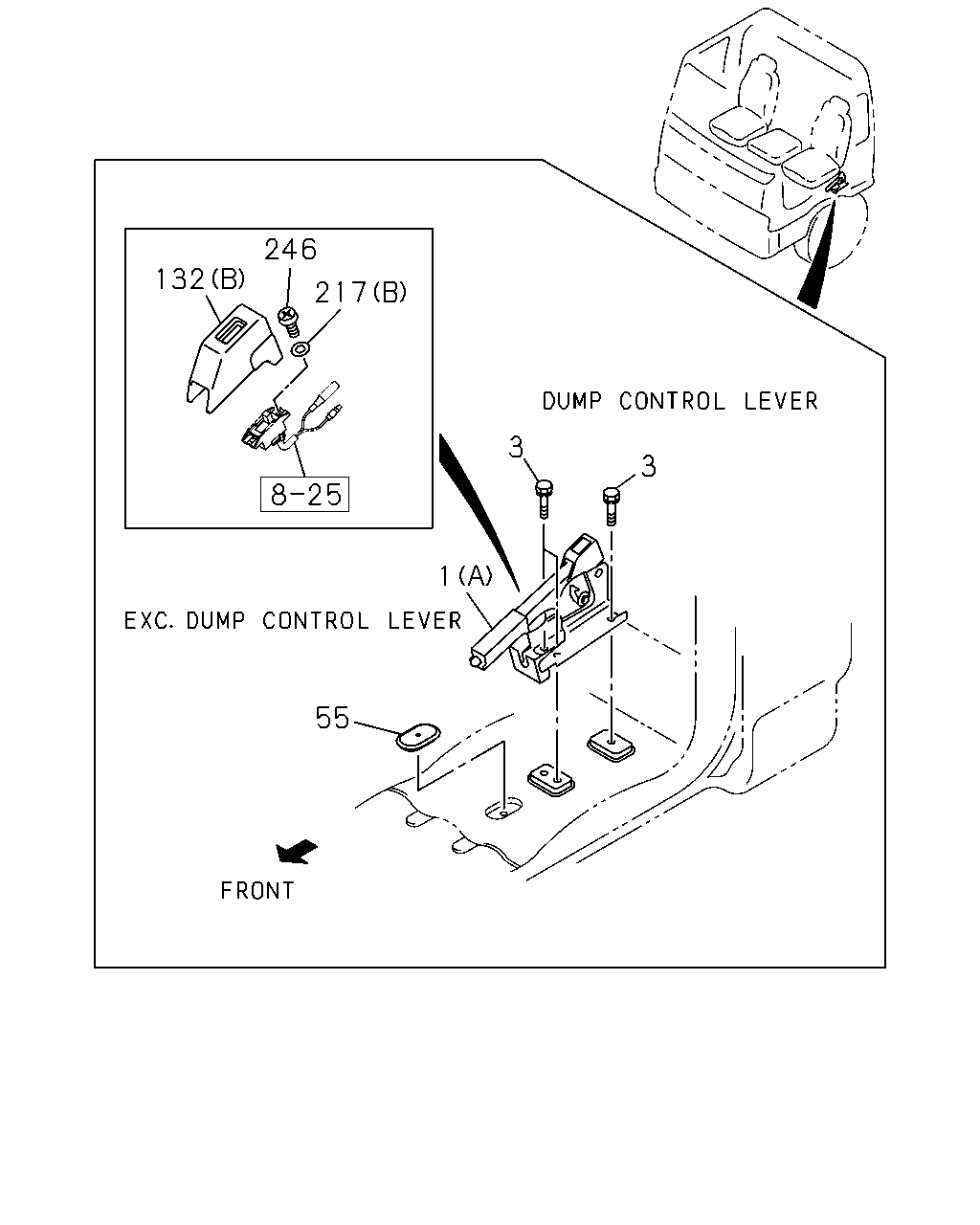

çizim 42647
246 132 217 3 3 1 55
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 9902- ● ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9902- ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 9603-9901 ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 9902-9904 ● ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 9905- ● ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79997-376-0 01 1 9902- ● ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> (B) ID=4.3 		9-09160-504-0 02 1 9902- ● ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 9902- ● ●
