Isuzu WW
▶
TRUCKS
▶
NPS
▶
51162 - NPS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

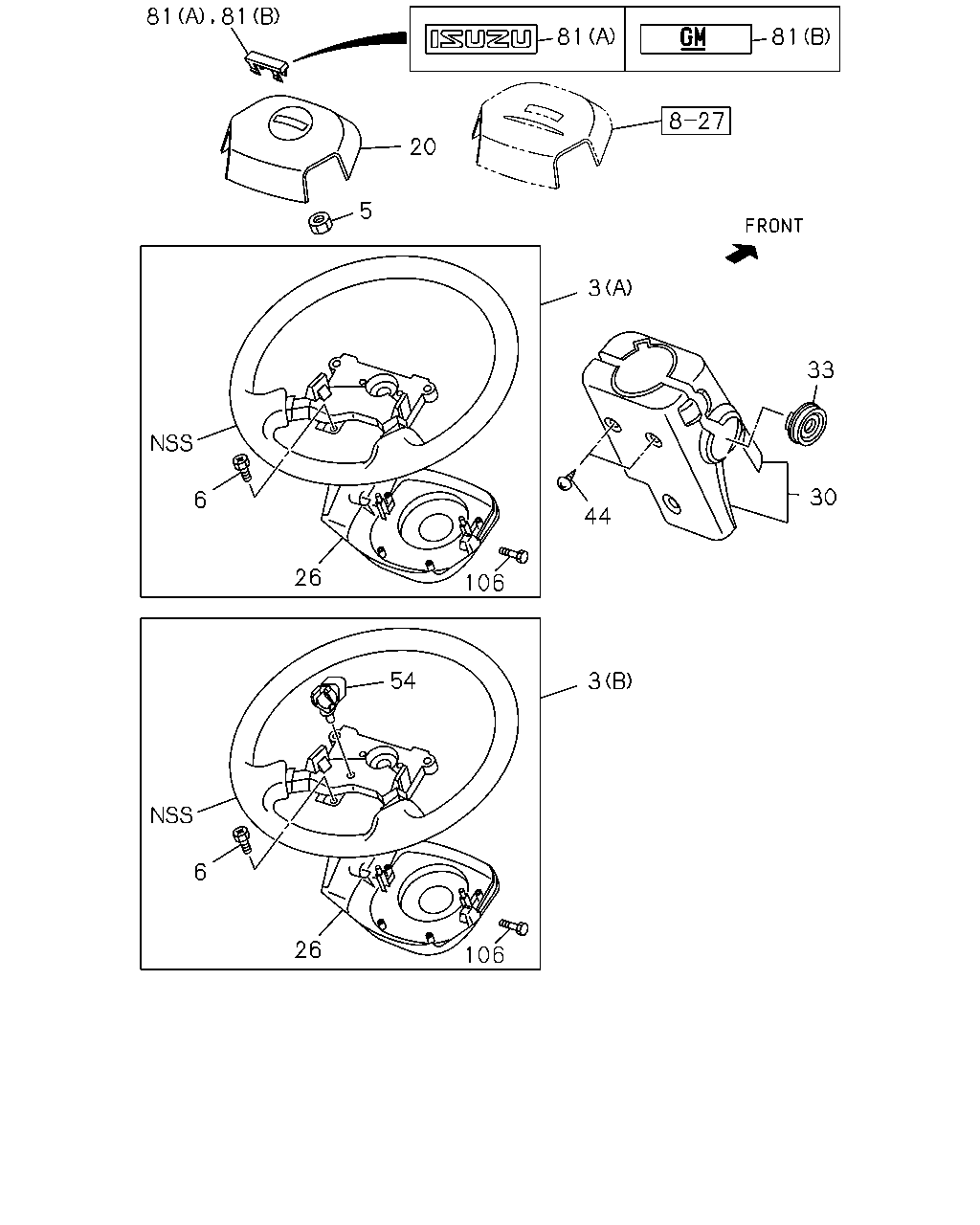

4-30 — STEERING WHEEL AND COWL
(#53628) — 20 parça
Tümü
A - NPS5SN
B - NPS5WN
3
106
26
6
54
26
106
6
5
20
44
30
33
3
81
81
81
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY
8-97405-726-1
01
1
0710-1006
●
●
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A) DARK GRAY
8-97421-977-0
01
1
1007-1210
●
●
3
06.513 WHEEL; STRG
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B) DARK GRAY
8-97423-997-0
01
1
1211-
●
●
3
06.513 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY
8-97412-556-1
01
1
0710-
●
●
5
06.515 NUT; STRG WHEEL TO SHAFT
M14
0-91111-514-0
01
1
0710-
●
●
6
02.820 SCREW; HORN SPR CONTACT
M4X12
8-97167-588-0
04
1
0710-
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY
8-97405-985-1
01
1
0710-
●
●
26
06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97405-841-0
01
1
0710-1006
●
●
26
06.514 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY
8-97421-978-0
01
1
1007-
●
●
26
06.514 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> DARK GRAY
8-97409-275-2
01
1
0710-
●
●
30
06.518 COWL; STEERING
DARK GRAY
8-97405-356-5
01
1
0710-1110
●
●
30
06.518 COWL; STEERING
DARK GRAY
8-97418-761-1
01
1
1111-
●
●
33
06.518 COVER; STRG COWL
EXC. IMMOBILIZER SYSTEM(7KC) DARK GRAY
8-97409-495-0
01
1
0804-
●
44
06.514 SCREW; STRG COWL
M5X12
0-38050-512-0
03
1
0710-
●
●
54
02.559 CLIP; HARNESS
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>
8-98165-703-0
01
1
1211-
●
●
81
02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,ISUZU BRAND<7WL> (B) DARK GRAY
8-97405-987-0
01
1
0804-
●
81
02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY
8-97405-986-0
01
1
0710-0803
●
●
81
02.820 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY
8-97405-986-0
01
1
0804-
●
81
02.820 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) DARK GRAY
8-97405-986-0
01
1
0804-
●
106
05.453 BOLT; TORX
8-98231-397-0
02
1
0710-
●
●
