Isuzu WW
▶
TRUCKS
▶
NPS
▶
51162 - NPS-RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-16 - FREE WHEEL HUB
▶

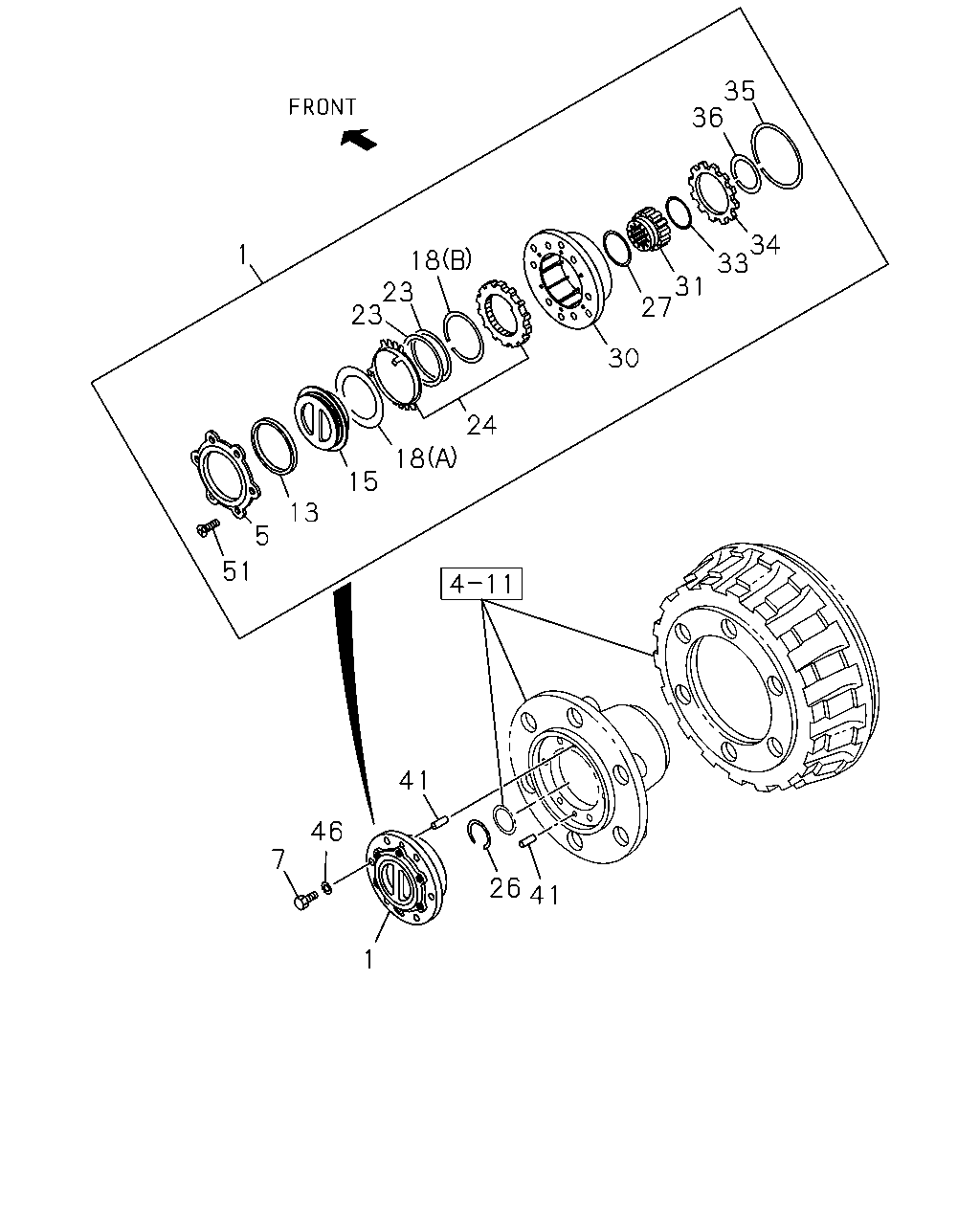

4-16 — FREE WHEEL HUB
(#53625) — 23 parça
Tümü
A - NPS5SN
B - NPS5WN
35
36
34
33
1
18
23
23
31
27
30
24
18
15
13
5
51
41
46
7
26
41
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
06.308 HUB ASM; FREE WHEEL
8-98049-339-0
02
1
0710-
●
●
5
06.308 COVER; HUB LOCK
8-97032-907-0
02
1
0710-
●
●
7
06.308 BOLT; FREE WHEEL HUB
8-98049-682-0
12
1
0710-
●
●
13
06.308 RING; HUB LOCK
8-97032-909-0
02
1
0710-
●
●
15
06.308 HANDLE; HUB LOCK
8-97032-908-0
02
1
0710-
●
●
18
06.308 RING; SNAP,INNER
(A)
8-94321-500-0
02
1
0710-
●
●
18
06.308 RING; SNAP,INNER
(B)
8-94321-504-0
02
1
0710-
●
●
23
06.308 SPRING; TENSION,HUB LOCK
8-94321-499-0
04
1
0710-
●
●
24
06.308 CLUTCH; HUB LOCK
8-94321-498-0
02
1
0710-
●
●
26
06.323 RING; SNAP,HUB
8-94478-198-0
02
1
0710-
●
●
27
06.308 SHIM; AXLE SHAFT
T=0.3
8-94441-489-0
AR
1
0710-
●
●
27
06.308 SHIM; AXLE SHAFT
T=0.5
8-94441-490-0
AR
1
0710-
●
●
27
06.308 SHIM; AXLE SHAFT
T=1.0
8-94441-491-0
AR
1
0710-
●
●
30
06.308 HOUSING; FREE WHEEL HUB
8-94321-492-0
02
1
0710-
●
●
31
06.308 INNER; HUB LOCK
8-94321-495-0
02
1
0710-
●
●
33
06.308 SPACER; HUB LOCK
8-94321-497-0
02
1
0710-
●
●
34
06.308 RING; HUB LOCK
8-94321-493-0
02
1
0710-
●
●
35
06.308 RING; SNAP,HUB LOCK,INNER
8-94321-494-0
02
1
0710-
●
●
36
06.308 RING; SNAP,HUB LOCK,OUTER
8-94321-496-0
02
1
0710-
●
●
41
05.520 PIN; KNOCK,FRT AXLE KNUCKLE
08.939 OD=10 L=20
9-08161-020-0
04
1
0710-1510
●
●
41
05.520 PIN; KNOCK,FRT AXLE KNUCKLE
04.510 OD=10 L=20
8-97135-423-0
04
1
1511-
●
●
46
06.308 WASHER; LK,DRIVEN TO HSG
07.347 ID=12.2
0-91510-812-0
12
1
0710-
●
●
51
06.308 SCREW; FREE WHEEL HUB
8-98049-688-0
12
1
0710-
●
●
